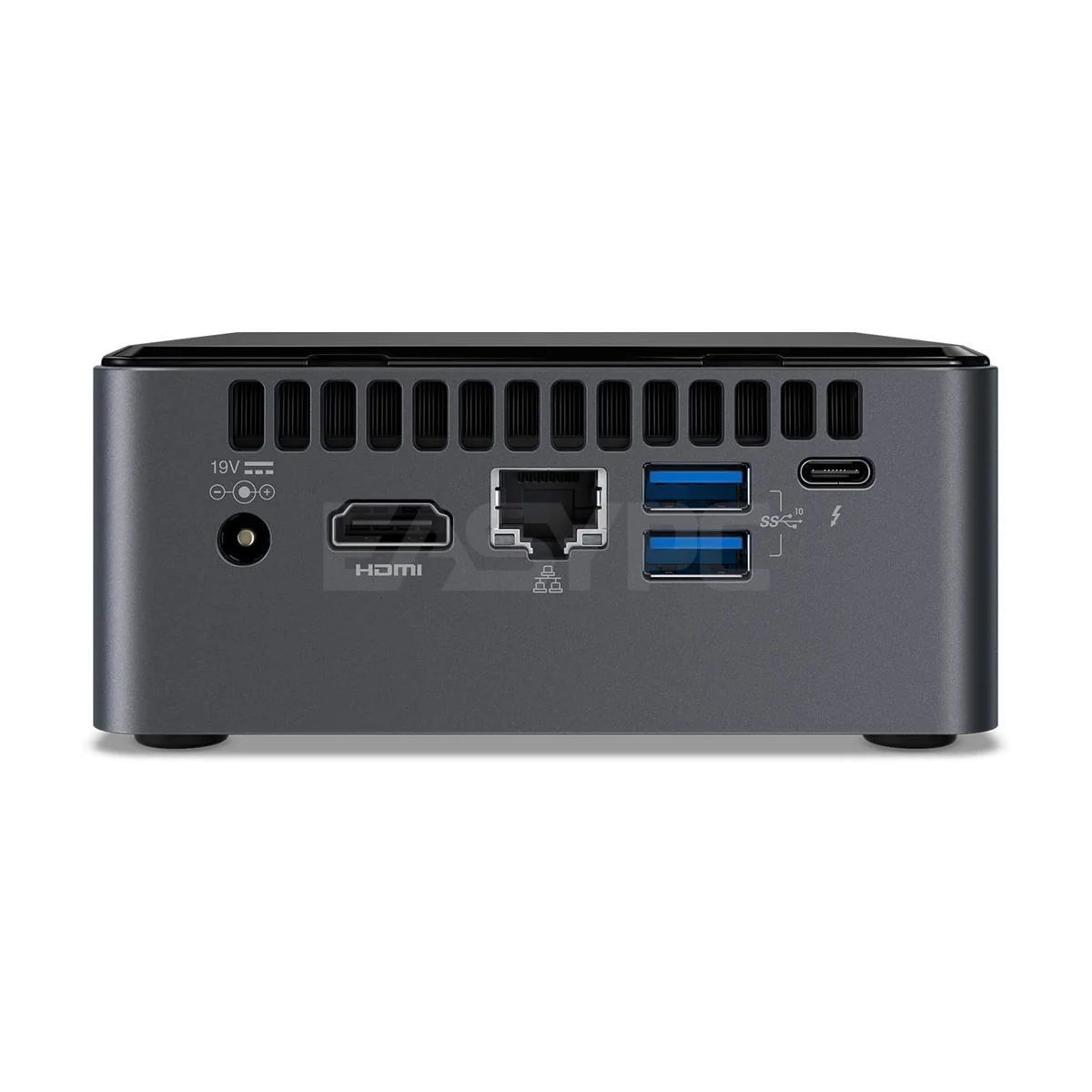

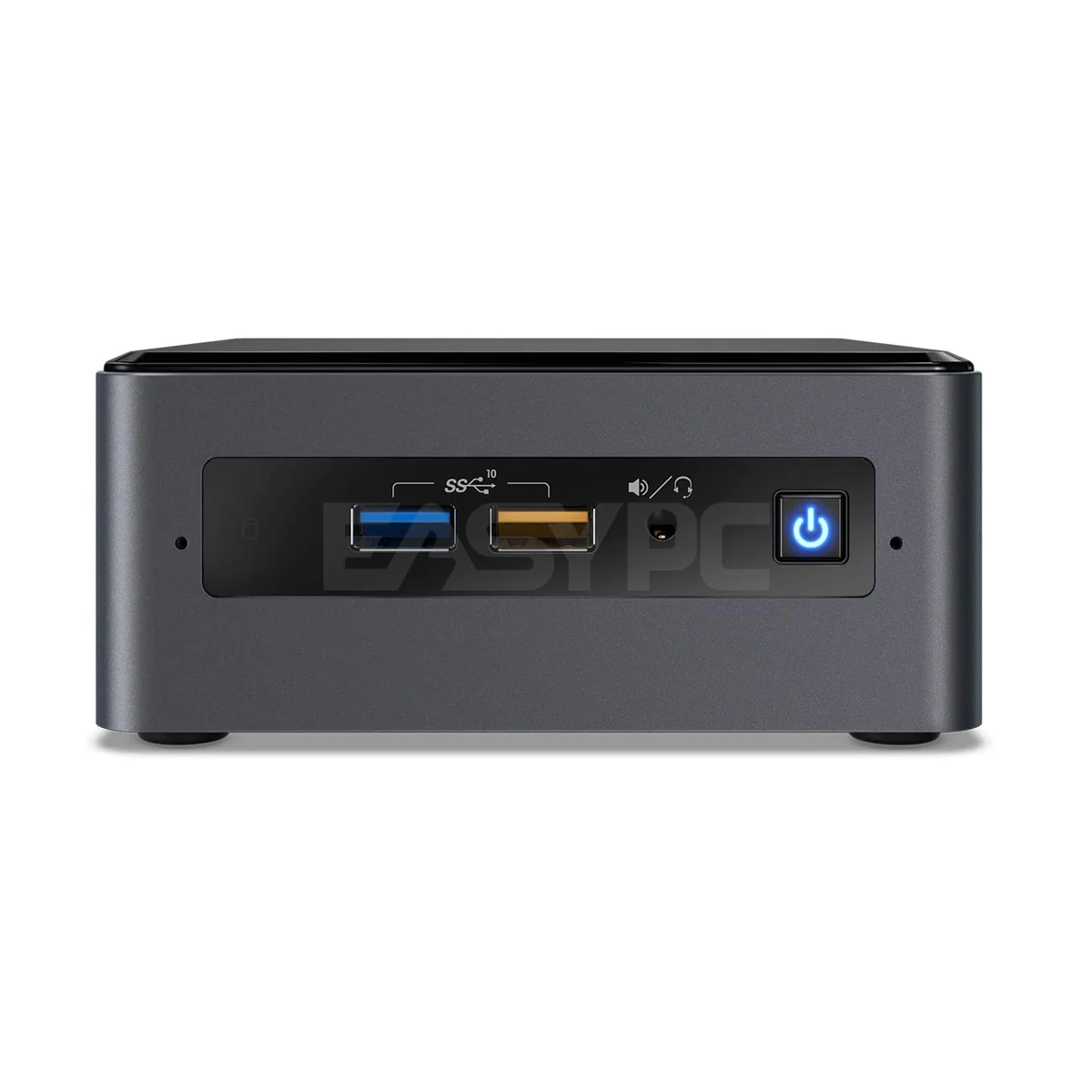

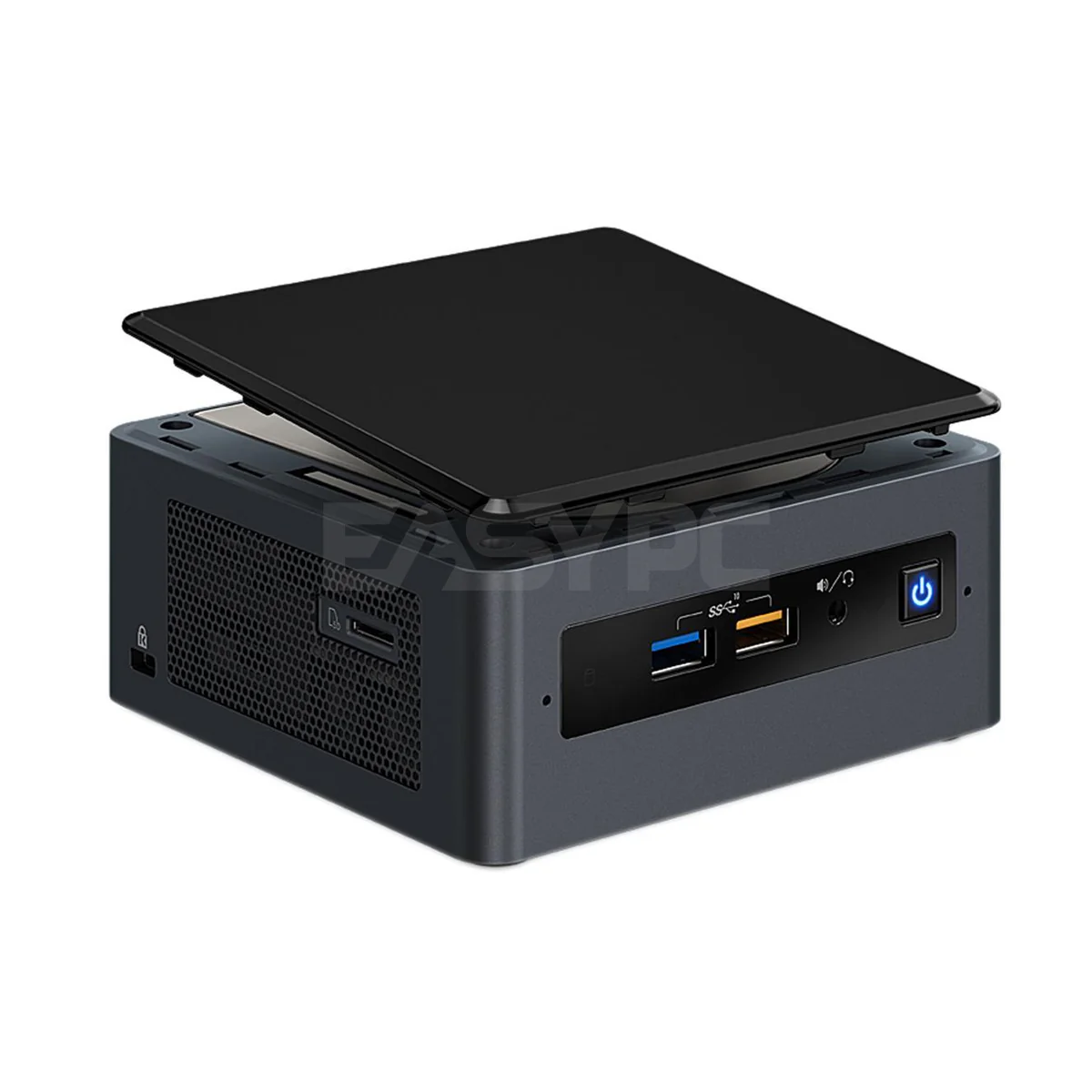

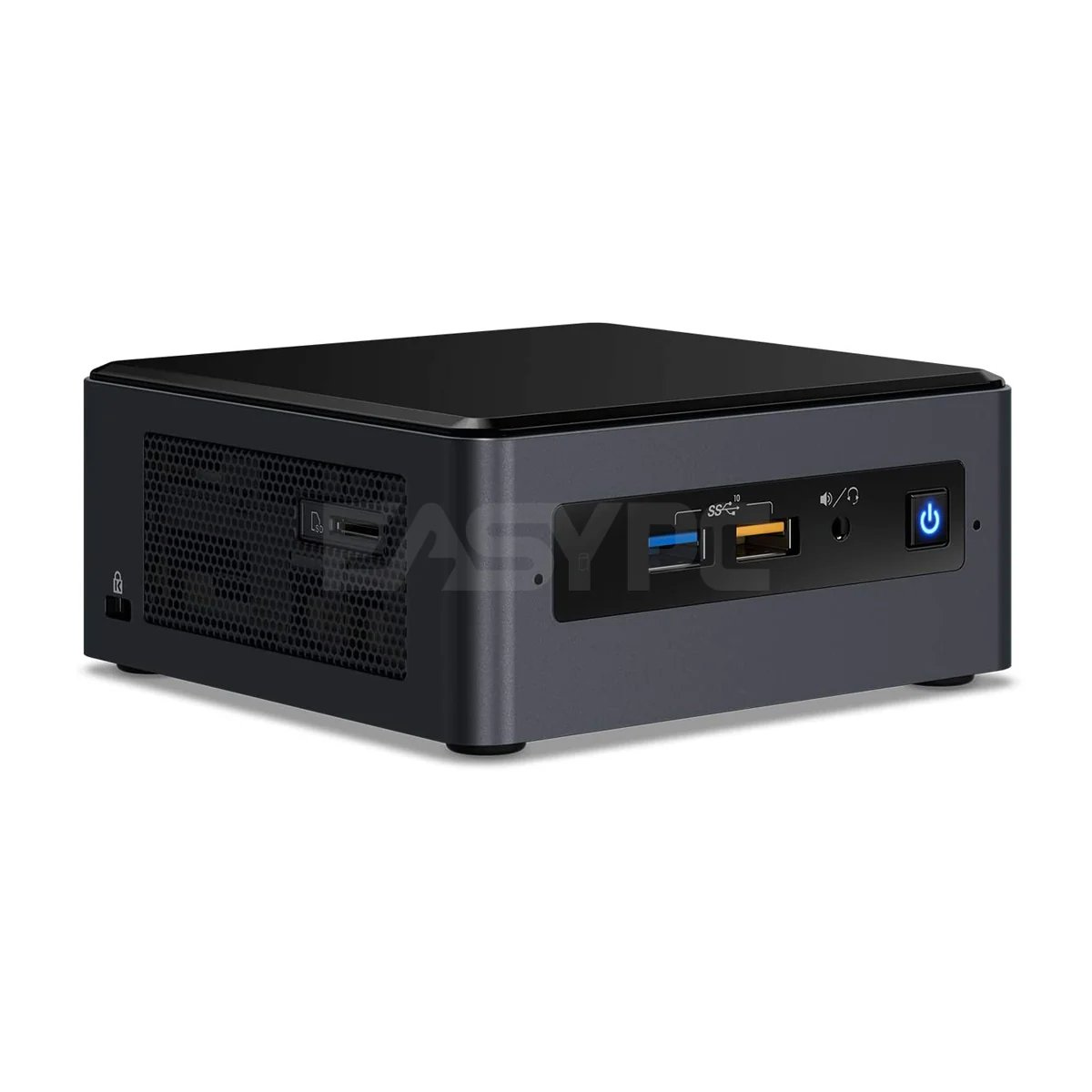

Intel NUC Kit BOXNUC8I3BEHS1 Intel Core i3-8140U/Intel UHD Graphics 620 MiniPC 1ION INNU348

Product Specifications

• Product Collection: Intel® NUC Kit with 8th Generation Intel® Core™ Processors
• Code Name: Products formerly BEAN CANYON
• Supported Operating Systems Windows 10, 64-bit*
• Board Number: NUC8BEB
• Board Form Factor: UCFF (4" x 4")
• Socket Soldered-down BGA
• Internal Drive Form Factor: M.2 and 2.5" Drive
• # of Internal Drives Supported: 2
• Lithography: 14 nm
• TDP: 28 W
• DC Input Voltage Supported: 12-19 VDC
• Processor Included: Intel® Core™ i3-8109U Processor (4M Cache, up to 3.60 GHz)
• Intel vPro® Platform Eligibility ‡: No
• # of Cores: 2
• # of Threads: 4
• Processor Base Frequency: 3.00 GHz
• Max Turbo Frequency: 60 GHz
• Supplemental Information
• Embedded Options Available: No
• Datasheet: View now
• Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones
• Product Brief View now
• Memory & Storage
• Max Memory Size (dependent on memory type): 32 GB
• Memory Types: DDR4-2400 1.2V SO-DIMM
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 38.4 GB/s
• Max # of DIMMs: 2
• ECC Memory Supported ‡: No
• Processor Graphics
• Processor Graphics ‡: Intel® Iris® Plus Graphics 655
• Integrated Graphics ‡: Yes
• Graphics Output: HDMI 2.0a; USB-C (DP1.2)
• # of Displays Supported ‡: 3
• Expansion Options
• PCI Express Revision: Gen3
• PCI Express Configurations ‡: M.2 slot with PCIe X4 lanes
• Removable Memory Card Slot microSDXC with UHS-I support
• 2 Card Slot (storage) 22x42/80
• I/O Specifications
• # of USB Ports: 6
• USB Configuration: 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
• USB Revision 0, 3.1 Gen2
• USB 2.0 Configuration (External + Internal): 0 + 2
• USB 3.0 Configuration (External + Internal): 2B 2F + 0
• Total # of SATA Ports: 2
• Max # of SATA 6.0 Gb/s Ports: 2
• RAID Configuration: 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
• Audio (back channel + front channel) 1 digital (HDMI mDP); L+R mic (F)
• Integrated LAN Intel® Ethernet Connection I219-V
• Integrated Wireless‡ Intel® Wireless-AC 9560 + Bluetooth 5.0
• Integrated Bluetooth: Yes
• Consumer Infrared Rx Sensor: Yes
• Additional Headers CEC, 2x USB2.0, FRONT_PANEL
• # of Thunderbolt™ 3 Ports 1
• Package Specifications
• Chassis Dimensions: 117 x 112 x 51mm
• Advanced Technologies
• Intel® Optane™ Memory Supported ‡ Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
• Intel vPro® Platform Eligibility ‡: No
• TPM No
• Intel® HD Audio Technology: Yes
• Intel® Rapid Storage Technology: Yes
• Intel® Virtualization Technology (VT-x) ‡: Yes
• Intel® Platform Trust Technology (Intel® PTT) : Yes
• Security & Reliability
• Intel® AES New Instructions Yes
