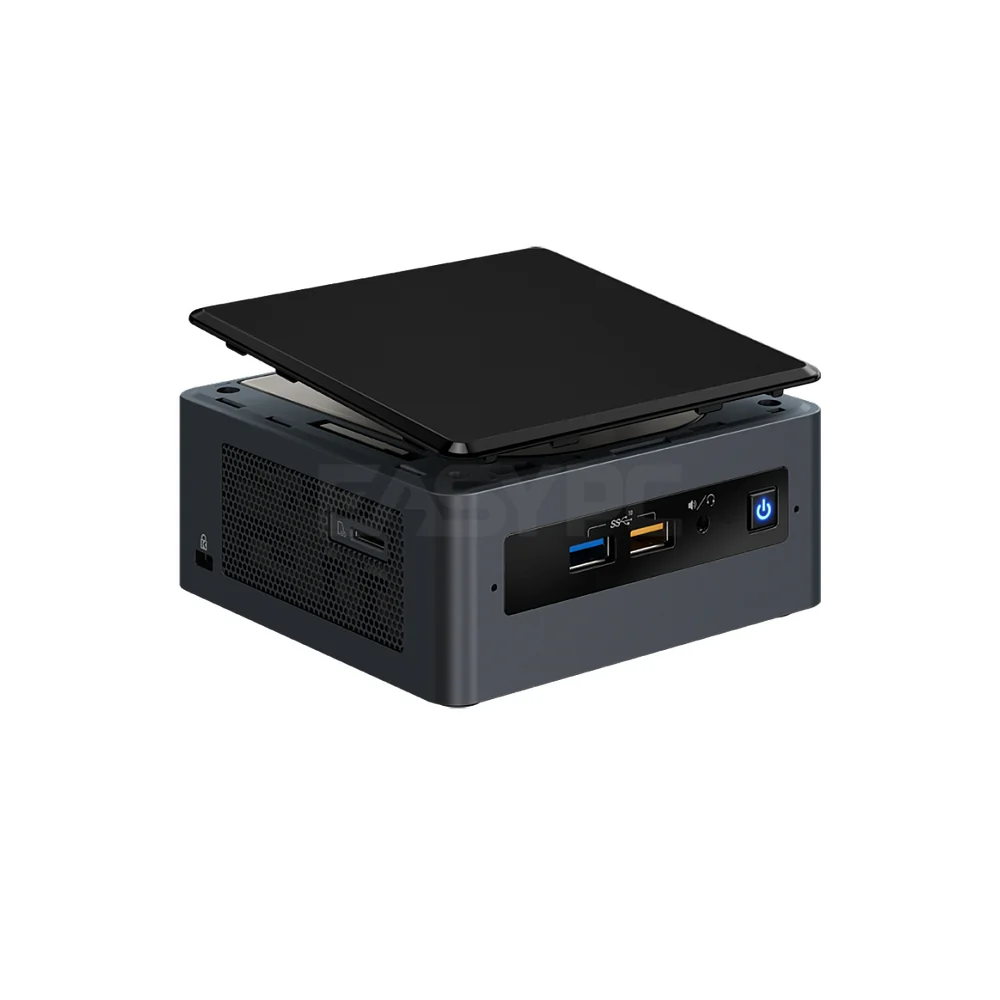

Intel NUC Pentium Silver J005 1.5 GHz - 2.8 GHz burst, Quad-Core, 10W, Intel UHD Graphics 605, 800 MHz, 2 x 260Pin SO-DIMM DDR4 2400, Barebone MiniPC Kit BOXNUC7PJYH1 1ION INBO2324

Product Specifications

• Brand: Intel
• Series: NUC (Next Unit of Computing)
• Model: BOXNUC7PJYH1
• Color: Black
• Form Factor: UCFF (4" x 4")
• CPU Type: Intel Pentium Silver J5005 1.5 GHz - 2.8 GHz burst, Quad-Core, 10W
• Memory installed: No Memory
• Memory slot: 2 x 260Pin SO-DIMM
• Memory Type Supported: DDR4 2400
• Max Memory Supported: 8GB
• Dual Channel Memory Supported: Yes
• Hard Drive Installed: No Hard Drive
• Serial ATA: 1 x SATA 6.0Gb/s
• Onboard Video: Intel UHD Graphics 605, 800 MHz
• Channel: 7.1 Channel
• LAN: Realtek 8111H-CG
• Max LAN Speed: 10/100/1000Mbps
• Wireless LAN: Intel Wireless-AC 9462
• Bluetooth: Bluetooth v5
• 5" Internal Bays: 2.5" HDD or SSD (up to 9.5mm thickness)
• Front USB: 2 x USB 3.0 ports
• Card Reader: One SDXC slot with UHS-I support (Side)
• HDMI: 2 x HDMI 2.0a ports with 4K at 60 Hz, HDR
• Rear USB: 2 x USB 3.0 ports
• Rear S/PDIF Out: TOSLINK
• Power Supply: 19V, 65W AC-DC power brick adapter
• Dimensions: 2.01" x 4.55" x 4.57"
• Features:
• Dual-channel DDR4-2400 SODIMMs, 1.2V, 8GB maximum
• 5" 9.5mm SATA3 bay and port
• 2 x HDMI 2.0a (4K 60 Hz), both ports support HDCP 2.2
• 10/100/1000 Mbps Ethernet
• Intel Wireless-AC 9462 soldered-down, IEEE 802.11 ac 1x1 + Bluetooth v5, internal antennas
• 2 x front USB 3.0 (one charging), 2 x rear USB 3.0, and 2 x internal USB 2.0 via header
• Up to 7.1 multichannel digital audio via HDMI
• 5mm front stereo headset jack, 3.5mm rear speaker / TOSLINK combo jack
• Beam-forming, far-field, dual-mic array
• Front Consumer Infrared port
• SDXC slot with UHS-I support
• Plastic with metal inner frame, replaceable lid, Kensington lock with base security
• 115 x 111 x 51mm
• 12 - 19V DC input range, 19V DC 65W power supply with geo-specific AC cords
• Front Panel, CEC, RGB LED, 2 x USB 2.0 headers
• Microsoft Windows 10 logo'd, compatible with various Linux distros
• Front panel status RGB LED
• VESA mounting plate included
• Individual retail packaging
• Overview:
• Intel NUC BOXNUC7PJYH1: The Intel NUC is a powerful 4x4-inch mini PC with features to upgrade entertainment, gaming, and productivity, including a customizable board that is ready to accept the memory, storage, and operating systems that you want. Whether saving space on your office desk, powering digital signs, or using in the conference room to streamline meetings, the Intel NUC has the performance and versatility to get the job done.
• Make it Your Own: A customizable Mini PC kit with the power of a desktop PC. Choose your RAM, storage, and operating system to build the PC you want. BOXNUC7PJYH1 has a 2.5" drive bay for an SSD or HDD. Also features room for up to 8 GB of DDR4-2400 RAM so you can increase its performance easily.
• Small, But Mighty: Featuring Intel Pentium Silver J5005 quad-core processors, this NUC offers plenty of choice when it comes to your next highly capable small form factor PC. Whether you're automating your home for security, enjoying 4K entertainment, or just handling worksheets, there's always an Intel NUC for you.
• NUC Ready to Entertain: Intel UHD Graphics 605 transforms the viewing experience with 4K Ultra HD video and premium content playback, enabling new ways to enjoy the latest Hollywood blockbusters.
