EasyPC Pocket Rocket Beelink EQR6-LP AMD Ryzen 5 6600U Processor / Dual Gigabit Lan / 32GB 4800MHZ DDR5 / 500GB NVMe M.2 SSD

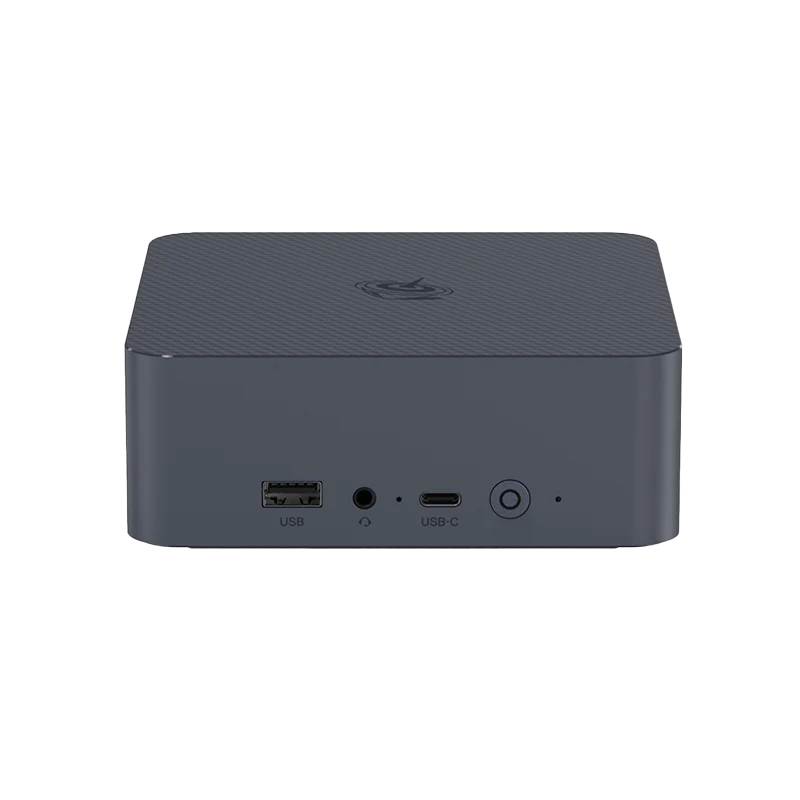

EasyPC Pocket Rocket - Beelink EQR6-LP Mini PC with AMD Ryzen 5 6600U

Experience desktop-class performance in an ultra-compact form factor with the Beelink EQR6-LP Mini PC powered by AMD Ryzen™ 5 6600U processor. This powerhouse mini PC combines 6-core/12-thread processing, 32GB LPDDR5-4800 memory, 500GB NVMe SSD, and dual 2.5G Ethernet in a space-saving design perfect for home offices, business workstations, and multimedia entertainment centers.

Key Features

• AMD Ryzen 5 6600U Processor - 6 cores, 12 threads with boost speeds up to 4.5 GHz for exceptional multitasking and productivity
• 32GB LPDDR5-4800 Memory - High-speed soldered RAM delivers outstanding performance for demanding applications
• 500GB NVMe M.2 SSD - Fast storage for quick boot times and rapid application loading
• Dual 2.5G Ethernet - Two Intel I226-V Gigabit LAN ports for advanced networking and redundancy
• Wi-Fi 6E & Bluetooth 5.2 - Latest wireless connectivity with tri-band Wi-Fi 6E support
• Triple 4K Display Support - Drive up to three 4K monitors simultaneously via HDMI and DisplayPort
• Ultra-Compact Design - Space-saving form factor fits anywhere while delivering full desktop performance

Technical Specifications

Model	Beelink EQR6-LP (EQ6)
Processor	AMD Ryzen™ 5 6600U
CPU Cores/Threads	6 cores / 12 threads
Base/Boost Clock	2.9 GHz base, up to 4.5 GHz boost
CPU Architecture	Zen 3+ (6nm process)
Integrated Graphics	AMD Radeon 660M (6 cores, RDNA 2)
System Memory	32GB LPDDR5-4800 (soldered)
Storage	500GB NVMe M.2 2280 SSD (PCIe 3.0)
Ethernet	Dual Intel I226-V 2.5G Gigabit LAN
Wireless	Wi-Fi 6E (802.11ax tri-band), Bluetooth 5.2
Display Outputs	HDMI 2.0, DisplayPort, USB-C with DP Alt Mode
Maximum Resolution	4K @ 60Hz per display
Multi-Display	Up to 3 displays simultaneously
Operating System	Windows 11 Pro (pre-installed)
TDP	15W-28W (configurable)

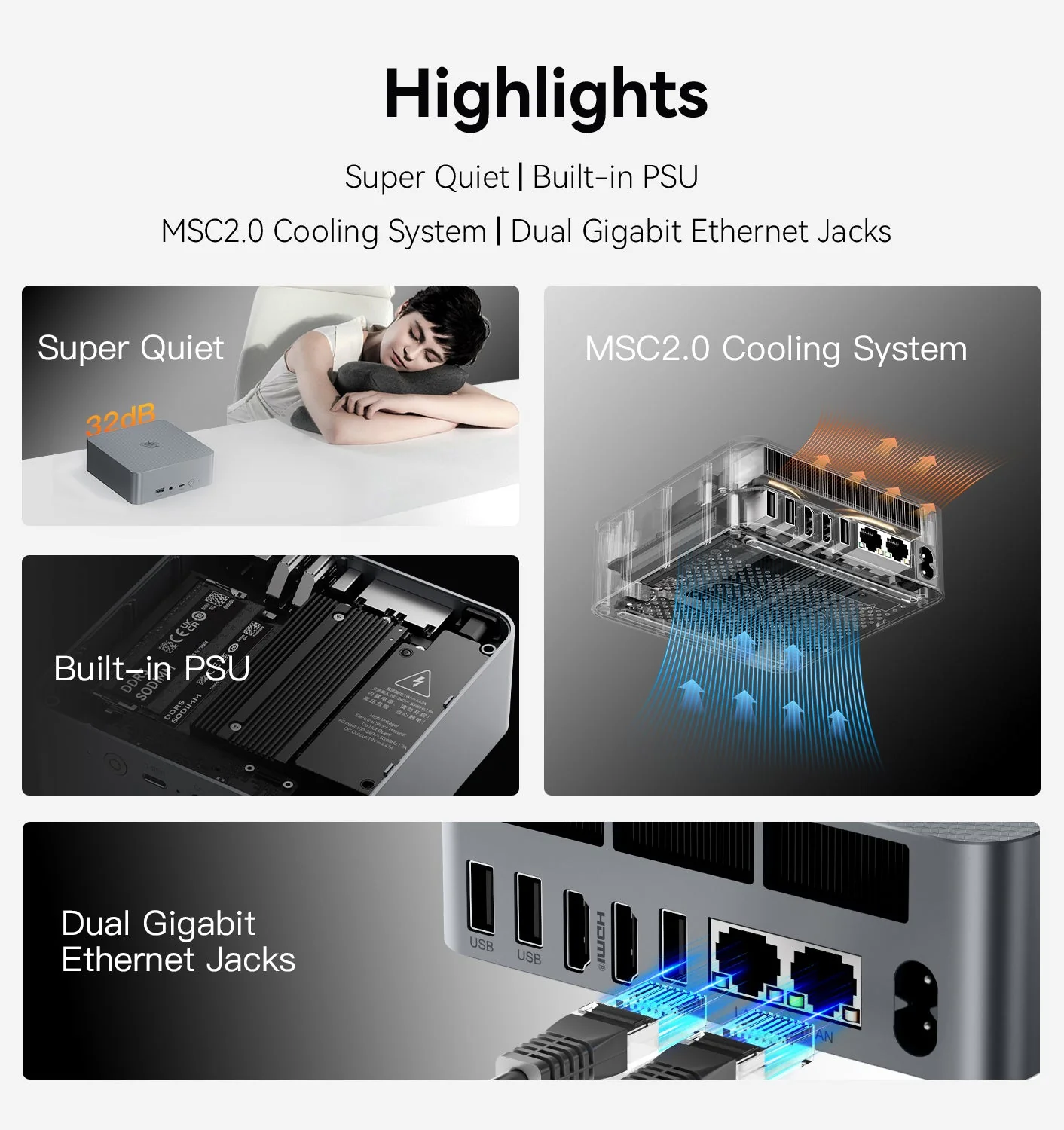

Cooling	Active cooling with low-noise fan
Dimensions	Approximately 126 x 113 x 42mm (ultra-compact)

Connectivity & I/O Ports

• USB Ports - Multiple USB 3.2 Gen 2 Type-A ports, USB-C with DisplayPort Alt Mode and Power Delivery
• Display Outputs - 1x HDMI 2.0, 1x full-size DisplayPort, 1x USB-C with DP Alt Mode (supports 3x 4K displays)
• Network - 2x Intel I226-V 2.5 Gigabit Ethernet RJ45 ports
• Audio - 3.5mm combo audio jack
• Wireless - Wi-Fi 6E (802.11ax 2.4GHz/5GHz/6GHz) with Bluetooth 5.2
• Power - DC power input

Performance Capabilities

• Multi-Core Performance - 6 cores and 12 threads handle demanding multitasking, content creation, and productivity workloads
• RDNA 2 Graphics - AMD Radeon 660M integrated graphics with 6 compute units for smooth 4K video playback and light gaming
• Fast Memory - LPDDR5-4800 provides 50% higher bandwidth than DDR4 for improved system responsiveness
• NVMe Storage - PCIe 3.0 SSD delivers fast boot times, quick application launches, and rapid file transfers
• Efficient Power - 15W-28W TDP enables silent operation while maintaining excellent performance

Networking Excellence

• Dual 2.5G Ethernet - Two Intel I226-V ports provide network redundancy, link aggregation, or separate network zones
• 2.5x Faster LAN - 2.5 Gigabit Ethernet delivers 2500 Mbps bandwidth, ideal for NAS, servers, and high-speed file transfers
• Wi-Fi 6E - Latest wireless standard with tri-band support for reduced congestion and faster speeds
• Network Flexibility - Perfect for router/firewall applications, network monitoring, or business environments

Ideal Use Cases

• Home Office - Compact workstation for productivity, video conferencing, and document processing
• Business Desktop - Space-efficient PC for office environments with Windows 11 Pro
• Media Center - 4K video playback, streaming, and entertainment hub
• Digital Signage - Drive multiple displays for retail, presentations, or information displays
• Network Applications - Dual 2.5G LAN ideal for pfSense, OPNsense, network monitoring, or home server
• Development Workstation - Light software development, web design, and coding tasks
• HTPC - Silent home theater PC with 4K HDR support and compact footprint
