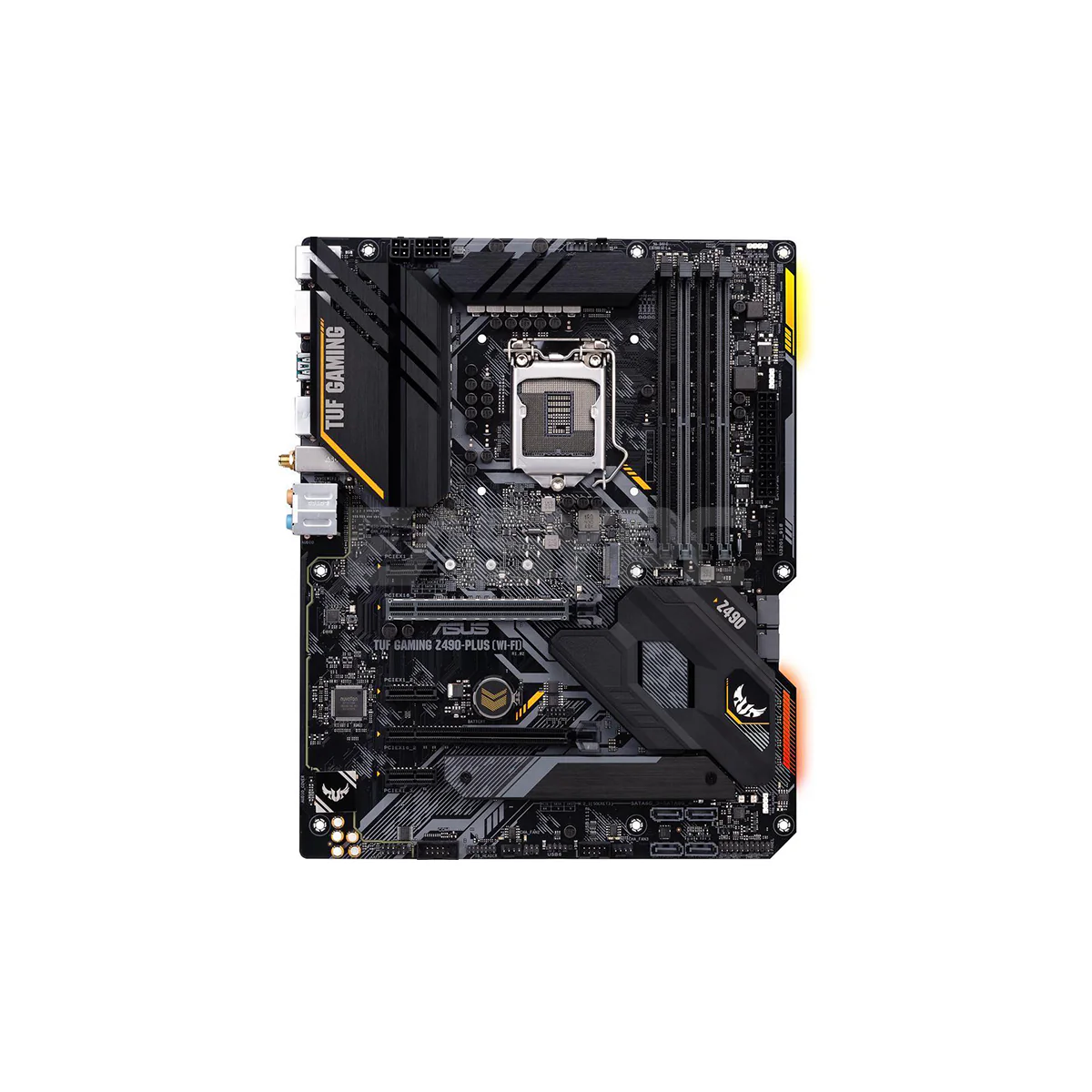

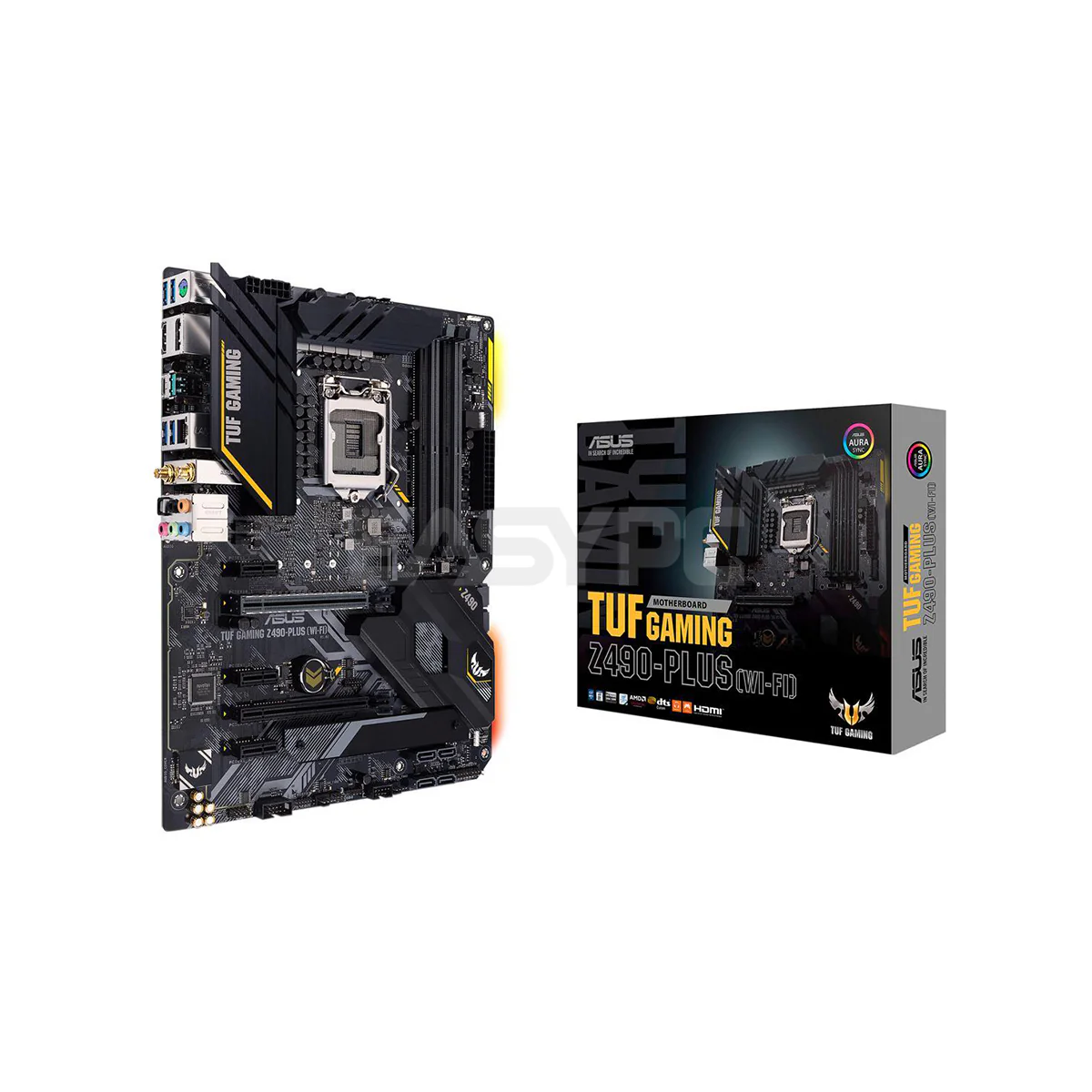

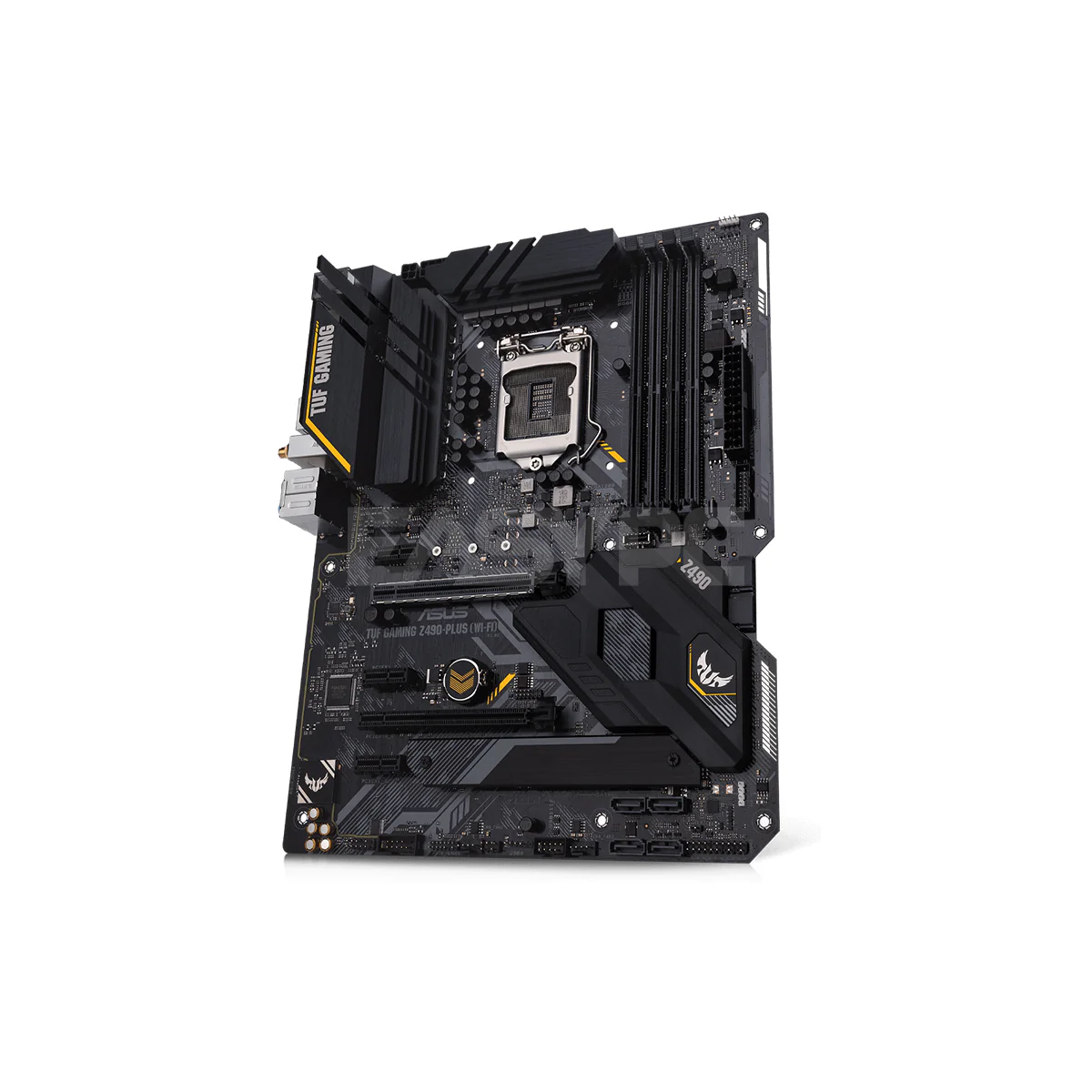

Asus TUF Z490 Plus WiFi LGA 1200 Ddr4 Gaming Motherboard
| Brand | ASUS |
| Model | TUF GAMING Z490-PLUS (WI-FI) |
| CPU Socket Type | LGA 1200 |
| CPU Type | Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors* |
| * Refer to www.asus.com for CPU support list. | |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0** |
| ** The support of these features depends on the CPU types. | |
| Chipset | Intel Z490 |
| Number of Memory Slots | 4×288pin |
| Memory Standard | DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory* |
| * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | Intel Socket 1200* |
| 1 x PCIe 3.0 x16 slot (support x16 modes) | |
| Intel Z490 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| * Support PCIe bifurcation for RAID on CPU function. | |
| PCI Express x1 | 3 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** | |
| * M.2_1 shares bandwidth with SATA6G_2. When M.2_1 runs SATA mode, SATA6G_2 will be disabled. | |
| ** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is occupied, SATA6G_56 will be disabled. | |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek S1220A High Definition Audio CODEC |
| Audio Channels | 8 Channels |
| * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 10/100/1000Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO | |
| Supports up to 2.4/5GHz transfer speed | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160 | |
| Supports CNVI interface | |
| Bluetooth | Bluetooth v5.1 |
| * BT 5.1 function will be ready in Windows 10 build 19041 later. | |

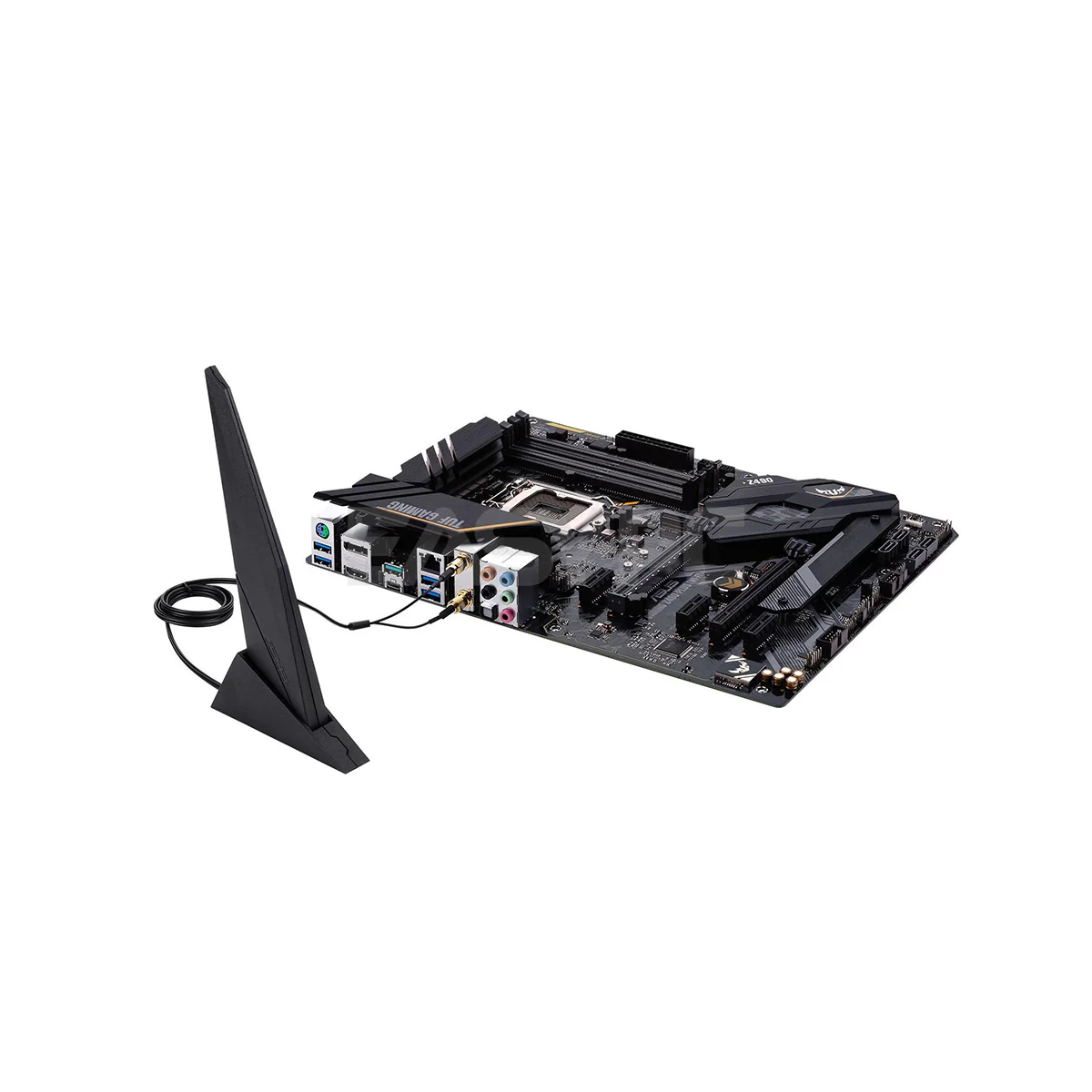

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x ASUS Wi-Fi Module | |
| 1 x Intel I219-V 1Gb Ethernet | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Onboard USB | 1 x USB 3.2 Gen 2 Front Panel connector (suppports USB Type-C) |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
| 1 x USB 2.0 header supports additional 1 USB 2.0 port (4-pin) | |
| Other Connectors | Fan and cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Miscellaneous | |
| 1 x AURA Addressable Gen 2 header | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 System Panel header with Chassis intrude function | |
| 1 x Thunderbolt header | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Power Pin | 1 x 24-pin Main Power connector |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Features | Multi-GPU Support: |
| Supports AMD 2-Way CrossFireX Technology | |
| Special Features: | |
| ASUS TUF PROTECTION | |
| - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) | |
| - ASUS Enhanced DRAM Overcurrent Protection | |
| - ASUS ESD Guards | |
| - TUF LANGuard | |
| - ASUS Overvoltage Protection | |
| - ASUS SafeSlot | |
| - ASUS Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - ASUS Q-Slot | |
| ASUS Thermal Solution | |
| - Stylish heatsink | |
| ASUS EZ DIY | |
| - Procool | |
| AURA Sync | |
| - Standard RGB headers | |
| - Addressable Gen 2 RGB header | |
| Software Features: | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - Aura Sync | |
| AI Suite 3: | |
| - Performance And Power Saving Utility | |
| Turbo V Evo | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert 4 | |
| System information | |
| - EZ update | |
| AI Charger | |
| ASUS Turbo LAN | |
| DTS Custom for GAMING Headsets | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS: | |
| 192(128+64)MB Flash ROM, UEFI AMI BIOS | |
| Manageability: | |
| WOL by PME, PXE | |
| Operating System: | |
| Windows 10 - 64-bit |
Browse more Motherboards at EasyPC.
$181.22
