Asus Ex H510M V3 Socket LGA 1200 Ddr4 Gaming Motherboard

Product Description

Product Specifications

• Brand: Asus
• Model: Ex H510M V3
• CPU: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports up to Intel® 65W CPU, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Chipset: H510
• Memory: 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture: Supports Intel® Extreme Memory Profile (XMP)
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666 MHz.
• * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Graphics: 1 x HDMI 2.0**
• * Graphics specifications may vary between CPU types.
• ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
• Expansion Slots: Intel® 11th & 10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot
• - Intel® 11th Gen processors support PCIe 4.0 x16 mode
• - Intel® 10th Gen processors support PCIe 3.0 x16 mode
• Intel® H510 Chipset: 1 x PCIe 3.0 x1 slot
• Storage: Total supports 3 x SATA 6Gb/s ports
• Intel® H510 Chipset: 3 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 1Gb Ethernet
• USB
• Rear USB:Total 6 ports
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB:Total 4 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium Japanese audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

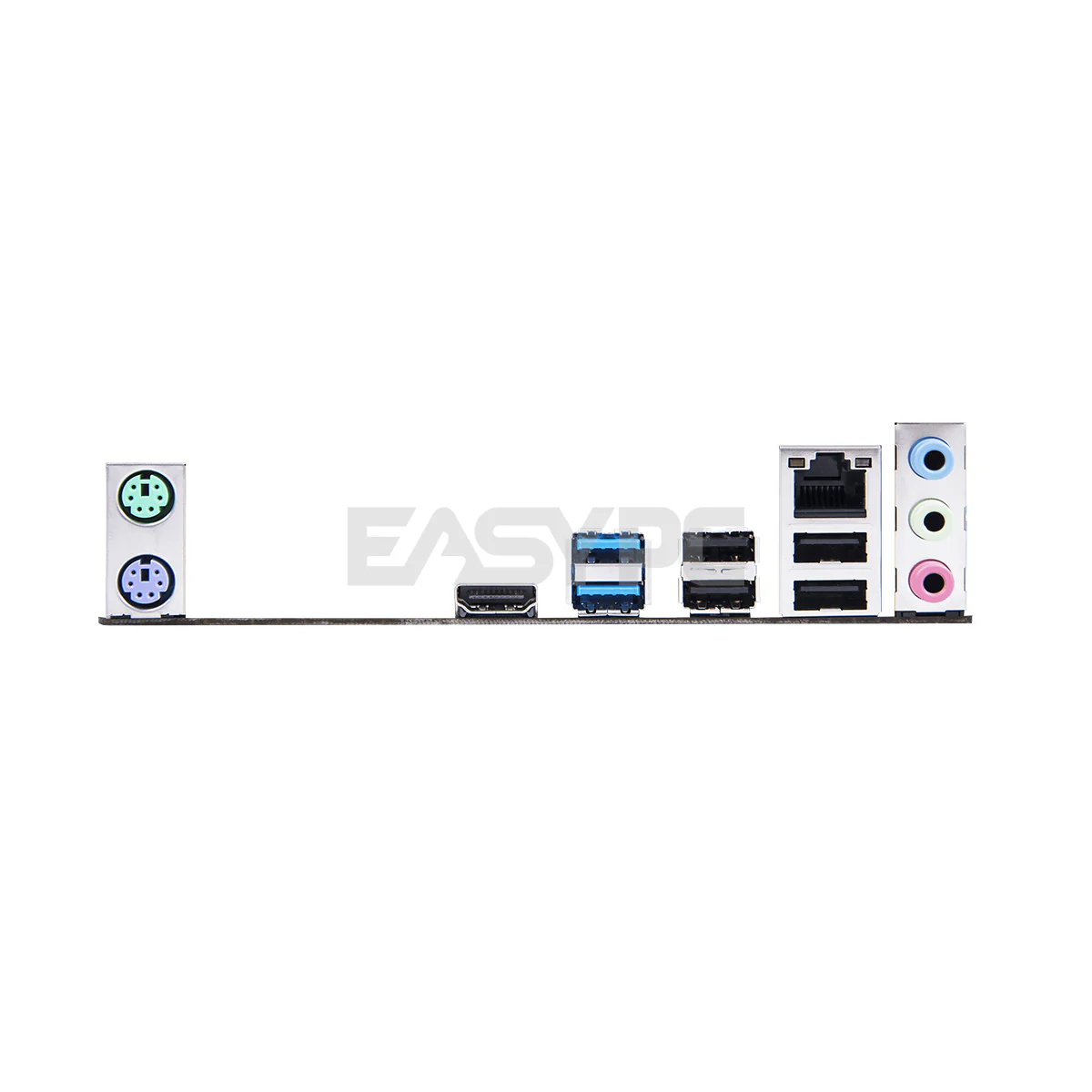

• Back Panel I/O Ports
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port
• Intrernal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x Speaker header
• 1 x 10-1 pin System Panel header
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor: microATX, 8.4 inch x 7.4 inch ( 21.3 cm x 18.8 cm )
• Special Features
• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• Non-stop Challenger
• - ASUS iCafe labs certified
• Non-stop Durability
• - Anti-moisture coating
• - USBGuard
• Features:
• Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
• Non-stop durability: Unbeatable features including luminous anti-moisture coating, USBGuard, LANGuard, SafeSlot Core, Stainless-steel back I/O and 5X Protection III
• Non-stop gaming: ASUS Beyond VR ready and Epic audio
• Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
