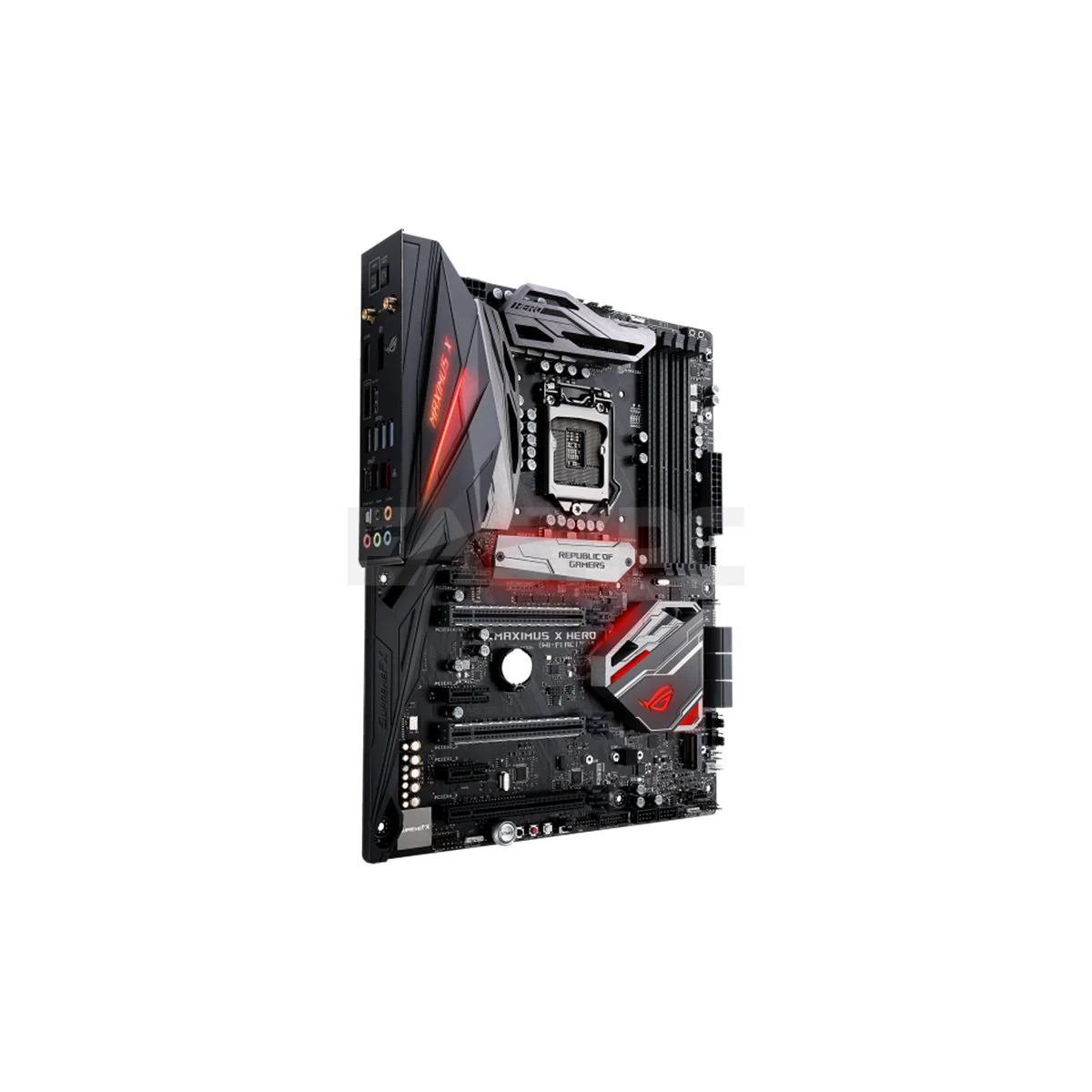

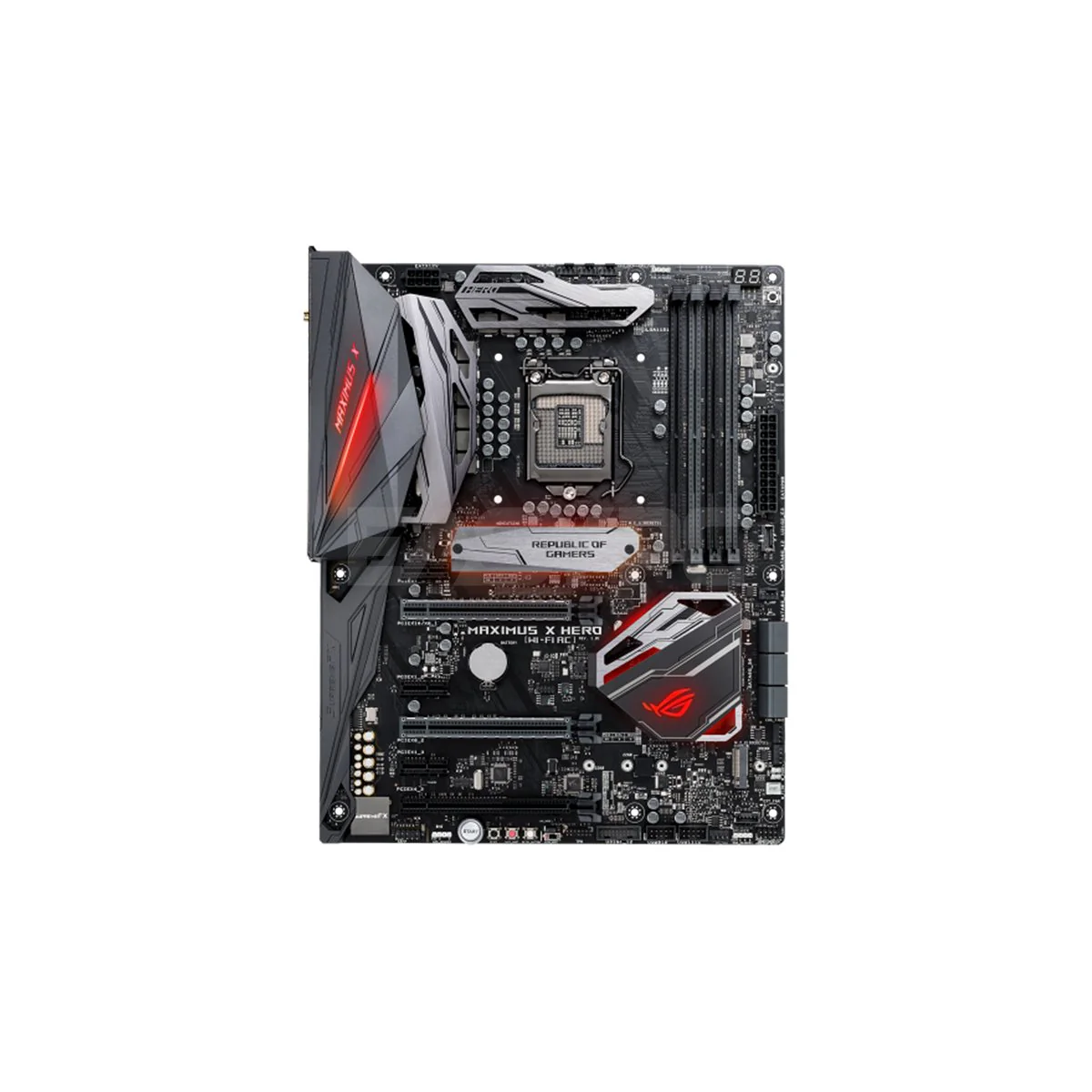

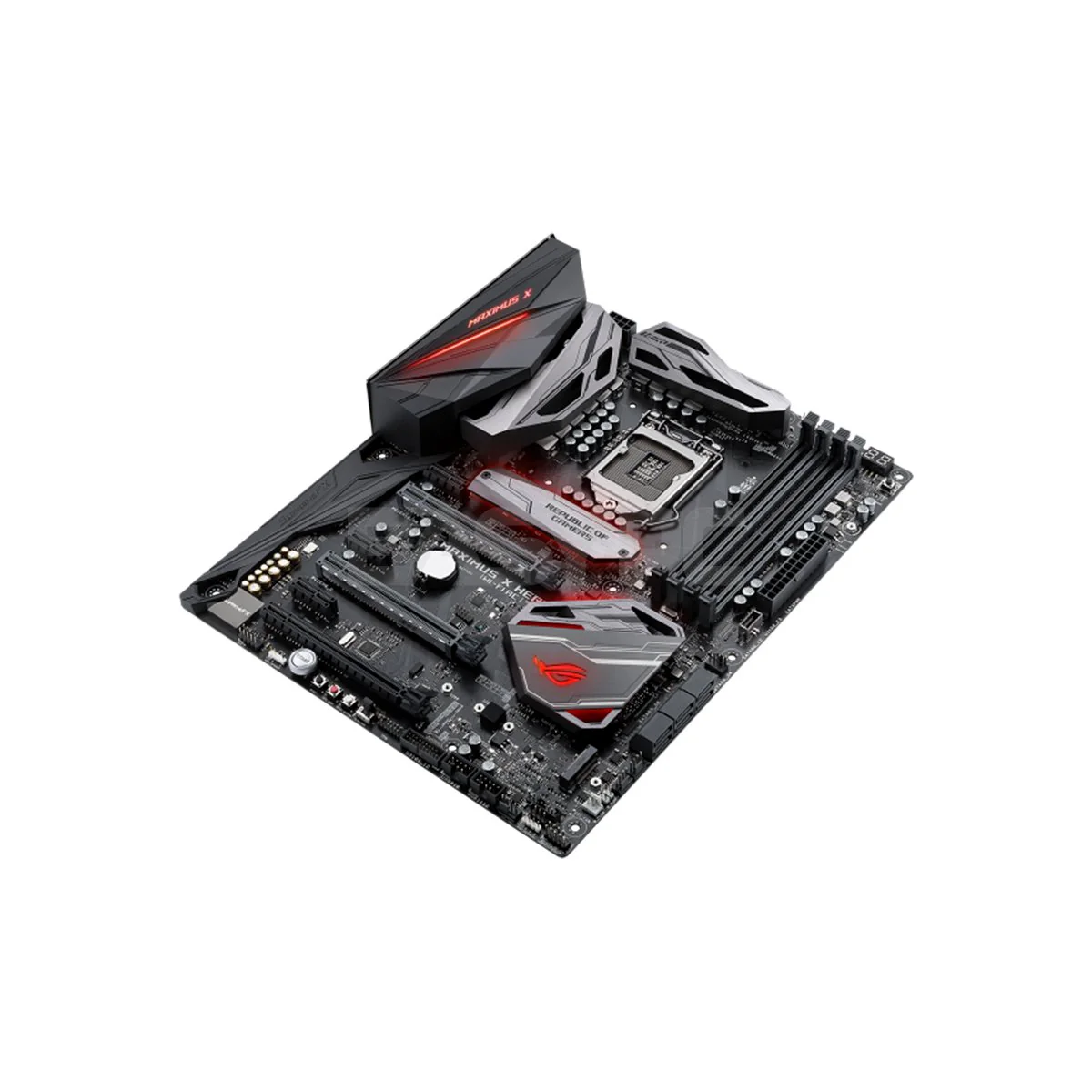

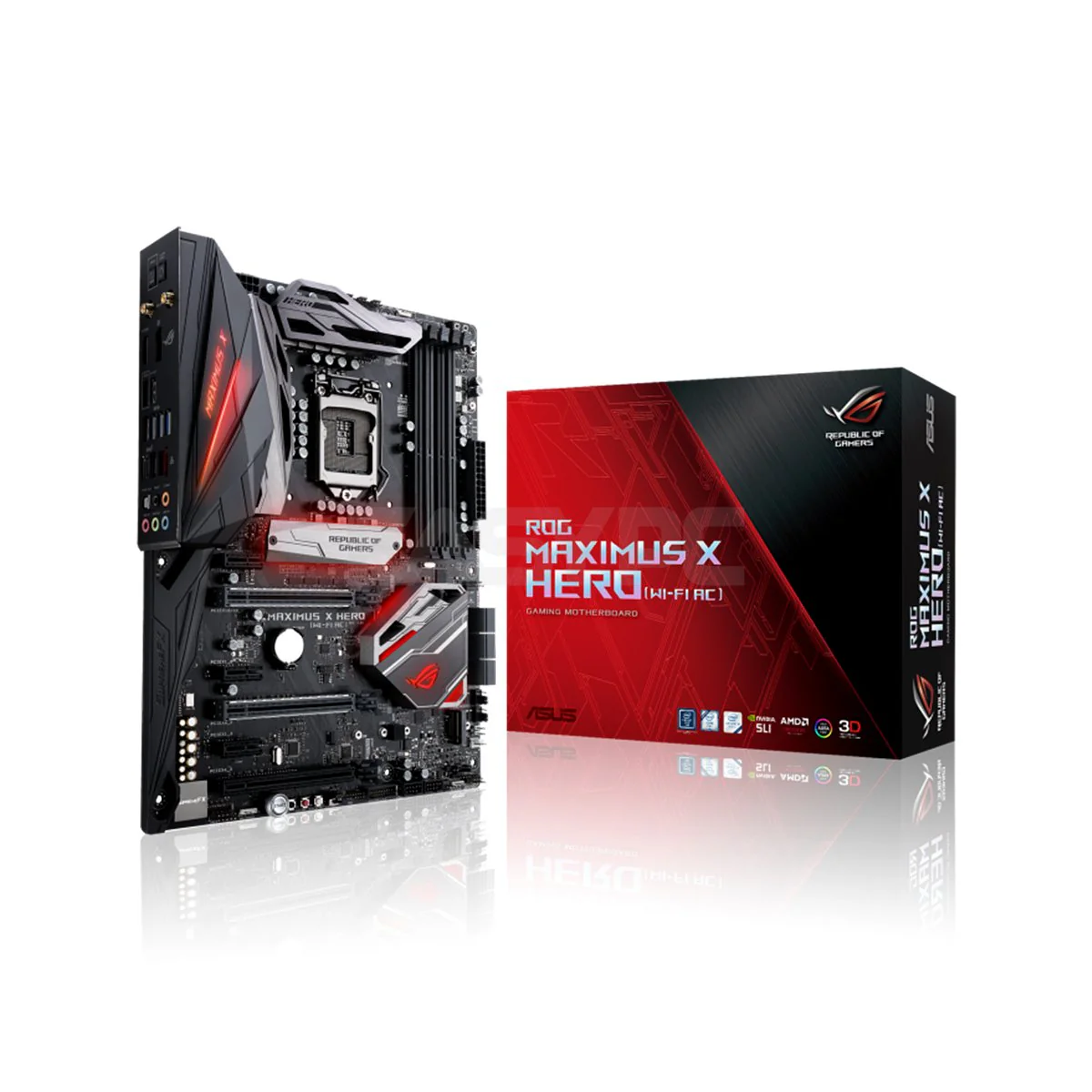

Asus ROG Maximus X Hero Wifi AC Motherboard Socket 1151 Ddr4 Intel Z370 ATX gaming motherboard with Aura Sync RGB LEDs, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2 and USB 3.1 Gen 2 Gaming Motherboard

Product Specifications

• Brand: ASUS
• Series: ROG
• Model: Maximus X Hero
• CPU Socket Type: LGA 1151 (300 Series)
• CPU Type: Intel LGA1151 socket only for 8th Gen Intel Core Processors
• Not backward compatible with older generation of LGA 1151 CPUs
• Refer to www.asus.com for CPU support list
• Supported CPU Technologies: Supports Intel Turbo Boost Technology 2.0*
• *Intel Turbo Boost Technology 2.0 support depends on the CPU types
• Chipset: Intel Z370
• Onboard Video Chipset: Integrated Graphics Processor Multi-VGA output support: HDMI/DisplayPort 1.2 ports
• Number of Memory Slots: 4×288pin
• Memory Standard: DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: New 8th Gen Intel Core Processors: 2 x PCIe 3.0 x16 slots (supports x16, x8/x8)
• Intel Z370 Chipset: 1 x PCIe 3.0 x16 slot (max. at x4 mode), * The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 runs x2 mode by default.
• PCI Express x1: 3 x PCIe 3.0/2.0 x1
• SATA 6Gb/s: 6 x SATA 6Gb/s
• 2: 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 and SATA modes) *
• 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 mode) **
• Audio Chipset: ROG SupremeFX High Definition Audio CODEC S1220
• Audio Channels: 8 Channels
• LAN Chipset: Intel I219-V
• Max LAN Speed: 10/100/1000Mbps

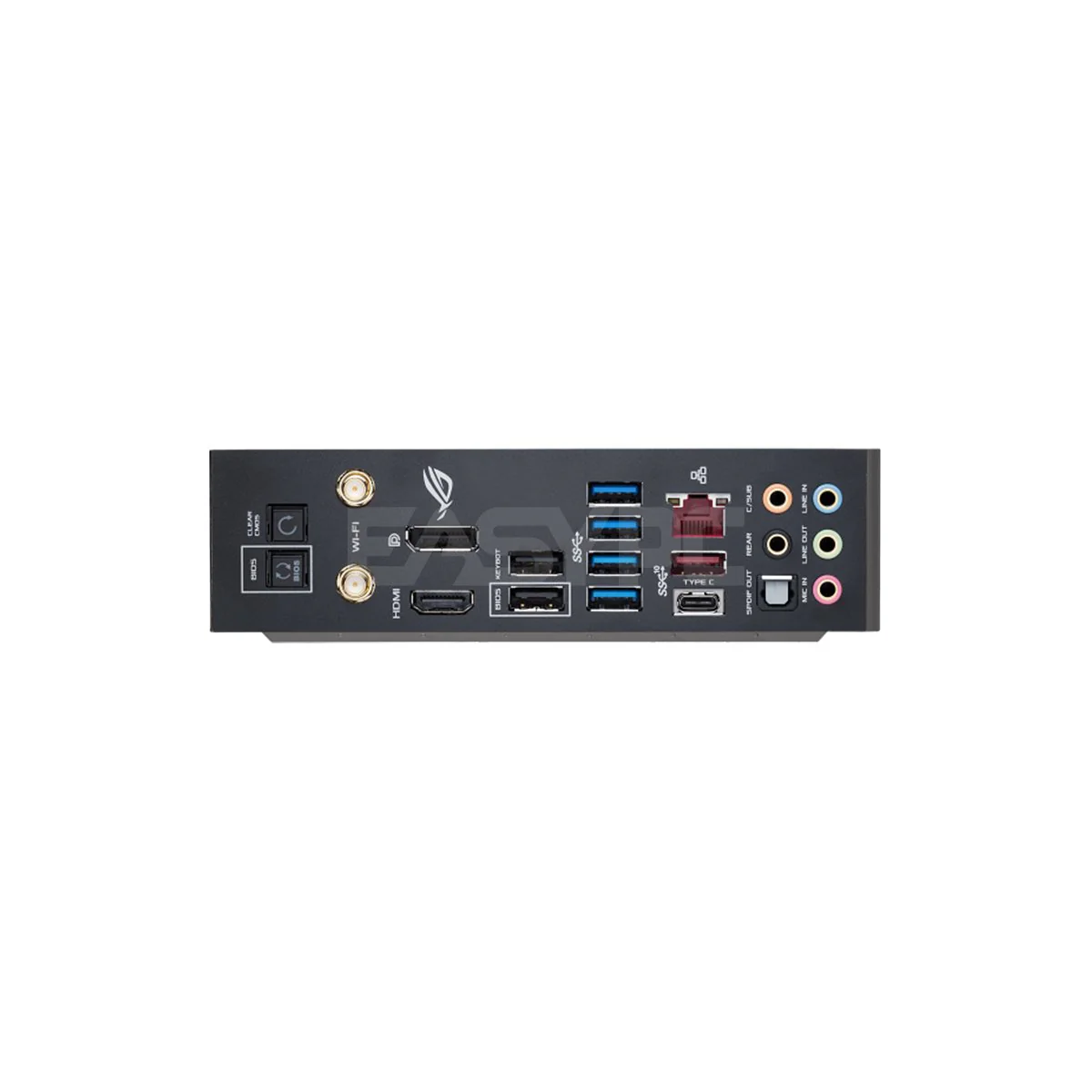

• HDMI: 1 x HDMI
• RJ45: 1 x RJ45
• DisplayPort: 1 x DisplayPort
• USB 3.1: 4 x USB 3.1 Gen 1 ports [blue], 2 x USB 3.1 Gen 2 ports (1 x Type-A [red] and 1 x Type-C [black]), USB 1.1/2.0: 2 x USB 2.0 ports [black]
• S/PDIF Out: 1 x Optical
• Audio Ports: 5 x Gold-plated audio jacks
• Form Factor: ATX
• LED Lighting: RGB
• Dimensions (W x L): 12.0" x 9.6"
• Power Pin: 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s)
• Onboard USB: 1 x USB 3.1 Gen2 front panel connector
• 1 x USB 3.1 Gen1 header supports additional 2 USB 3.1 Gen1 ports
• 2 x USB 2.0 header support additional 4 USB 2.0 ports
• Other Connectors: 1 x Aura Addressable Strip Header(s)
• 2 x Aura RGB Strip Headers
• 1 x TPM connector(s)
• 1 x CPU Fan connector(s) (1 x 4-pin)
• 1 x CPU OPT Fan connector(s) (1 x 4-pin)
• 3 x Chassis Fan connector(s) (3 x 4-pin)
• 1 x AIO_PUMP connector (1 x 4-pin)
• 1 x H_AMP fan connector
• 1 x W_PUMP+ connector (1 x 4-pin)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x MemOK! button(s)
• 1 x Slow Mode switch(es)
• 1 x Reset button(s)
• 1 x LN2 Mode jumper(s)
• 1 x Safe Boot button
• 1 x ReTry button
• 1 x System panel connector
• 3 x 3D Mount screw port(s)
• 1 x EXT_Fan header
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x Thermal sensor connector
• 1 x Start button
