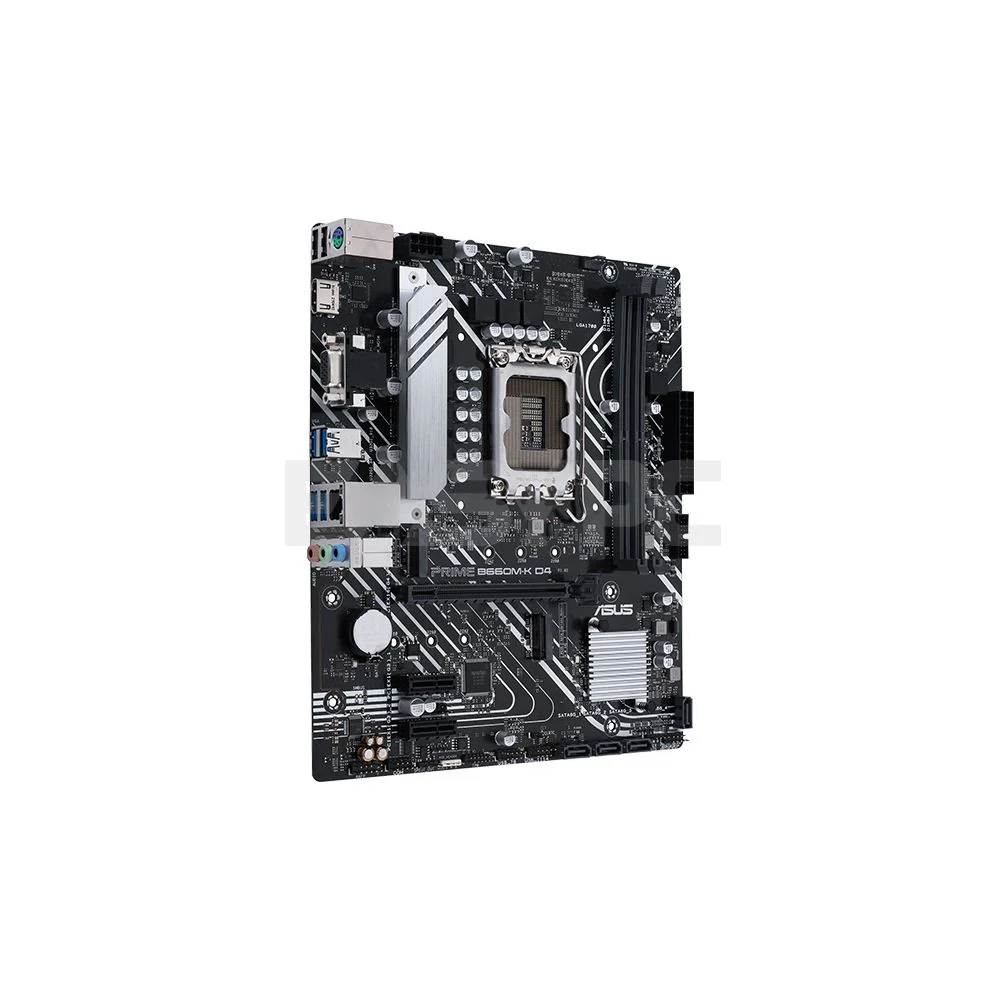

Asus Prime B660M-K D4 Socket LGA 1700 Ultrafast connectivity, Comprehensive cooling Ddr4 Motherboard

Product Description

Elevate your PC experience with the Asus Prime B660M-K D4 motherboard. Designed for LGA 1700 CPUs, it boasts ultrafast connectivity and comprehensive cooling solutions. With DDR4 support, it ensures smooth multitasking and faster data transfers. Upgrade your rig for superior performance and efficiency.

Product Specification

• CPU: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Memory: 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
• Graphics: 1 x D-Sub
• 1 x D-Sub port
• 1 x HDMI® port**
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Support 4K@60Hz as specified in HDMI® 2.1.
• Expansion Slots: Intel® 12th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot
• Intel® B660 Chipset
• 2 x PCIe 3.0 x1 slots
• Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® 12th Gen Processors
• 2_1 slot (Key M), type 2242/2260/2280
• Intel® 12th Gen processors support PCIe 4.0 x4 mode.
• Intel®B660 Chipset**
• 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• 4 x SATA 6Gb/s ports
• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet: 1 x Realtek 1Gb Ethernet
• USB: 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A）
  Front USB:Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x D-Sub port
• 1 x HDMI® port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors: Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header
• Special Features:
• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-DIMM
• Q-Slot
