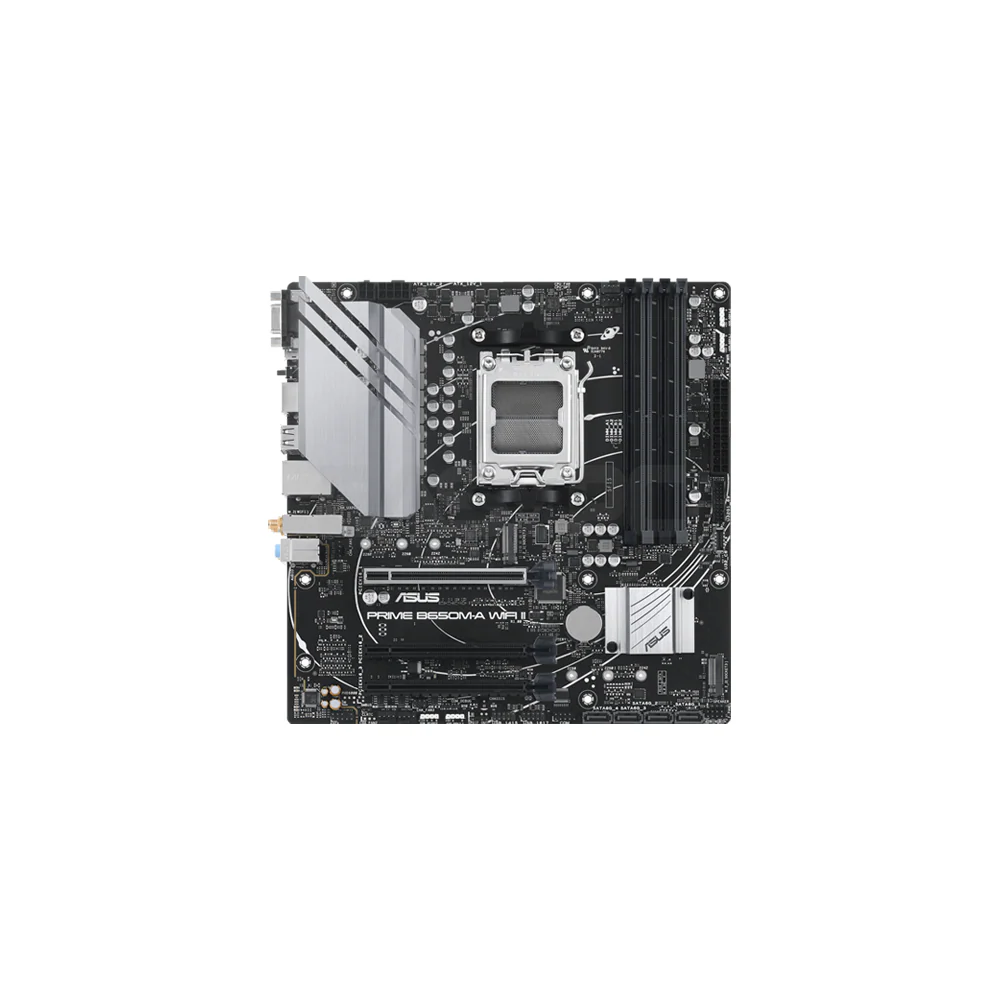

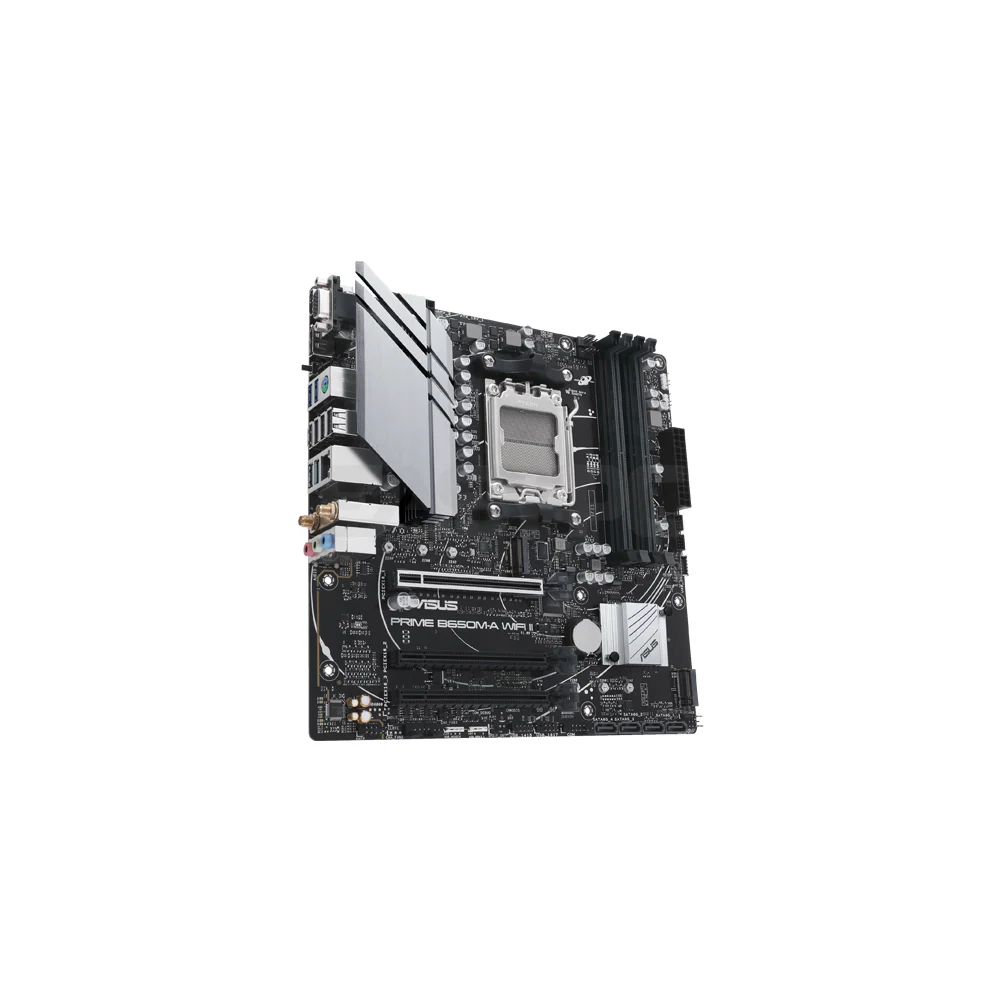

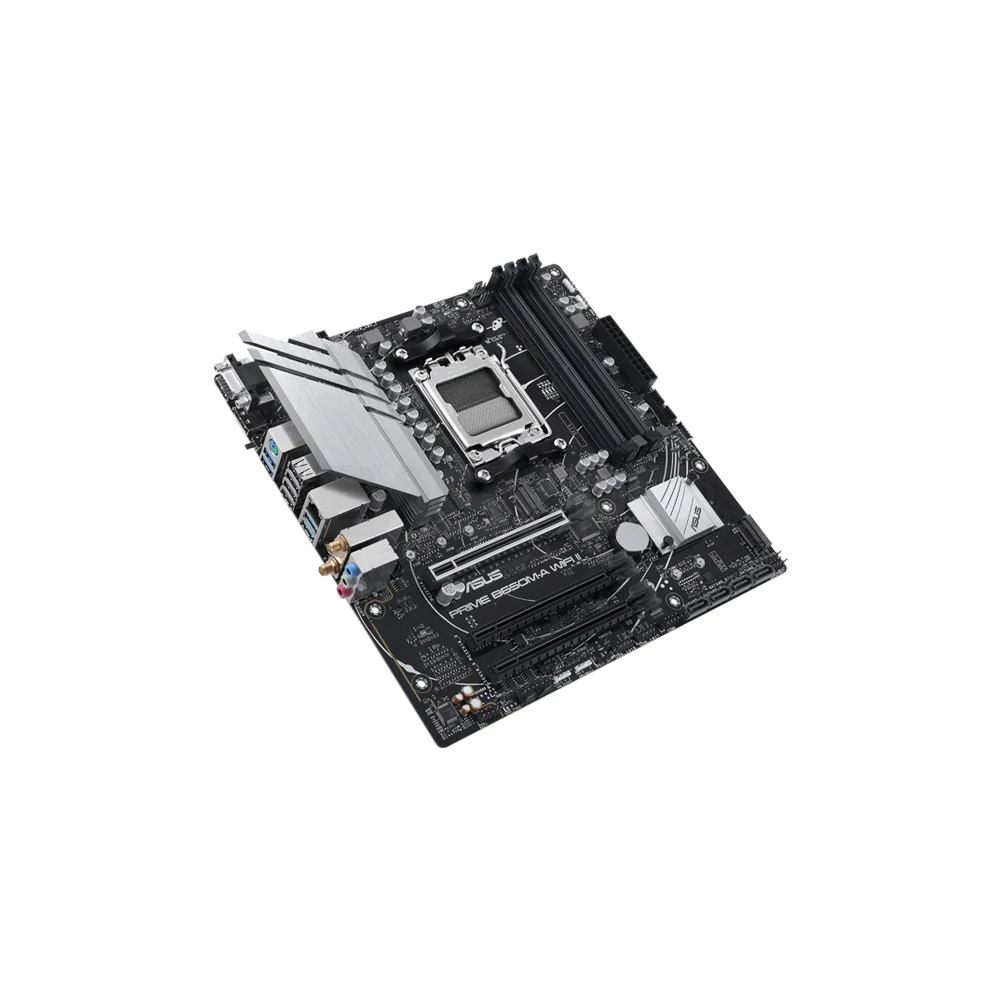

Asus PRIME B650M-A WIFI II Socket AM5 DDR5 Micro-ATX Motherboard

Build Your Next-Gen AMD System with Confidence

The ASUS PRIME B650M-A WIFI II motherboard unleashes the full potential of AMD Ryzen 7000 series processors. Featuring comprehensive cooling solutions, robust power delivery, and intelligent tuning options, this micro-ATX board provides the perfect foundation for powerful yet compact builds. With built-in Wi-Fi 6 and DDR5 support, you're ready for the future of computing.

Key Features

• Socket AM5 Support - Compatible with AMD Ryzen 9000, 8000, and 7000 series processors
• DDR5 Memory - Support for speeds up to DDR5-7600+(OC) with 192GB maximum capacity
• Wi-Fi 6 (802.11ax) - Fast wireless connectivity with Bluetooth 5.2
• PCIe 5.0 M.2 Slot - Lightning-fast storage with up to 128Gbps bandwidth

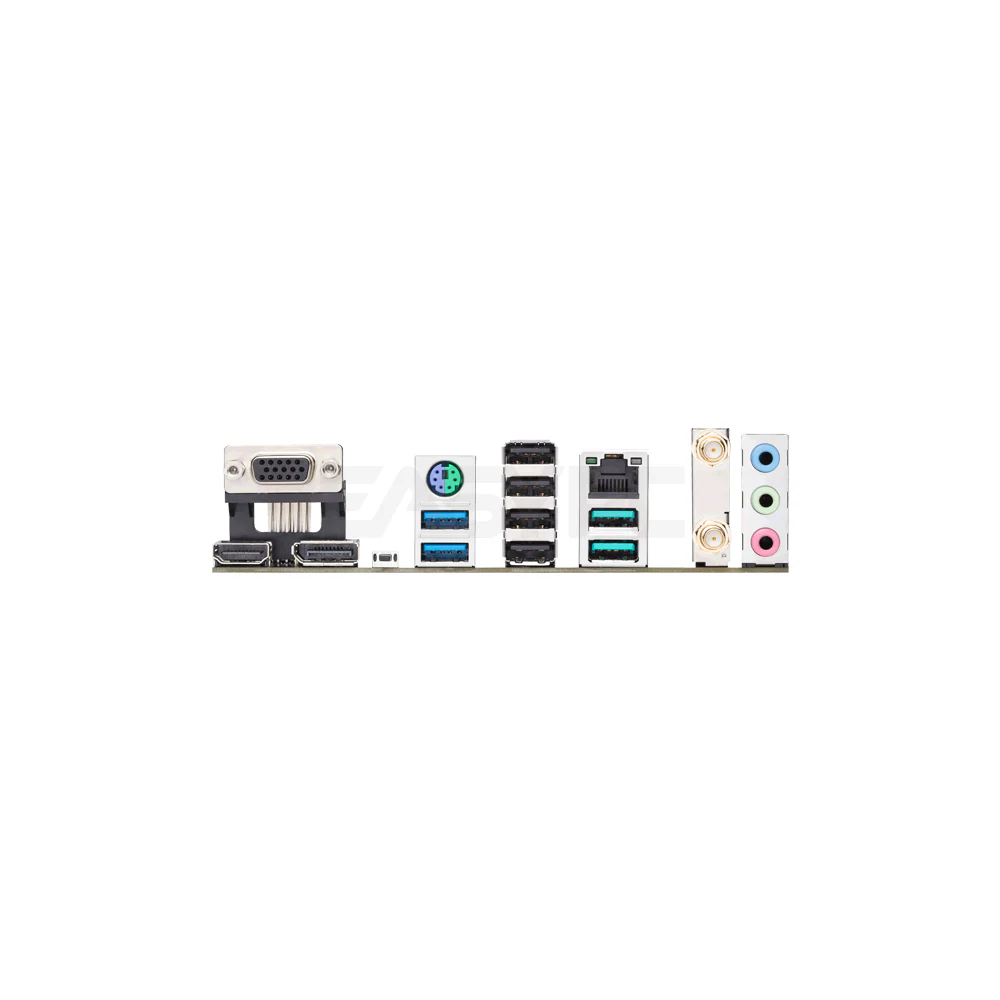

• Comprehensive I/O - DisplayPort, HDMI, VGA, and multiple USB ports
• ASUS OptiMem II - Improved memory stability and overclocking potential
• Realtek 2.5Gb Ethernet - Fast and reliable wired networking
• Aura Sync RGB - Customizable lighting with addressable headers

Advanced Power Design

The PRIME B650M-A WIFI II features a robust VRM design with quality components to ensure stable power delivery for demanding processors. ASUS 5X Protection III provides comprehensive hardware safeguards including LANGuard, overvoltage protection, and SafeSlot Core+ for enhanced durability.

Specifications

Socket	AMD AM5
Chipset	AMD B650
Form Factor	Micro-ATX (244mm x 244mm)
Memory Slots	4x DDR5 DIMM, Max 192GB
Memory Speed	DDR5-7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800
Expansion Slots	1x PCIe 4.0 x16 2x PCIe 4.0 x1
Storage	2x M.2 slots (1x PCIe 5.0, 1x PCIe 4.0) 4x SATA 6Gb/s
USB Rear	2x USB 3.2 Gen 2 Type-A 2x USB 3.2 Gen 1 Type-A 4x USB 2.0 Type-A
USB Internal	1x USB 3.2 Gen 1 Type-C header 1x USB 3.2 Gen 1 header 2x USB 2.0 headers
Network	Realtek 2.5Gb Ethernet Wi-Fi 6 (802.11ax) Bluetooth 5.2
Audio	Realtek 7.1 Surround Sound CODEC
Display Outputs	1x DisplayPort 1.4 1x HDMI 2.1 1x VGA
Power Connectors	24-pin ATX 8-pin EPS12V
Special Features	BIOS FlashBack, Aura Sync RGB, Q-LED diagnostics

Intelligent Cooling

Multiple temperature sources and fan headers with Fan Xpert 2+ software provide comprehensive cooling control. The VRM heatsink ensures stable operation even under heavy loads, while smart fan controls maintain the perfect balance between cooling and acoustics.

Future-Ready Connectivity

With PCIe 5.0 M.2 support, you can take advantage of the fastest SSDs available. The dual M.2 slots allow for flexible storage configurations, while built-in Wi-Fi 6 ensures you're ready for the latest wireless standards. Multiple display outputs provide versatility for various monitor setups.

Actual data rate may vary depending on CPU and memory configuration. Graphics output requires CPU with integrated graphics.
