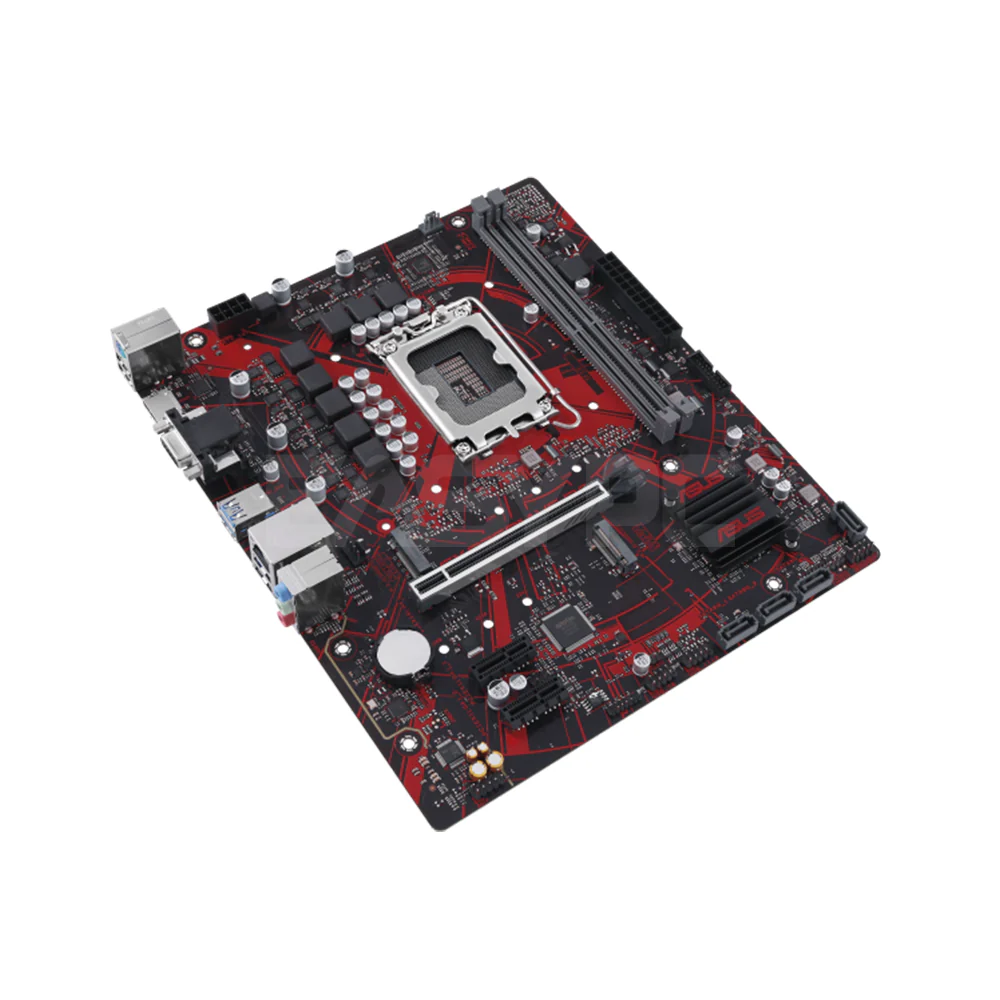

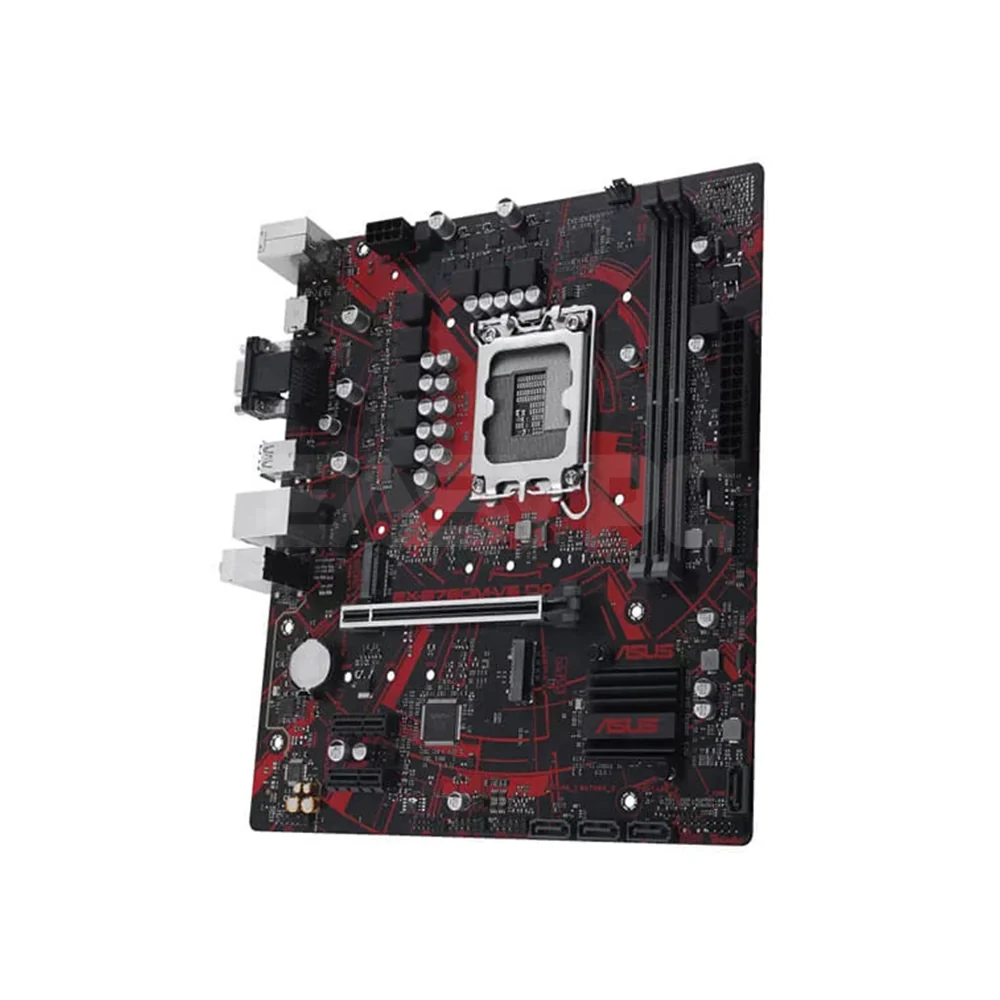

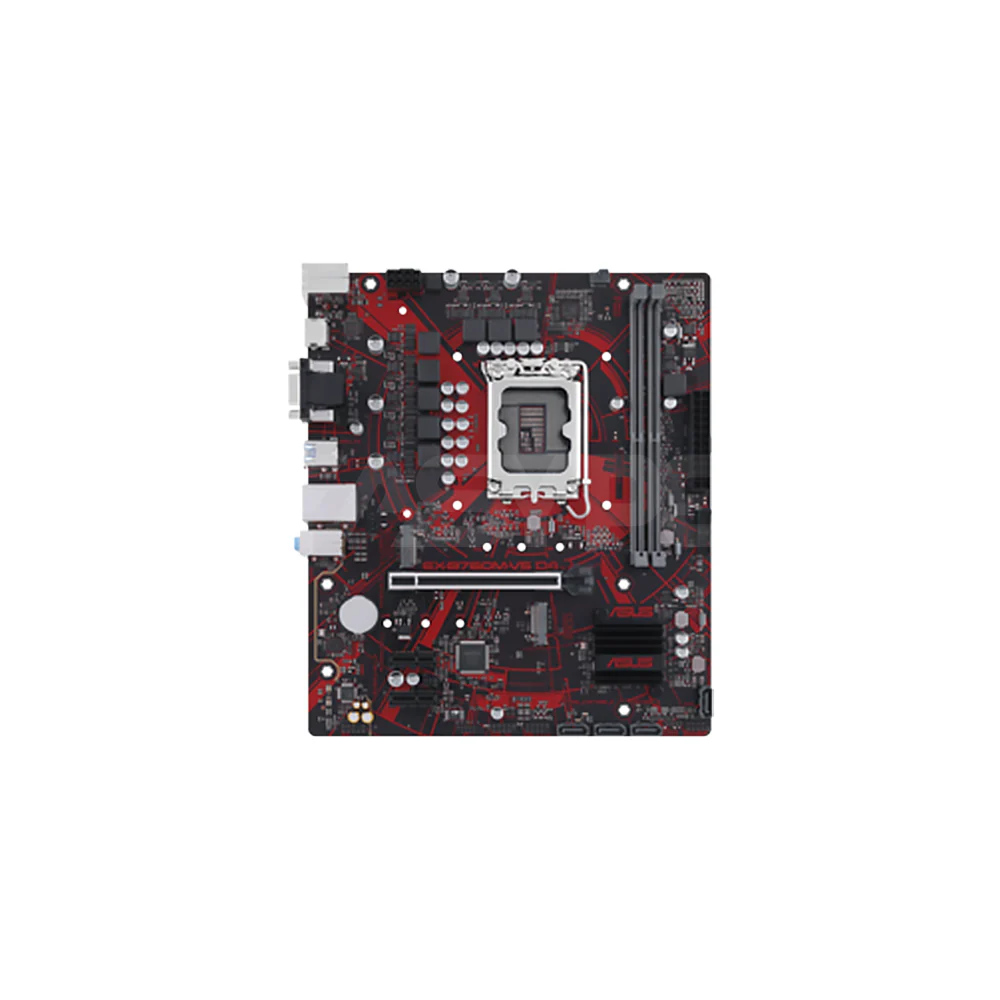

Asus EX-B760M-V5 Socket LGA 1700 Ddr4 Gaming Motherboard

Product Description

The Asus EX-B760M-V5 gaming motherboard is tailored for LGA 1700 processors and DDR4 memory, delivering exceptional gaming performance. Its robust design, high-speed connectivity options, and advanced features make it perfect for gamers seeking top-notch performance and reliability in their gaming setups.

Product Specifications:

• Model: EX-B760M-V5
• CPU: Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Chipset: Intel® B760 Chipset
• Memory
• 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/ 7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Graphics
• 1 x VGA port
• 1 x HDMITM port**
• Expansion Slots
• Intel® 13th & 12th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset
• 2 x PCIe 4.0 x1 slots
• Storage
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® 13th & 12th Gen Processors
• 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
• 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• USB
• Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 3.2 Gen 1 header (5G) supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Premium audio capacitors
• - Audio Shielding
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor: mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
• Back Panel I/O Ports
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
• Fan and cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Miscellaneous
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x Speaker header
• 1 x 10-1 pin System Panel header
• Features:
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
• Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
• Non-stop gaming: DDR4 5333 (OC), two M.2 slots, PCIe® 4.0, Realtek 2.5 Gb Ethernet, ASUS Beyond VR ready and Epic audio
• Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards
