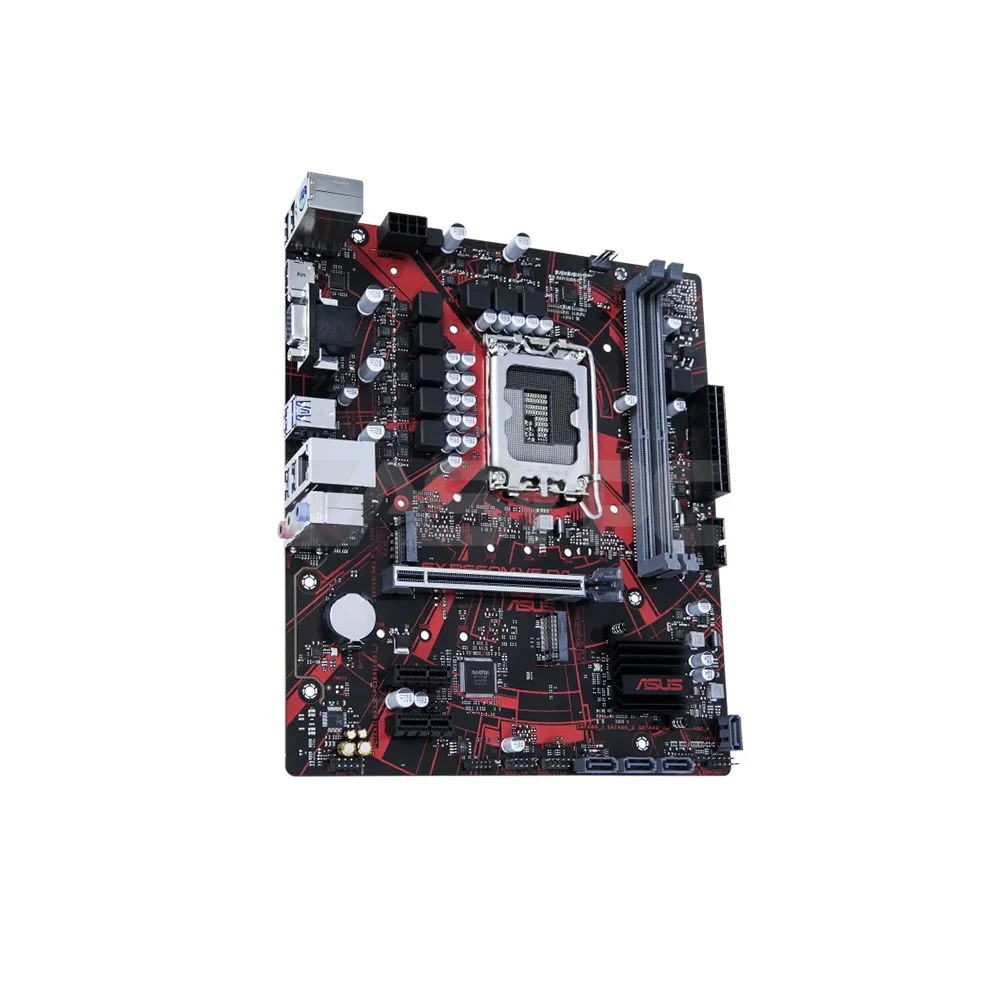

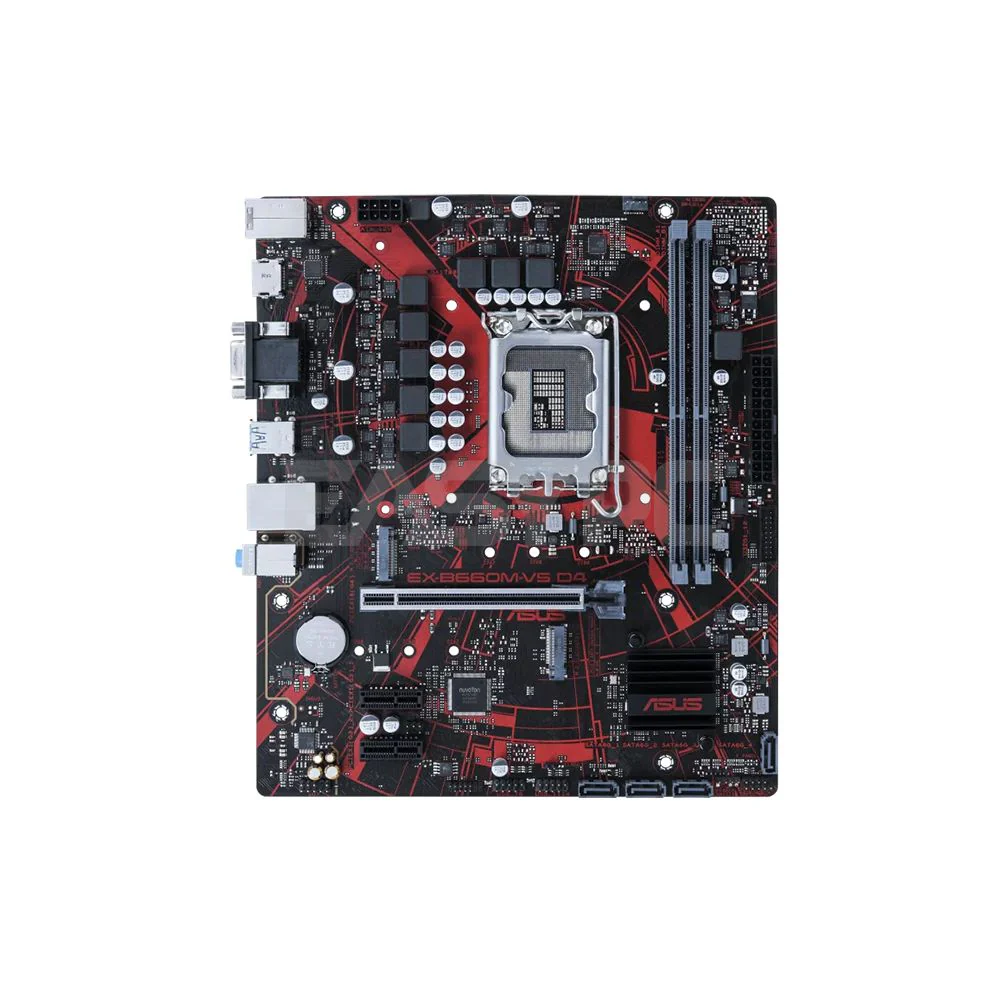

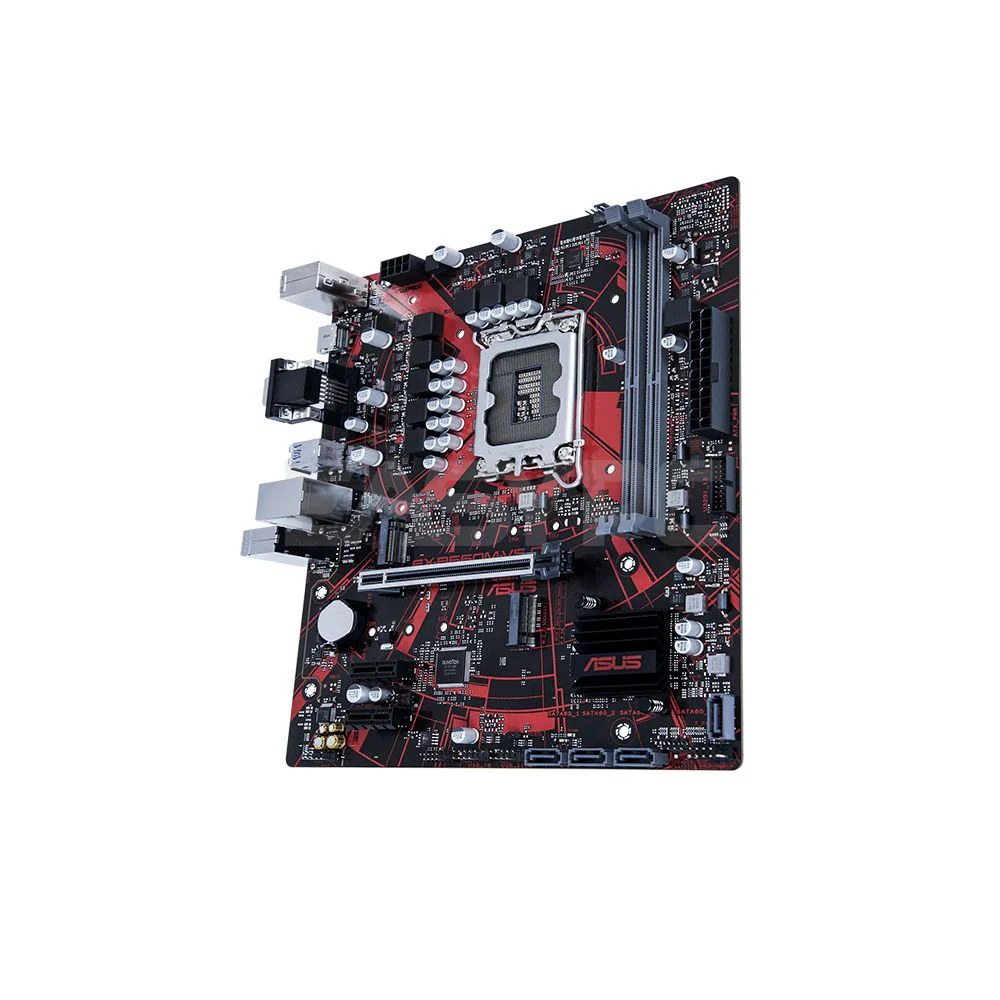

Asus EX-B660M-V5 LGA 1700 Ddr4 HDMI, D-Sub, USB 3.2 Gen 1 Lightning Boot mATX Gaming Motherboard

Product Description

Empower your gaming rig with the Asus EX-B660M-V5 motherboard. LGA 1700 socket and DDR4 support provide exceptional performance. Elevate your gaming experience with top-tier features, all encapsulated in a sleek design. Unleash the full potential of your system with this gaming powerhouse.

Product Specifications

• Brand: Asus
• Model: EX-B660M-V5
• CPU:
• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
• Chipset: Intel® B660 Chipset
• Memory:
• 2 x DIMM, Max. 64GB, DDR4
• 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Graphics:
• 1 x D-Sub port
• 1 x HDMI® port**
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots:
• Intel® 12th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot
• Intel® B660 Chipset: 2 x PCIe 3.0 x1 slots
• Storage:
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® 12th Gen Processors
• 2_1 slot (Key M), type 2242/2260/2280
• - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
• Intel® B660 Chipset**
• 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
• Ethernet: 1 x Realtek 1Gb Ethernet
• USB:
• Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio:
• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Premium audio capacitors
• - Audio Shielding
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports:
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x D-Sub port
• 1 x HDMI® port
• 3 x Audio jacks
• 1 x Realtek 1Gb Ethernet port
• 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
• Fan and cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related:
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related:
• 2x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB:
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous:
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x Speaker header
• 1 x 10-1 pin System Panel header
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Special Features:
• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-Slot
• ASUS EZ DIY
• - ProCool
• Non-stop Action
• - Lightning Boot
• Non-stop Challenger
• - ASUS iCafe labs certified
• Non-stop Durability
• - Luminous anti-moisture coating
• - USBGuard
• Overview:
• ASUS Expedition: Ready for non-stop battle
• ASUS Expedition 600 series motherboards are made for non-stop action, featuring Lightning Boot for faster BIOS boot-up. These Expedition motherboards are engineered for long-lasting durability to protect against moisture, corrosion and overvoltage damage. They have been subjected to stringent 144-hour diskless-system tests and offer extensive compatibility with top games and over 100 gaming peripherals. Expedition motherboards include Epic gaming audio to complete the gaming experience and provide the best stability, reliability and performance.
• Features:
• Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
• Non-stop durability: Unbeatable features including 8-pin ProCool connector, luminous anti-moisture coating, USBGuard, LANGuard, SafeSlot Core+, Stainless-steel back I/O and 5X Protection III
• Non-stop gaming: DDR4 5333 (OC), two M.2 slots, PCIe® 4.0, ASUS Beyond VR ready and Epic audio
• Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
