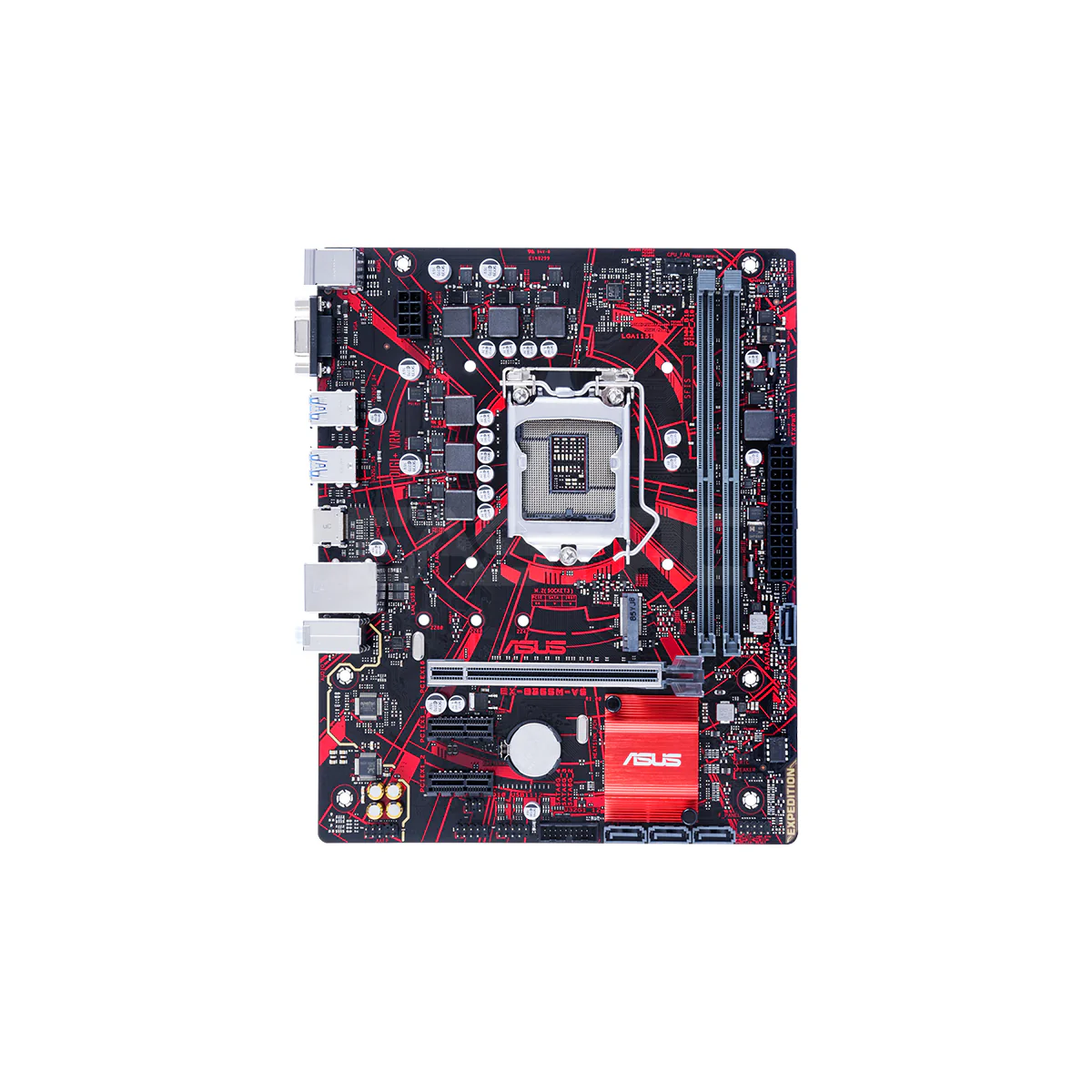

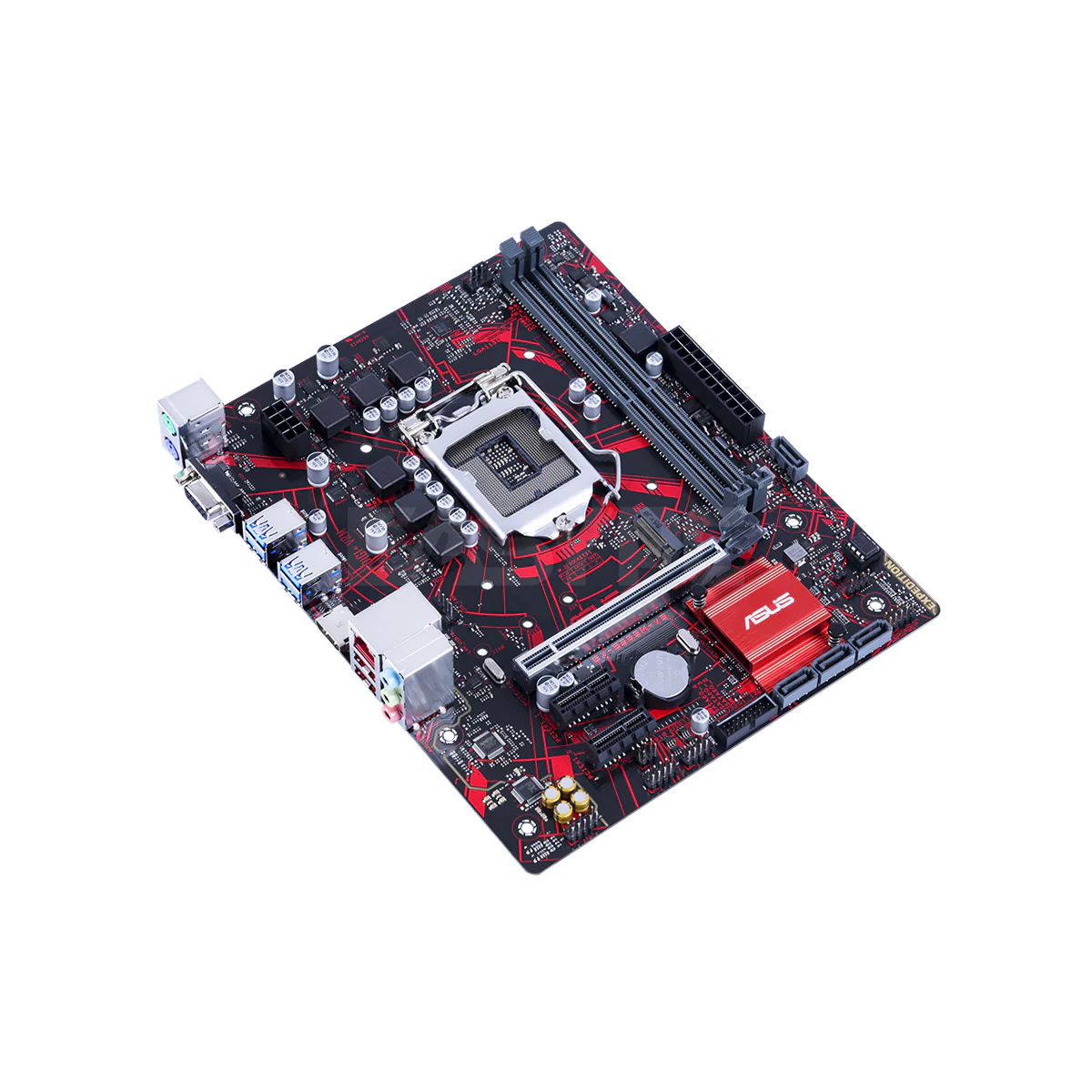

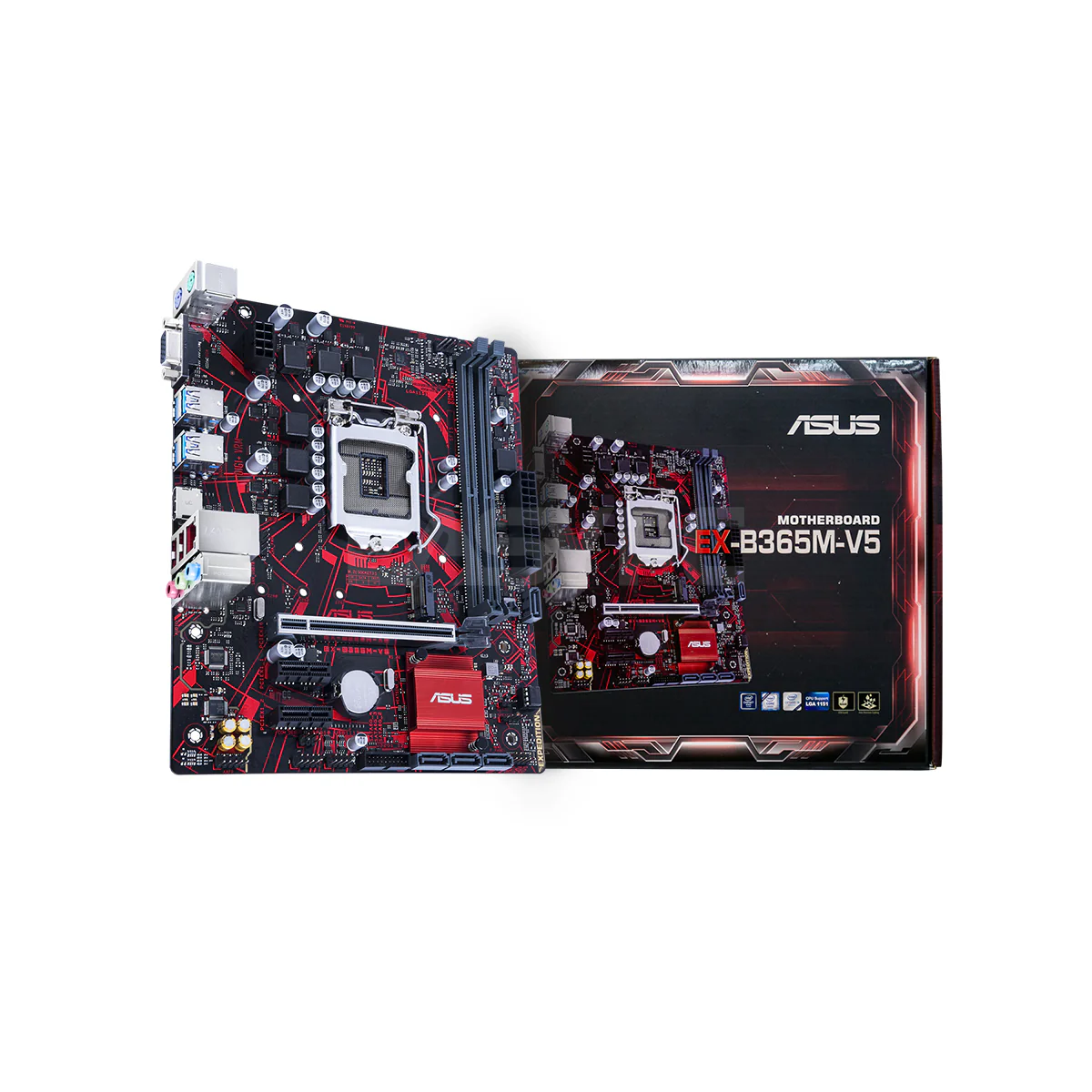

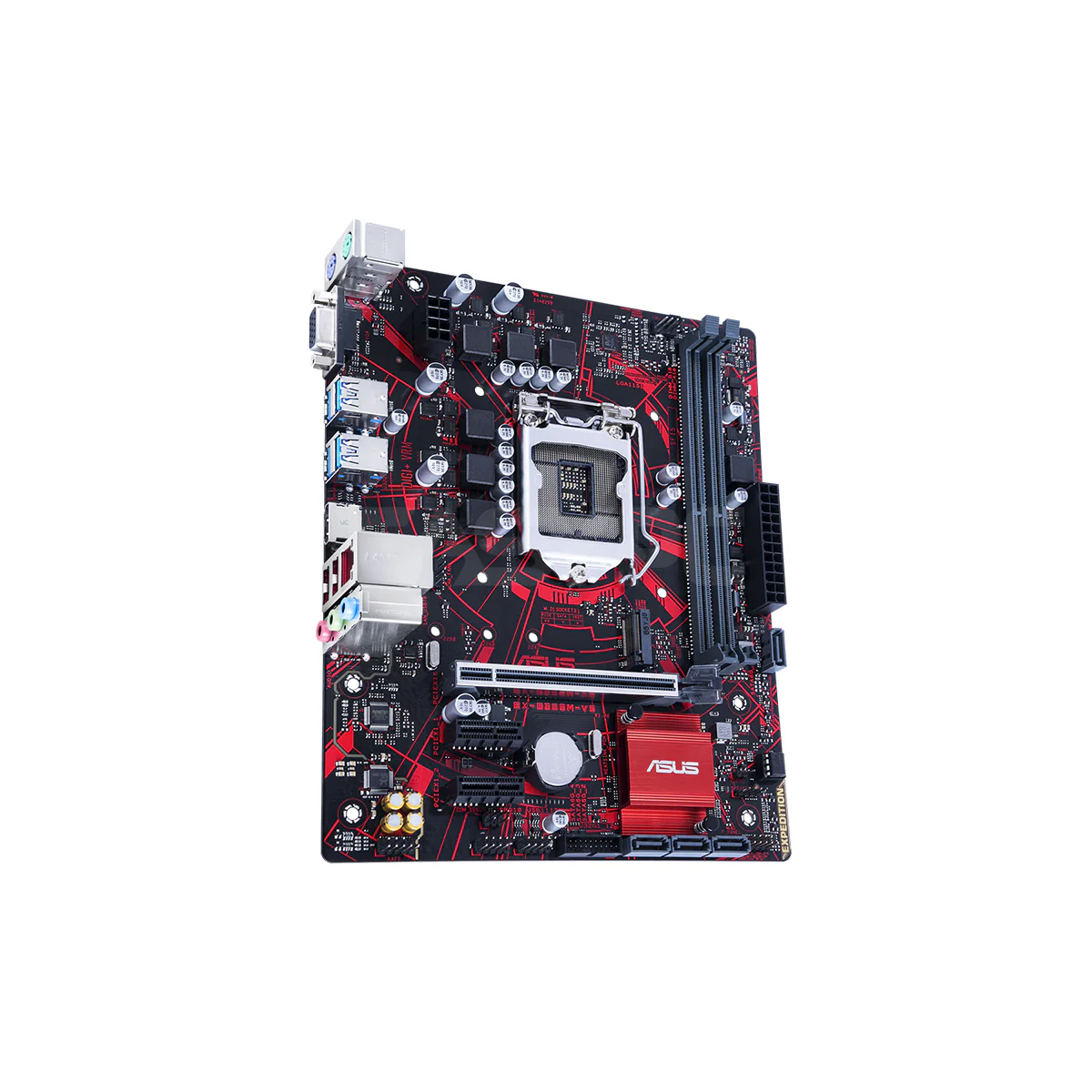

ASUS EX-B365M-V5 Intel B365 LGA 1151 mATX motherboard feature with luminous anti-moisture coating, SafeSlot Core+, USBGuard, LANGuard, DDR4 2666MHz, HDMI, D-Sub, SATA 6Gbps and USB 3.2 Gen 1, and 8-pin power connector Motherboard

Product Specifications

• Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
• Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
• Non-stop gaming: ASUS Beyond VR ready and Epic audio
• Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
• CPU: Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0
• Chipset: Intel® B365
• Memory: 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Supports Intel® Extreme Memory Profile (XMP)
• Graphic: Integrated Graphics Processor- Intel® HD Graphics support
• Multi-VGA output support : HDMI/D-Sub ports
• Expansion Slots
• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 2 x PCIe 3.0/2.0 x1
• Intel® B365 Chipset :
• 4 x SATA 6Gb/s port(s),
• 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• Intel® Optane™ Memory Ready
• Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC
• USB Ports
• Intel® B365 Chipset: 6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
• Intel® B365 Chipset: 6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board)
• Operating System Support: Windows® 10 64-bit
• Form Factor
• uATX Form Factor: 8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm )
• 1 x AAFP connector
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

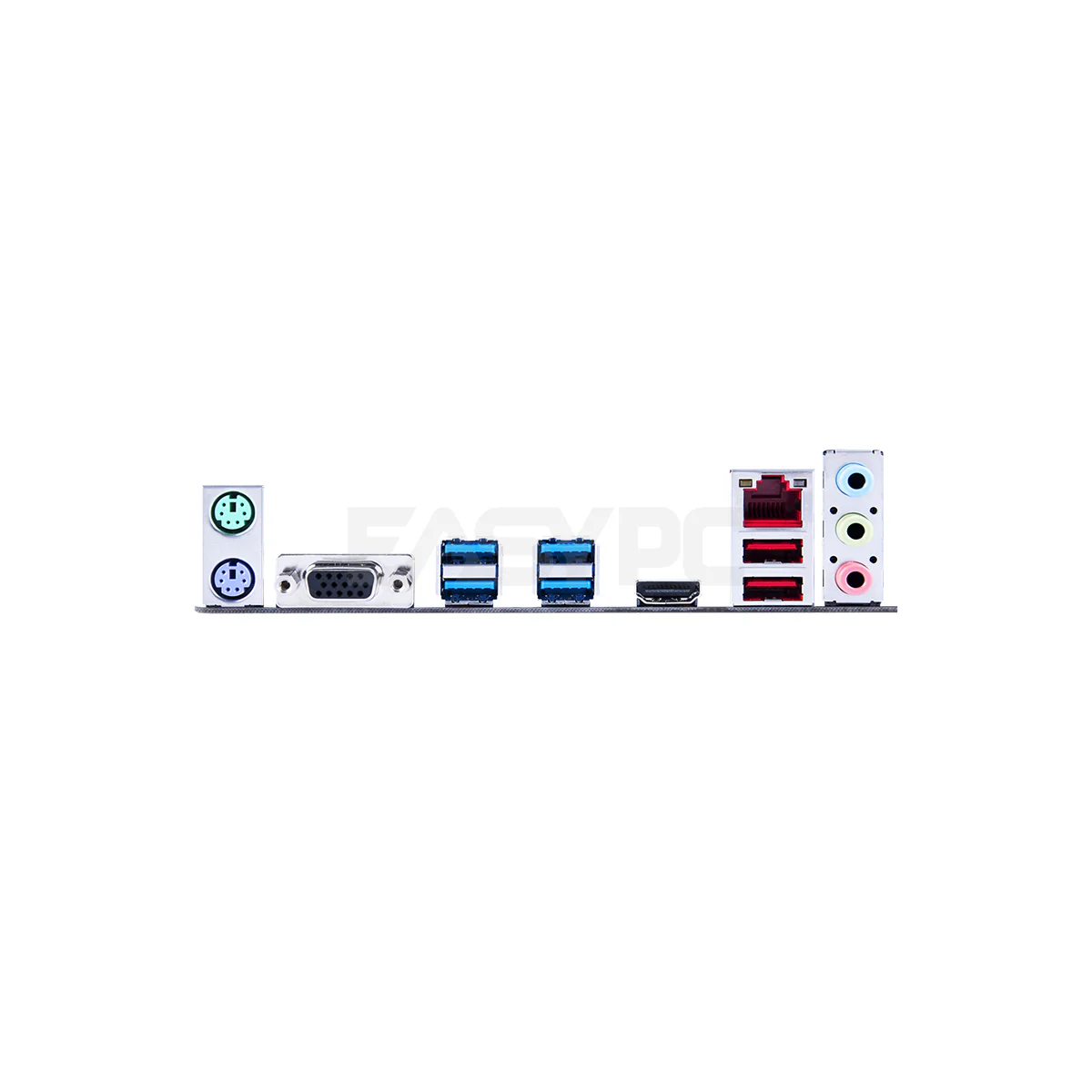

• Back I/O Ports
• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 2.0
• 3 x Audio jack(s)
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• ASUS 5X Protection III :
• ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
• ASUS Overvoltage Protection: World-class circuit-protecting power design
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• ASUS DIGI+ VRM: 6 Phase digital power design
• ASUS SafeSlot Core+ - Prevent graphics card damage
• Non-stop Durability :
• Anti-moisture coating - Outstanding protection against moisture and corrosion
• USBGuard- 120% higher voltage tolerance
• Non-stop Gaming :
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Non-stop Challenger :
• ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
• ASUS Q-Design :
• ASUS Q-Slot
• ASUS Q-DIMM
