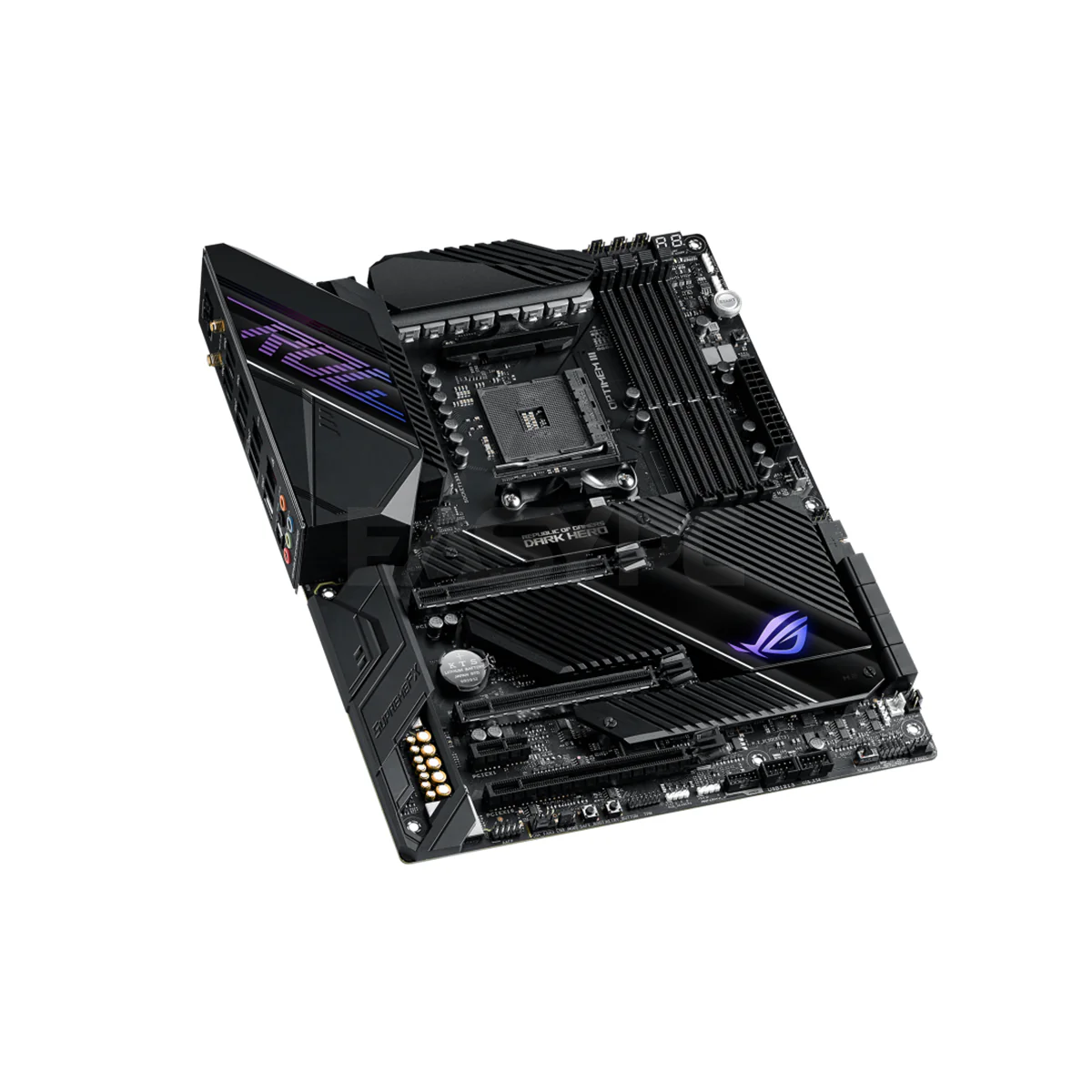

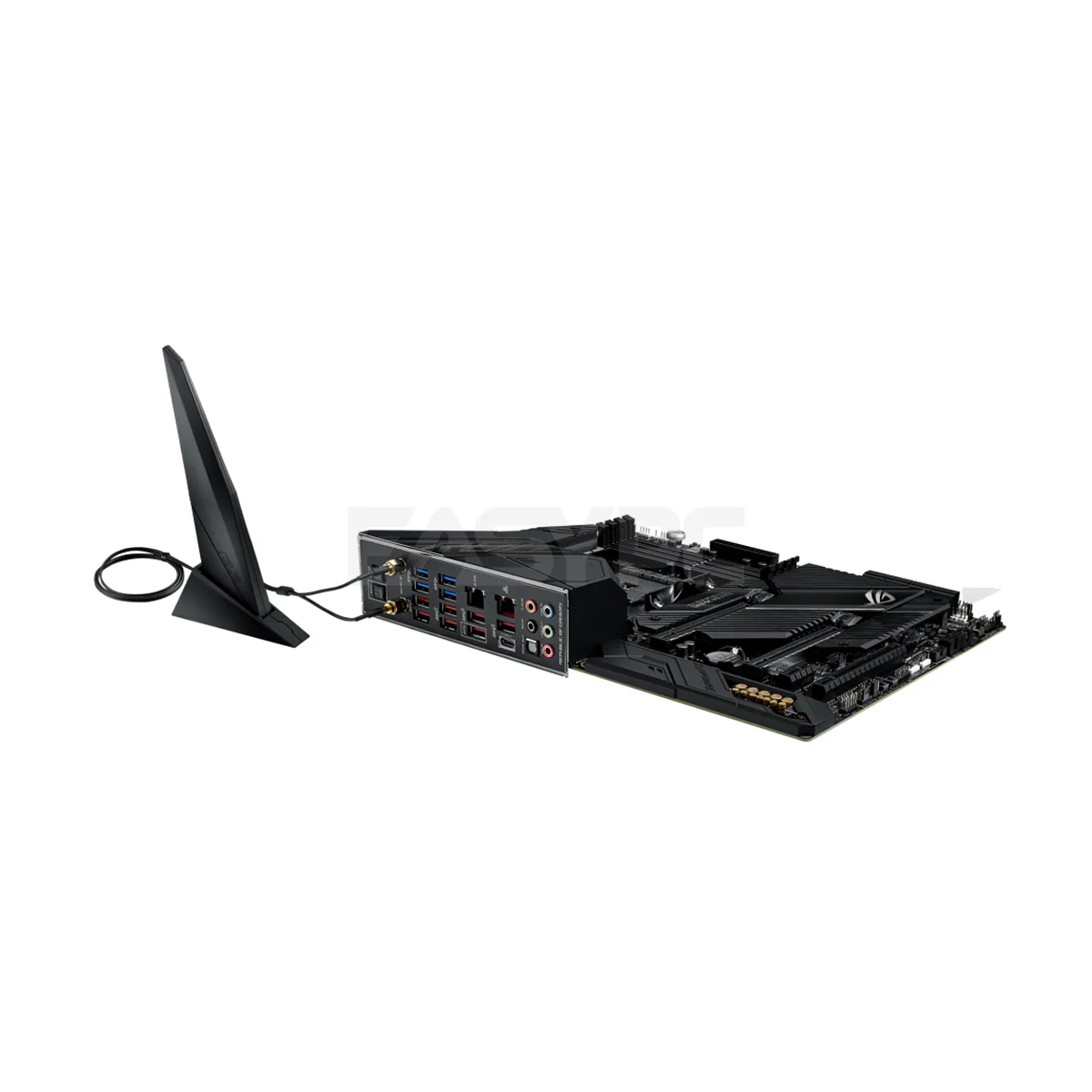

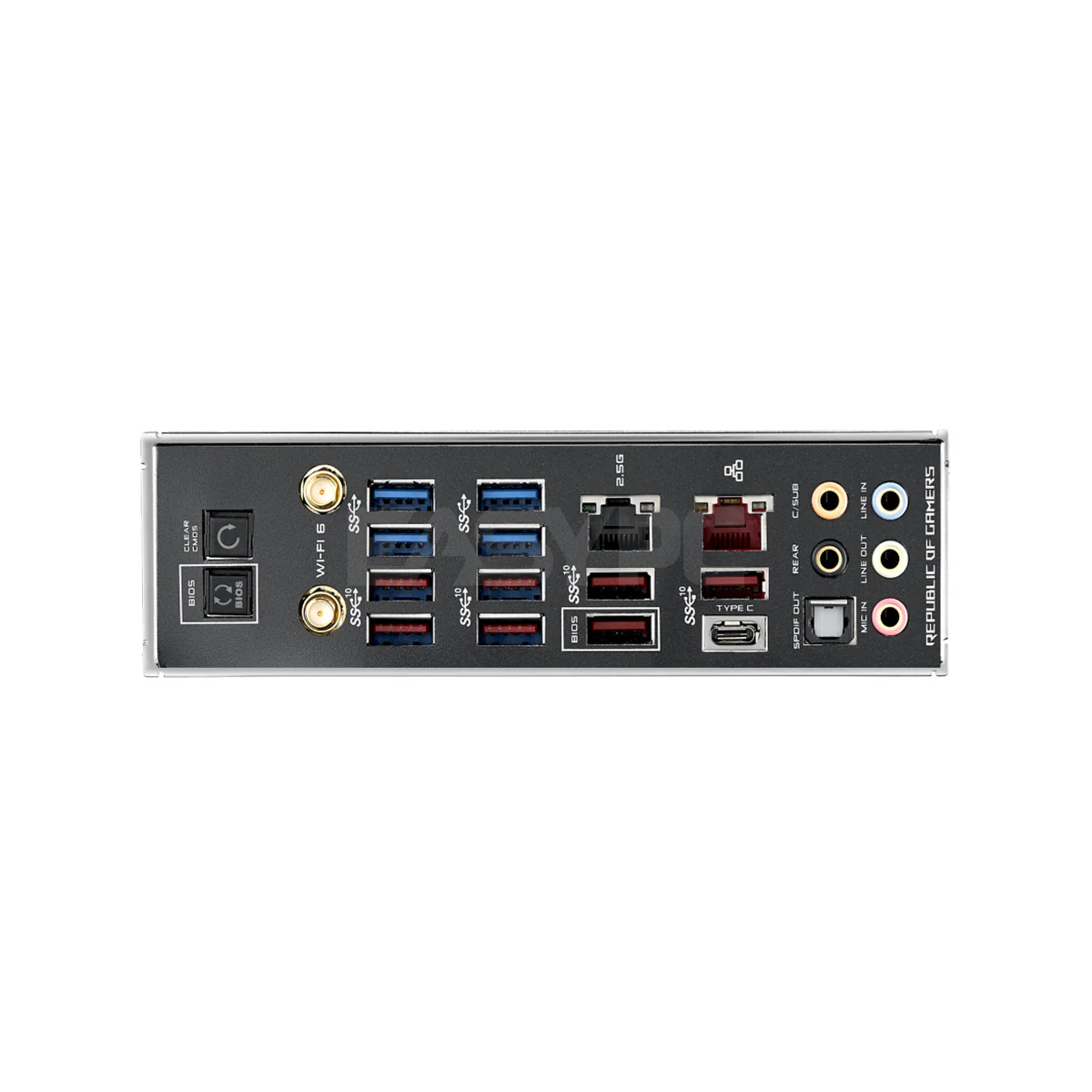

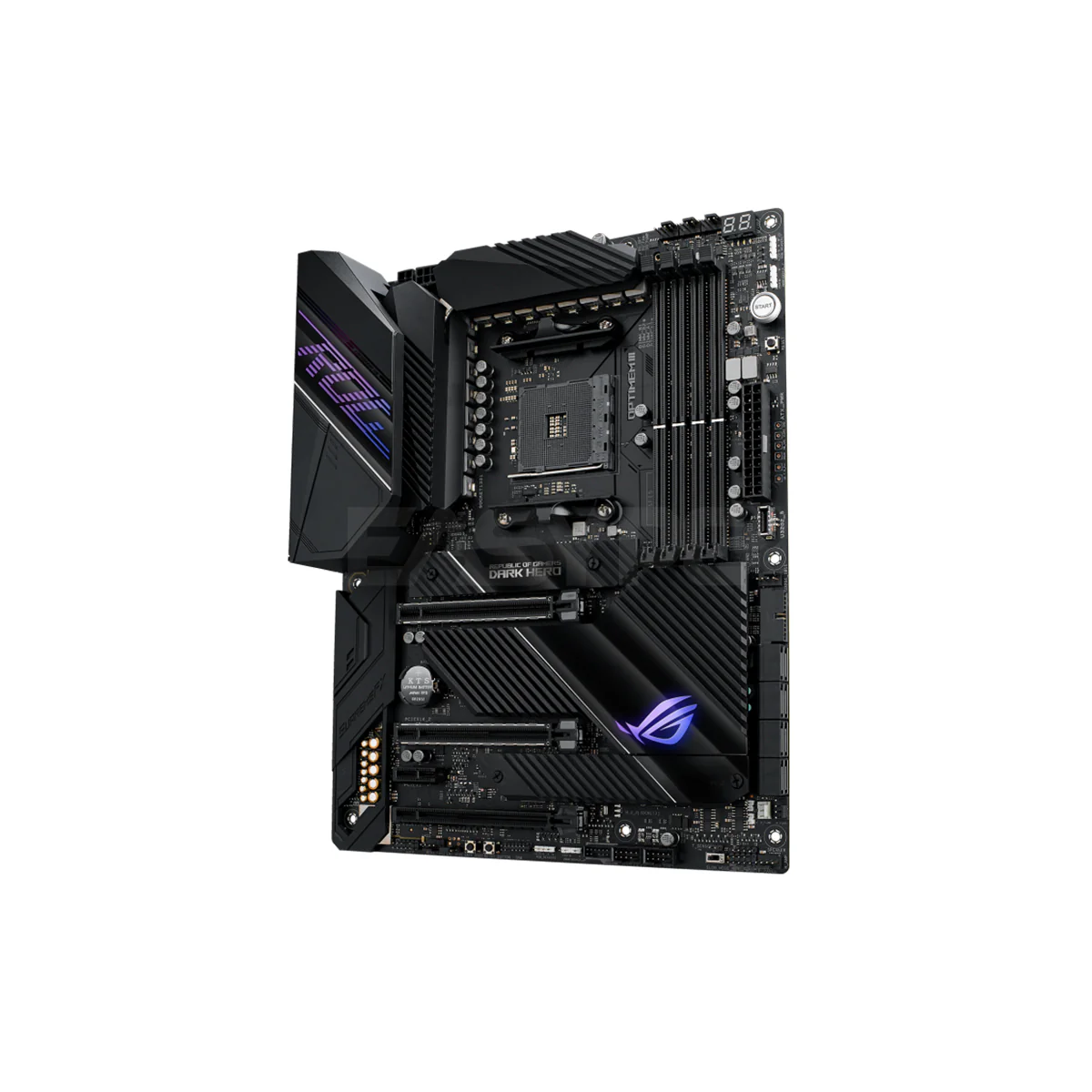

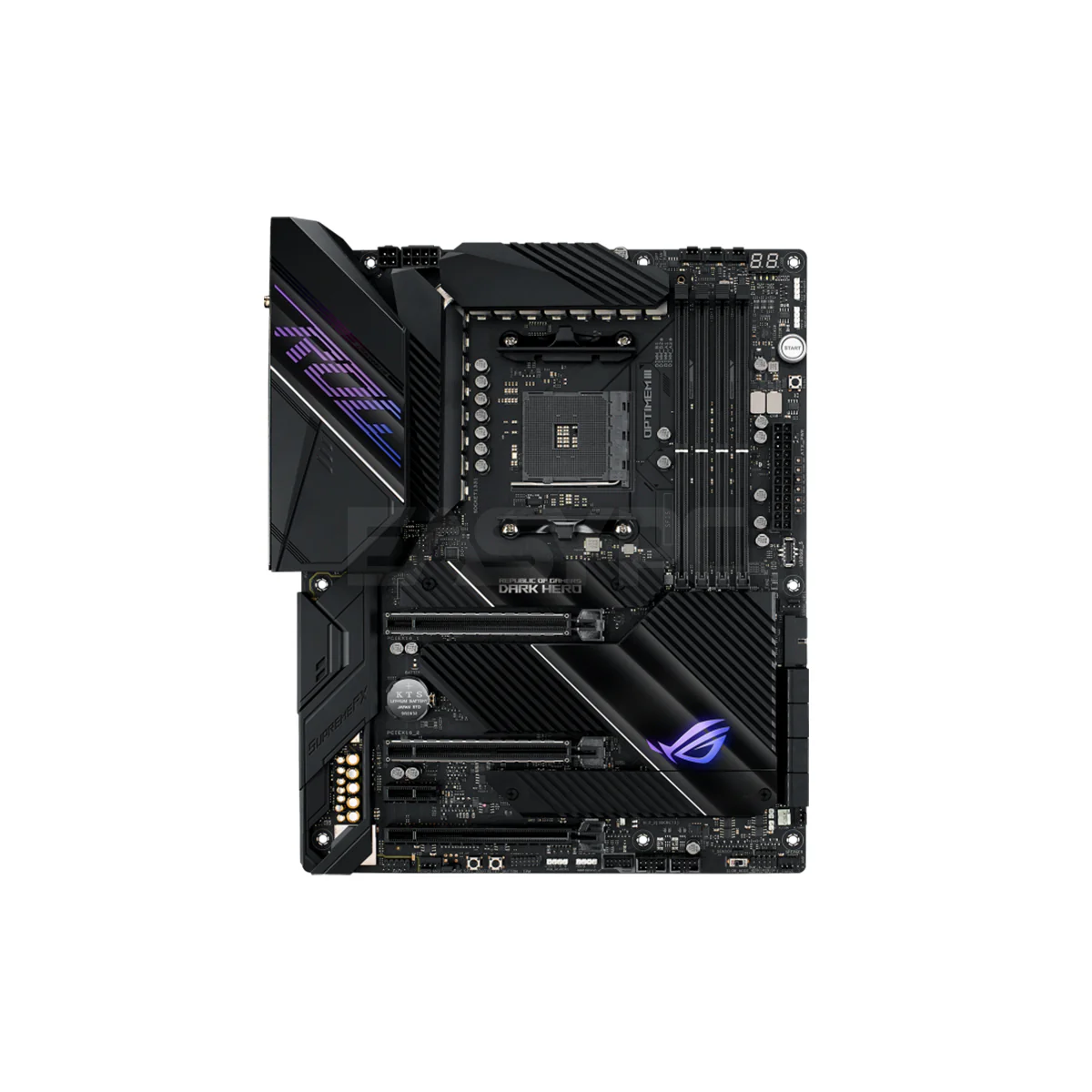

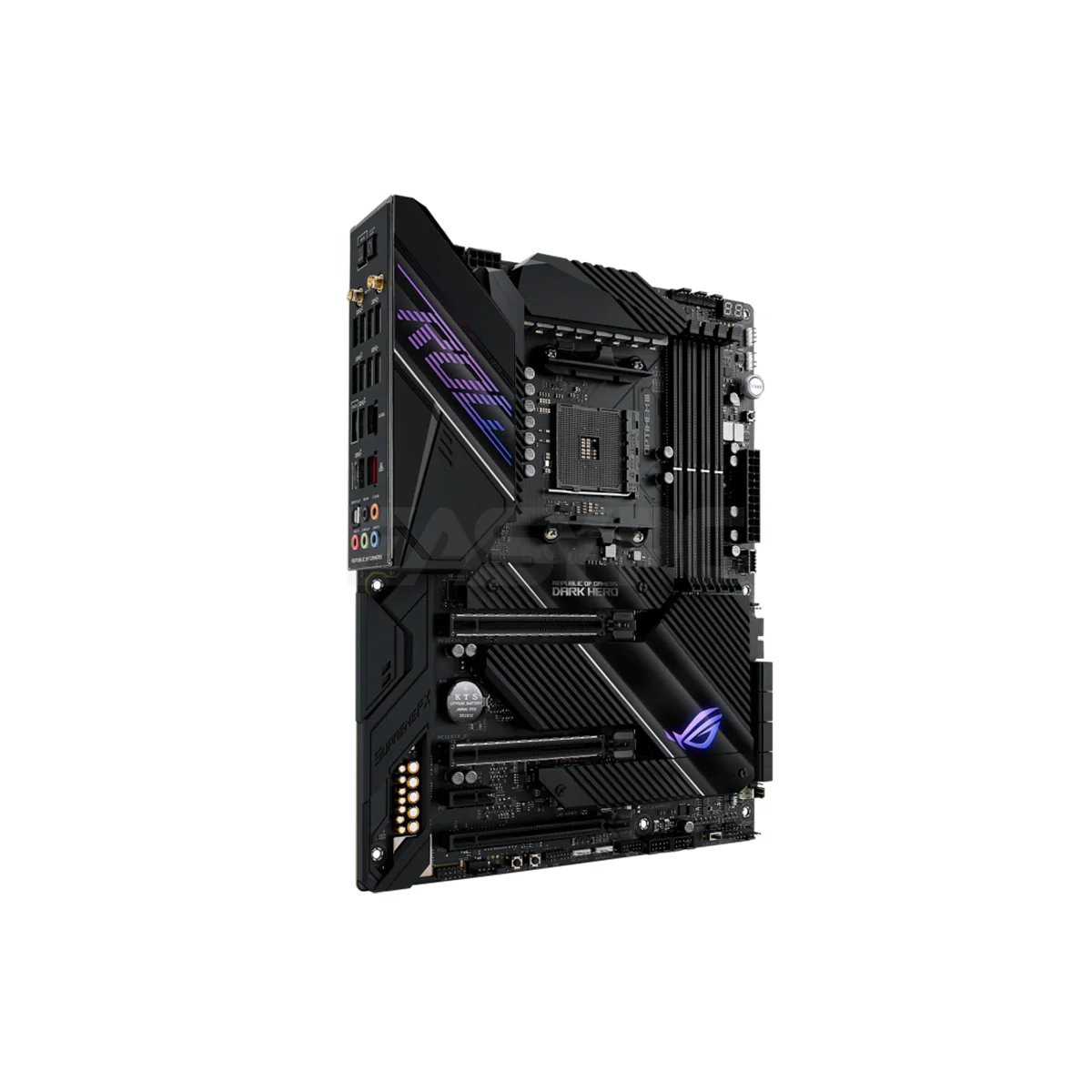

Asus Crosshair VIII Dark Hero WiFi/AX Gaming Motherboard Socket Am4 Ddr4

Product Specifications

• CPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
• Chipset: AMD X570
• Memory:
• 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• 4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• AMD Ryzen™ 4000 G-Series Desktop Processors
• AMD RyzenTM 2000 Series Processors
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.
• Multi-GPU Support:
• AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>
• AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors
• Supports NVIDIA 2-Way SLI® Technology
• Supports AMD 3-Way CrossFireX™ Technology
• Supports AMD 2-Way CrossFireX™ Technology
• Expansion Slots:
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• AMD RyzenTM 4000 G-Series / 2000 Series Processors
• AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
• 2 x PCIe 4.0 x16 (x16 or dual x8)
• 2 x PCIe 3.0 x16 (x16 or dual x8)
• 1 x PCIe 3.0 x16 (x8 mode)
• AMD X570 chipset
• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x1
• Storage:
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
• AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
• 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• AMD X570 chipset:
• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 8 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10
• LAN:
• ASUS LANGuard
• Intel® I211-AT
• Realtek® RTL8125-CG 2.5G LAN
• Wireless Data Network
• Supports PCIe interface
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
• Supports up to 2.4Gbps max data rate
• Intel® Wi-Fi 6 AX200
• Supports dual band frequency 2.4/5 GHz
• Supports channel bandwidth: HT20/HT40/HT80/HT160
• Bluetooth
• Bluetooth v5.1*
• *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• Audio:
• ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Dedicated audio PCB layers
• Unique de-pop circuit
• Audio Cover
• Premium Japanese audio capacitors
• Power pre-regulator: Reduces power input noise to ensure consistent performance
• Impedance sense for front and rear headphone outputs
• High quality120dBSNR stereo playback outputand113dBSNR recording input
• ESS® ES9023P
• Supports up to 32-Bit/192kHz playback
• Audio Feature:
• SupremeFX Shielding™ Technology
• Gold-plated jacks
• Optical S/PDIF out port(s) at back panel
• * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports -
• AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors:
• AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors:
• 4 x USB 3.2 Gen 2 port(s)
• 4 x USB 3.2 Gen 1 port(s)
• AMD X570 chipset:
• 1 x USB 3.2 Gen 2 front panel connector port(s)
• 6 x USB 3.2 Gen 1 port(s)
• 4 x USB 2.0 port(s)
• Special Features -
• ASUS USB BIOS FlashBack™
• AURA: Aura RGB Strip Headers, Addressable Gen 2 Header
• ASUS EZ DIY:
• ASUS Q-Design:
• ASUS Q-Code
• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM
• ASUS Q-Connector"
• Form Factor: ATX Form Factor, 12-inch x 9.6 inch (30.5 cm x 24.4 cm)
• Item Dimensions LxWxH: 14.57 x 12.28 x 4.25 inches
• Item Weight: 6.12 pounds
