Asrock X570 Steel Legend Socket Am4 Ddr4, ASRock Polychrome SYNC, Thunderbolt ready, VR Ready, Motherboard

Product Specifications

• Brand: Asrock
• Model: X570 Steel Legend
• Unique Features:
• ASRock USB 3.2 Gen2
• ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
• ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
• ASRock Super Alloy
• XXL Aluminum Alloy Heatsink
• Premium 60A Power Choke
• 50A Dr.MOS
• Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
• Combo Caps (Nichicon 12K Black Caps)
• Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
• I/O Armor
• Matte Black PCB
• High Density Glass Fabric PCB
• 2oz Copper PCB
• ASRock Steel Slot Gen4
• ASRock Full Coverage M.2 Heatsink
• ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
• ASRock Ultra USB Power
• ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop
• CPU
• Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors*
• Intersil Digital PWM
• 10 Power Phase design
• Chipset: AMD X570
• BIOS
• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
• LAN
• Gigabit LAN 10/100/1000 Mb/s
• GigaLAN Intel® I211AT
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE
• Storage
• 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*
• 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*
• Software and UEFI
• Software
• ASRock A-Tuning
• ASRock Polychrome SYNC
• ASRock XFast LAN
• UEFI
• ASRock Full HD UEFI
• ASRock Instant Flash
• Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB
• OS: Microsoft® Windows® 10 64-bit
• Features:
• Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
• 10 Power Phase Design
• Supports DDR4 4666+ (OC)
• 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2 (Key E) For WiFi
• AMD Quad CrossFireX™ and CrossFireX™
• Graphics Output Options: HDMI, DisplayPort
• 1 CH HD Audio (Realtek ALC1220 Audio Codec)
• 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)

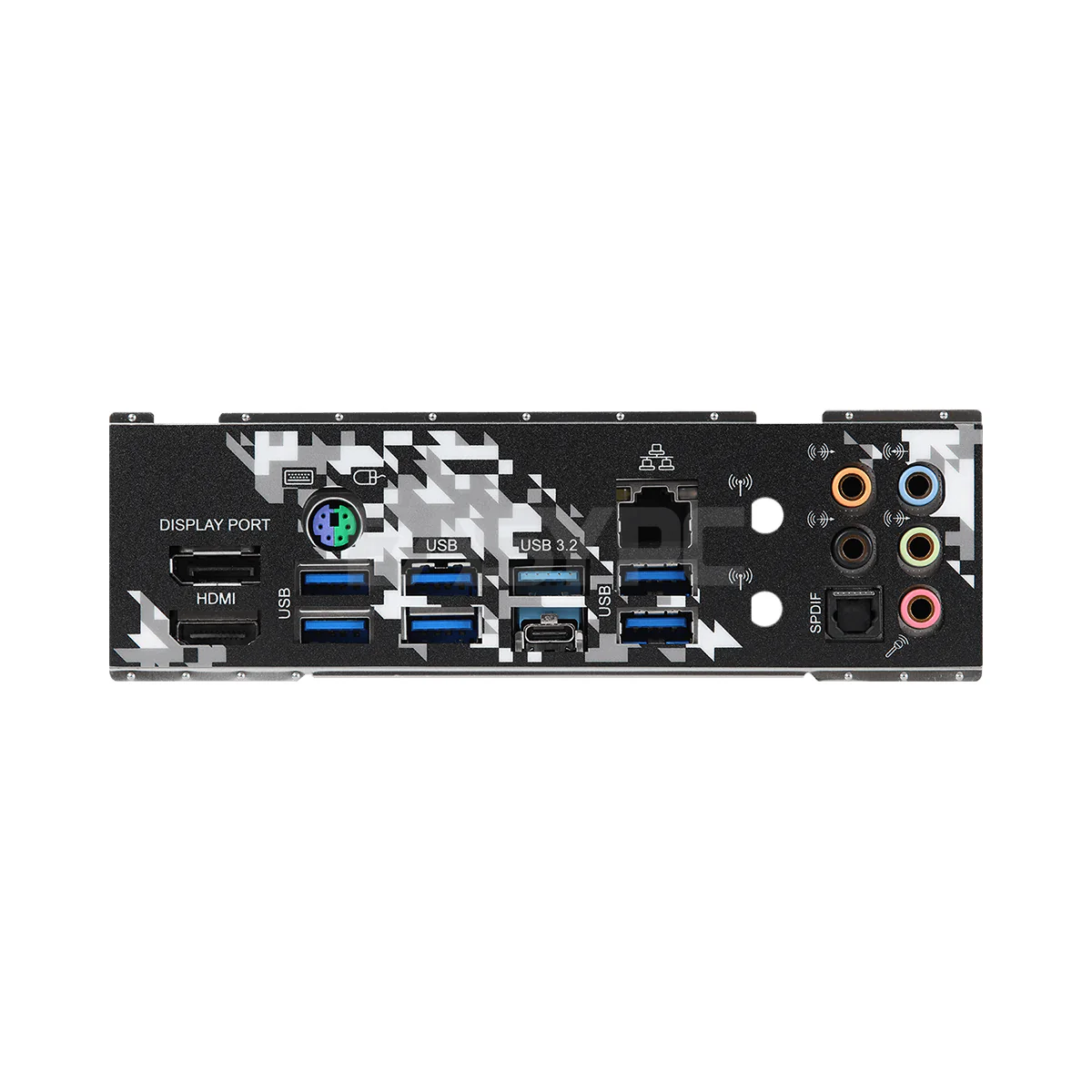

• 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
• Intel® Gigabit LAN
• ASRock Polychrome SYNC
