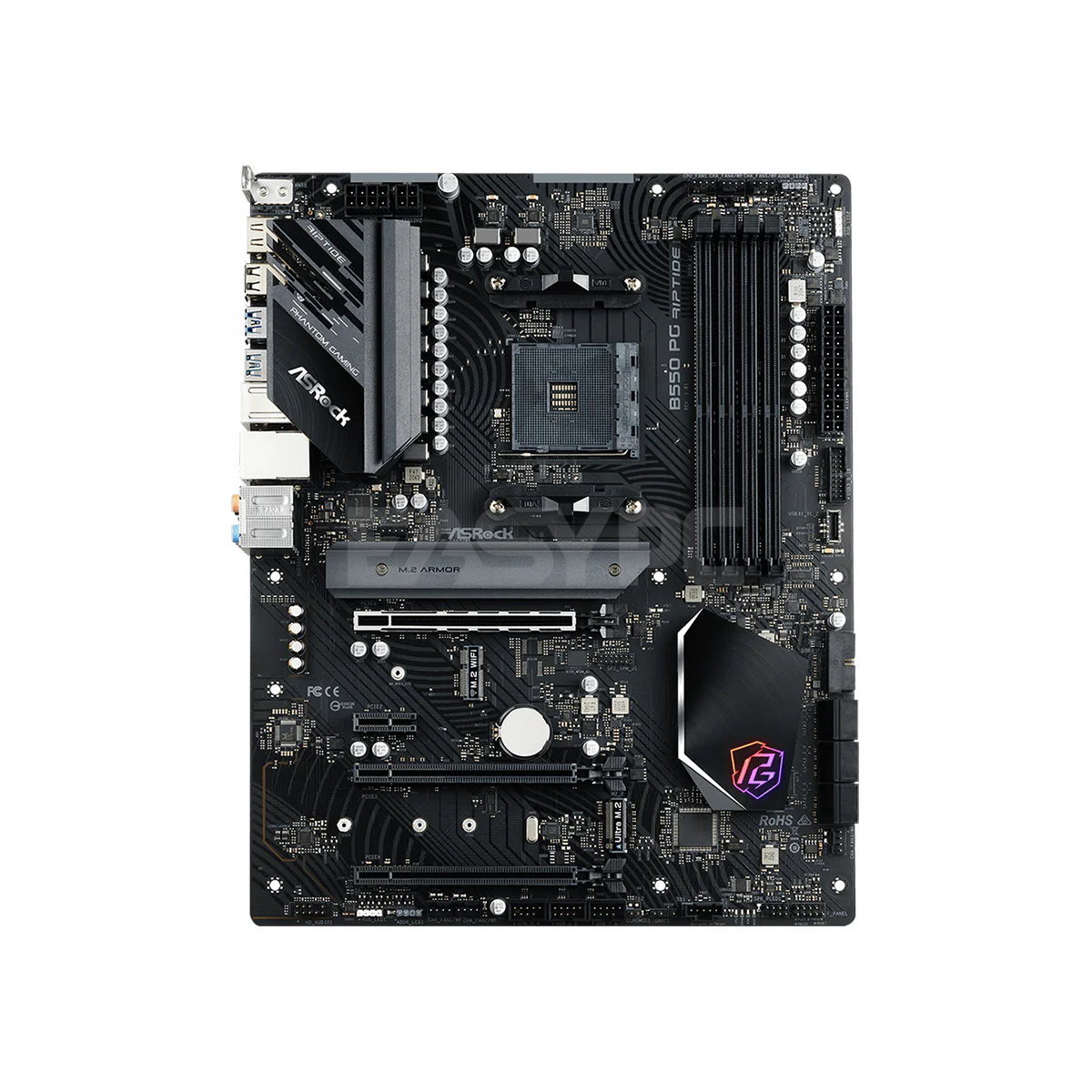

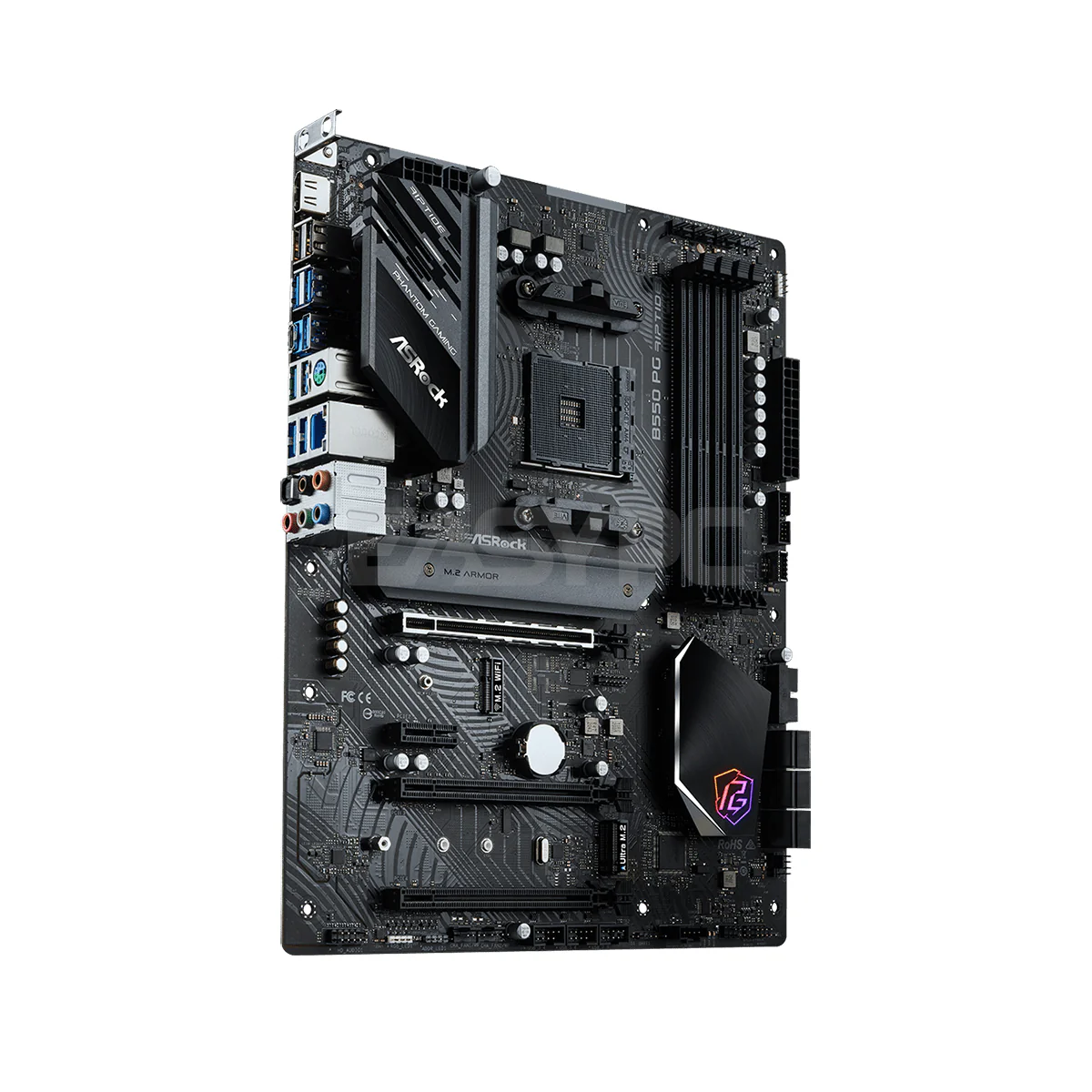

Asrock B550 PG Riptide Socket Am4 Ddr4 Motherboard

Product Description

The ASRock B550 PG Riptide AM4 DDR4 Motherboard is a powerhouse for gamers. With advanced features, PCIe 4.0 support, and durable build, it's ideal for high-performance gaming rigs. Upgrade for seamless multitasking, overclocking, and superior gaming experiences.

Product Specifications

• Brand: ASRock
• Model: B550 PG RIPTIDE
• CPU Socket Type: AM4
• CPU Type: Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors *
• * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
• Chipset: AMD B550
• Number of Memory Slots: 4×288pin
• Memory Standard DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))*
• * For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs.
• Maximum Memory Supported: 128GB
• Channel Supported: Dual Channel
• ECC Supported: Yes
• Buffer Supported: Un-buffered
• PCI Express 4.0 x16 1 x PCI Express 4.0 x16*
• * Actual support may vary by CPU.
• * Supports NVMe SSD as boot disks.
• PCI Express 3.0 x16 2 x PCI Express 3.0 x16*
• * Supports NVMe SSD as boot disks.
• * If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode.
• PCI Express x1 1 x PCI Express 3.0 x1
• Other Slots 15µ Gold Contact in VGA PCIe Slot (PCIE1)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• SATA 6Gb/s: 6 x SATA 6Gb/s
• 2: 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*
• 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
• * If M2_2 is occupied, SATA3_5_6 will be disabled.
• * Supports NVMe SSD as boot disks.
• * Supports ASRock U.2 Kit.
• Onboard Video Chipset: Supported only by CPU with integrated graphic
• Audio Chipset: Realtek ALC897
• Audio Channels: 7.1 Channels
• LAN Chipset: Killer E3100G
• Max LAN Speed: 10/100/1000/2500Mbps

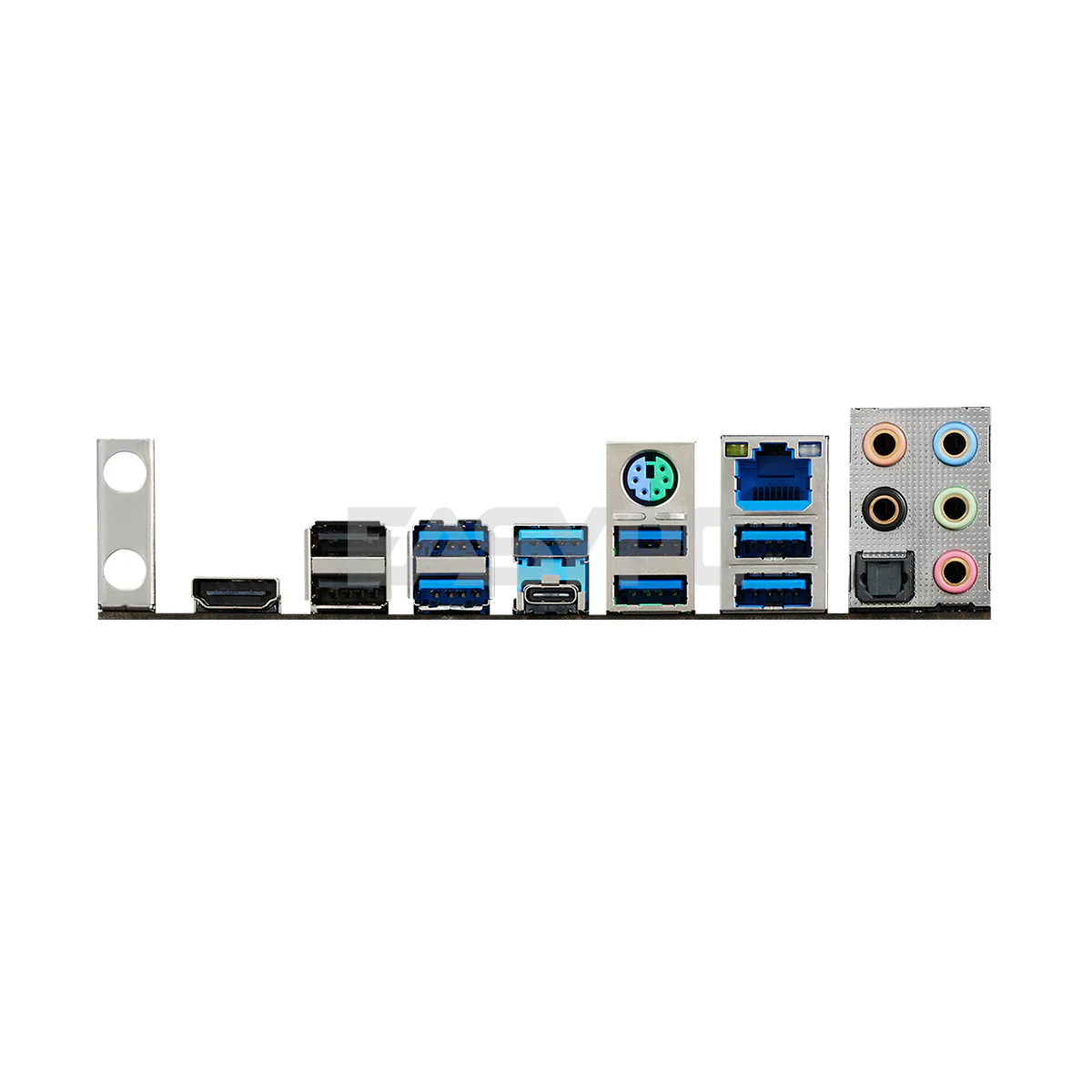

• Back I/O Ports 1 x Antenna Mounting Bracket
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
• 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Onboard USB: 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
• Other Connectors:
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers*
• 2 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card only)
• Form Factor: ATX
• LED Lighting: None RGB
• Dimensions (W x L): 12.0" x 9.6"
• Power Pin:
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• Features
• Unique Feature:
• ASRock USB 3.2 Gen2
• ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
• ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
• ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
• ASRock Super Alloy
• XXL Aluminum Alloy Heatsink
• Premium 60A Power Choke
• 50A Dr.MOS
• Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
• Matte Black PCB
• High Density Glass Fabric PCB
• 2oz Copper PCB
• Killer 2.5G LAN
• ASRock Lightning Gaming Port
• ASRock Steel Slot Gen4
• ASRock Full Coverage M.2 Heatsink
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop
• BIOS:
• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, VDDCR_SOC, DRAM, VPPM, +1.8V Voltage Multi-adjustment
• Software and UEFI:
• Software
• ASRock Motherboard Utility (Phantom Gaming Tuning)
• ASRock Killer LAN Software
• ASRock Polychrome SYNC*
• UEFI
• ASRock Full HD UEFI
• ASRock Instant Flash
• * These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD:
• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Hardware Monitor:
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V
• OS:
• Microsoft Windows 10 64-bit
• Overview:
• Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
