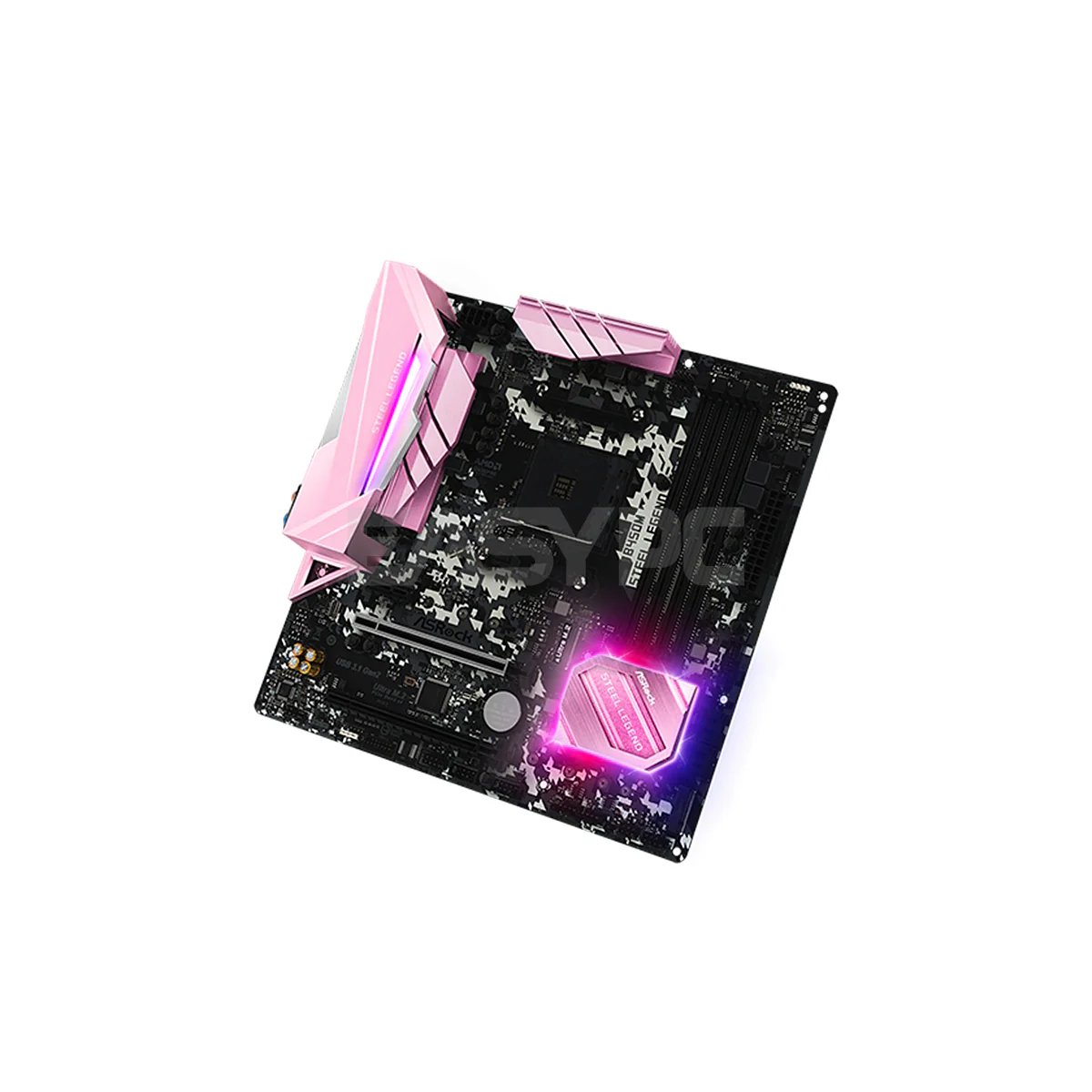

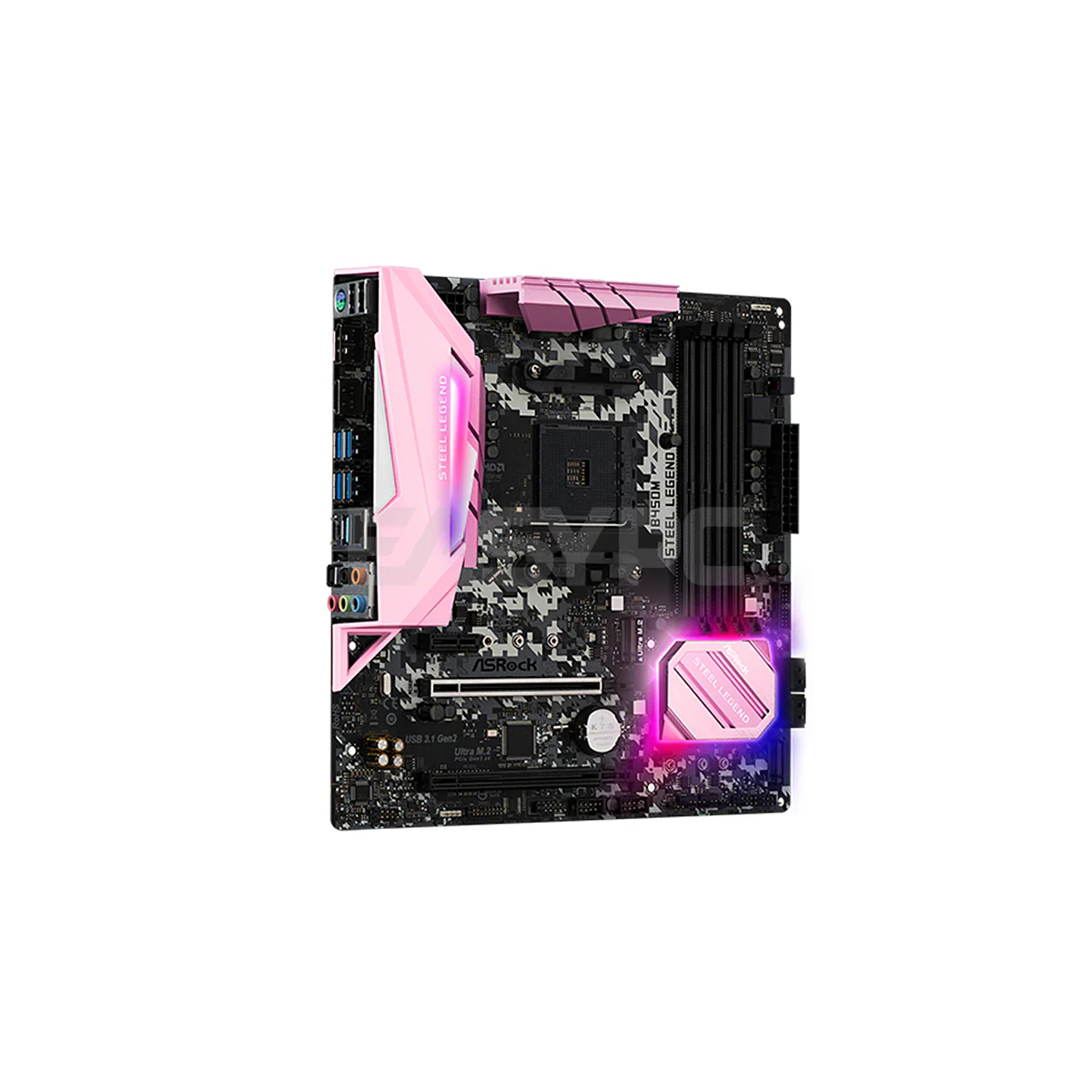

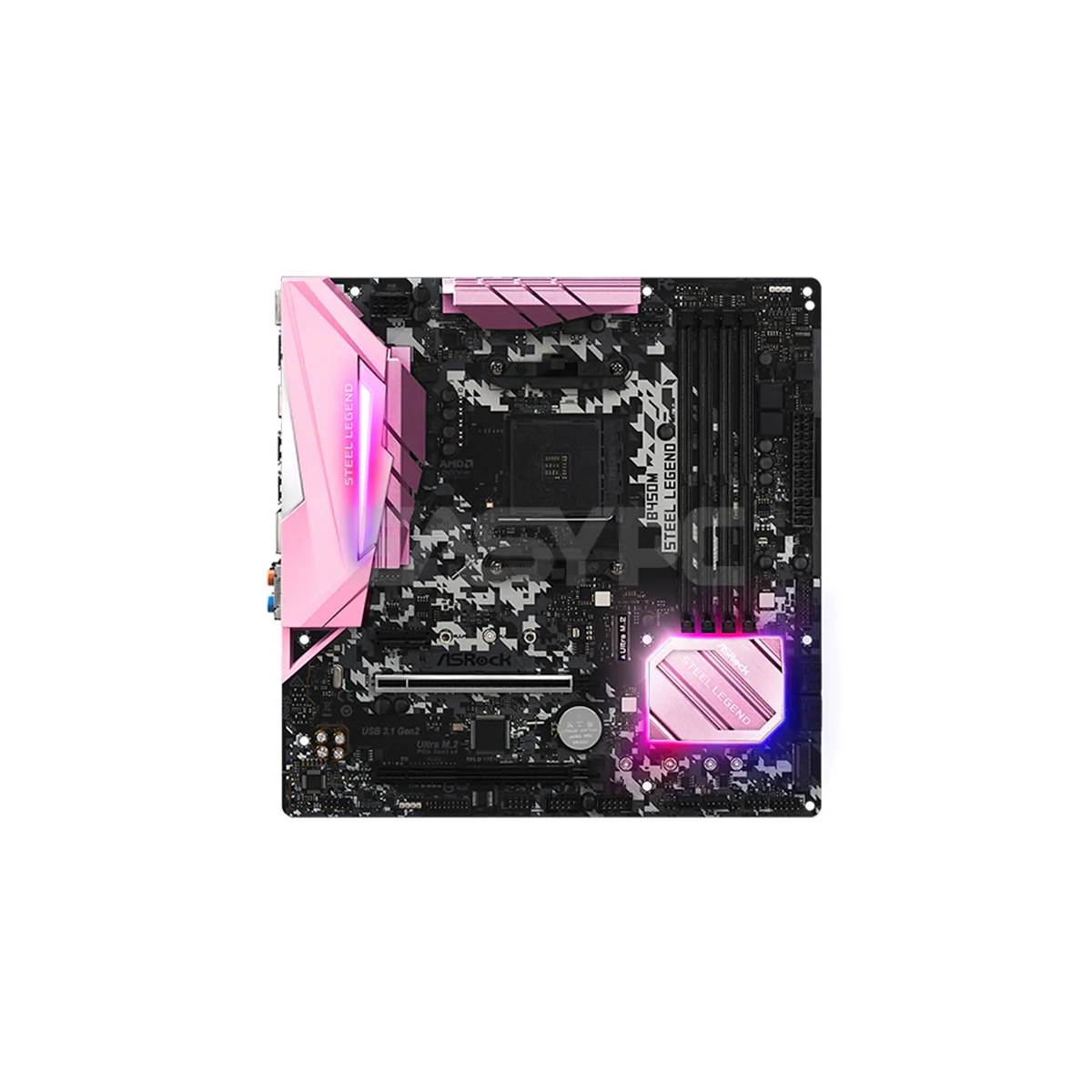

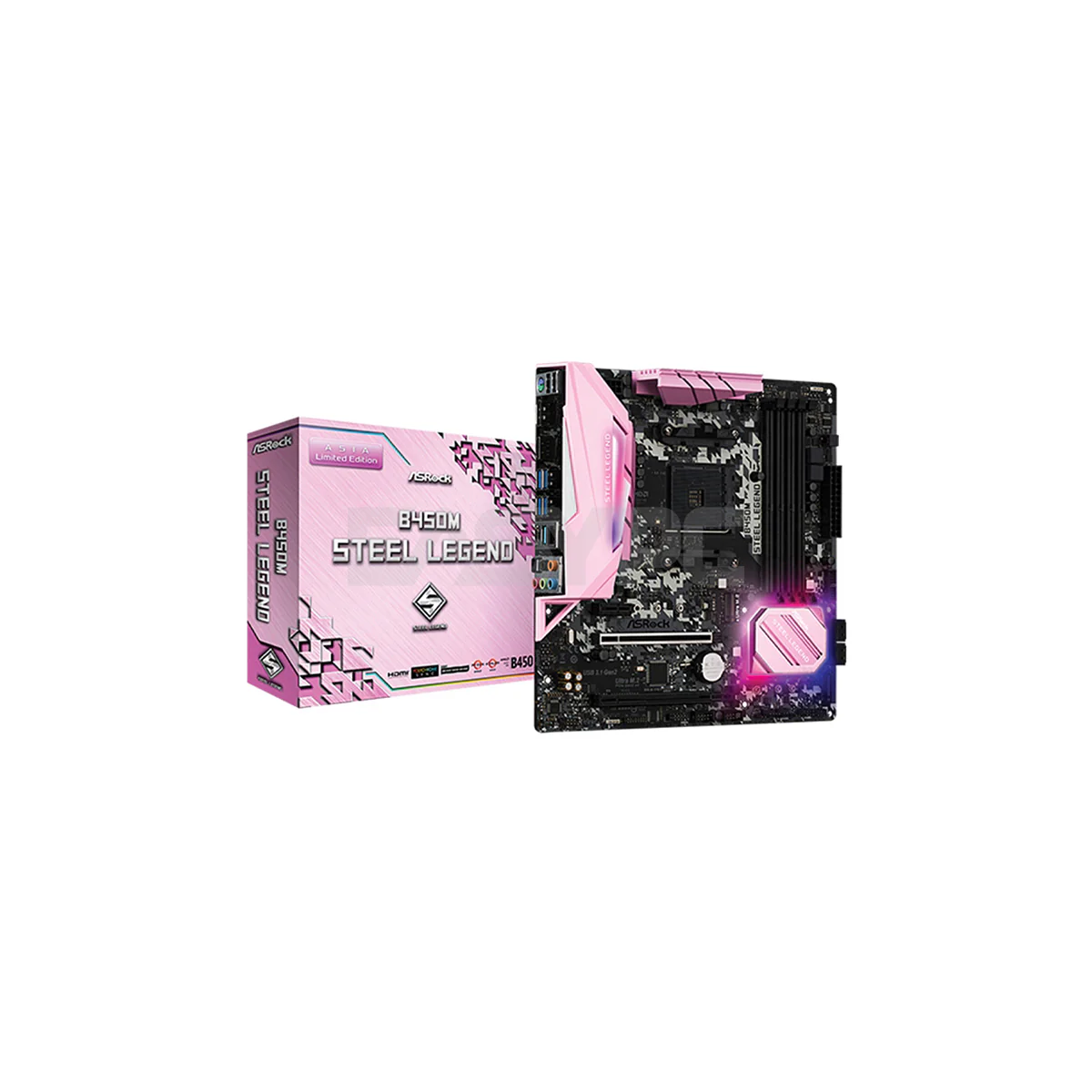

Asrock B450M Steel Legend Pink Edition Socket Am4 Ddr4 Gaming Motherboard

Product Specifications

• Brand: ASRock
• Model: B450M Steel Legend
• CPU Socket Type: AM4
• CPU Type: Ryzen Series
• Chipset: AMD Promontory B450
• Number of Memory Slots: 4×288pin
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
• PCI Express 2.0 x16: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
• PCI Express x1: 1 x PCI Express 2.0 x1 Slot
• SATA 6Gb/s: 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
• M.2: 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with Athlon series APU and Raven Ridge 2)**
• Onboard Video Chipset: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*,
• DirectX 12, Pixel Shader 5.0, Shared memory default 2GB. Max Shared memory supports up to 16GB.**

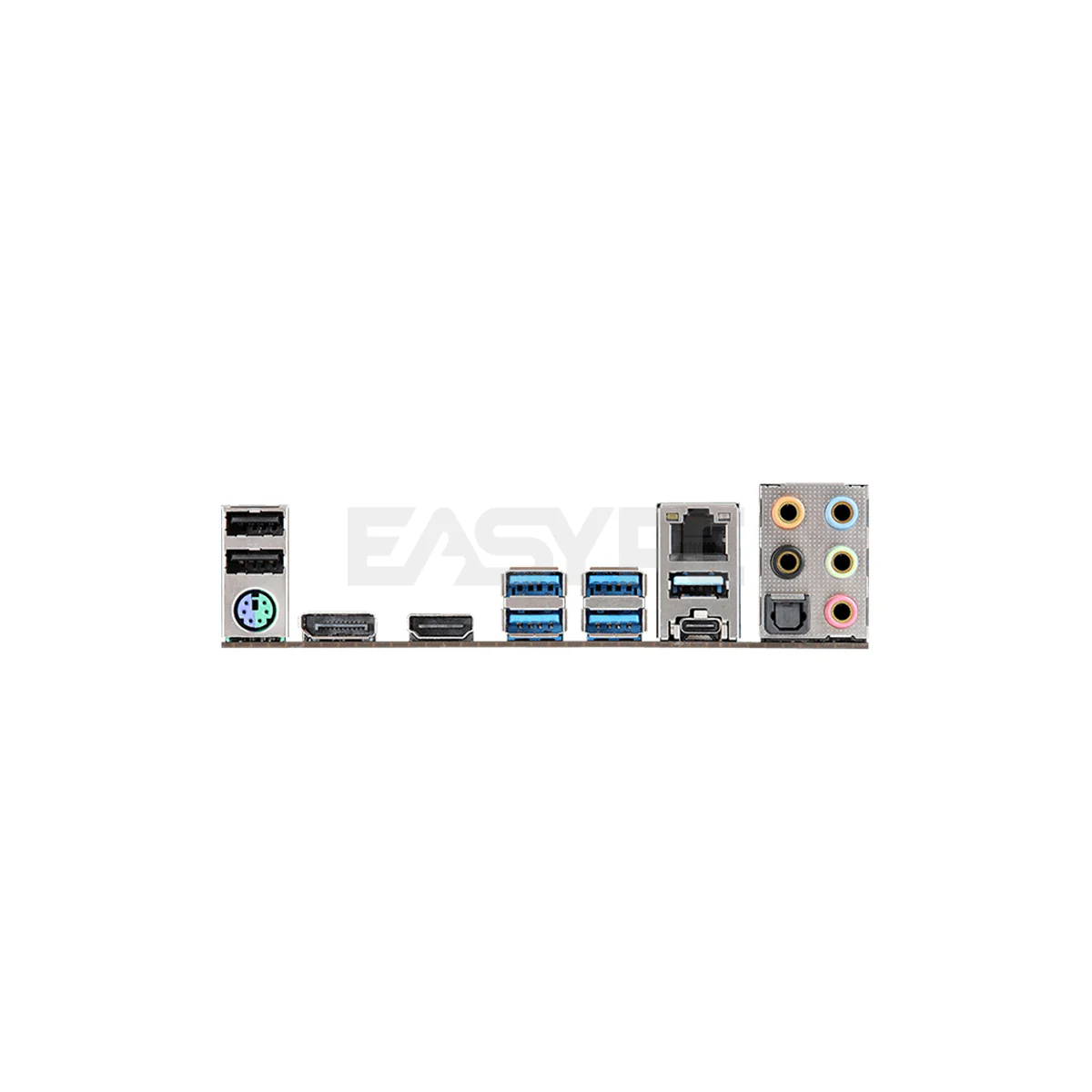

• Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
• Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24 Hz / (3840x2160) @ 30 Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60 Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
• Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
• Audio Chipset: Realtek ALC892/897 Audio Codec
• Audio Channels: 7.1 CH HD Audio with Content Protection,Supports Surge Protection
• LAN Chipset: Realtek RTL8111H
• Max LAN Speed: 10/100/1000Mbps
• Form Factor: Micro ATX
• LED Lighting: RGB
• Dimensions (W x L): 9.6" x 9.6"
• Power Pin: 1 x 24-pin ATX Power Connector, 1 x 8-pin 12V Power Connector
• Onboard USB: 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
