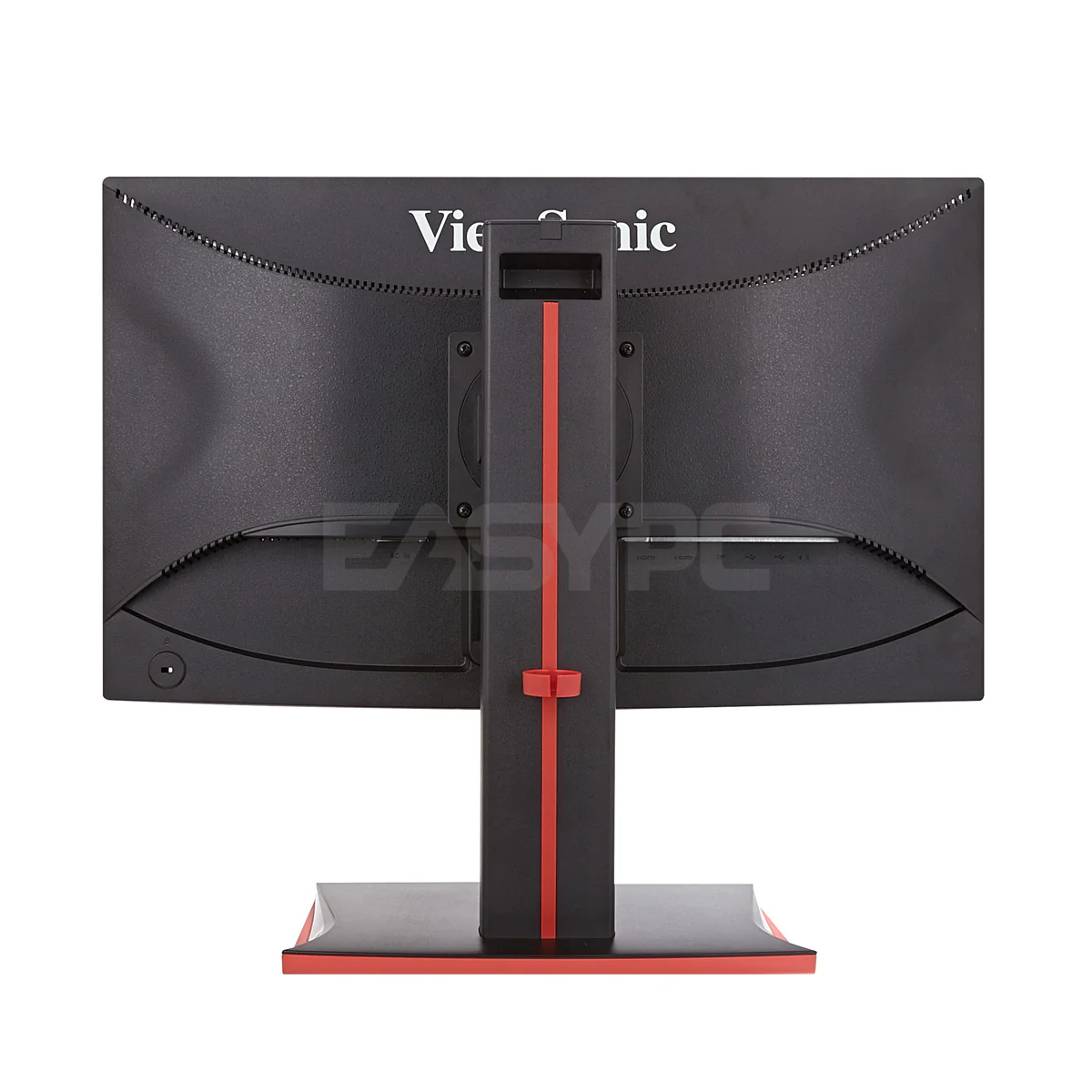

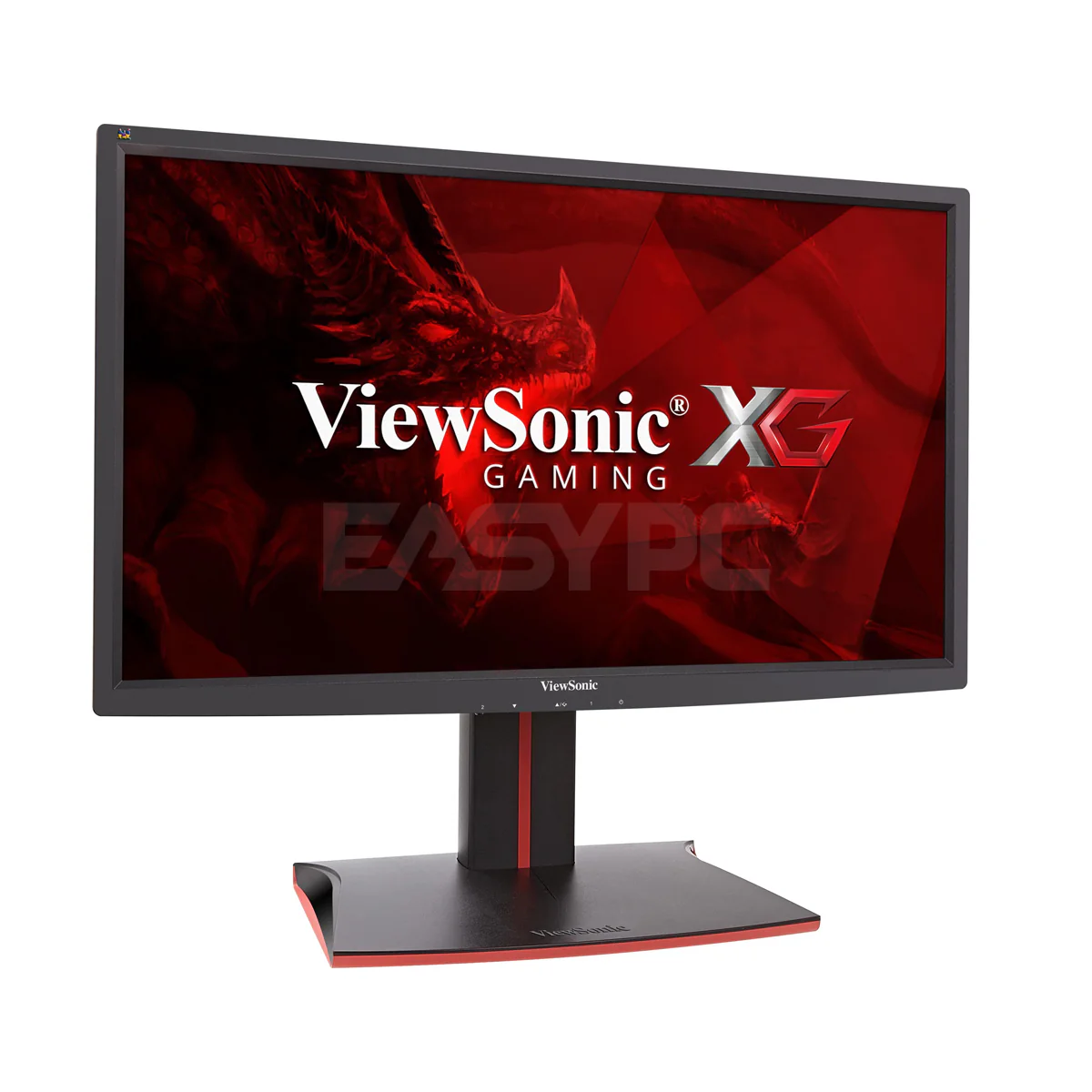

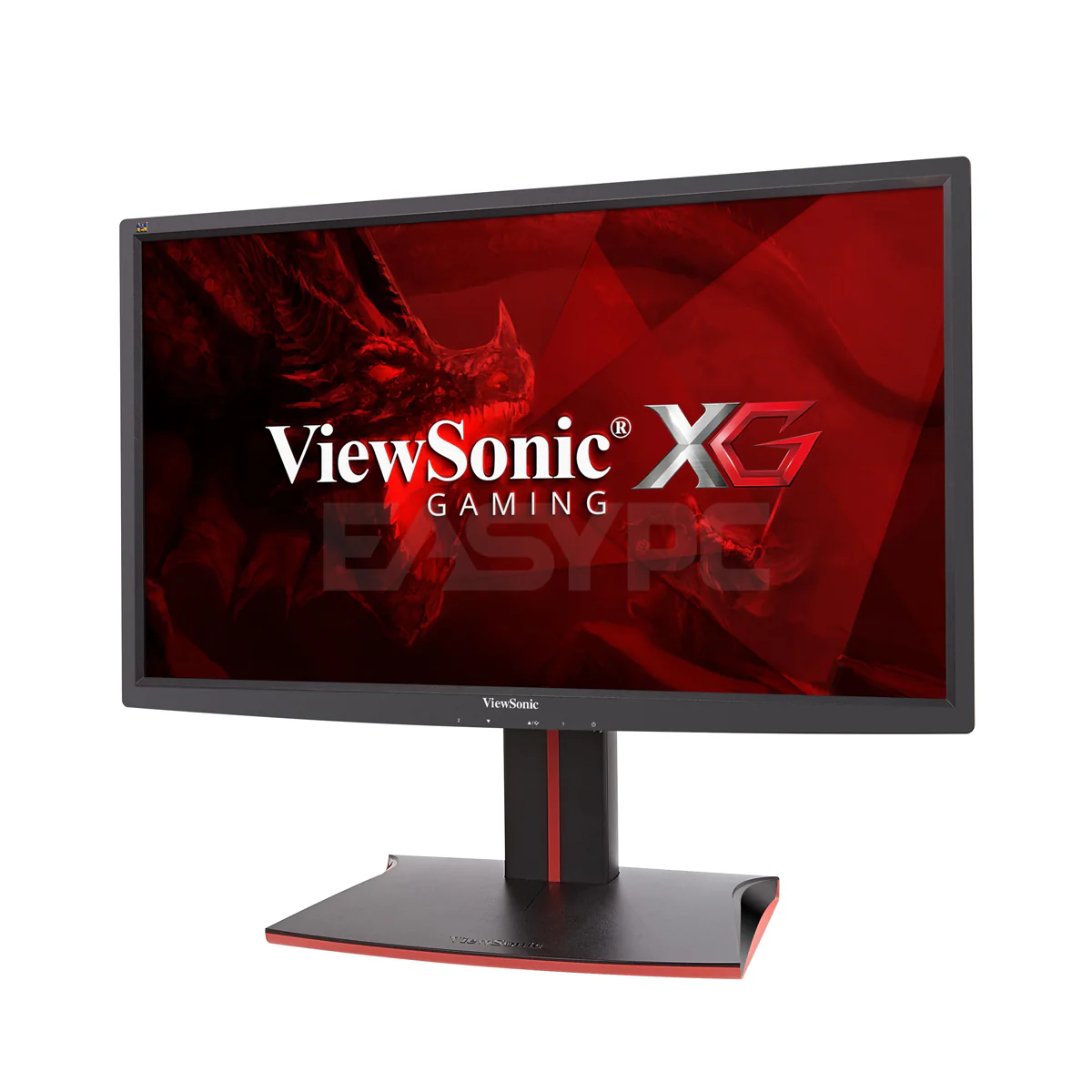

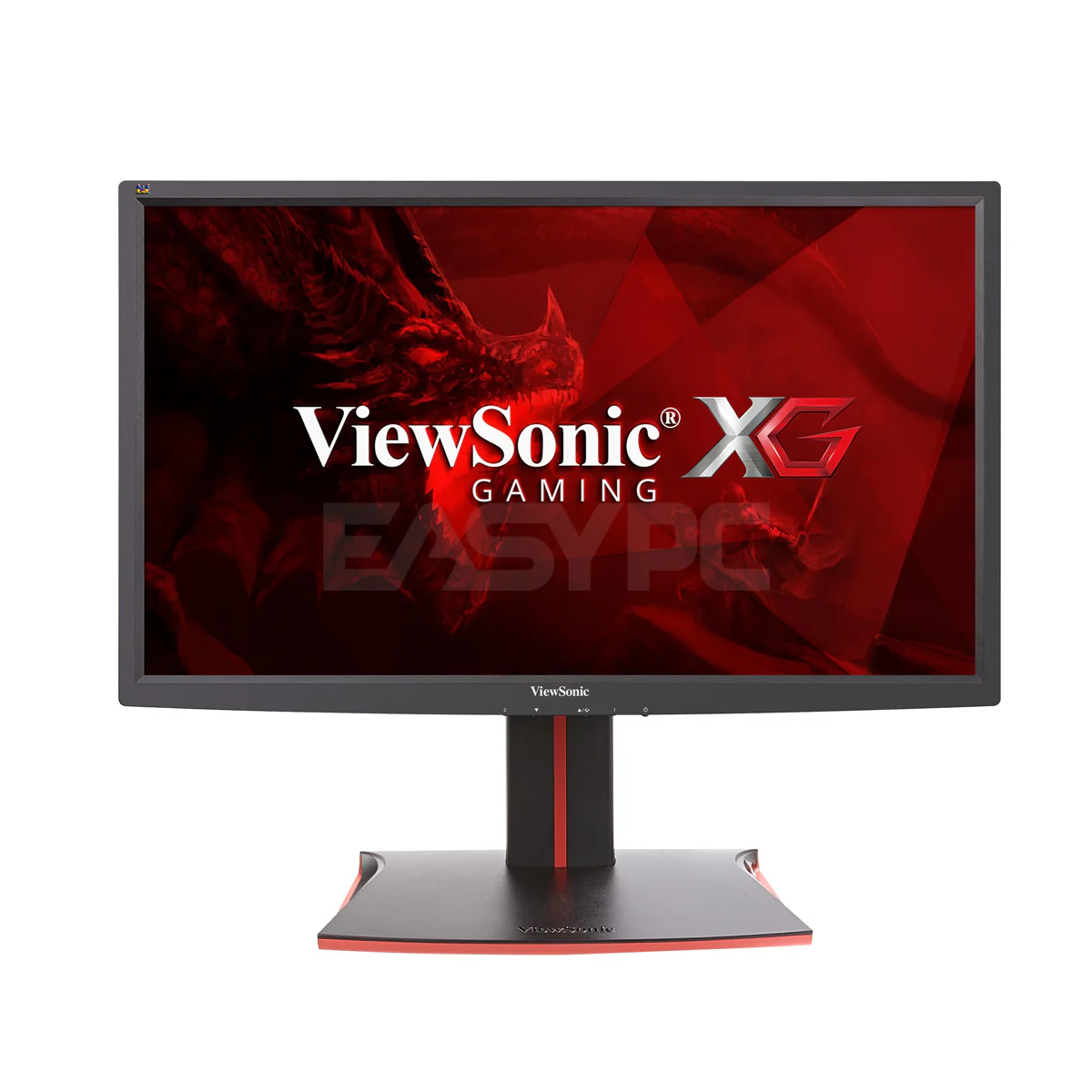

Viewsonic XG2401 24" TN Panel 1080 144hz Full HD Led Monitor

Model

Brand

ViewSonic

Model

XG2401

Cabinet Color

Black

Display

Screen Size

23.6"

Glare Screen

3H Anti-glare, hard-coating

LED Backlight

Yes

Widescreen

Yes

Maximum Resolution

1920 x 1080

Recommended Resolution

1920 x 1080

Refresh Rate

144 Hz

Viewing Angle

170° (H) / 160° (V)

Display Colors

16.7 Million

Brightness

350 cd/m2

Contrast Ratio

DC 120,000,000:1 (1,000:1)

Aspect Ratio

16:9

Response Time

1ms (GTG)

Horizontal Refresh Rate

15 - 180 KHz

Vertical Refresh Rate

24 - 144 Hz

Panel

TN

Display Type

Full HD

Adaptive Sync Technology

FreeSync (AMD Adaptive Sync)

Connectivity

Input Video Compatibility

Digital

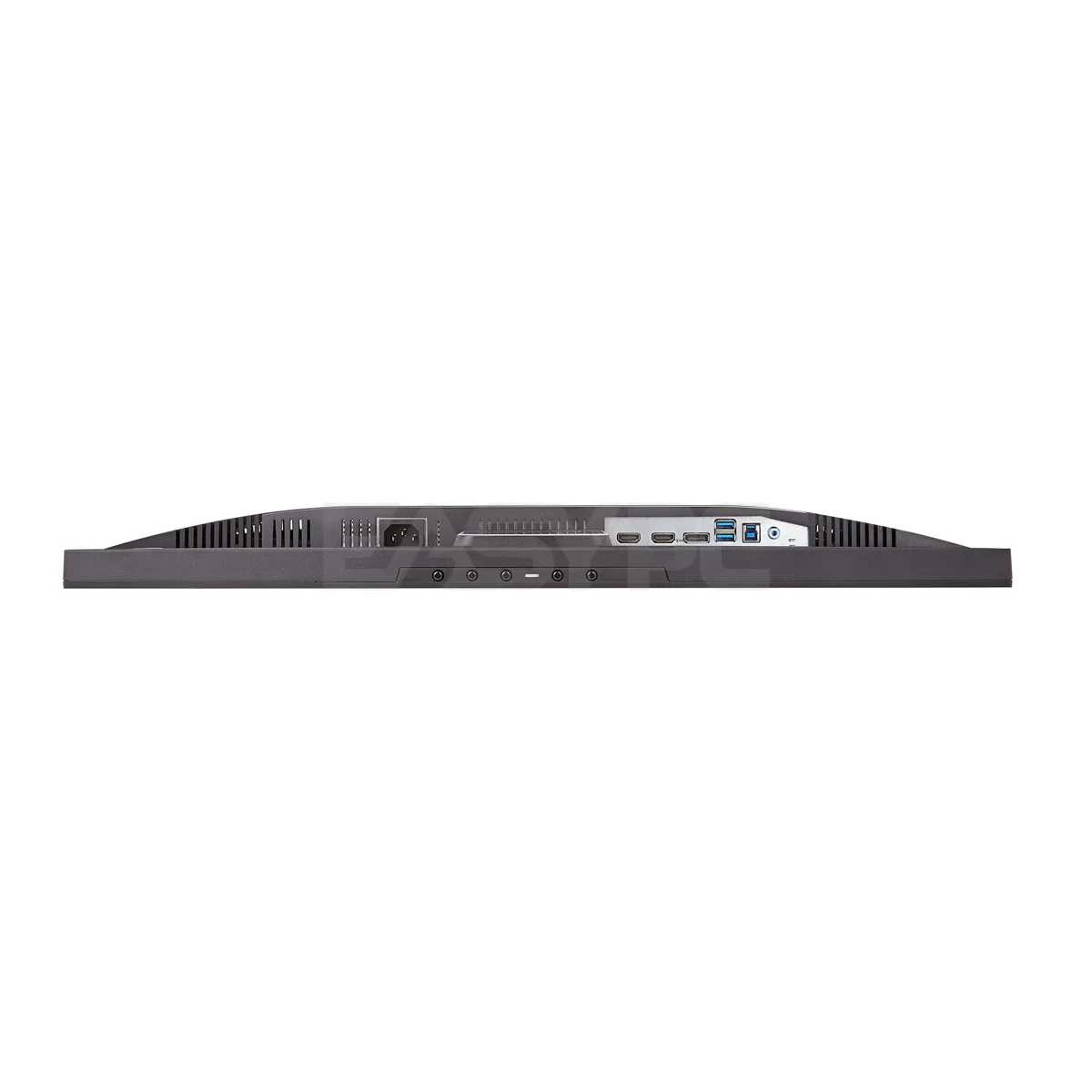

Connectors

HDMI, DisplayPort, USB

HDMI

2

DisplayPort

1

USB 2.0

1 x USB 2.0 Type B

USB 3.0

2 x USB 3.0 Type A

Power

Power Supply

100 - 240 VAC, 50/60Hz

Power Consumption

Eco Mode (Conserve): 20W
Eco Mode (optimized): 25W
Consumption (typical): 32W
Consumption (max): 36W

Convenience

User Controls

Physical Controls: 2, Down, Up, 1, Power
On Screen Display: Contrast/Brightness, Input select, Audio adjust, Color adjust, Information, Manual image adjust, Advanced im- age adjust, Setup menu, Memory recall (See user guide for complete OSD functionality)

Regulatory Approvals

CE EMC, CB, RoHS Green BOM, ErP, REACH SVHC List & DoC, WEEE, US NRTL w/ CA (cULus/cTUVus/cETLus/ cBVus), FCC-B w/ICES003, ENERGY STAR 6.0, EPEAT Silver, Mexico-CoC, Mexico Energy, BSMI, PSB, RCM, SASO, KC, E-Standby, VCCI, PSE, CCC, CEL Level 1

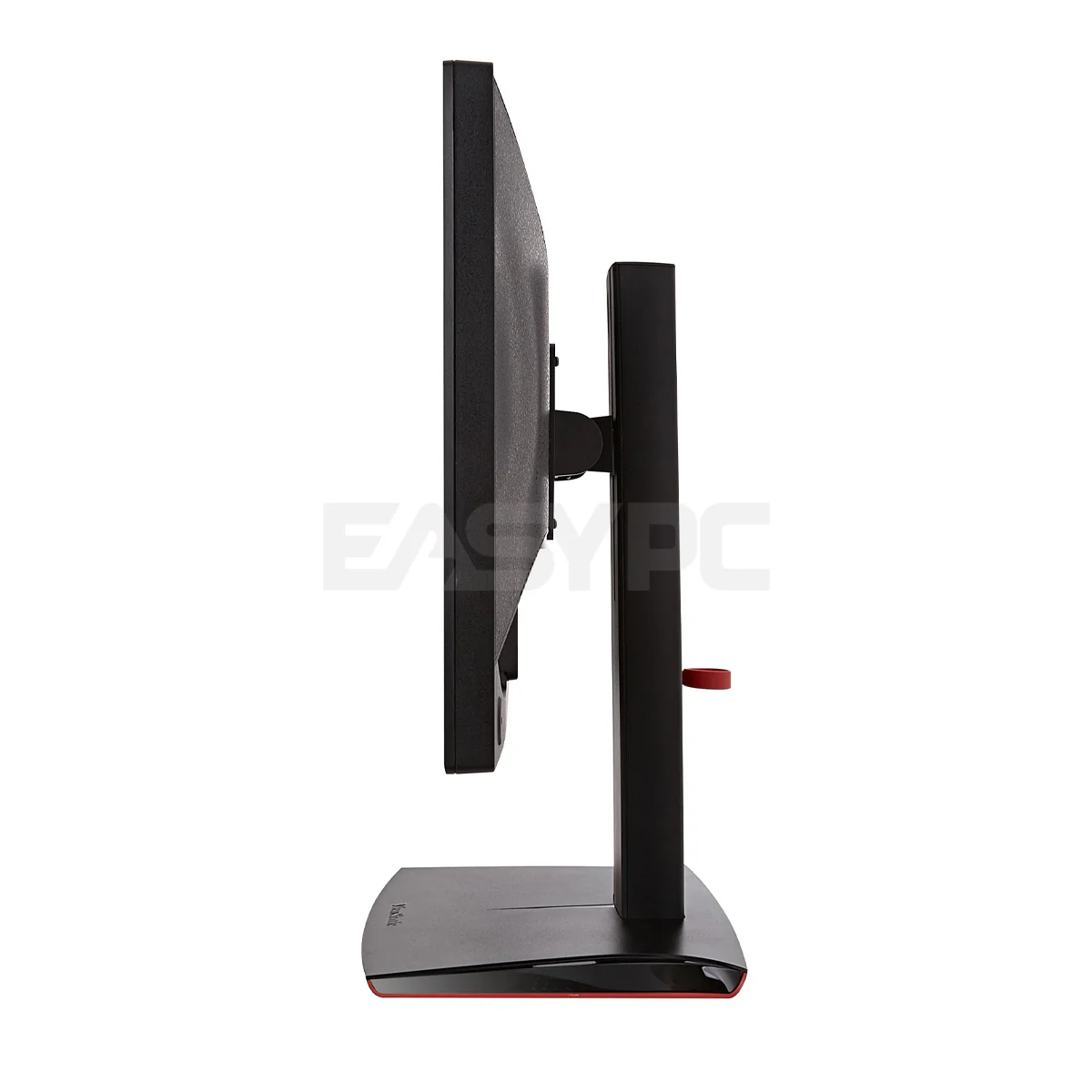

Stand Adjustments

Pivot: 90 degree
Height Adjust : 0 - 120mm
Swivel: 175 degree
Tilt: 5 degree / 22 degree

Built-in Speakers

2 x 2W

VESA Compatibility - Mountable

100 x 100mm

Features

144 Hz refresh rate

Ultra-fast response time

AMD FreeSync technology

Low input lag for seamless gaming experience

Black stabilization for ultimate visibility

Usage

Consumer

Dimensions & Weight

Dimensions (H x W x D)

17.01" x 22.28" x 9.09" w/ stand

13.49" x 22.28" x 2.00" w/o stand

Weight

14.50 lbs. w/ stand

7.60 lbs. w/o stand

Packaging

Package Contents

XG2401 monitor, Power cable, DisplayPort cable, USB 3.0 cable, Quick Start Guide, ViewSonic Wizard CD
