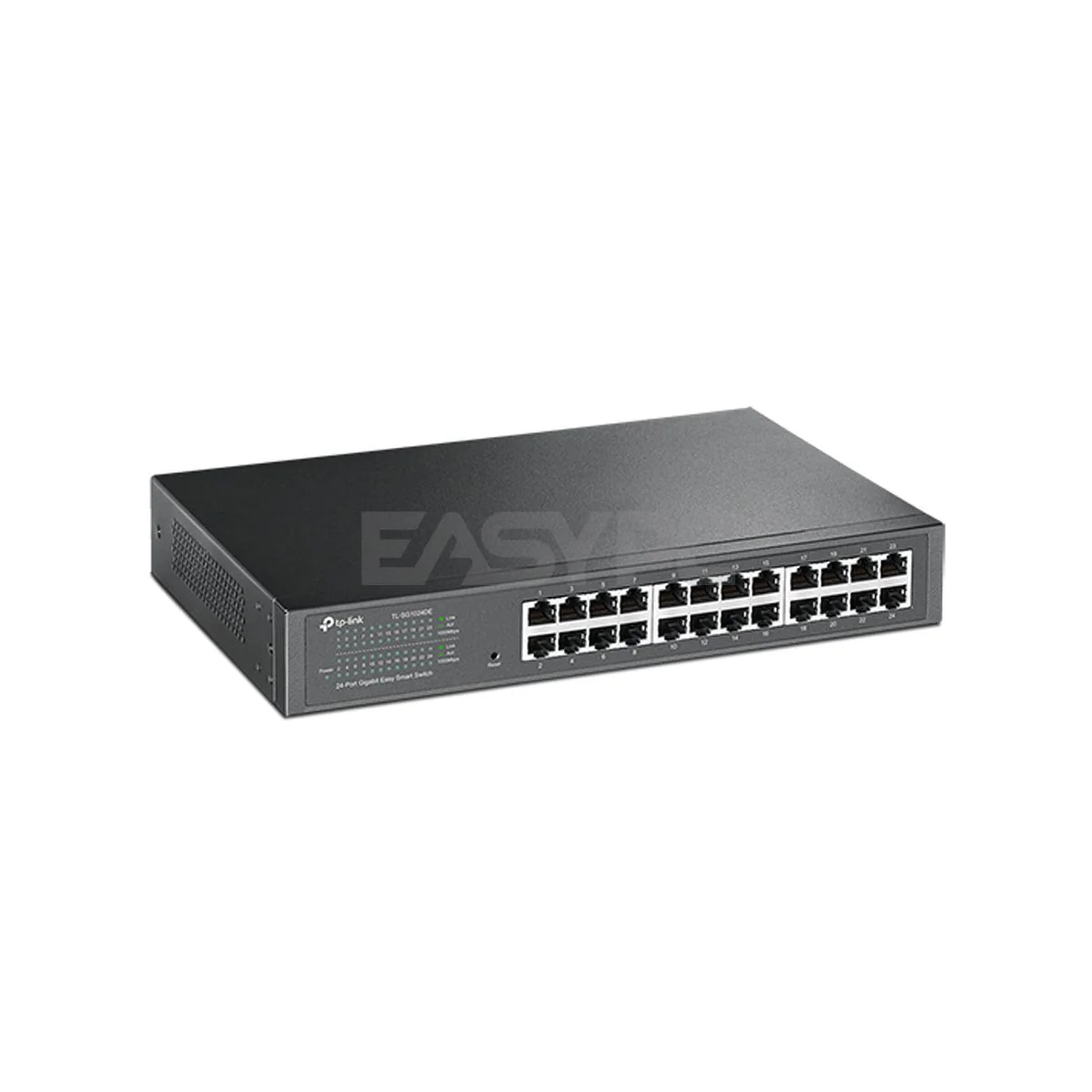

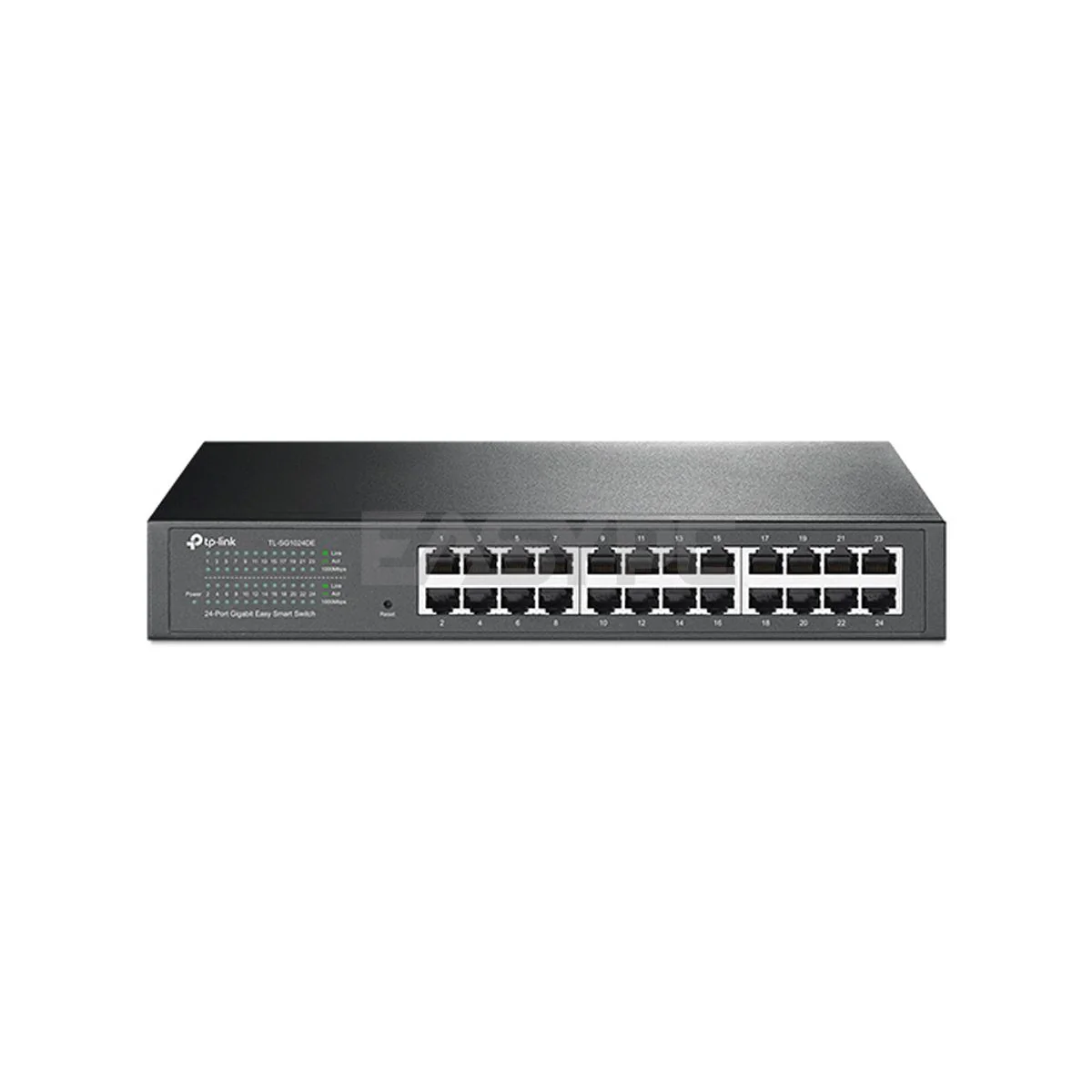

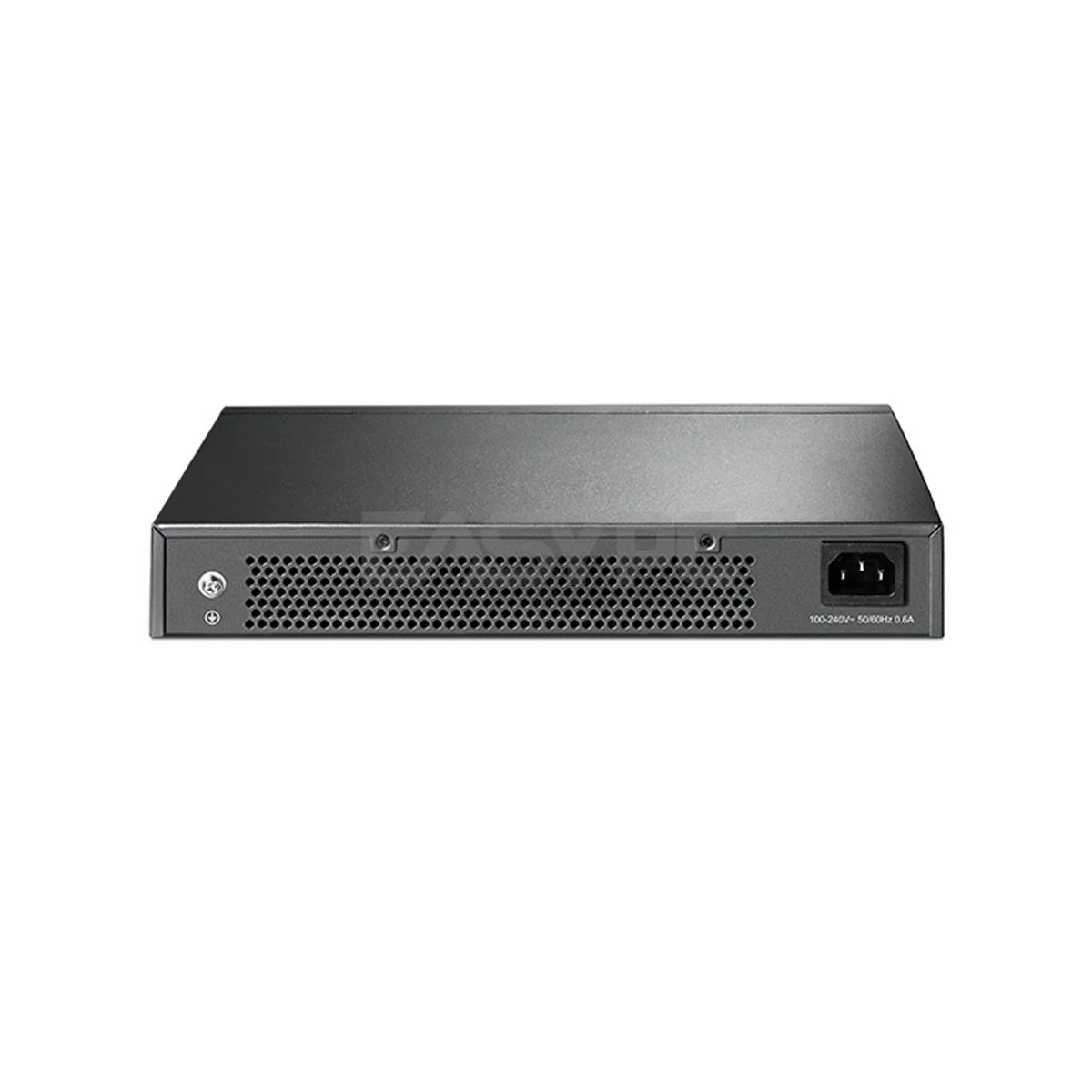

TPLink TL SG1024DE 24 Port Gigabit Smart Switch Hub
Product Description
Elevate your network with the TPLink TL SG1024DE 24-Port Gigabit Smart Switch Hub. This advanced switch offers seamless connectivity, VLAN support, and QoS, making it perfect for business or home use. With its 24 Gigabit ports, it ensures lightning-fast data transfer and network optimization.
Product Specifications:
- Standards and Protocols IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1q
- IEEE 802.1p
- Interface 24 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity Fanless
- Physical Security Lock No
- Power Supply 100-240VAC, 50/60Hz
- Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in.
- (294 x 180 x 44 mm)
- Mounting Rack Mountable
- Max Power Consumption 14.19W (220V/50Hz)
- Max Heat Dissipation 48.39 BTU/h
PERFORMANCE
- Switching Capacity 48Gbps
- Packet Forwarding Rate 35.7Mpps
- MAC Address Table 8K
- Packet Buffer Memory 4.1Mbit
- Jumbo Frame 10KB
SOFTWARE FEATURES
- Quality of Service Support Port-based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Transmission Method Store-And-Forward
OTHERS
- Certification FCC, CE, RoHS
- Package Contents TL-SG1024DE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
- System Requirements Microsoft® Windows® for Easy Smart Utility
- Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Browse more Network Devices at EasyPC.
