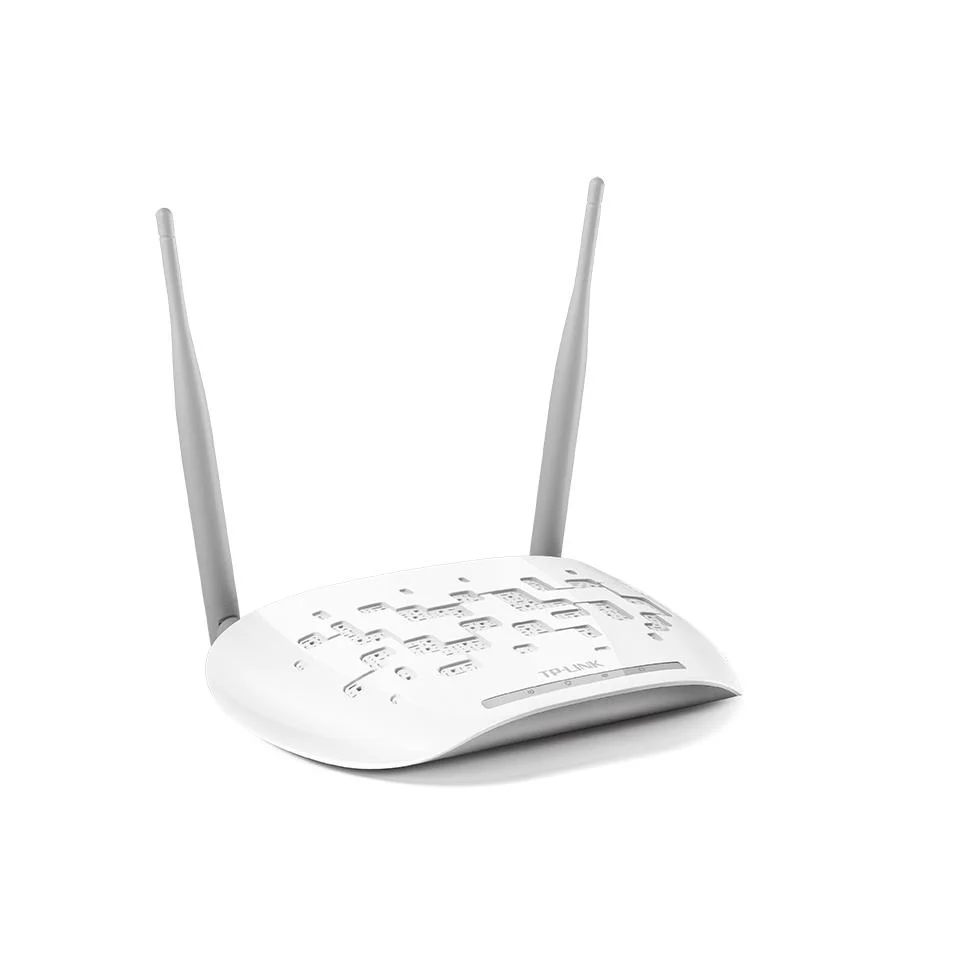

Tp-Link TLWA801ND Wireless N Access Point

HARDWARE FEATURES
Interface	One 10/100M Ethernet Port(RJ45)
	Support Passive PoE
Button	Power On/Off Button
	WPS Button
	Reset Button
External Power Supply	9VDC / 0.6A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type	2*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic)
	11g: Up to 54Mbps(dynamic)
	11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -68dBm@10% PER
	130M: -68dBm@10% PER
	108M: -68dBm@10% PER
	54M: -68dBm@10% PER
	11M: -85dBm@8% PER
	6M: -88dBm@10% PER
	1M: -90dBm@8% PER
Transmit Power	<20dBm(EIRP)
ireless Modes	AP Mode
	Multi-SSID Mode
	Client Mode
	Repeater Mode (WDS/Universal)
	Bridge with AP Mode
Wireless Functions	Enable/Disable Wireless Radio
	WDS Bridge
	MAC Address Filter
Wireless Security	64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service	WMM
Management	SNMP
Advanced Functions	Up to 30 meters Passive PoE is supported
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 10,
	MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing

Ideal For

• Home and office networking
• Expanding internet connectivity
• Setting up Wi-Fi coverage in larger spaces

*Specifications are based on manufacturer data. Actual product may vary.
