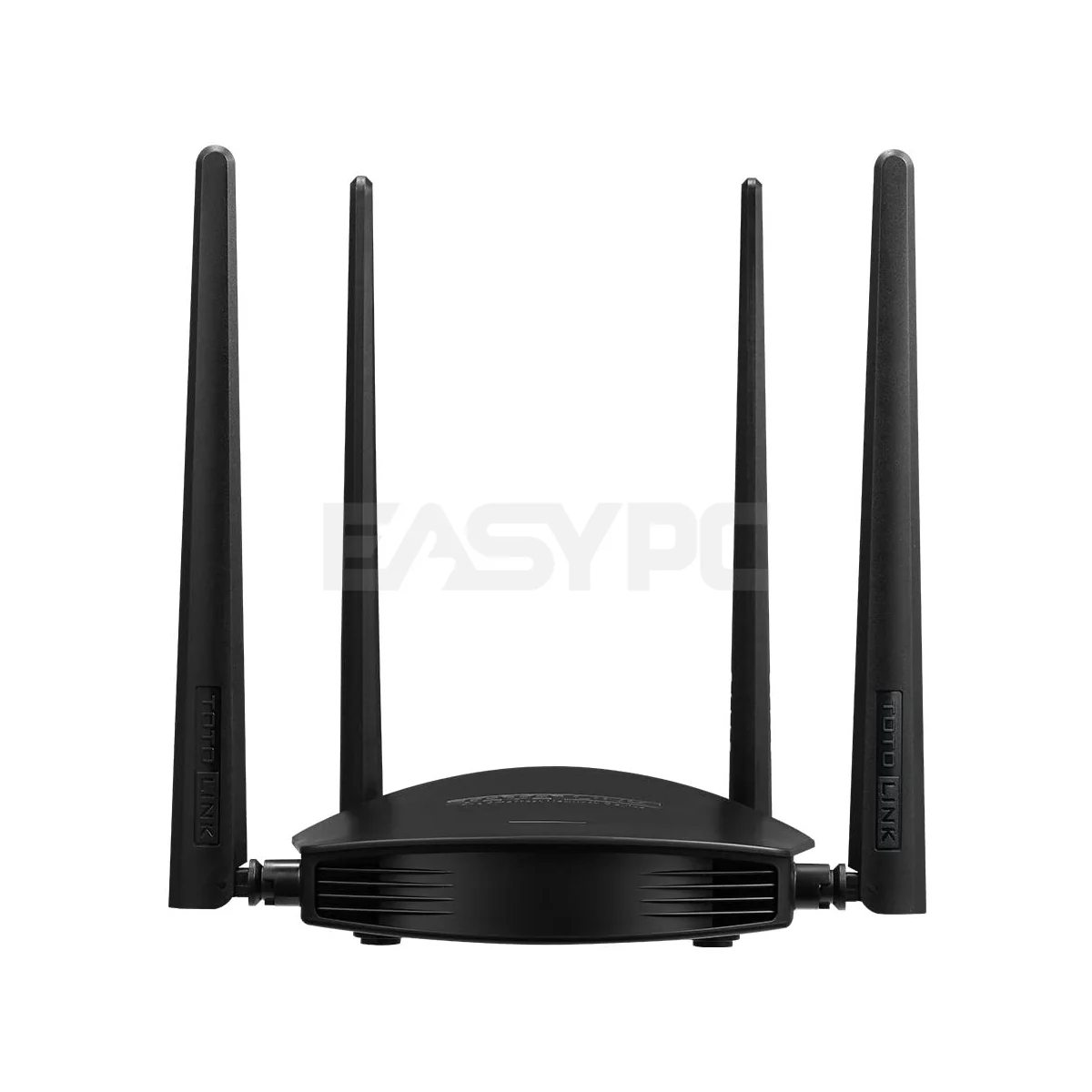

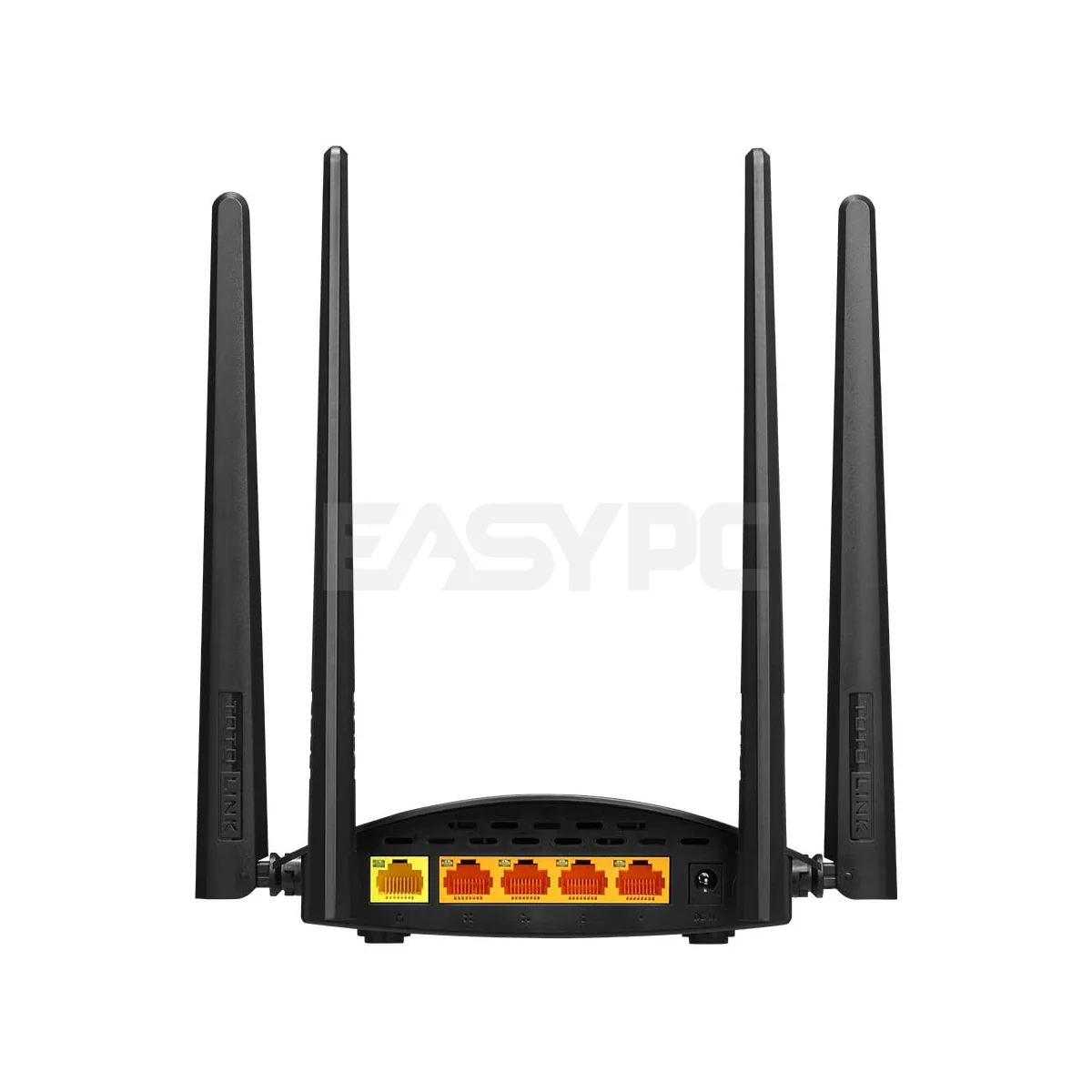

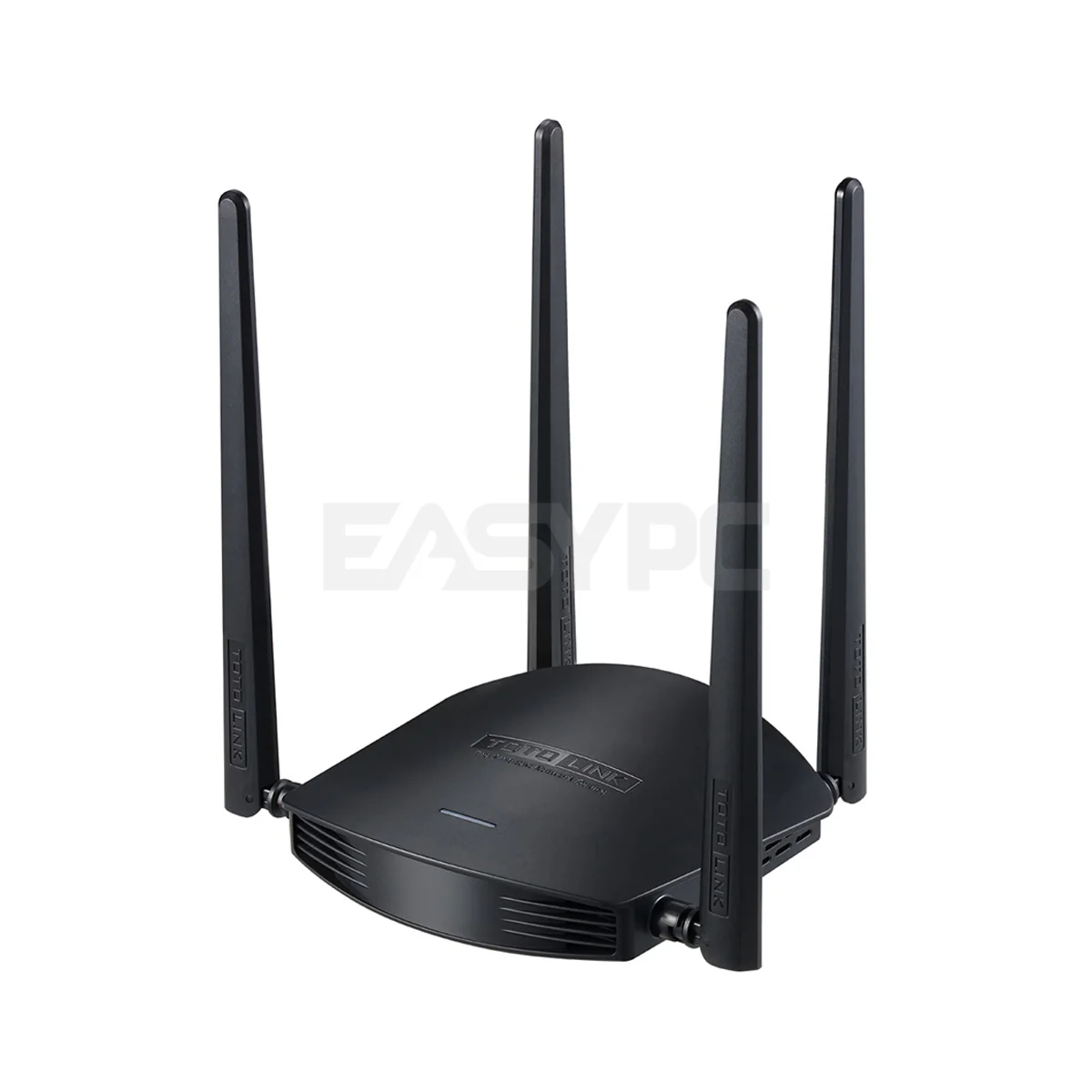

Totolink A800R AC1200 Wireless Dual Band Router 1200mbps

Product Specifications

• Hardware
• Interface
• 4 * 100Mbps LAN Ports
• 1 * 100Mbps WAN Port
• Power Supply - DC 9V/0.8A
• Button - 1 * RST/WPS Button
• LED Indicators
• 1 * Status,
• 4 * LAN,
• 1 * WAN
• Antenna - 4 * 5dBi fixed antennas
• Dimensions (L x W x H) - 170.2 x 138.0 x 40.6 mm (not including antennas)
• Wireless
• Standards
• IEEE 802.11ac,
• IEEE 802.11a,
• IEEE 802.11b,
• IEEE 802.11g,
• IEEE 802.11n
• RF Frequency
• 4GHz/5GHz
• Data Rate
• 4GHz: Up to 300Mbps
• 5GHz: Up to 867Mbps
• EIRP
• 4GHz < 22dBm
• 5GHz < 20dBm
• Wireless Security
• 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
• Reception Sensitivity
• 4G: 11b:
• 11g:
• 11n: HT20
• 5G: 11a:
• 11n: HT20
• 11ac:
• Software
• Operation Mode
• Gateway Mode
• Bridge Mode
• Repeater Mode
• WISP Mode
• Network - Static DHCP Setting, IPTV, IPV6
• WAN Type
• Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
• Wireless Functions

• Multiple SSID, MAC Authentication, WDS, WPS, WMM
• Schedule
• Reboot Schedule, Wireless Schedule
• QoS
• QoS Setup, Connect Limit Control
• Firewall
• MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ
• Management
• -Administrator Setting, Time Setting, DDNS, Remote Management, UPnP, Upgrade Firmware, System Configuration, System Log, and more
• Others
• Package Contents
• A800R Wireless Router *1
• Power Adapter *1
• Ethernet Cable *1
• Quick Installation Guide *1
• Environment - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
• Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
