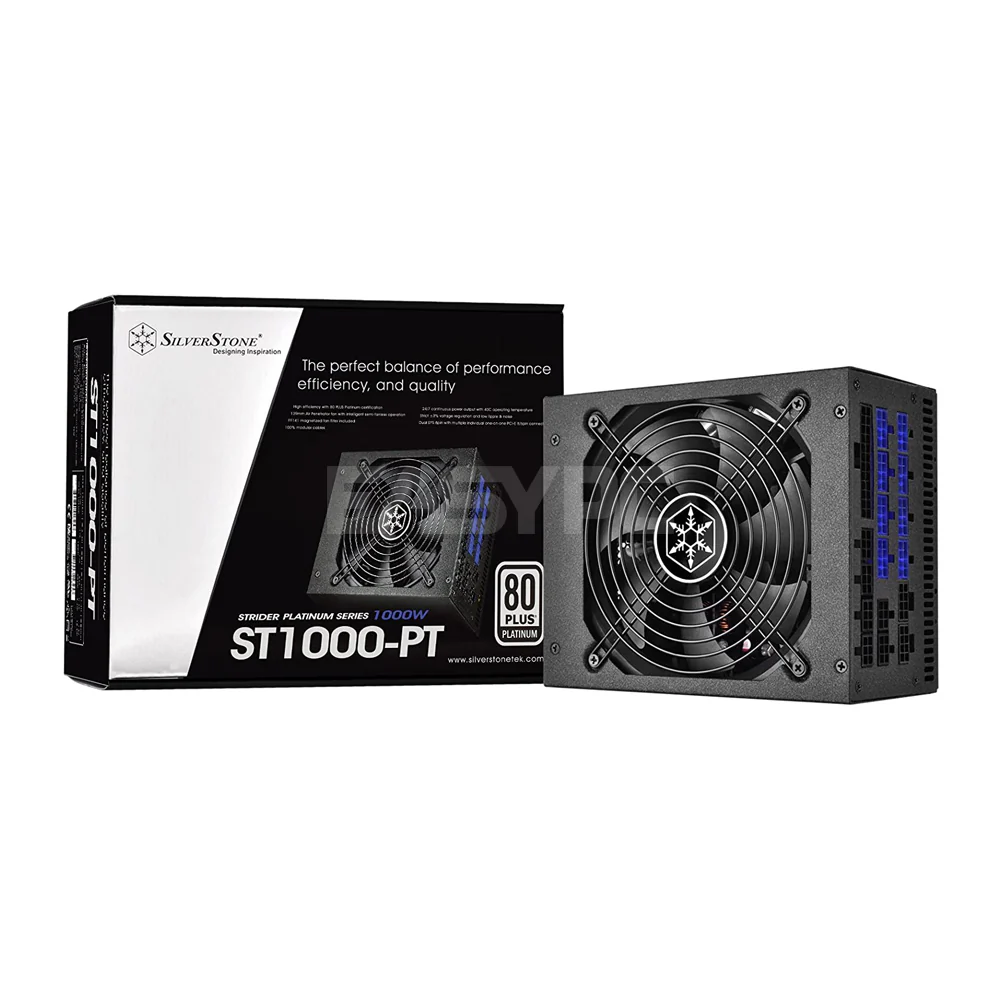

Silverstone SST-ST85F-PT 1000w 80+ Fully Modular Power Supply Platinum
| Model No. | SST-ST1000-PT | ||||
| Max. DC Output | 1000W (Peak 1050W) | ||||
| Power density | 431W per liter | ||||
| Load Range | |||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 25A | 22A | 83A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0.1A | 0.2A | 0.15A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
| Color | Black (Lead-Free Paint) | ||||
| Combined +3.3V & +5V | 120W | ||||
| Combined +12V | 996W | ||||
| Input Voltage | 90V~264V | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC (PF>0.9 at full load) | ||||
| Efficiency | 89%~92% at 20%~100% loading | ||||
| MTBF | 100,000 hours | ||||
| Operating temperature | 0°C ~ 40°C | ||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection |
||||
| Connectors | 1 x 24 / 20-Pin motherboard connector (550mm)1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 6 x 8 / 6-Pin PCIE connector (“550mm” x 6) 16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4) 6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2) 2 x 4-Pin Floppy connector (“600mm / 150mm / 150mm / 150mm” x 2) |
||||
| Cooling System | Single 139mm silent fan | ||||
| Form factor | ATX | ||||
| Noise Level | 0 ~ 36 dBA | ||||
| Dimension | 150 mm (W) x 86 mm (H) x 180 mm (D)5.91″ (W) x 3.39″ (H) x 7.09″ (D) | ||||
| Weight | 3.3 kg | ||||
| Certification | 80 PLUS Platinum | ||||
| Other |
GPU Support list Compatible with ATX12V v2.4 |
||||
