Seasonic S12II 620 watts 80 Plus Bronze Power Supply
HomeStore

Seasonic S12II 620 watts 80 Plus Bronze Power Supply

Seasonic S12II 620 watts 80 Plus Bronze Power Supply

Technical Specifications
80PLUS® Bronze
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Seasonic S2FC
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fixed cable
Cable type Flat black cables
Electrical Features Operating Temperature 40 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, UkrTEST, CB , BSMI, Semko, CCC, CE, FCC, C-tick
Environmental Compliance Energy Star, RoHS, WEEE, REACH
Warranty 5 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 9 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V1 +12 V2 -12 V +5 VSB
Maximum Power 24 A 24 A 24 A 24 A 0.8 A 2.5 A
130 W 576 W 9.6 W 12.5 W
Total continuous power 620 W

CABLES

SS-620GB

Connector Connector Count Cable Length
Main Power (24/20 pins) 1 1 x 550 mm - attached
CPU (8/4 pins) 1 1 x 550 mm - 8/4pins attached
PCIe (8/6 pins) 2 1 x 550 + 100 mm - attached
SATA 8

1 x 400 + 100 + 100 + 100 mm - attached

1 x 500 + 100 + 100 + 100 mm - attached
Peripheral 4 1 x 400 + 100 + 100 + 100 mm - attached
Floppy 1 1 x 100 mm - end connector of the peripheral cable

Browse more Power Supplies at EasyPC.

$16.72

Original: $55.72

-70%
Seasonic S12II 620 watts 80 Plus Bronze Power Supply—

$55.72

$16.72

More Images

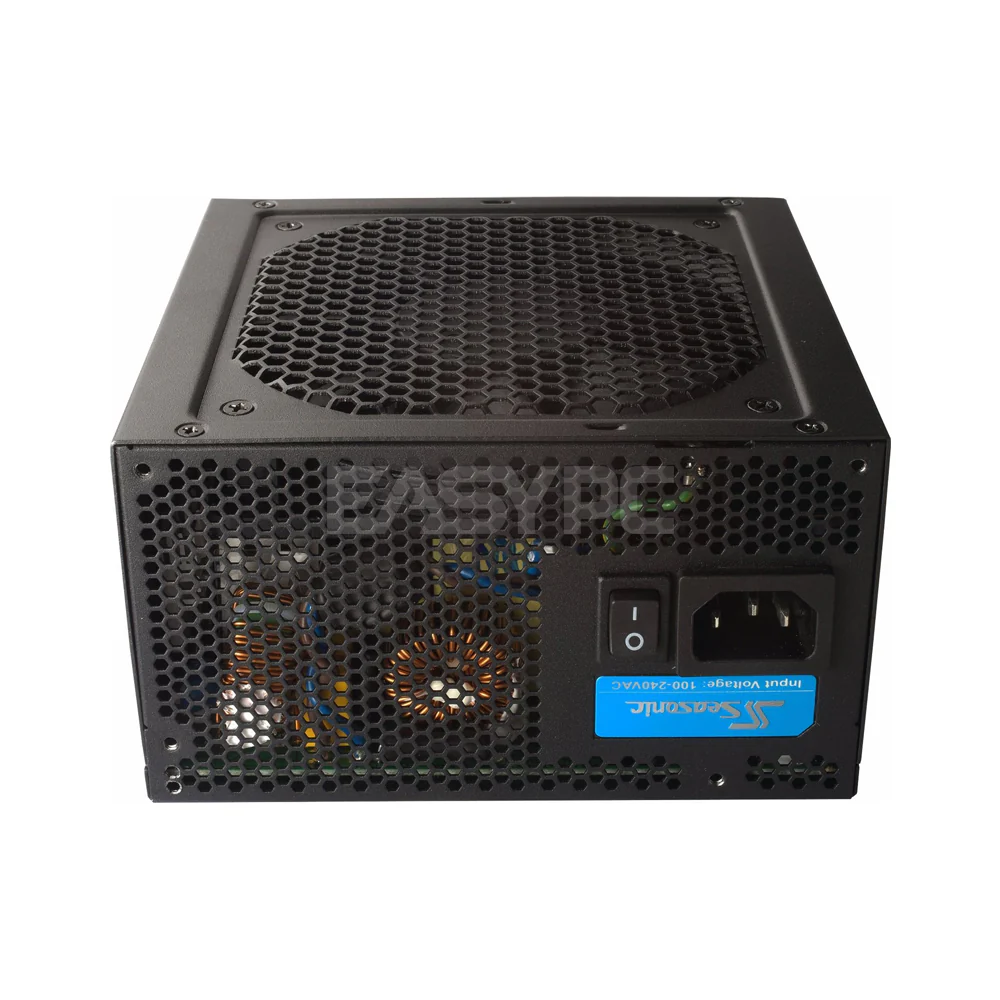

Seasonic S12II 620 watts 80 Plus Bronze Power Supply - Image 2
Seasonic S12II 620 watts 80 Plus Bronze Power Supply - Image 3

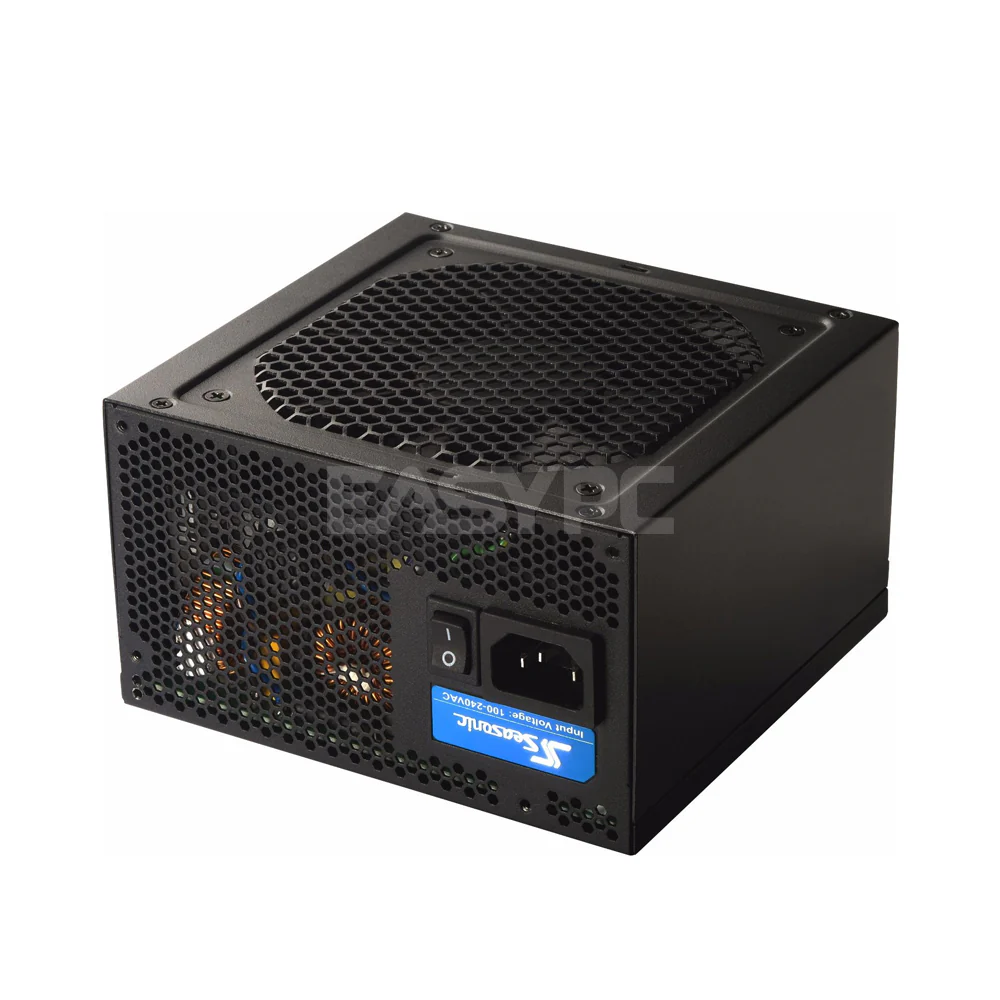

Seasonic S12II 620 watts 80 Plus Bronze Power Supply
