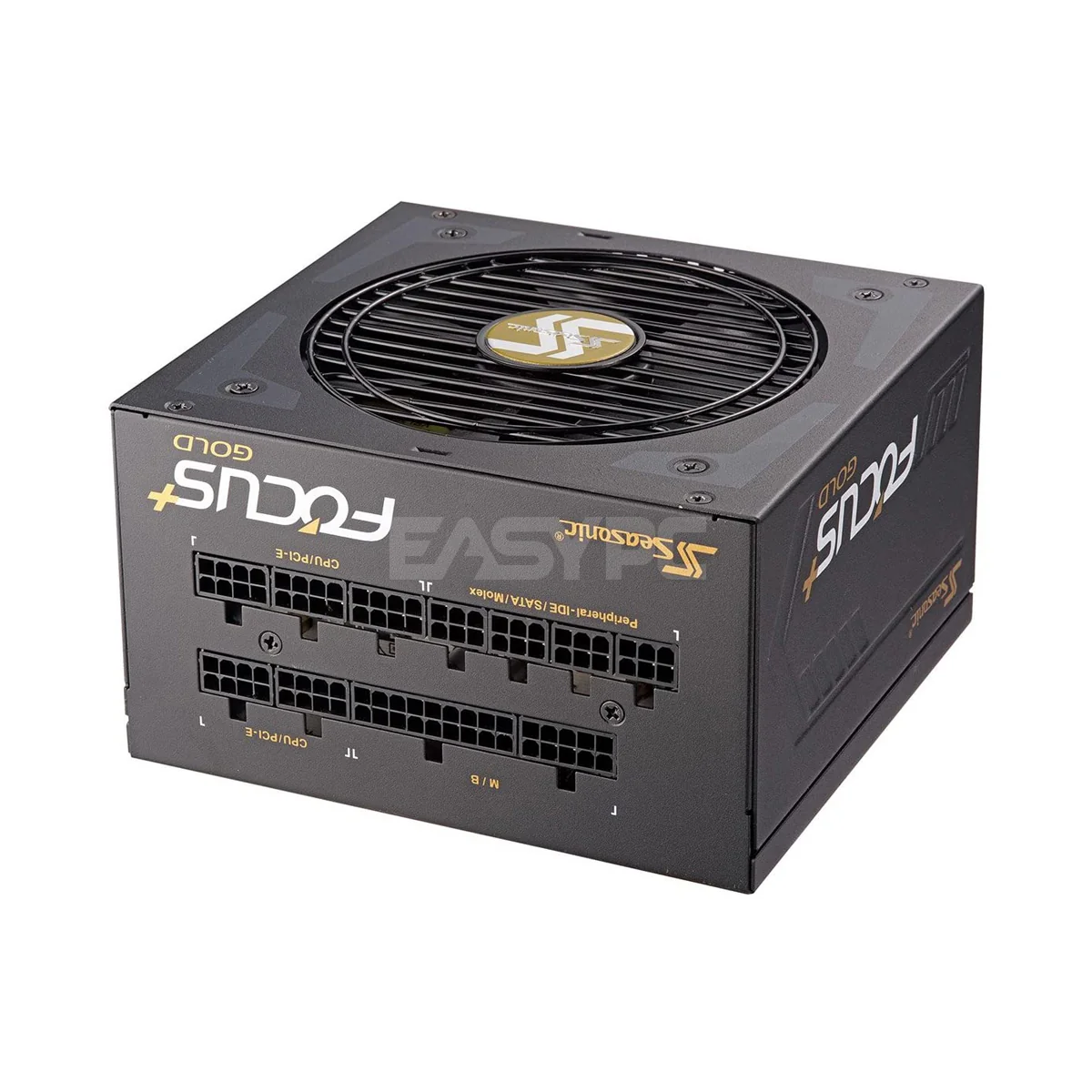

Seasonic Focus 650FX Plus Power Supply Gold
Technical Specifications
80PLUS Gold
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control S2FC
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 C, 15 % - 65 % RH
Cable Information Modularity Semi-modular
Cable type Webbed cables (attached)
Flat black cables(modular)
Electrical Features Operating Temperature 0 - 50 C (derating from 100 % to 80 % from 40 C to 50 C)
MTBF @ 25 C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Power Output
AC Input Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 62 A 0.3 A 3 A
100 W 744 W 3.6 W 15 W
Total continuous power 750 W
Ideal For
- Powering custom-built desktop PCs
- System upgrades and new builds
- Replacing an existing power supply unit
Browse more Power Supplies at EasyPC.
