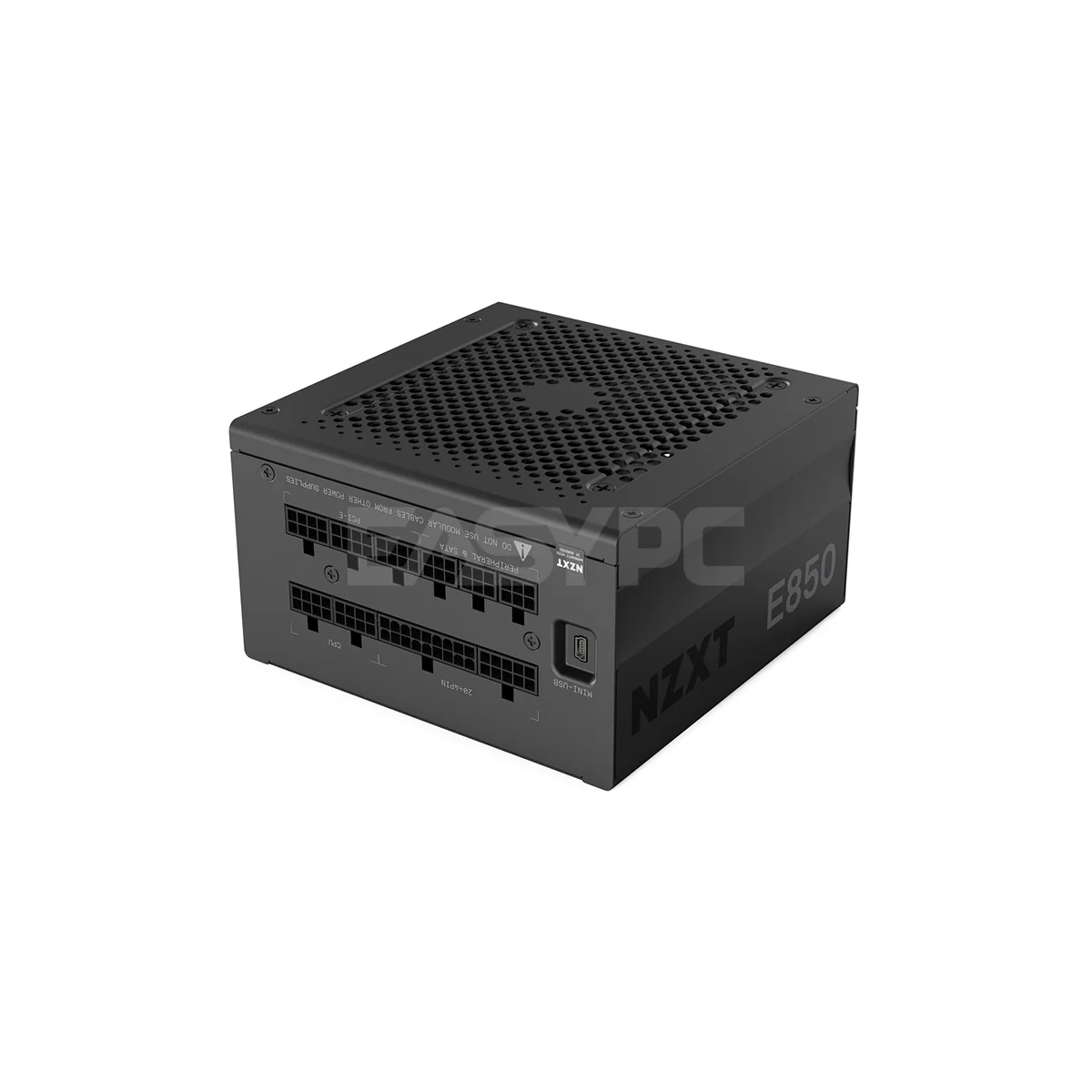

NZXT E850 850 Watts Digital Fully Modular 80 Plus Power Supply Gold NZNP1292 4JTP

Type	ATX12V v2.4 / EPS12V v2.92
Maximum Power	850W
Fans	120mm Fluid Dynamic Bearing Fan
PFC	[email protected]
Main Connector	24Pin
+12V Rails	Single
PCI-Express Connector	6 x 6+2-Pin
SATA Power Connector	8
Modular	Full Modular
Efficiency	> 90%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50 - 60Hz
Input Current	12 - 6 A
Output	+3.3V@20A, +5V@20A, +12V@70A, [email protected], +5VSB@3A
MTBF	100,000 hours
Approvals	CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC
Dimensions	3.39" x 5.91" x 5.91"
Weight	5.51 lbs.
Connectors	1 x 24-pin ATX power
	2 x 4+4-pin CPU power
	6 x PCIe (6+2 pin)
	8 x SATA
	6 x Peripherals
	1 x Mini-USB
Features	Power indicators monitored and tracked through CAM software
	Delivers precise & stable voltage while ensuring optimal efficiency under load
	Silent operation with 0 RPM fan when operating under 100 watts
	All the essentials delivered by a modern PSU: complete protection and fully modular design

Ideal For

• Powering custom-built desktop PCs
• System upgrades and new builds
• Replacing an existing power supply unit

*Specifications are based on manufacturer data. Actual product may vary.
