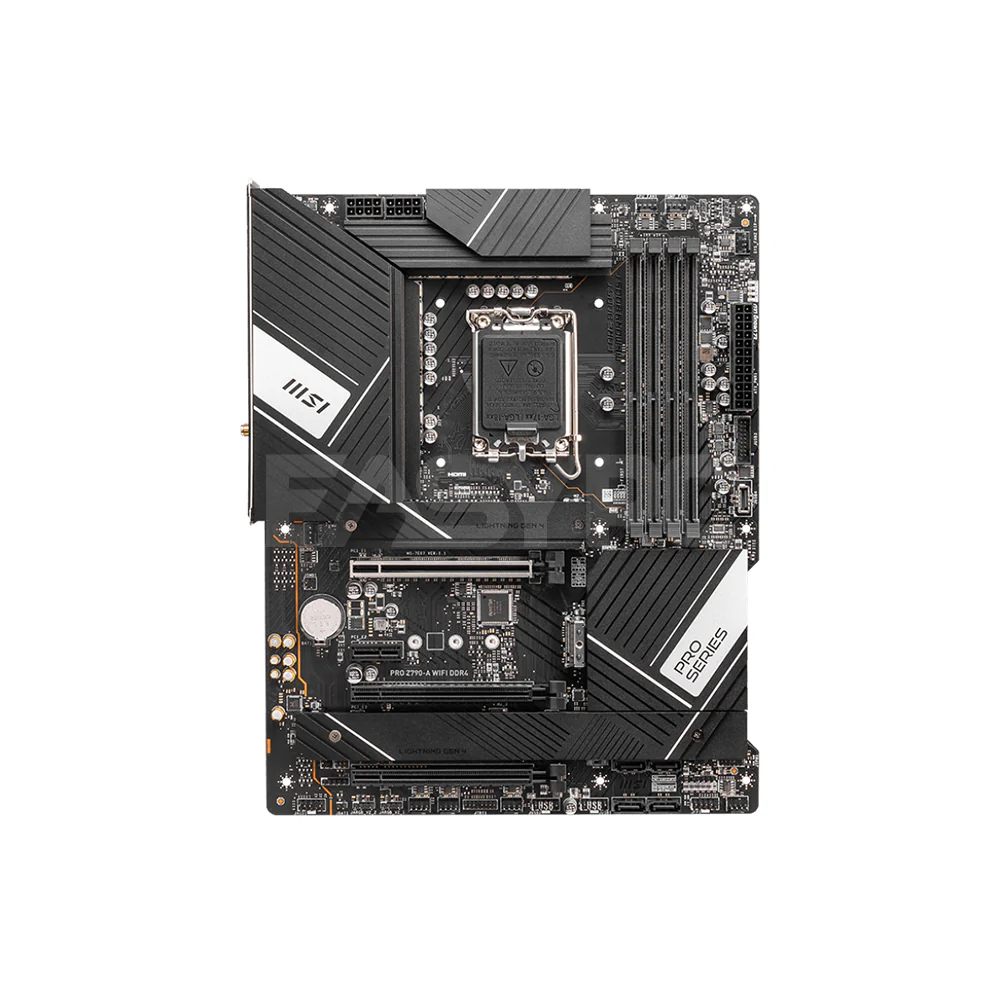

MSI Pro Z790-A WIFI DDR5 Motherboard

Product Description

Ignite productivity with the MSI Pro Z790-A WIFI motherboard. Tailored for LGA 1700 CPUs and DDR4 memory, it seamlessly blends efficiency and reliability. Packed with features and built-in WiFi, it's a professional's choice for a high-performance computing experience.

Product Specifications

• CHIPSET INTEL Z790
• CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• LGA 1700
• MEMORY 4x DDR5, Maximum Memory Capacity 192GB
• Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz

• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory
• ONBOARD GRAPHICS 1x HDMI™
• Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 8K 60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• SLOT 3x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• STORAGE 4x M.2
• 2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
• 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• 2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 6x SATA 6G
• RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 3x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)
• 1x USB 3.2 Gen2x2 Type C (Rear)
• LAN Intel® 2.5Gbps LAN
• WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax

• Supports Bluetooth® 5.3, FIPS, FISMA

• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• AUDIO Realtek® ALC4080 Codec
• 1-Channel USB High Performance Audio
• Supports S/PDIF output
• INTERNAL IO 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 6x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x TBT connector (JTBT, supports RTD3)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
• 1x USB 3.2 Gen2 Type C ports
• LED FEATURE 4x EZ Debug LED
• BACK PANEL PORTS
• DisplayPort
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• Flash BIOS Button
• USB 3.2 Gen 1 5Gbps (Type-A)
• USB 3.2 Gen 2 10Gbps (Type-A)
• USB 3.2 Gen 2x2 20Gbps (Type-C)
• S/PDIF-OUT

• OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB INFO ATX
• 84mmx304.8mm
