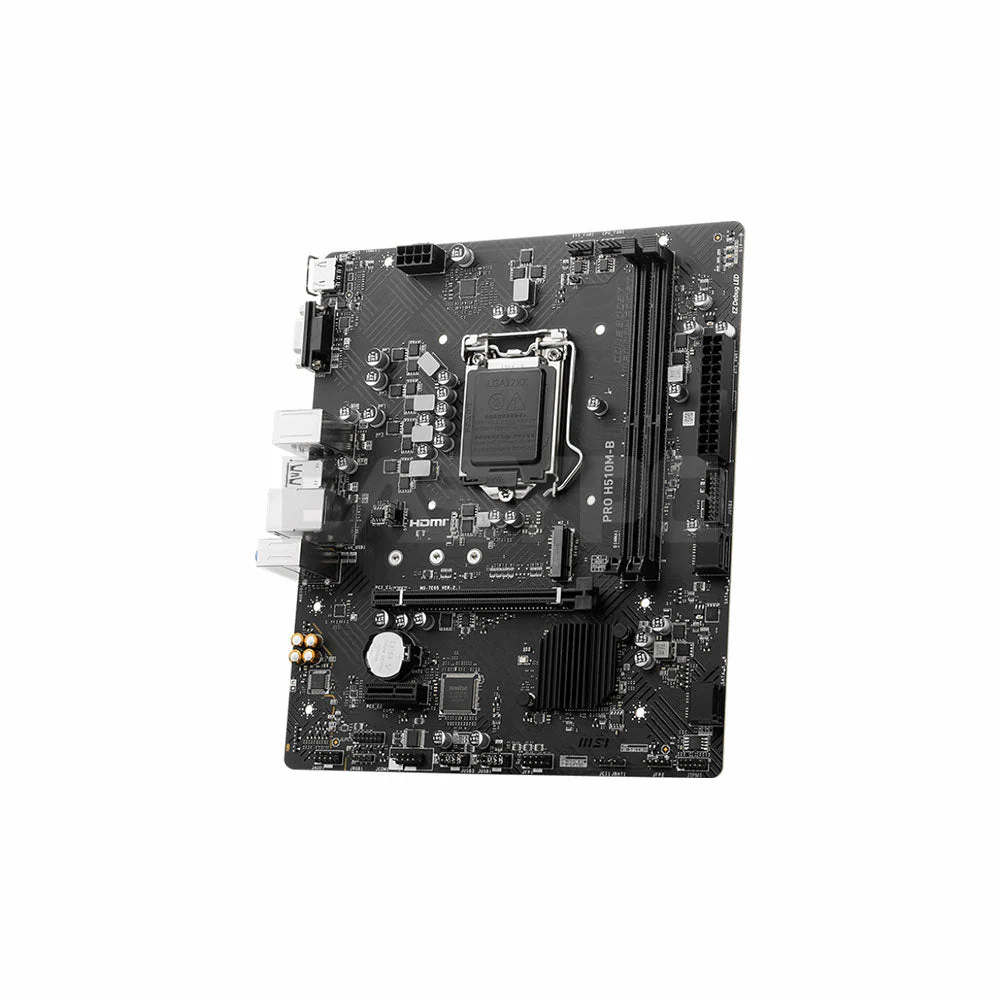

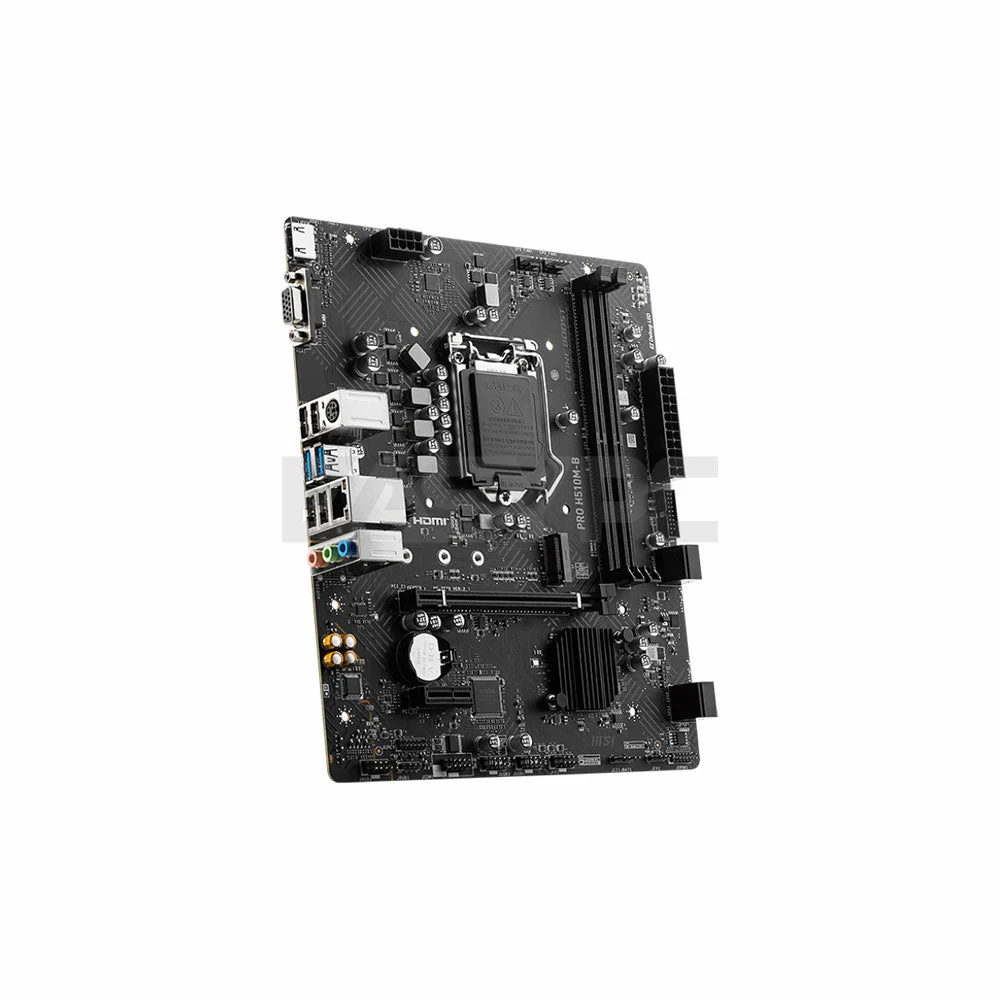

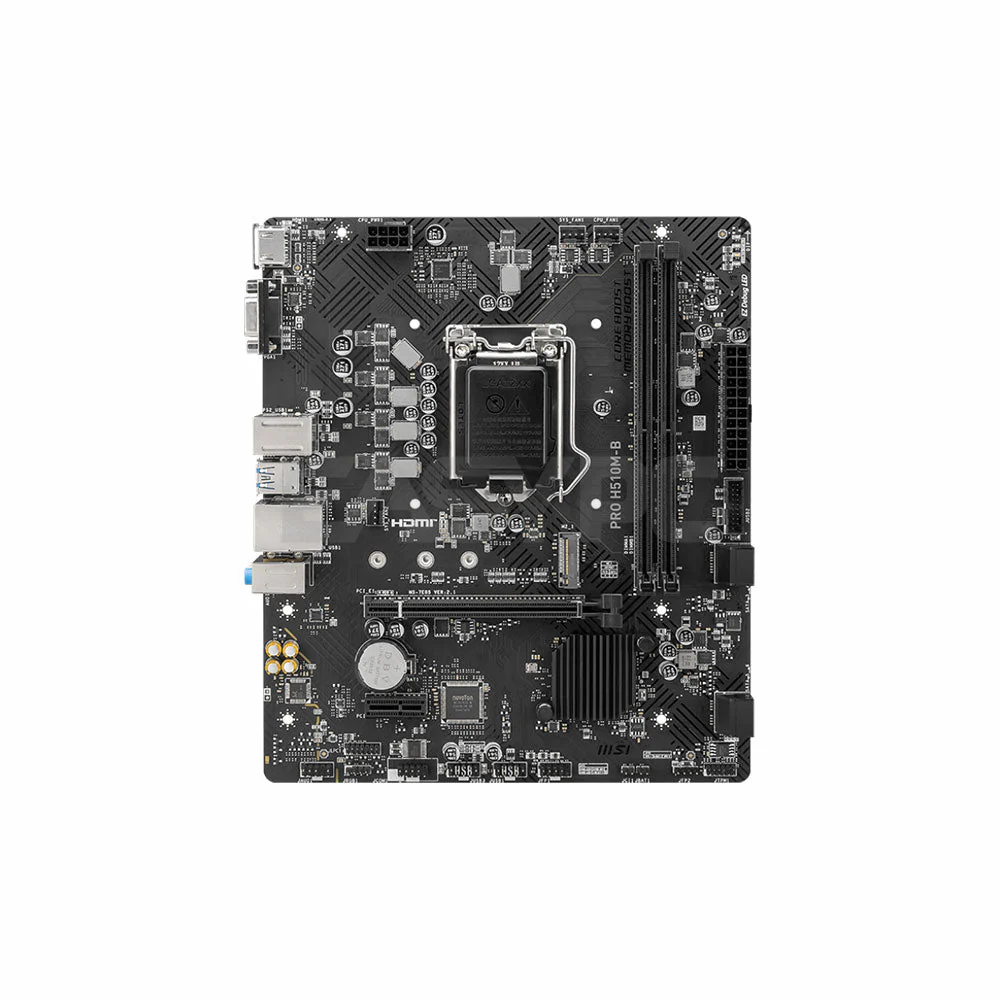

MSI Pro H510M-B Socket LGA 1200 Ddr4 Motherboard

Product Description:

Upgrade your PC with the MSI Pro H510M-B motherboard. Designed for Socket LGA 1200 CPUs and DDR4 RAM, it offers stability and reliability for smooth computing. With a compact micro-ATX form factor, it fits into various PC cases. Build your system with confidence using this feature-rich motherboard.

Product Specifications:

• CPU SUPPORT Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
• MEMORY 2x DDR4, Maximum Memory Capacity 64GB
• Memory Support 2933/ 2666/ 2400/ 2133 MHz
• Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
• Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• ONBOARD GRAPHICS 1x HDMI™
• Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
• 1x VGA
• Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• STORAGE 1x M.2
• 2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G
• USB 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• LAN Realtek® 8111H Gigabit LAN
• AUDIO Realtek® ALC897 Codec
• 1-Channel High Definition Audio
• INTERNAL I/O 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
