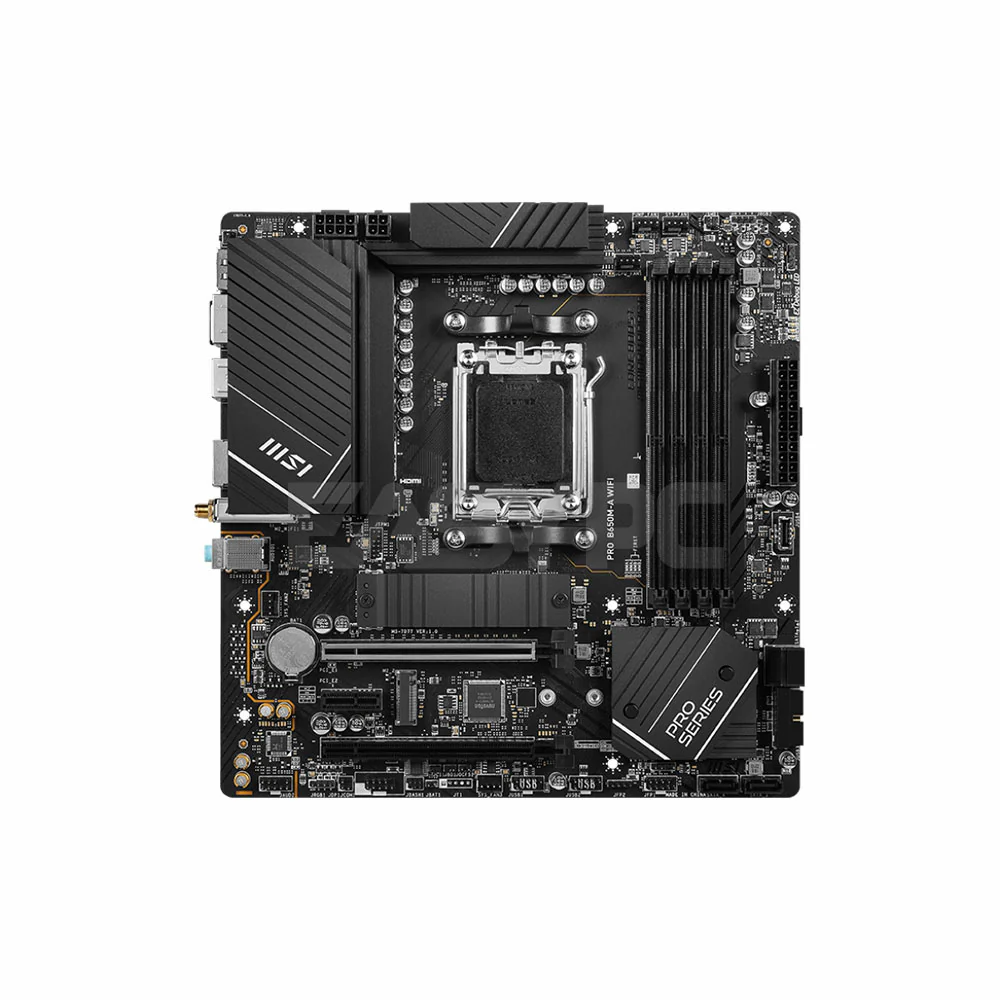

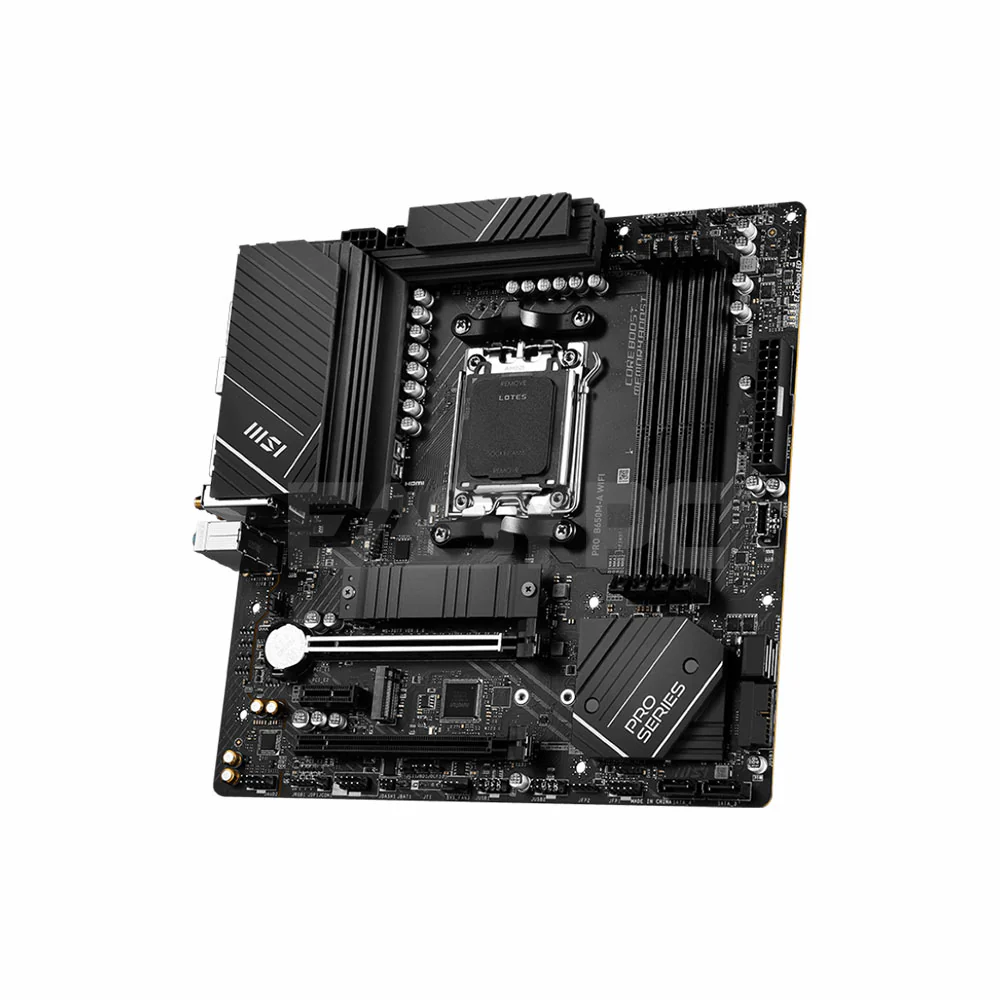

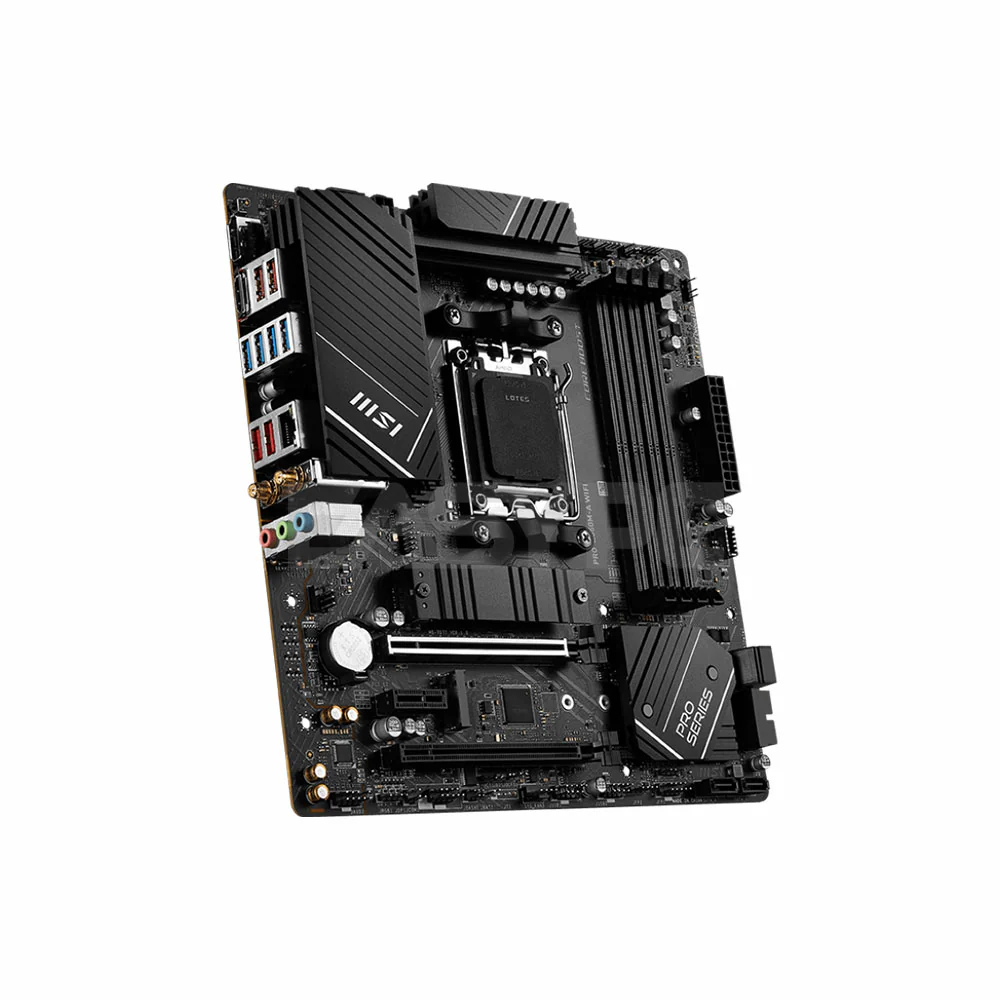

MSI PRO B650M-A wifi D5 AM5 DDR5 Motherboard

Product Description

The MSI PRO B650M-A WIFI D5 motherboard is a reliable AM5 platform with DDR5 support and integrated Wi-Fi. Perfect for business and home use, it offers stable performance and connectivity. Elevate your PC build with this dependable and feature-rich motherboard.

 Product Speciications:

CHIPSET               AMD B650

CPU SUPPORT    Supports AMD Ryzen™ 7000 Series Desktop Processors

• Socket AM5

MEMORY             4x DDR5, Maximum Memory Capacity 128GB

• Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5800+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz



• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO

ONBOARD GRAPHICS      1x HDMI™

• Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x DisplayPort
• Supports DP1.4, maximum resolution of 4K 60Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT             2x PCI-E x16 slot

• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• STORAGE 2x M.2
• 2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G
• RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB        4x USB 2.0 (Front)

• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)
• 4x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Front)

LAN        Realtek® 8125BG 2.5G LAN

WIRELESS / BLUETOOTH               AMD Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
• Supports 802.11 a/ b/ g/ n/ ac/ a
• Supports Bluetooth® 5.3**
• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO   Realtek® ALC897 Codec

• 1-Channel High Definition Audio

INTERNAL I/O    1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 3x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 2x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports
• 1x USB 3.2 Gen2 Type C ports
