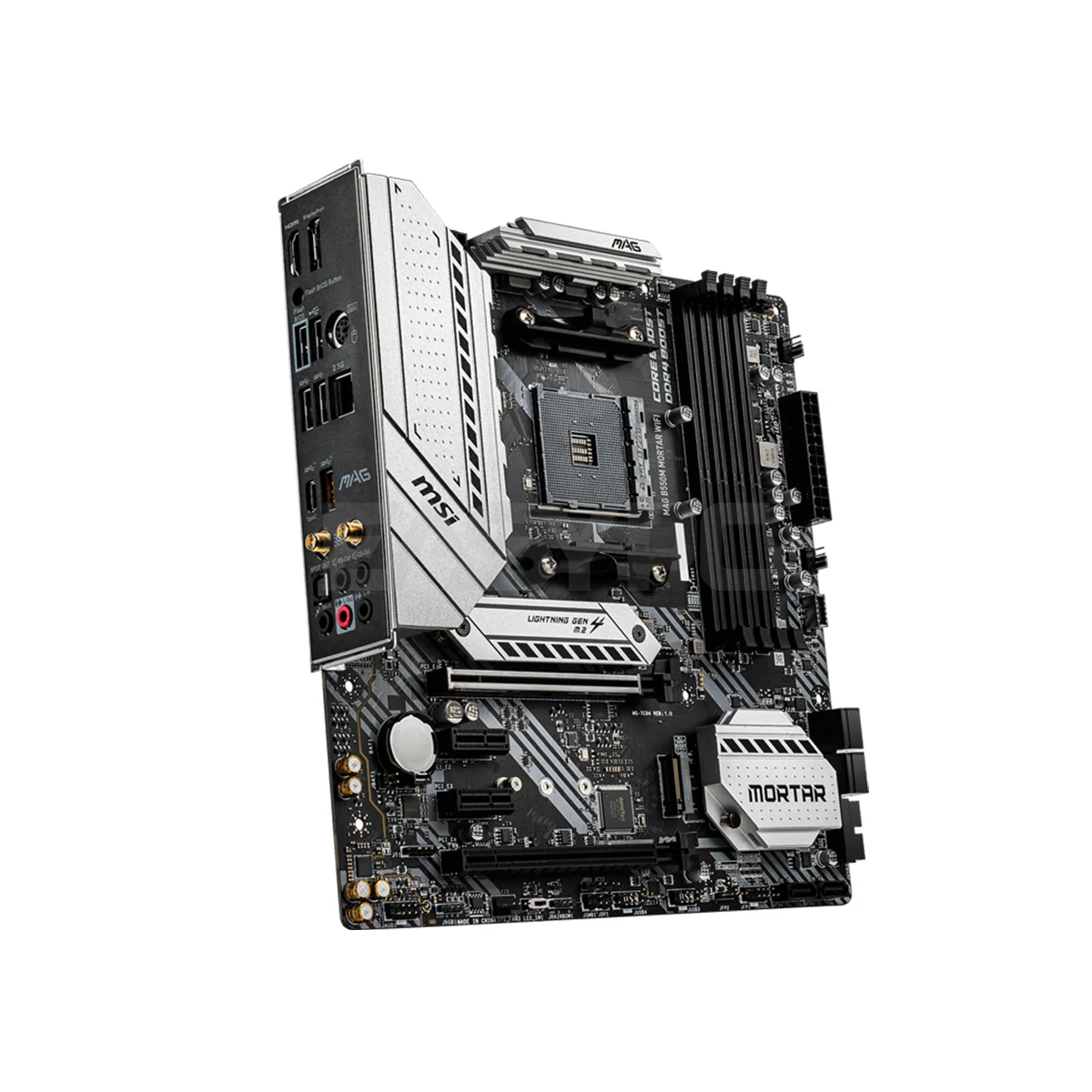

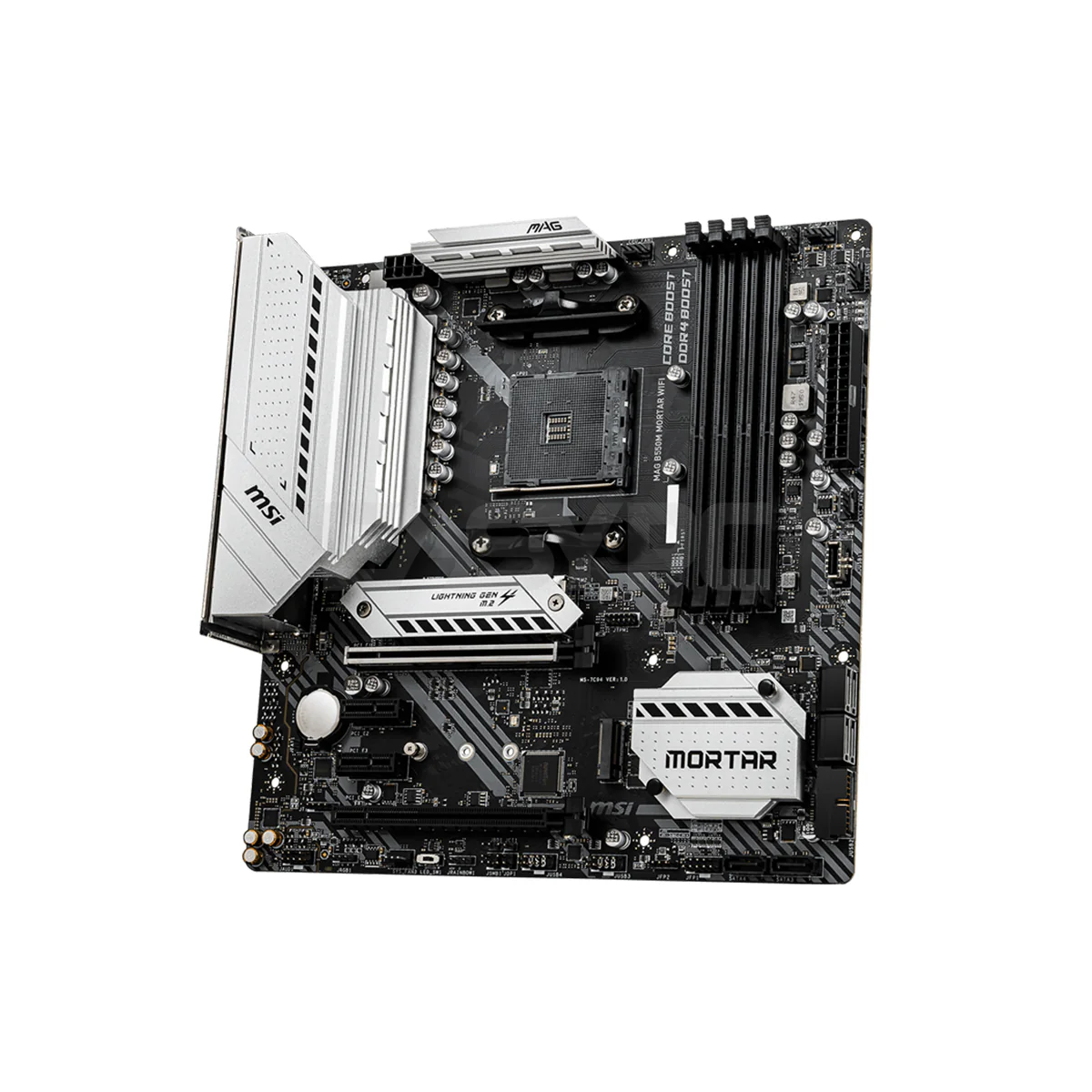

MSI MAG B550M Mortar Max Wi-Fi Micro-ATX MAG Series Socket Am4 Ddr4 Gaming Motherboard

Product Description

The MSI MAG B550M Mortar Max Wi-Fi Micro-ATX motherboard is designed for gaming enthusiasts. With DDR4 support and Wi-Fi capability, it offers exceptional gaming performance. Elevate your gaming experience with this high-quality motherboard from MSI's MAG series.

Product Specifications

• Brand: MSI
• Model: MAG B550M Mortar Wi-Fi and Mortar Max Wi-Fi
• SOCKET: AM4
• CPU (MAX SUPPORT): RYZEN 9
• CHIPSET: AMD B550 Chipset
• DDR4 MEMORY: 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• MEMORY CHANNEL: Dual
• DIMM SLOTS: 4
• MAX MEMORY (GB): 128
• PCI-E X16: 2
• PCI-E X1: 2
• SATAIII: 6
• 2 SLOT: 2
• RAID: 0/1/10
• LAN: 1x Realtek® RTL8125B 2.5G LAN
• WIFI & BLUETOOTH:  AMD Wi-Fi 6E (Mortar Max Wifi)
• USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A)
• USB 3.2 PORTS (REAR): 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 PORTS (FRONT): 4
• USB 2.0 PORTS (REAR): 2
• AUDIO PORTS (REAR): 5+ Optical S/PDIF (Realtek® ALC1200 Codec)
• DISPLAYPORT: 1
• HDMI: 1
• DIRECTX: 12
• FORM FACTOR: Micro-ATX
• CROSSFIRE: YES
• OPERATING SYSTEM: Support for Windows® 10 64-bit
