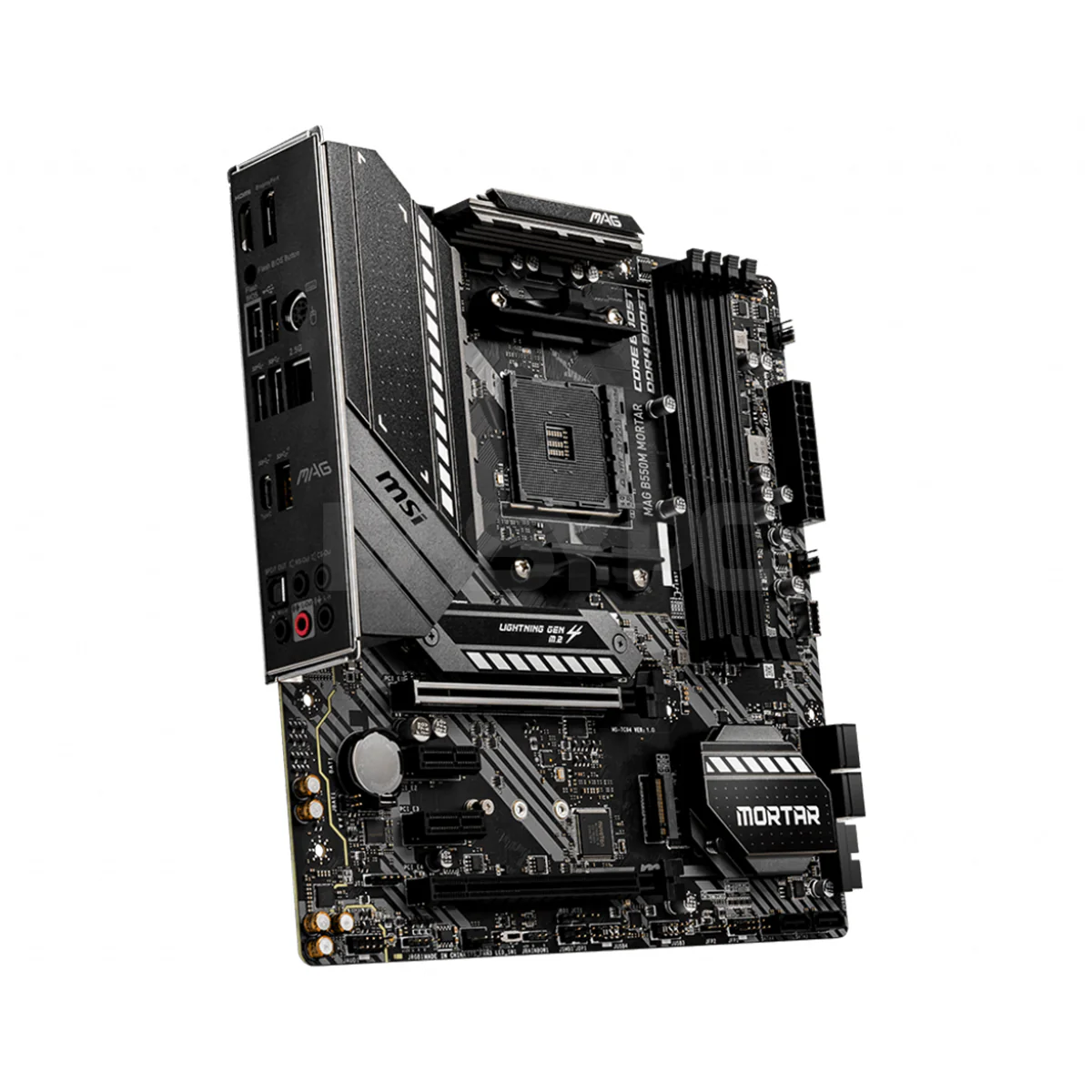

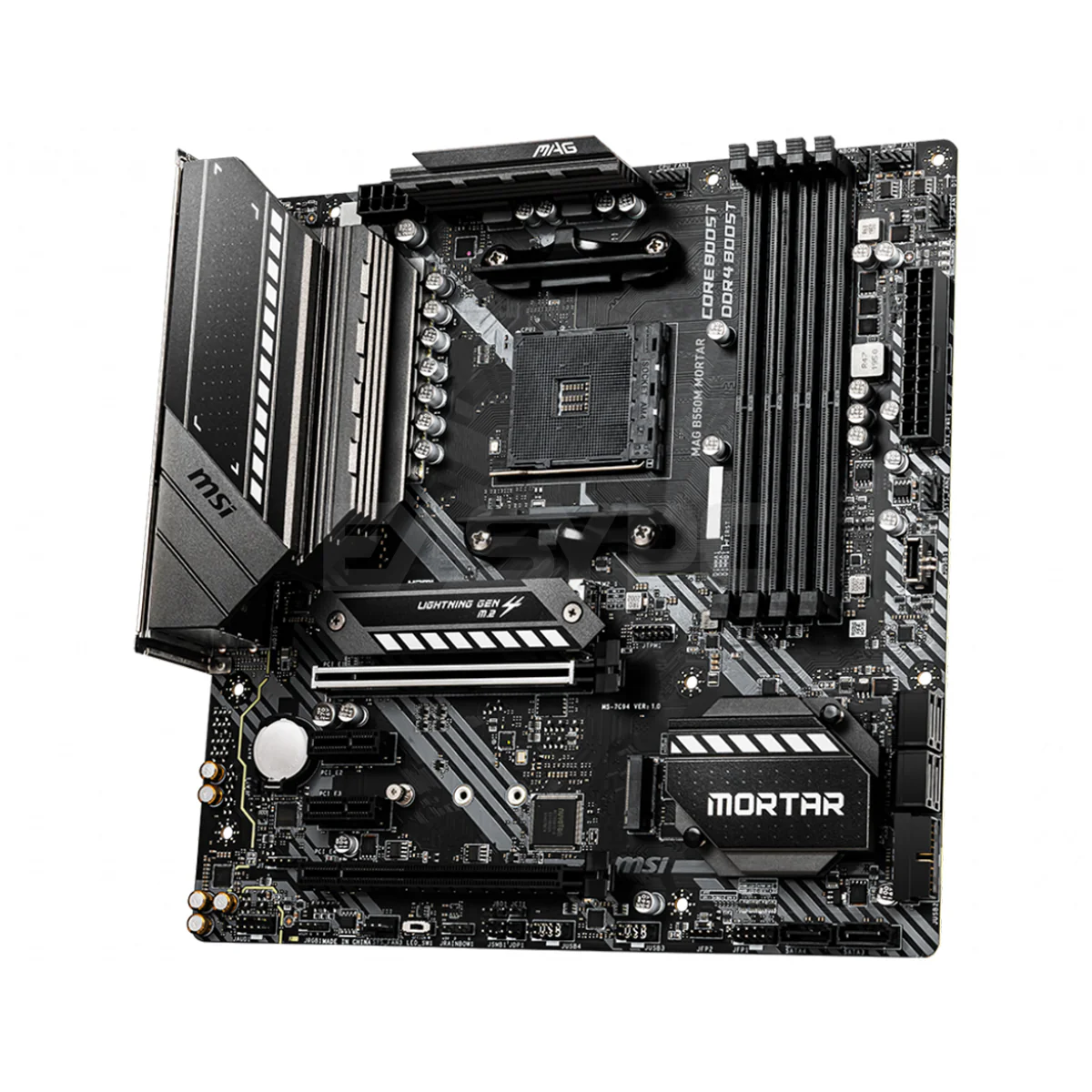

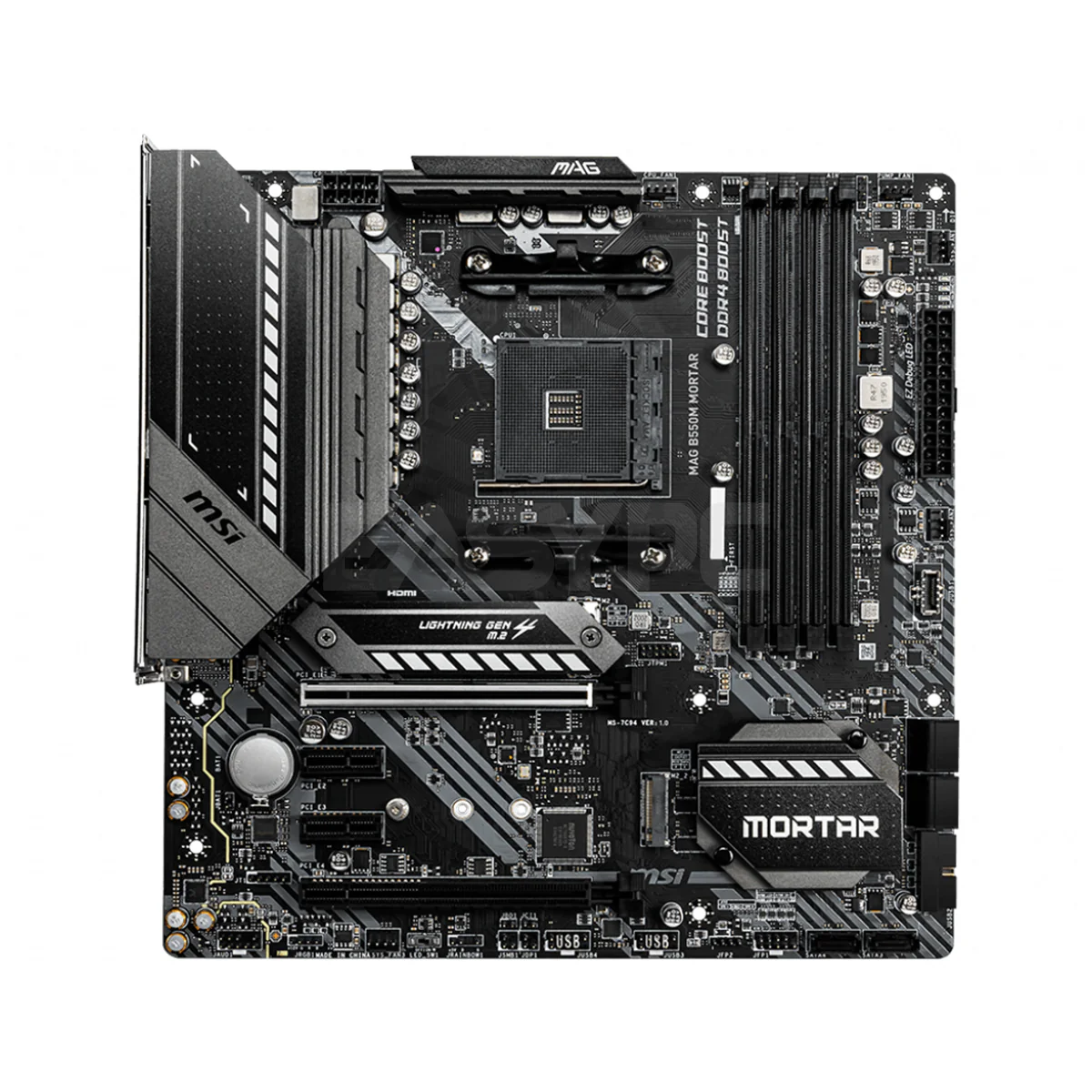

MSI MAG B550M Mortar Socket Am4 Ddr4 Motherboard

Product Description

Unleash the power of MSI MAG B550M Mortar Motherboard. Designed for AMD Ryzen processors, it boasts DDR4 support and cutting-edge features. Compact yet powerful, it ensures a seamless gaming and multitasking experience on the Socket AM4 platform, making it an ideal choice for performance enthusiasts.

Product Specifications

• Brand: MSI
• Model: MAG B550M MORTAR
• CPU Socket Type: AM4
• CPU Type: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
• Chipset: AMD B550
• Number of Memory Slots: 4×288pin
• Memory Standard: Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC, Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
• Maximum Memory Supported: 128GB
• Channel Supported: Dual Channel
• PCI Express 4.0 x16: 1 x PCIe 3.0/4.0 x16 slot (PCI_E1)
• PCI Express 3.0 x16: 1 x PCIe 3.0 x16 slot (PCI_E4), supports x4 mod
• PCI Express x1: 2 x PCIe 3.0 x1 slots
• SATA 6Gb/s: 6 x SATA 6Gb/s
• 2: 2 x M.2 slots (Key M), M2_1 slot (from AMD processor)
• Onboard Video Chipset: Supported only by CPU with integrated graphic:
• 1 x HDMI 2.1 port supports a maximum resolution of 4096x2160 @60Hz 1 2
• 1 x DisplayPort supports a maximum resolution of 4096x2160 @60Hz 1
• Maximum shared memory of 16GB
• Audio Chipset: Realtek ALC1200
• Audio Channels: 7.1-Channel High Definition Audio, Supports S/PDIF output
• LAN Chipset: Realtek RTL8125B
• Max LAN Speed: 10/100/1000/2500Mbps

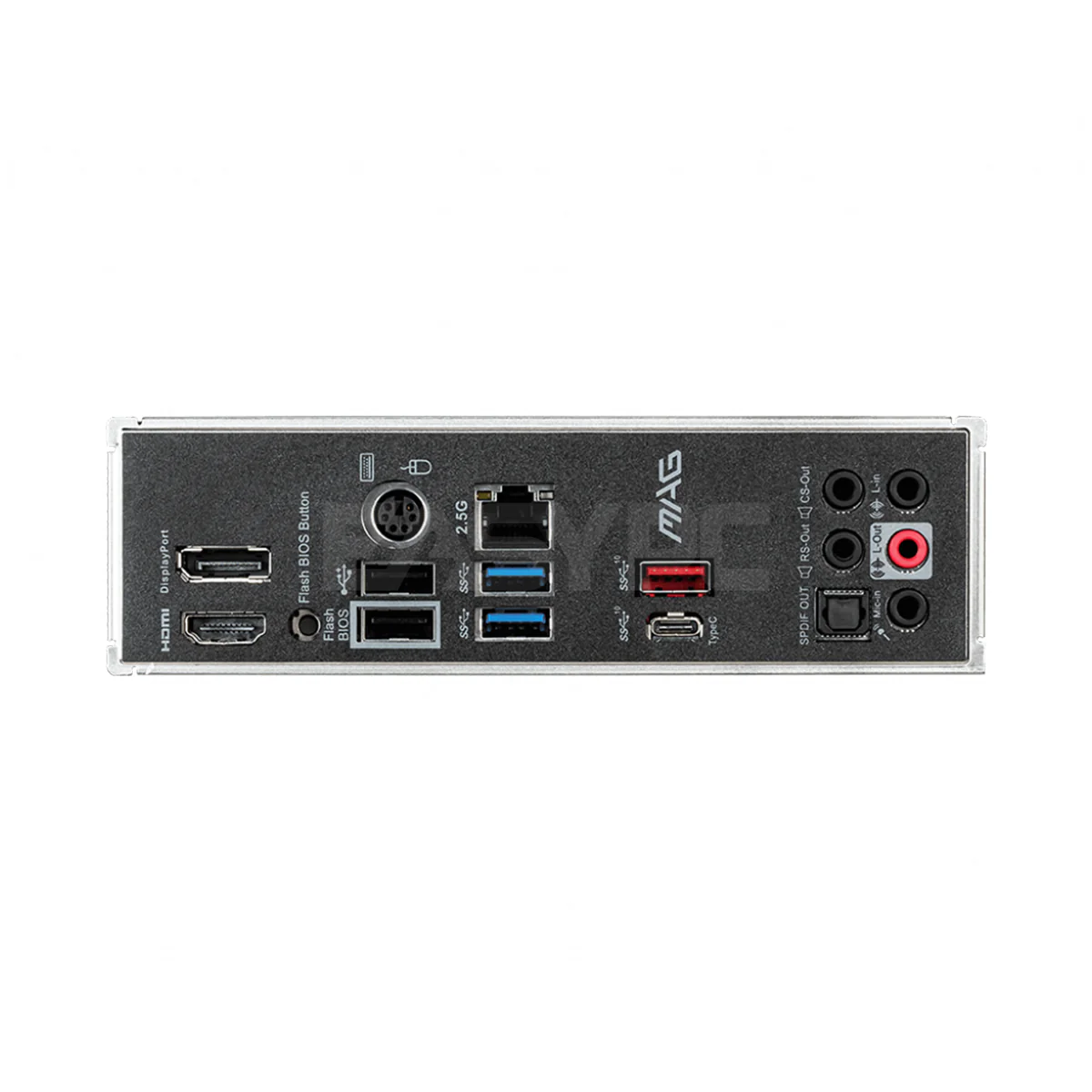

• Back I/O Ports: 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks
• Onboard USB: 1 x USB 3.2 Gen 1 5Gbps Type-C port
• 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• Other Connectors: 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump fan connector
• 3 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x TPM module connector
• 1 x Clear CMOS jumper
• Form Factor: Micro ATX
• LED Lighting: RGB
• Dimensions (W x L): 9.6" x 9.6"
• Power Pin: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
