MSI B650M BOMBER WIFI AM5 DDR5 Motherboard

The MSI B650M BOMBER WIFI is a feature-rich Micro-ATX motherboard built on the AMD B650 chipset, supporting AMD Ryzen 9000, 8000, and 7000 series processors via the AM5 socket. Equipped with DDR5 memory support, Wi-Fi 6E, and 2.5G LAN, it delivers modern connectivity and performance in a compact form factor.

Key Features

• AMD B650 Chipset - Full support for Ryzen 9000/8000/7000 series AM5 processors
• DDR5 Memory - 2x DIMM slots, up to 128GB, supports DDR5 7800+ MT/s with AMD EXPO
• Wi-Fi 6E & Bluetooth 5.3 - Tri-band wireless (2.4/5/6GHz) for fast, low-latency connectivity
• 2.5G LAN - Realtek RTL8125BG for high-speed wired networking
• Dual M.2 Slots - Both PCIe 4.0 x4 with M.2 Shield Frozr thermal protection
• Steel Armor PCIe x16 - Reinforced slot protecting heavy graphics cards against bending
• Flash BIOS Button - Update BIOS without CPU or RAM installed

Technical Specifications

Chipset	AMD B650
Socket	AM5 (LGA 1718)
Form Factor	Micro-ATX (226 x 243.84 mm)
Memory	2x DDR5 DIMM, up to 128GB, DDR5-4800 to 7800+ MT/s (OC)
Expansion	1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Storage	2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
Networking	Wi-Fi 6E (802.11ax), 2.5Gbps Ethernet, Bluetooth 5.3
Audio	Realtek ALC897, 7.1-Channel HD Audio

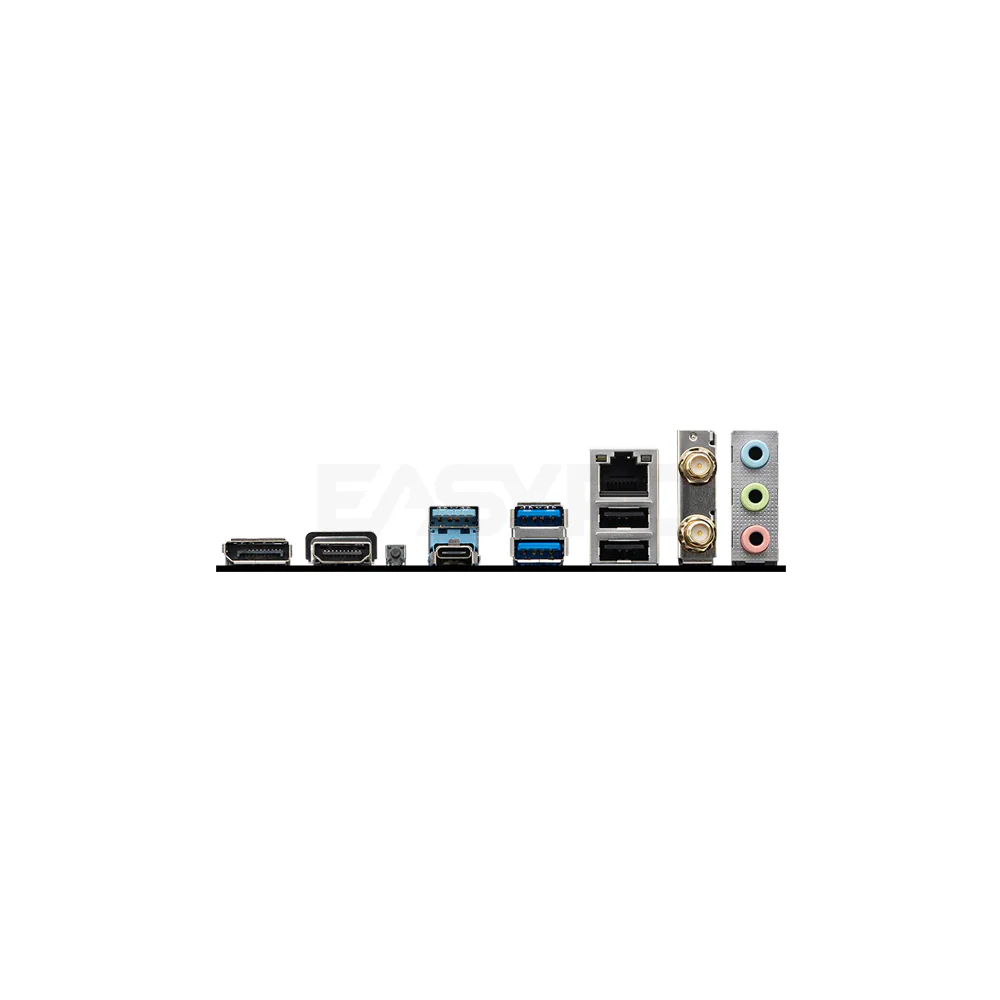

Rear USB	1x USB-C 3.2 Gen 1, 3x USB-A 3.2 Gen 1, 2x USB 2.0
Video Output	1x HDMI 2.1, 1x DisplayPort 1.4
RAID	RAID 0, 1, 10 (SATA and NVMe)
