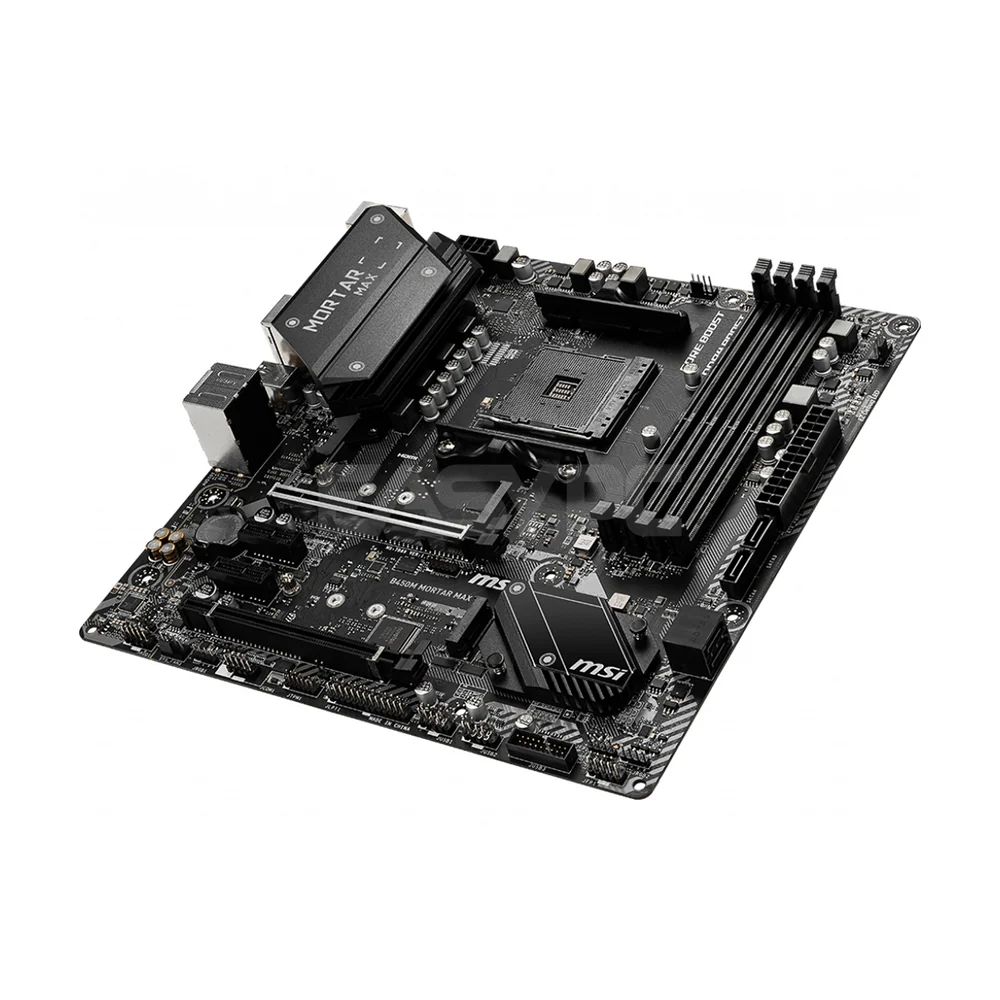

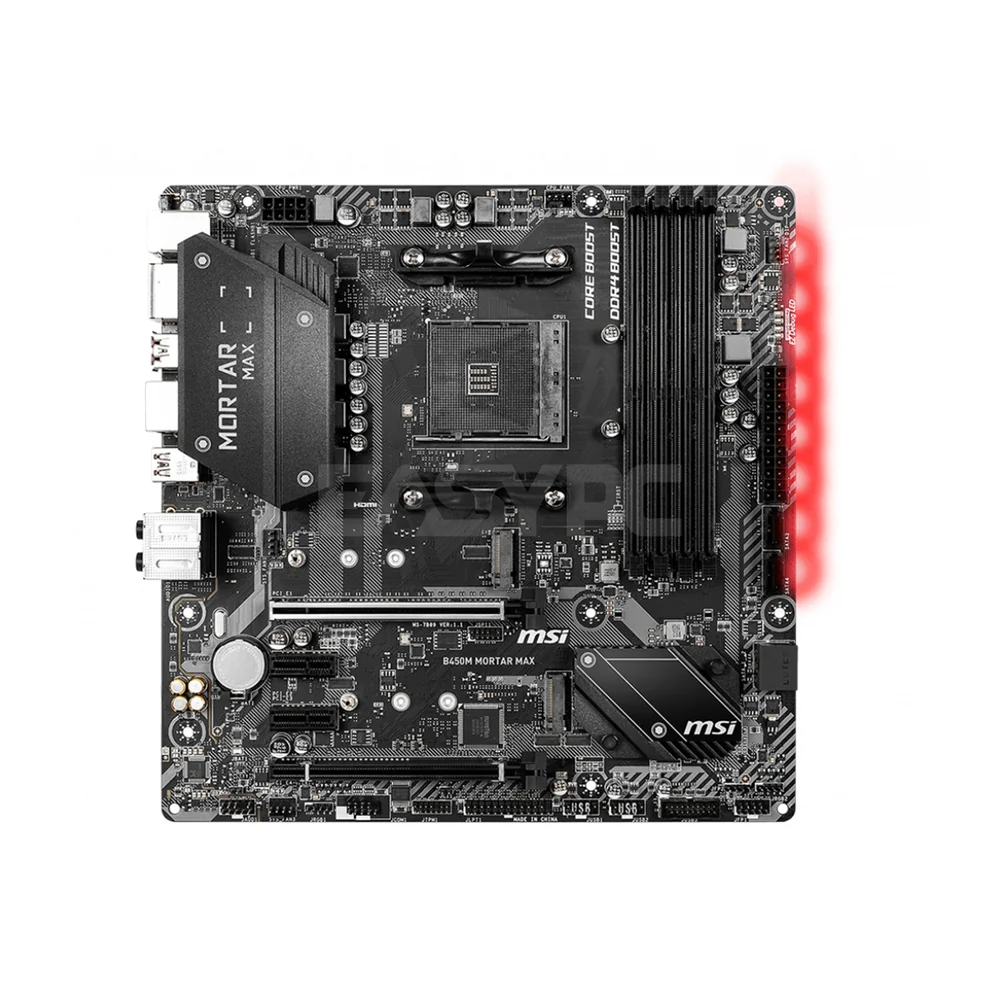

MSI B450m Mortar Max Socket Am4 Ddr4 Gaming Motherboard

Product Specifications

• BRAND: MSI
• MODEL: B450M MORTAR MAX
• CPU (MAX SUPPORT): RYZEN 9
• SOCKET: AM4
• CHIPSET: AMD® B450 Chipset
• DDR4 MEMORY: 1866/ 2133/ 2400/ 2667Mhz (by JEDEC), For AMD Ryzen Gen3 (R5/R7/R9), 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
• MEMORY CHANNEL: Dual
• DIMM SLOTS: 4
• MAX MEMORY (GB): 128
• PCI-E X16: 2
• PCI-E GEN: Gen3(PCI_E1), Gen2(PCI_E4)
• PCI-E X1: 2
• SATAIII: 4
• 2 SLOT: 2
• RAID: 0/1/10
• TPM (HEADER): 1

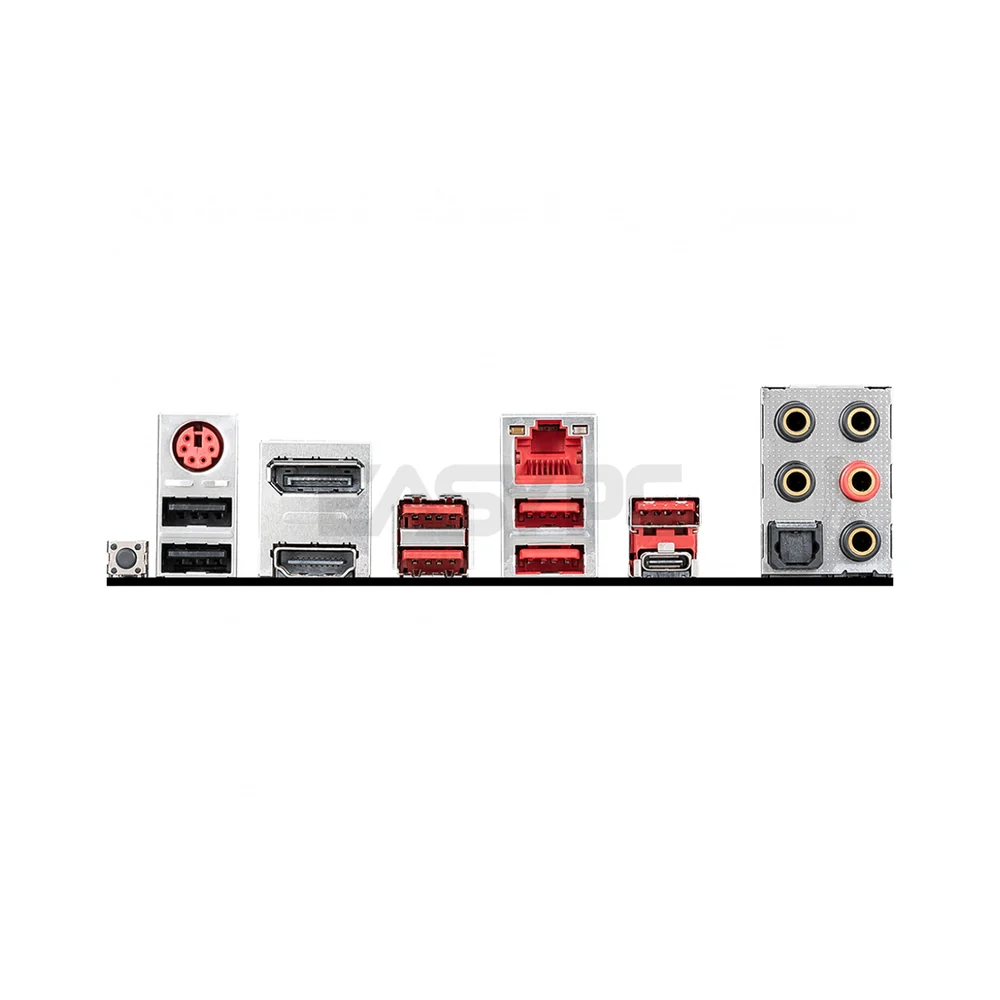

• LAN: 1x Realtek® RTL8111H-CG
• USB 3.2 PORTS (FRONT): 2(Gen1, Type A)
• USB 3.2 PORTS (REAR): 1(Gen2, Type C), 1(Gen2, Type A), 4(Gen1, Type A)
• USB 2.0 PORTS (FRONT): 4
• USB 2.0 PORTS (REAR): 2
• SERIAL PORTS(FRONT): 1
• PARALLEL PORT(FRONT): 1
• AUDIO PORTS (REAR): Realtek® ALC892/ALC897 Codec
• DISPLAYPORT: 1
• HDMI: 1
• DIRECTX: 12
• FORM FACTOR: Micro ATX
• CROSSFIRE: Y
• OPERATING SYSTEM:
• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit
• * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
• FEATURES:
• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 3466(OC) MHz
• Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
• Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.1 GEN2, Store MI technology
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
• MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
• Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
