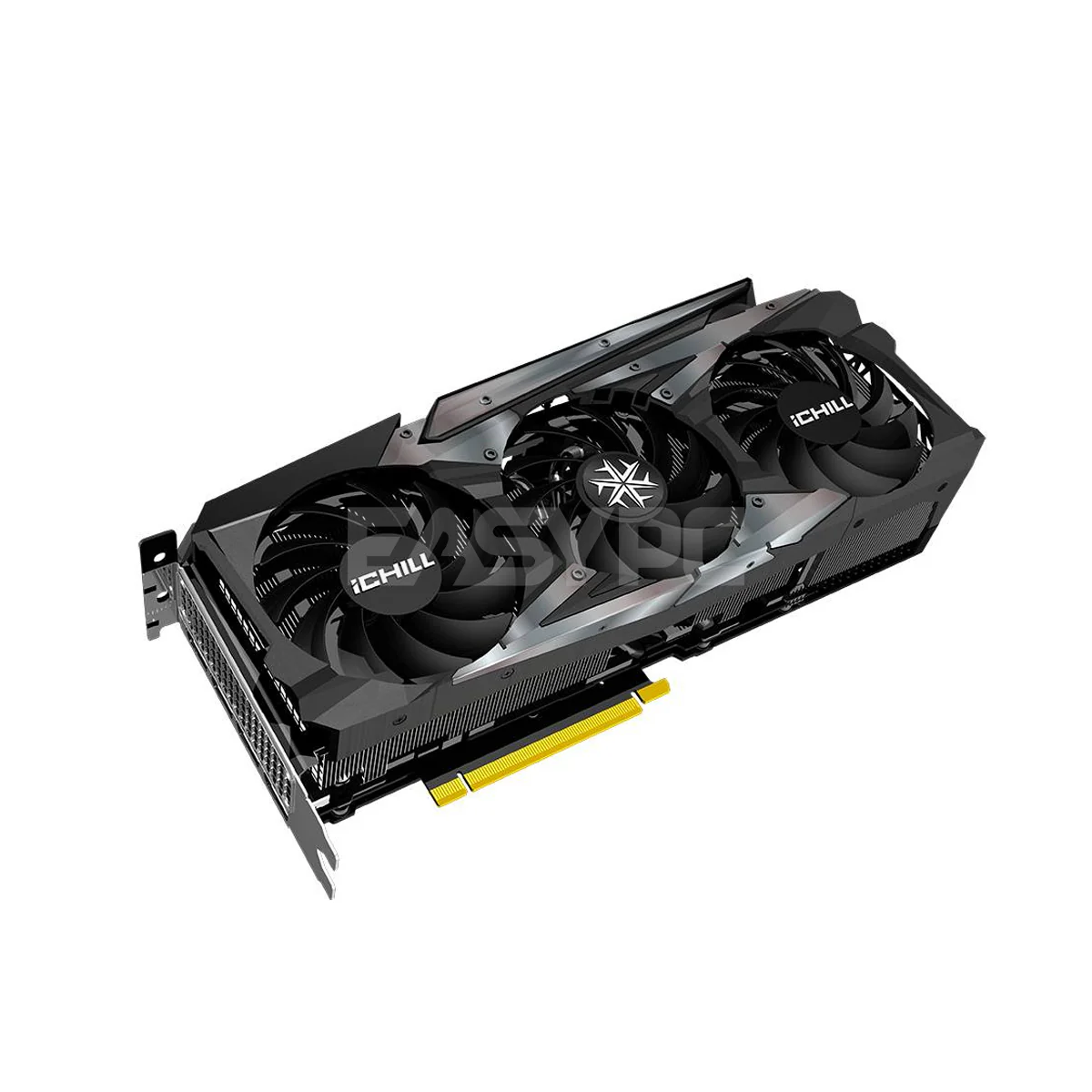

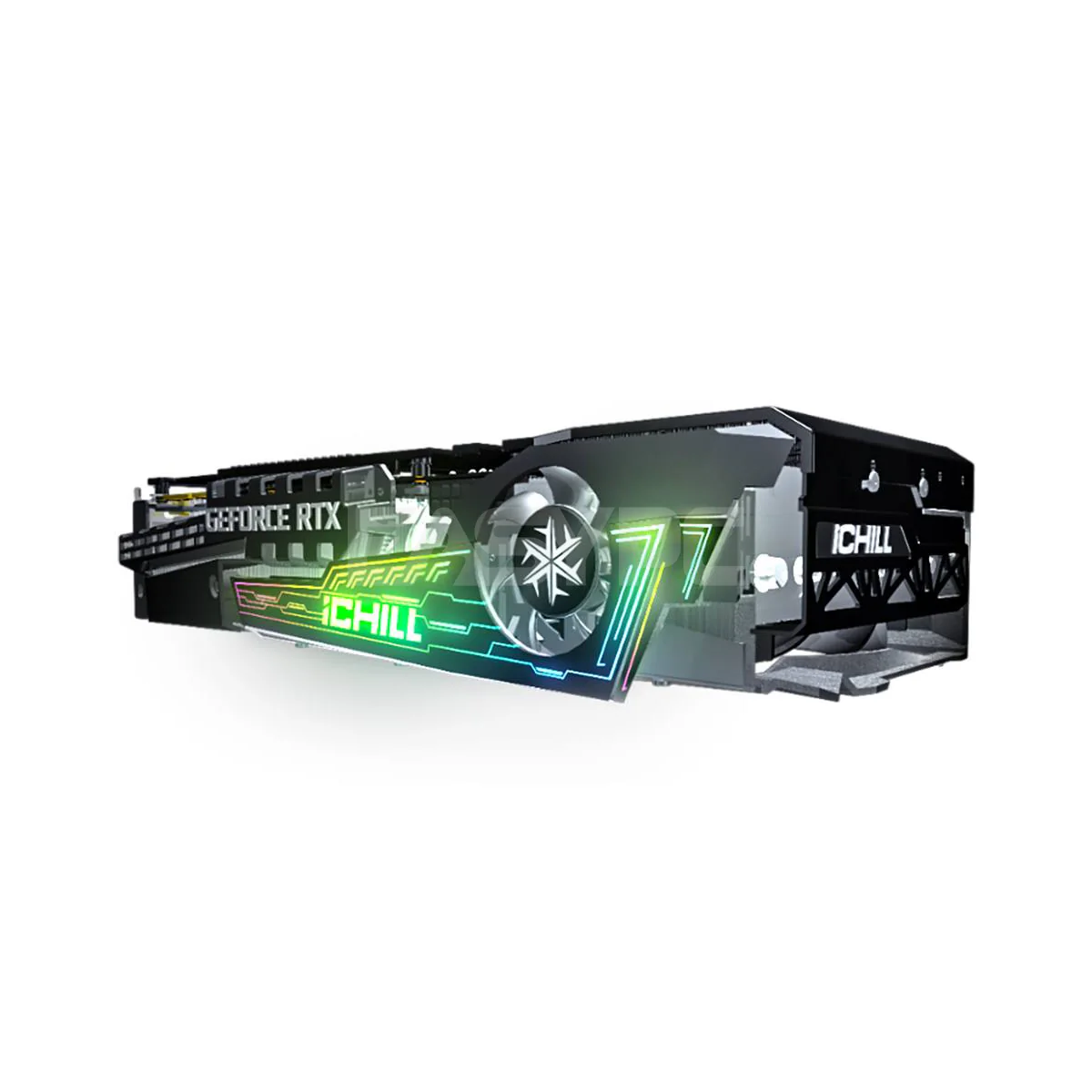

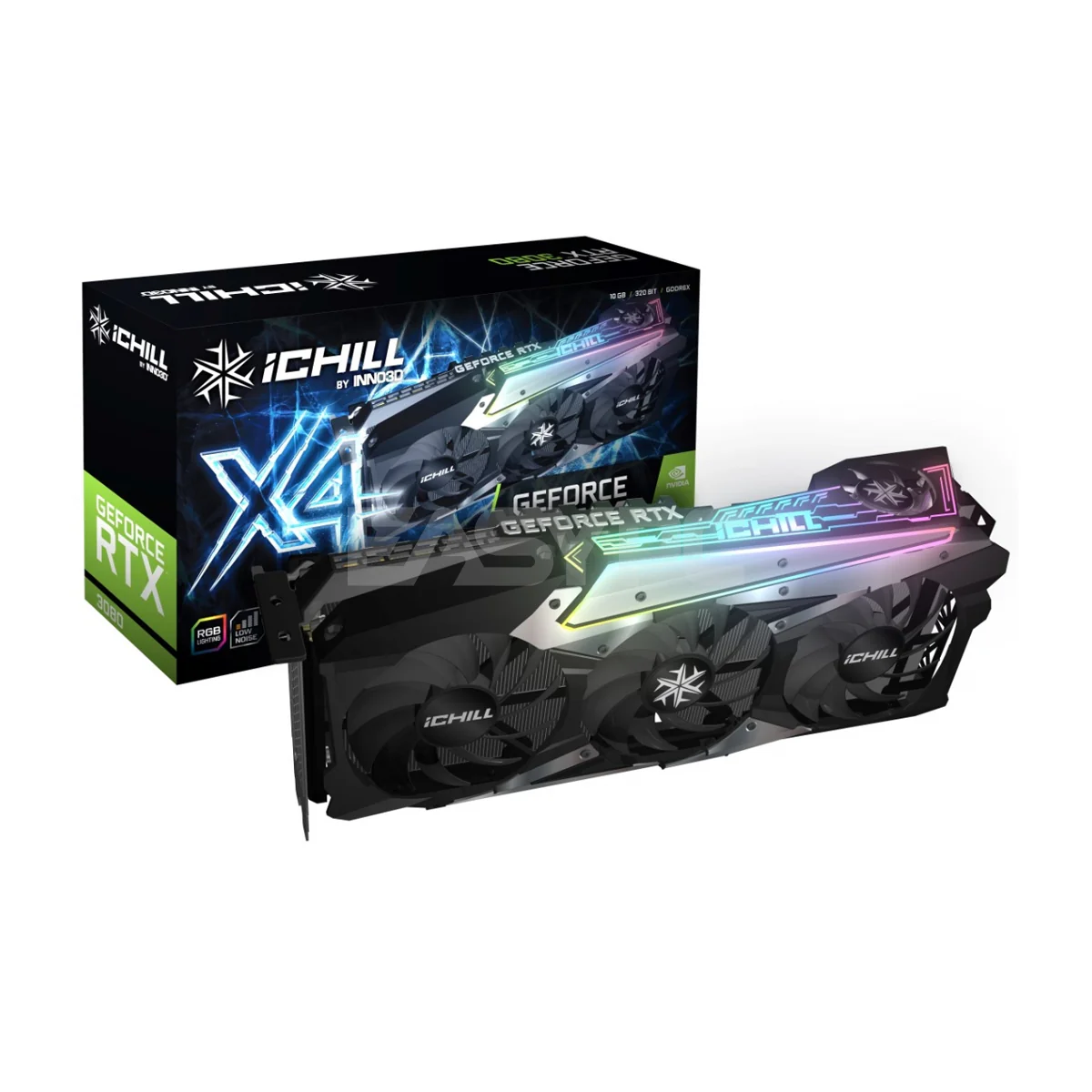

Inno3D iChill NVIDIA® GeForce RTX™ 3080 X4 Gaming Videocard 10gb 320bit GDdr6X

Graphics Processor
GPU Name	GA102
GPU Variant	GA102-200-K1-A1
Process Size	8 nm
Transistors	28,000 million
Die Size	628 mm²
Graphics Card
Generation	GeForce 30
Bus Interface	PCIe 4.0 x16
Clock Speeds
Base Clock	1440 MHz
Boost Clock	1710 MHz
Memory Clock	1188 MHz
	19 Gbps effective
Memory
Memory Size	10 GB
Memory Type	GDDR6X
Memory Bus	320 bit
Bandwidth	760.3 GB/s
Render Config
Shading Units	8704
TMUs	272
ROPs	96
SM Count	68
Tensor Cores	272
RT Cores	68
L1 Cache	128 KB (per SM)
L2 Cache	5 MB
Theoretical Performance
Pixel Rate	164.2 GPixel/s
Texture Rate	465.1 GTexel/s
FP16 (half) performance	29.77 TFLOPS (1:1)
FP32 (float) performance	29.77 TFLOPS
FP64 (double) performance	930.2 GFLOPS (1:32)
Board Design
Slot Width	Dual-slot
TDP	320 W
Suggested PSU	700 W
Outputs	1x HDMI
	3x DisplayPort
Power Connectors	1x 12-pin
	2x 8-pin
Board Number	PG132 SKU 10
Graphics Features
DirectX	12 (12_2)
OpenGL	4.6
OpenCL	2
Vulkan	1.2
CUDA	8.5
Shader Model	6.5

Ideal For

• Gaming desktop builds
• Content creation and video editing workstations
• 3D rendering and graphic design tasks

*Specifications are based on manufacturer data. Actual product may vary.
