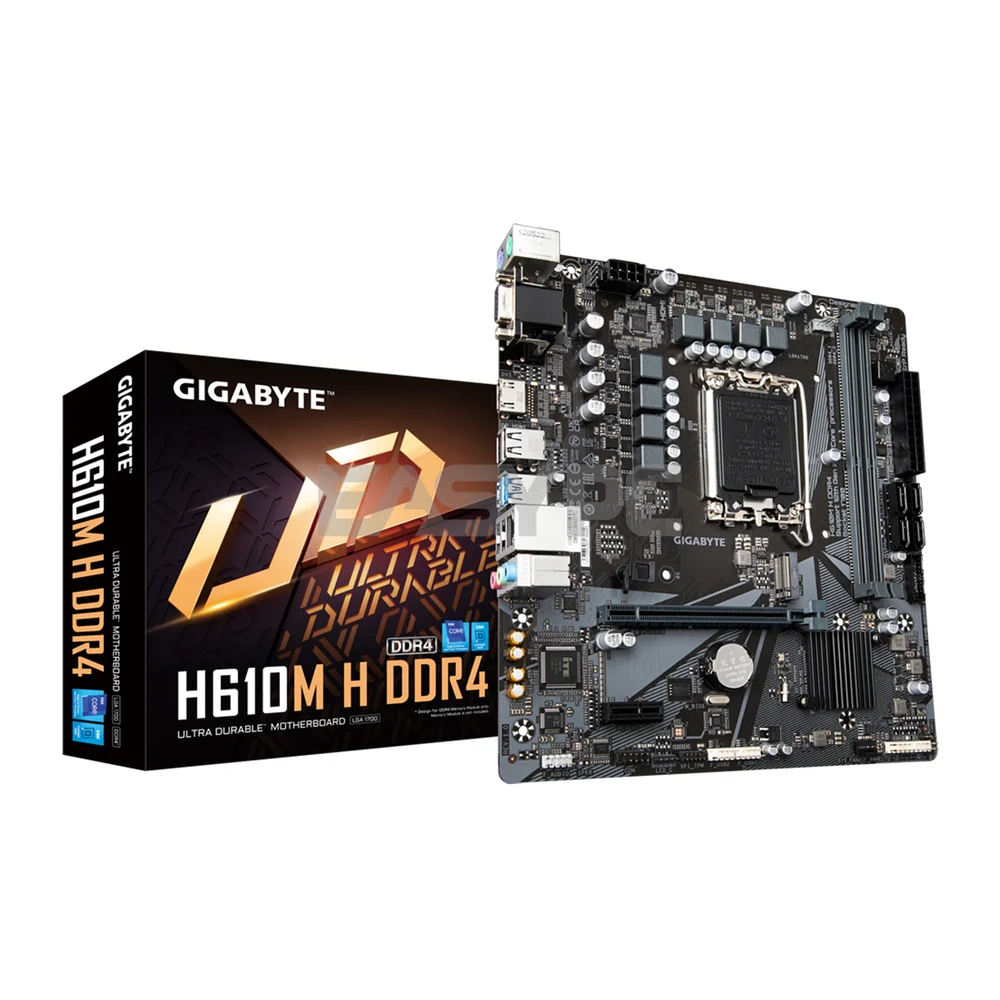

Gigabyte H610M-H Socket LGA 1700 Ddr4 Motherboard

Product Description

The Gigabyte H610M-H LGA 1700 motherboard offers efficient performance. With DDR4 support, it enables smooth multitasking and reliable data processing. Upgrade your system with this motherboard for a reliable and responsive computing experience.

Products Specification

• CPU: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU
• Chipset: Intel® H610 Express Chipset
• Memory: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
• ** Support native HDMI 2.1 TMDS compatible ports
• (Graphics specifications may vary depending on CPU support.)
• Audio: Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN: Intel® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots: 1 x PCI Express x16 slot, running at x16
• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
• 1 x PCI Express x1 slot
• (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
• Storage Interface
• Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• USB
• Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 2 x system fan headers
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

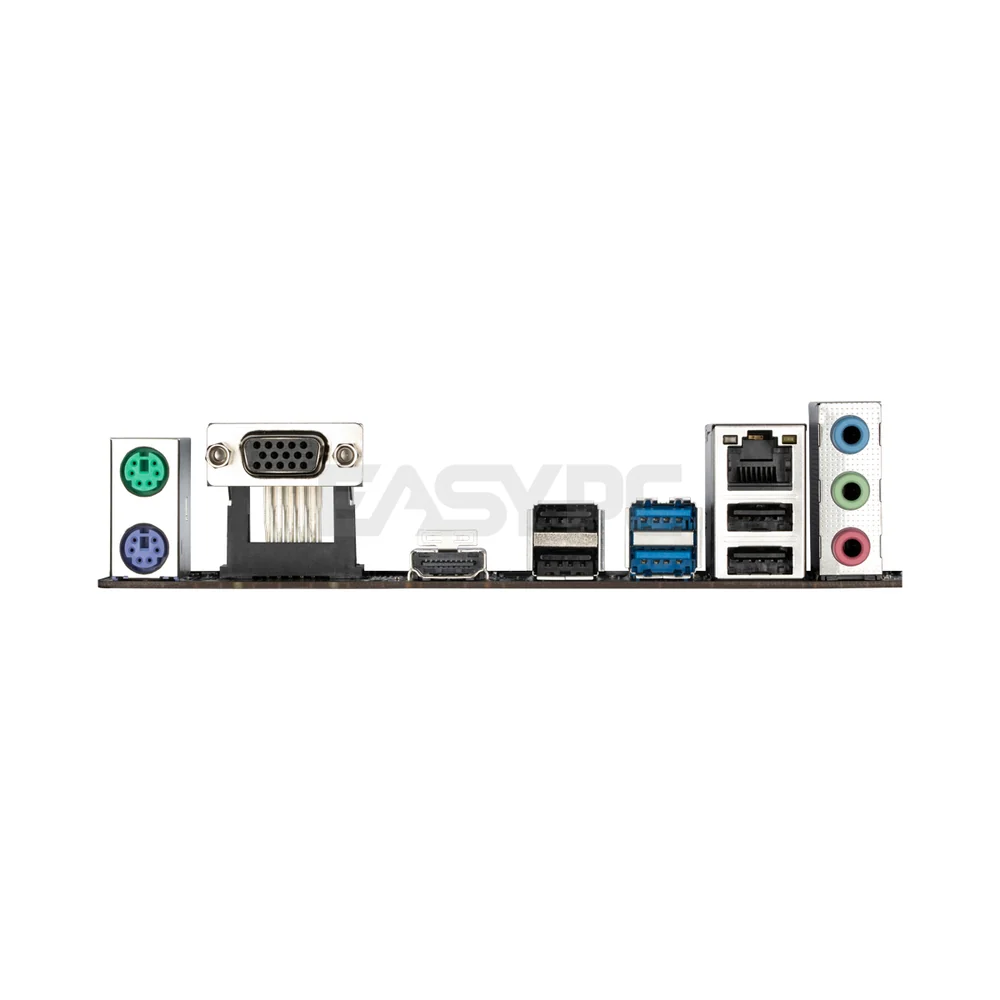

• Back Panel Connectors
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x D-Sub port
• 1 x HDMI 2.0 port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• Ambient LED
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton® Internet Security (OEM version)
• LAN bandwidth management software
• Operating System
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
• Form Factor
• Micro ATX Form Factor; 23.0cm x 21.5cm
