Gigabyte H410M-H Socket LGA 1200 Ddr4 Motherboard
| CPU | 1. Support for 10th Generation IntelĀ® Coreā¢ i9 processors/IntelĀ® Coreā¢ i7 processors/IntelĀ® Coreā¢ i5 processors/IntelĀ® Coreā¢ i3 processors/IntelĀ® PentiumĀ® processors/IntelĀ® CeleronĀ® processors in the LGA1200 package |
| 2. L3 cache varies with CPU | |
| Chipset | 1. IntelĀ® H410 Express Chipset |
| Memory | 1. IntelĀ® Coreā¢ i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 2. IntelĀ® Coreā¢ i5/i3/PentiumĀ®/CeleronĀ® processors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| 4. Dual channel memory architecture | |
| 5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 7. Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| 2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| Audio | 1. RealtekĀ® ALC887 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| LAN | 1. RealtekĀ® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express slots conform to PCI Express 3.0 standard.) | |
| Storage Interface | 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| 2. 4 x SATA 6Gb/s connectors | |
| * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. | |
| USB | 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x system fan header | |
| 5. 1 x RGB LED strip header | |
| 6. 4 x SATA 6Gb/s connectors | |
| 7. 1 x M.2 Socket 3 connector | |
| 8. 1 x front panel header | |
| 9. 1 x front panel audio header | |
| 10. 1 x USB 3.2 Gen 1 header | |
| 11. 1 x USB 2.0/1.1 header | |
| 12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 13. 1 x serial port header | |
| 14. 1 x Clear CMOS jumper | |

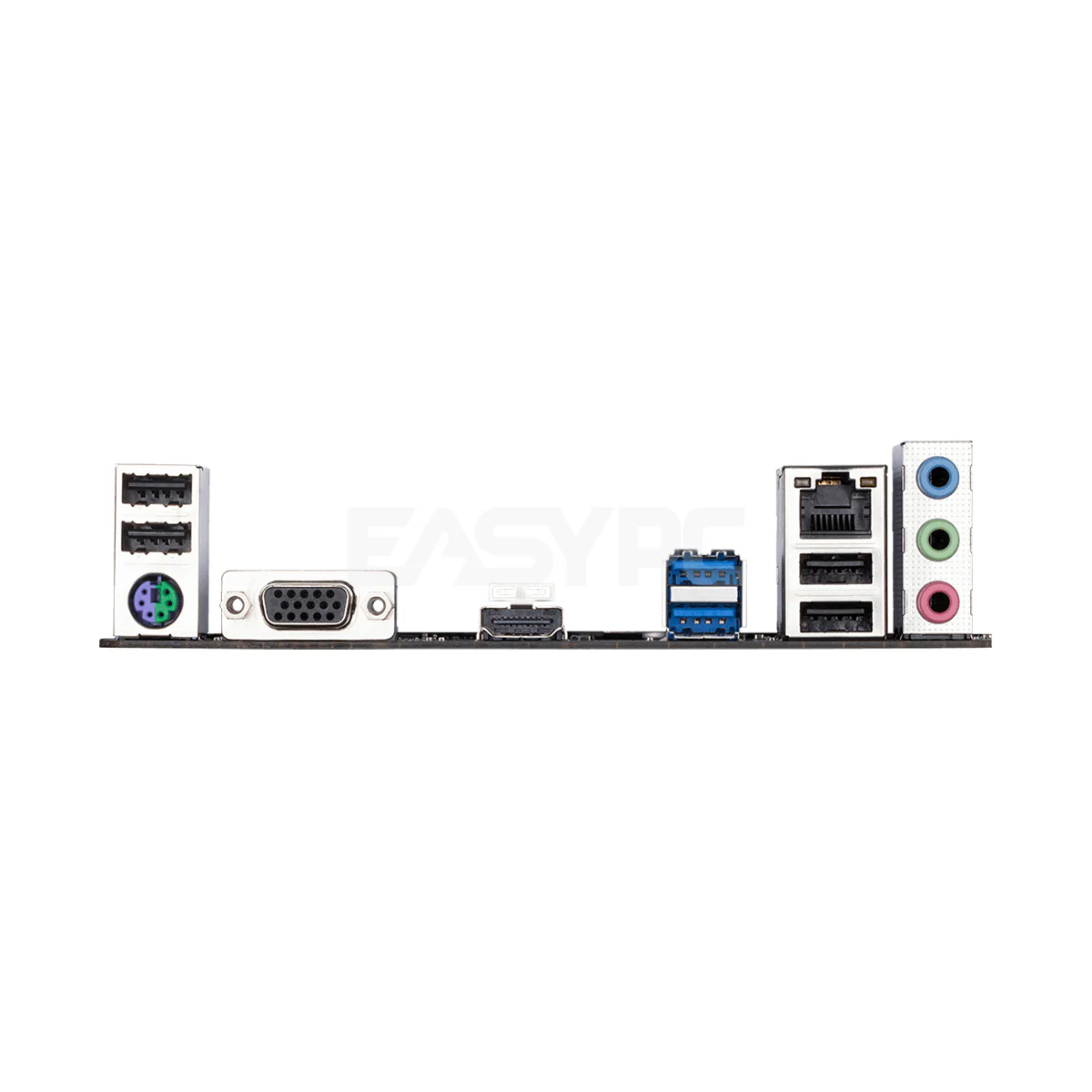

| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port | |
| 3. 1 x HDMI port | |
| 4. 2 x USB 3.2 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
| I/O Controller | 1. iTEĀ® I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| Ambient LED | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 22.6cm x 17.4cm |
Browse more Motherboards at EasyPC.
