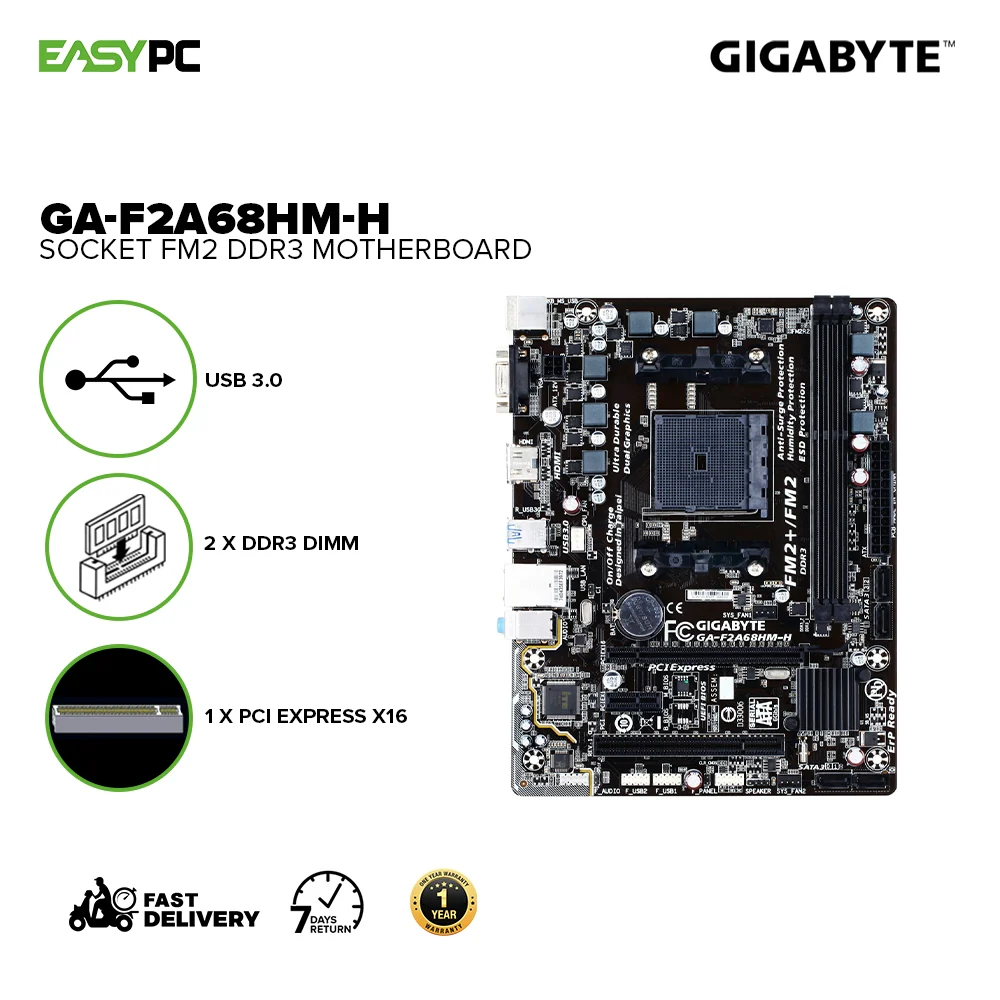

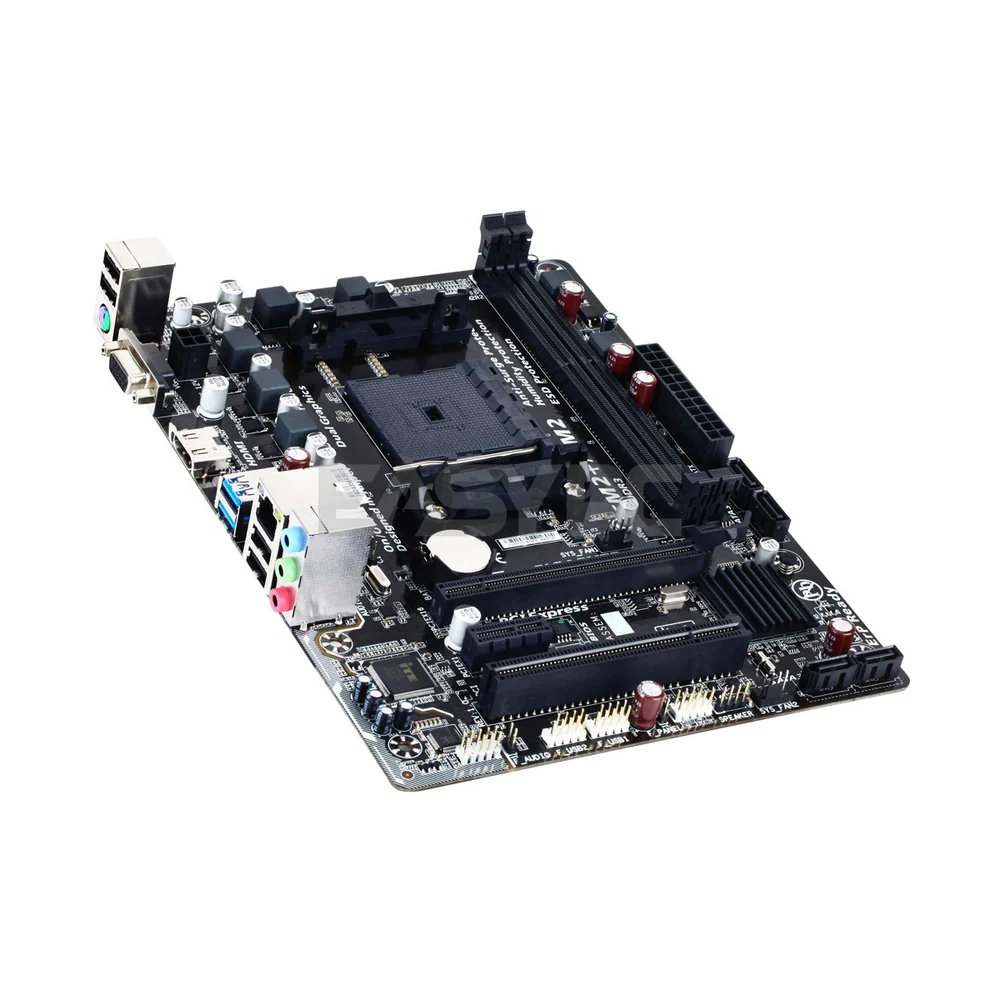

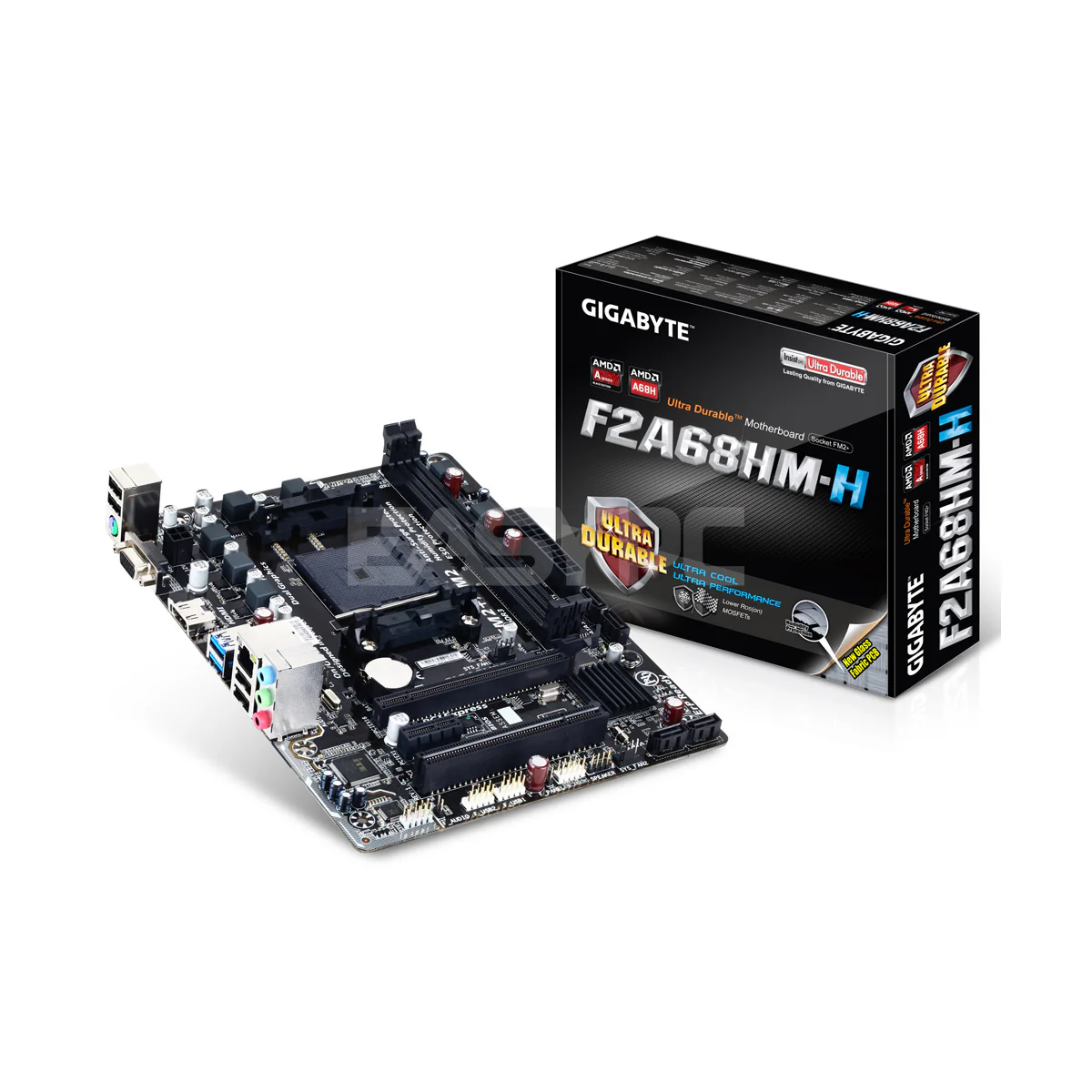

Gigabyte GA-F2A68HM-H supports AMD FM2+/FM2 A-series APU GIGABYTE Ultra Durable TechnologySocket FM2+ Gaming Motherboard

Product Specifications

• Manufacturer: Gigabyte
• Socket / CPU: FM2+
• AMD A series processors
• AMD Athlon™ series processor
• Chipset AMD: A68H
• Memory: 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
• Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor 1 x D-Sub port, supporting a maximum resolution of 1920x1200
• 1 x HDMI port, supporting a maximum resolution of 4096x2160
• Maximum shared memory of 2 GB
• Audio Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots 1 x PCI Express x16 slot, running at x16
• (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
• 1 x PCI Express x1 slot
• (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
• 1 x PCI slot
• Multi-Graphics Technology: Support for AMD Dual Graphics technology
• Support for AMD Eyefinity technology
• Storage Interface
• Chipset 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 10, and JBOD
• USB
• Chipset 2 x USB 3.0/2.0 ports on the back panel
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x APU fan header
• 2 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 2 x USB 2.0/1.1 headers
• 1 x speaker header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

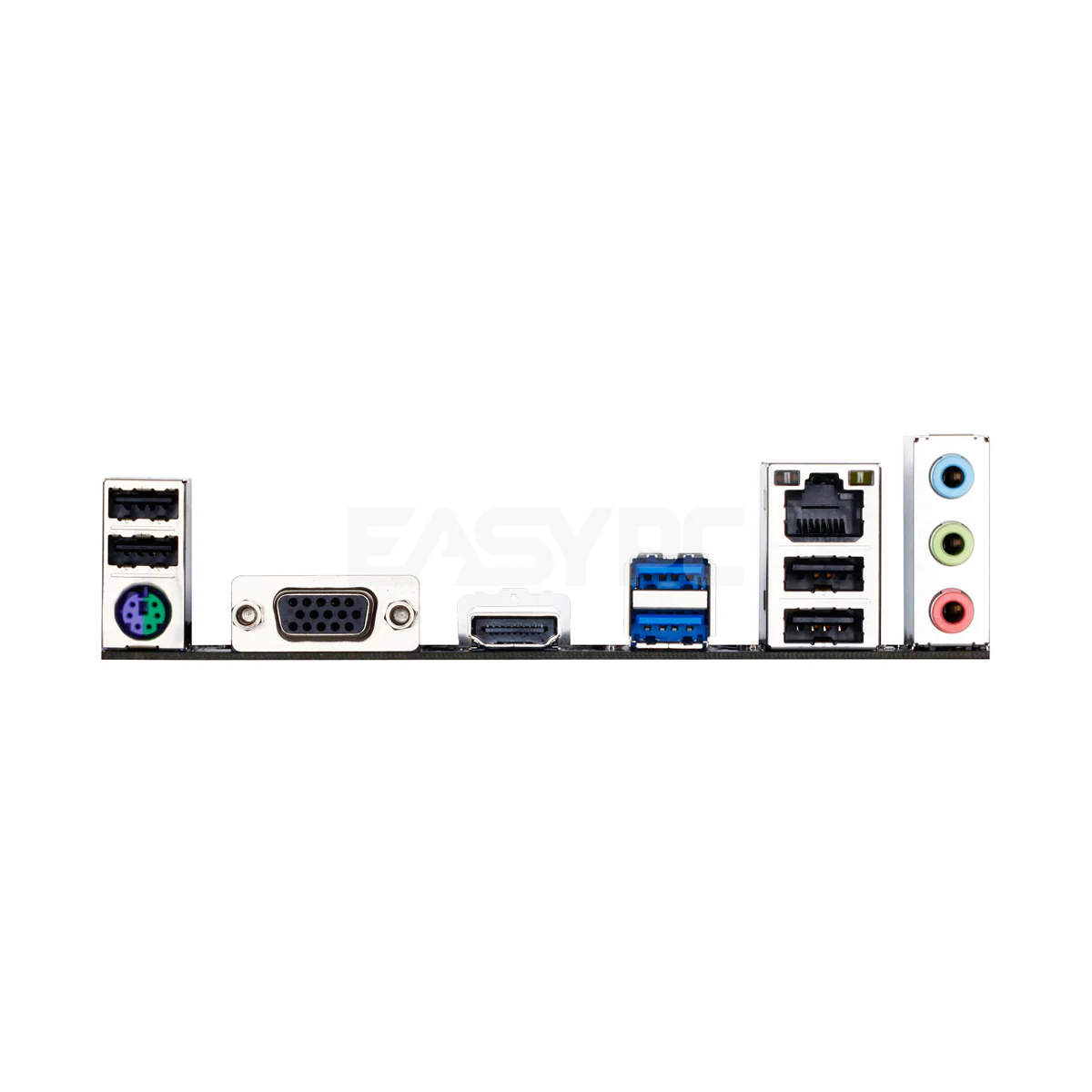

• Back Panel Connectors 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.0/2.0 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In, Line Out, Mic In)
• I/O Controller iTE® I/O Controller Chip
• H/W Monitoring System voltage detection
• APU/System temperature detection
• APU/System fan speed detection
• APU overheating warning
• APU/System fan fail warning
• APU/System fan speed control
• BIOS 1 x 64 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features Support for @BIOS
• Support for Q-Flash
• Support for Xpress Install
• Support for EasyTune
• Support for Smart Recovery 2
• Support for ON/OFF Charge
• Operating System: Support for Windows 8.1/7 32-bit/64-bit
• Support for Windows XP 32-bit
• Form Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
