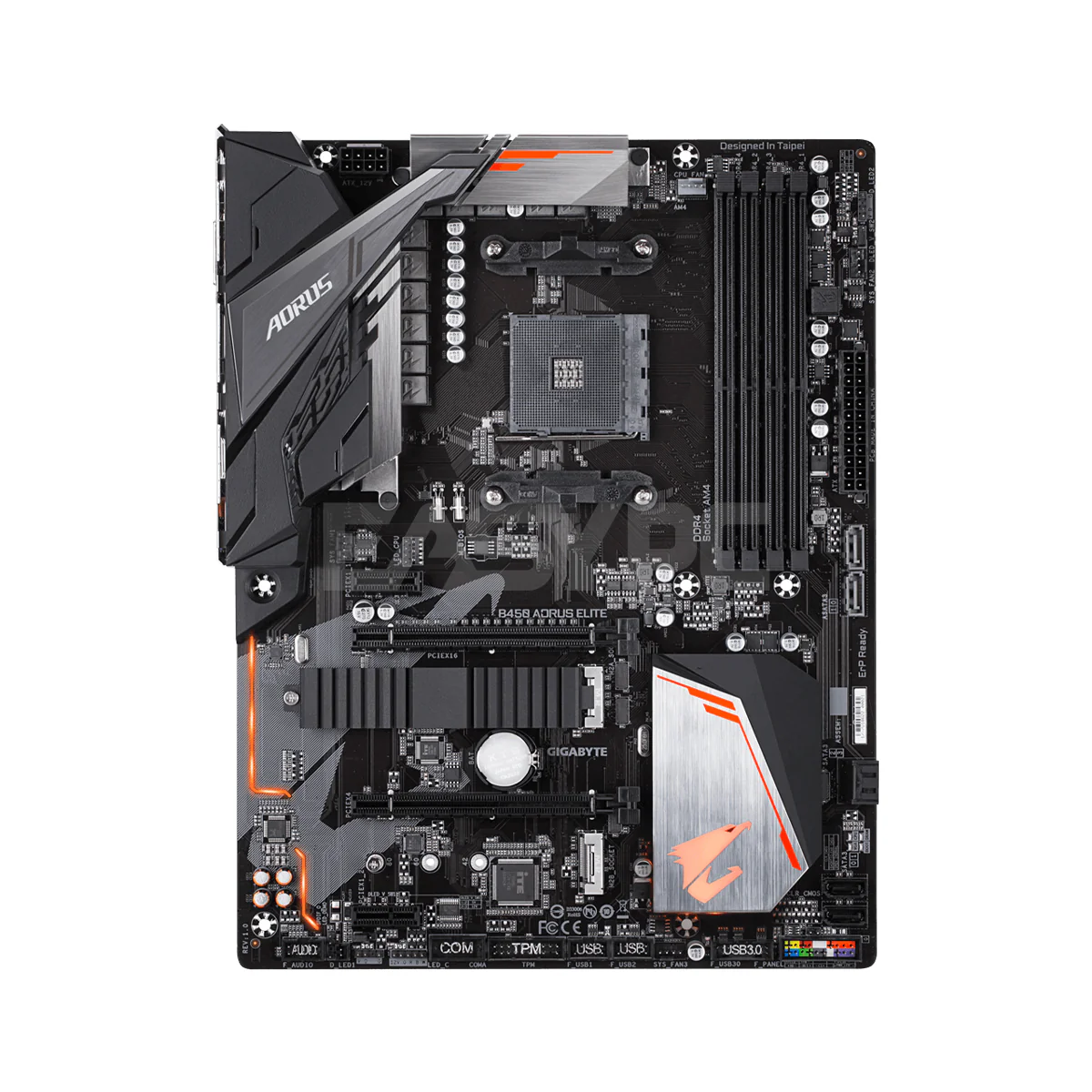

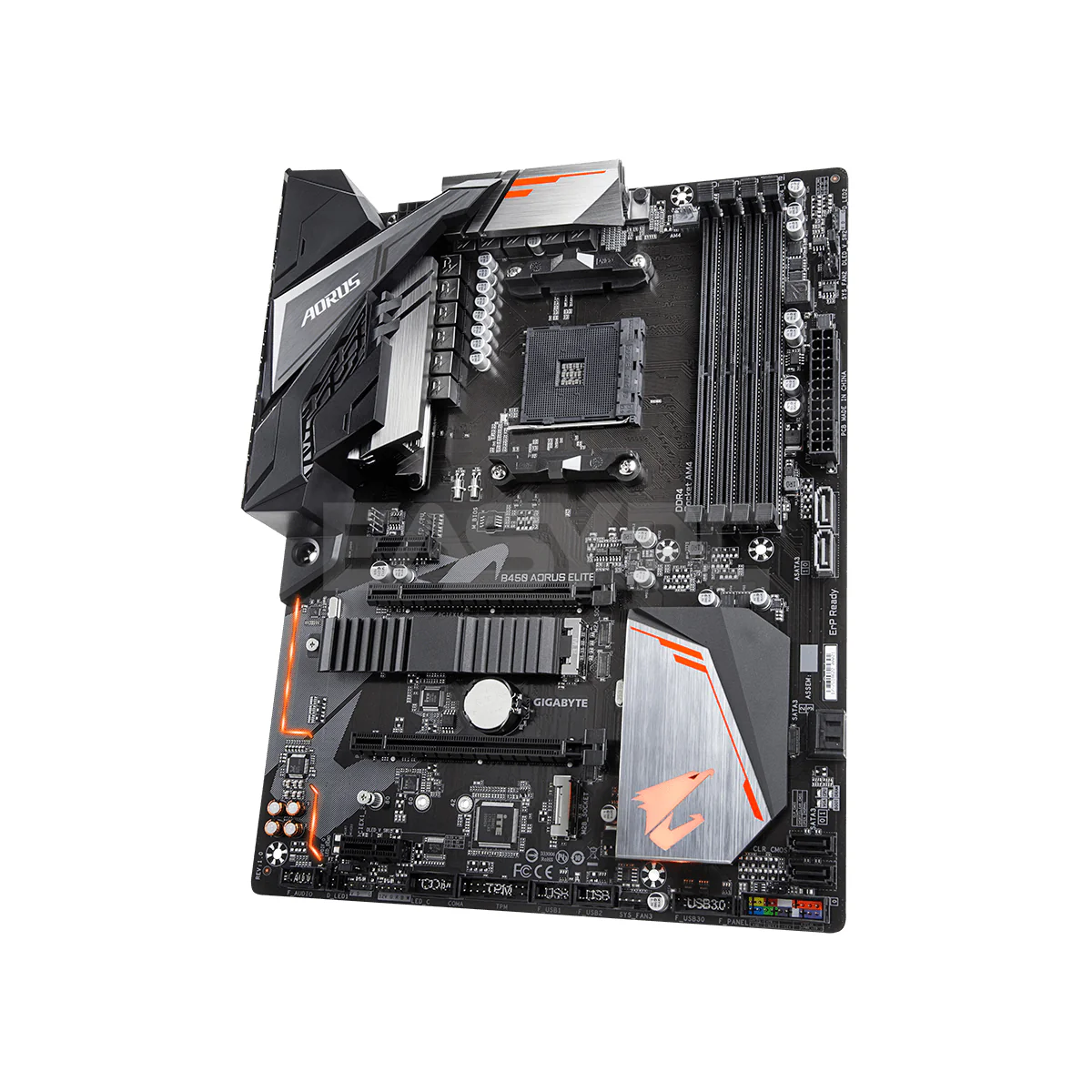

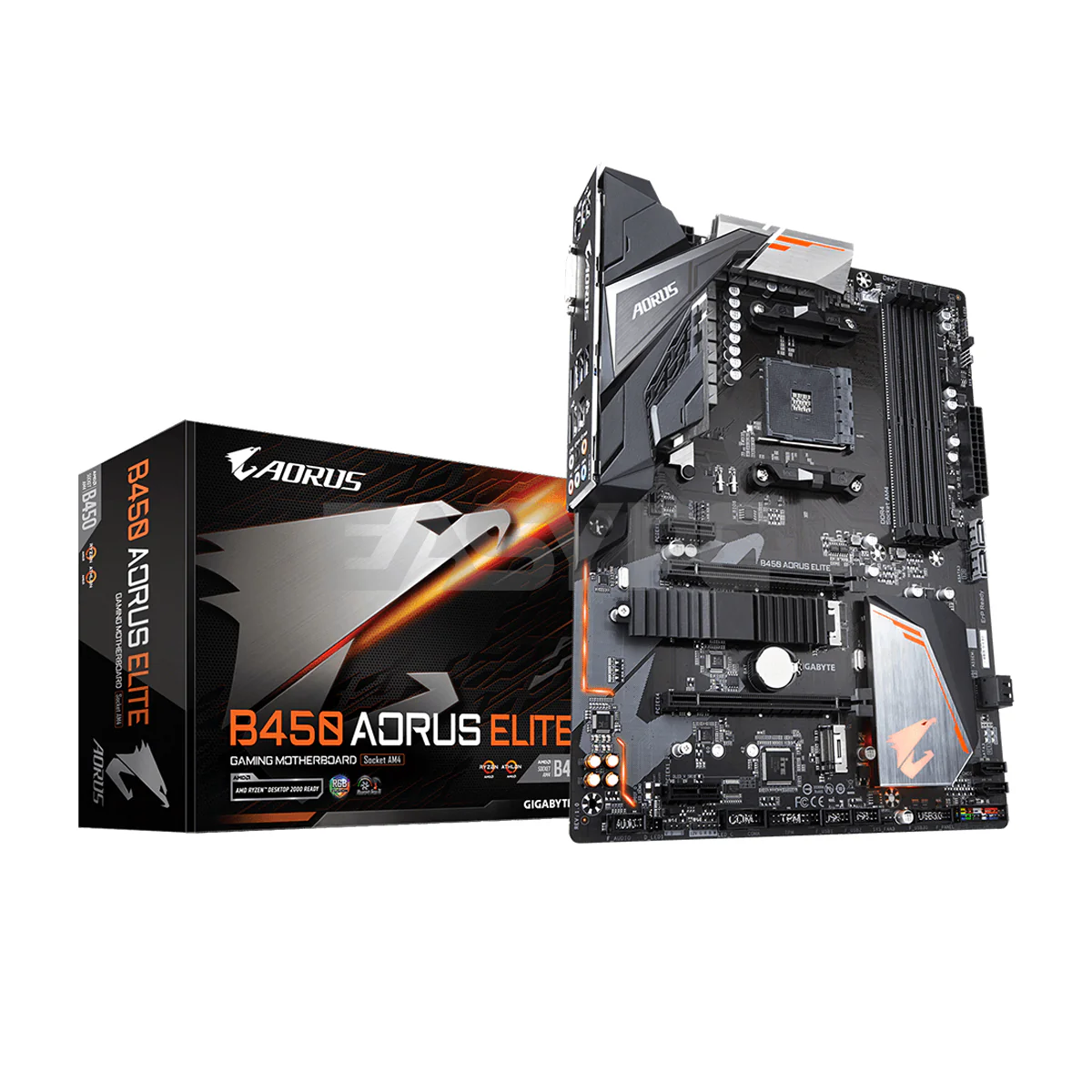

Gigabyte GA-B450 Elite Motherboard Socket Am4 Ddr4

Product Specifications

• Brand: GIGABYTE
• Model: B450 AORUS ELITE
• CPU Socket Type: AM4
• CPU Type: AM4 Socket: Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
• Chipset: AMD B450
• Number of Memory Slots: 4×288pin
• Memory Standard: Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
• Maximum Memory Supported: 64GB
• Channel Supported: Dual Channel
• PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16 (PCIEX16) *
• PCI Express 2.0 x16: 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• PCI Express x1: 2 x PCI Express x1 slots
• SATA 6Gb/s: 6 x SATA 6Gb/s
• M.2: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET),1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support) (M2B_SOCKET)
• Onboard Video Chipset:
• Integrated Graphics Processor:
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*
• * Support for HDMI 2.0 version and HDCP 2.2.*
• Maximum shared memory of 16GB
• Audio Chipset: Realtek ALC892
• LAN Chipset: Realtek GbE LAN chip
• Max LAN Speed: 10/100/1000Mbps
• Form Factor: ATX
• LED Lighting: RGB
• Dimensions (W x L): 12.0" x 9.3"
• Power Pin: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
• Onboard USB: 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers

•
