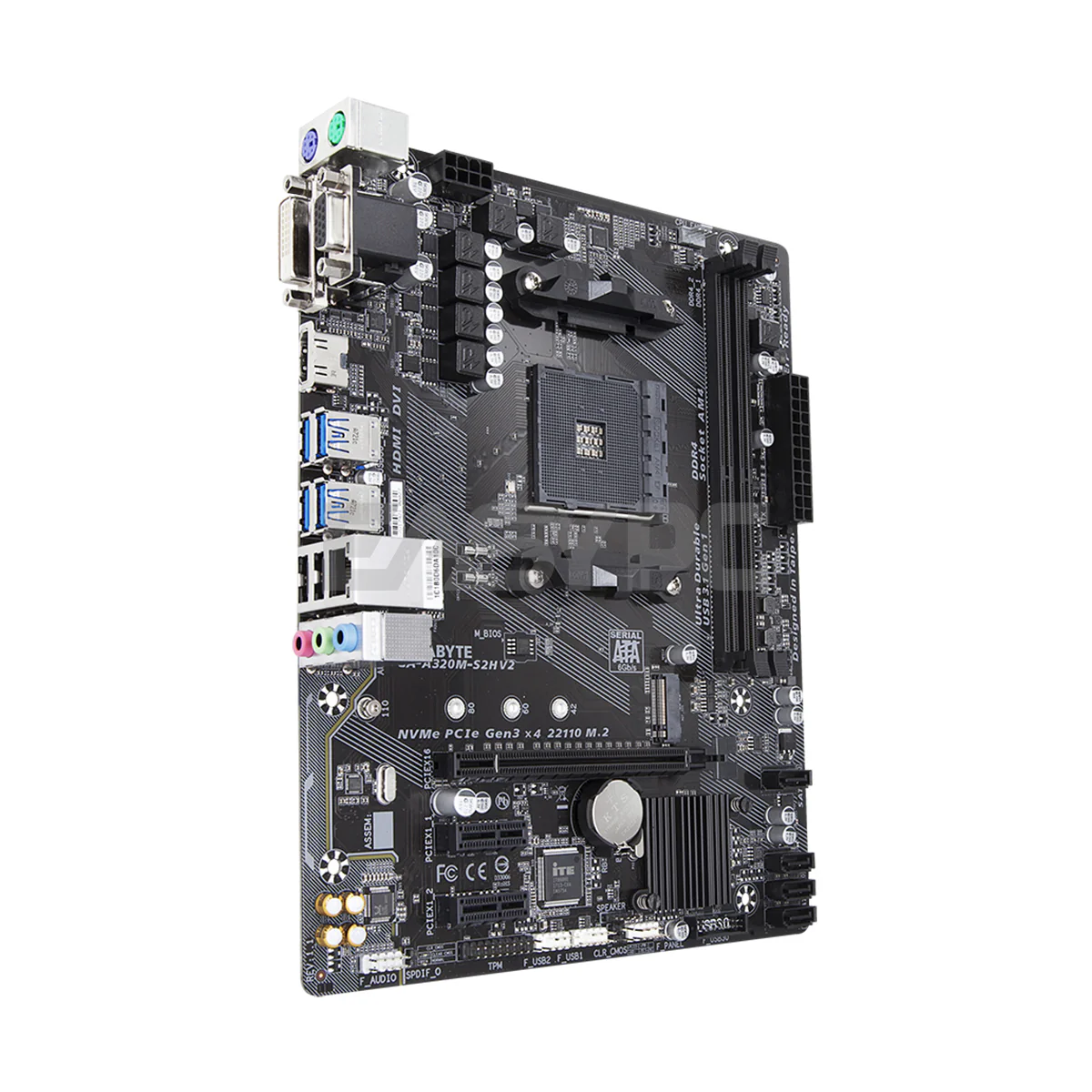

Gigabyte GA A320M S2H V2 Am4 Ddr4 Motherboard

Product Description

Gigabyte GA A320M S2H V2 AM4 DDR4 Motherboard: A reliable foundation for your AMD Ryzen build. DDR4 support, M.2 slot, and HDMI output for immersive visuals. Stable performance meets affordability, making it an ideal choice for budget-friendly yet capable gaming and productivity setups.

Product Specifications

• Brand: Gigabyte
• Model: GA A320M S2H V2
• CPU: AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
• Chipset: AMD B350
• Memory: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
• Dual channel memory architecture
• Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
• * Actual support may vary by CPU.
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
• Integrated Graphics Processor:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
• * Support for HDMI 1.4 version.
• Audio:
• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out
• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots:
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• * Actual support may vary by CPU.
• (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
• 2 x PCI Express x1 slots
• (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Storage Interface:
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
• * Actual support may vary by CPU.
• * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10
• * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
• USB
• Chipset:
• 2 x USB 3.1 Gen 1 ports available through the internal USB header
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• CPU: 4 x USB 3.1 Gen 1 ports on the back panel
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
• 1 x speaker header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header
• Back Panel Connectors
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI port
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In, Line Out, Mic In)
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• 3D OSD
• AutoGreen
• Cloud Station
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• System Information Viewer
• USB Blocker
• Support for Q-Flash
• Support for Xpress Install
• Operating System
• Support for Windows 10 64-bit
• Support for Windows 7 64-bit
• * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge, Summit Ridge and Bristol Ridge CPU.
• * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Form Factor: Micro ATX Form Factor; 24.4cm x 19.5cm
• Features:
• Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
• GIGABYTE™ UEFI BIOS
• All New GIGABYTE™™ APP Center, Simple and Easy Use
