Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4

CPU
1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
Chipset
1. Intel^® Z390 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
  ** Please note that the support for system total memory size depends on the CPU installed.
2. Dual channel memory architecture
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
1. Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 3 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
USB
Chipset:
1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support on the back panel
2. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
3. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x digital LED strip headers
9. 2 x digital LED strip power select jumpers
10. 2 x RGB LED strip headers
11. 6 x SATA 6Gb/s connectors
12. 2 x M.2 Socket 3 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
21. 1 x Clear CMOS jumper
22. 2 x temperature sensor headers

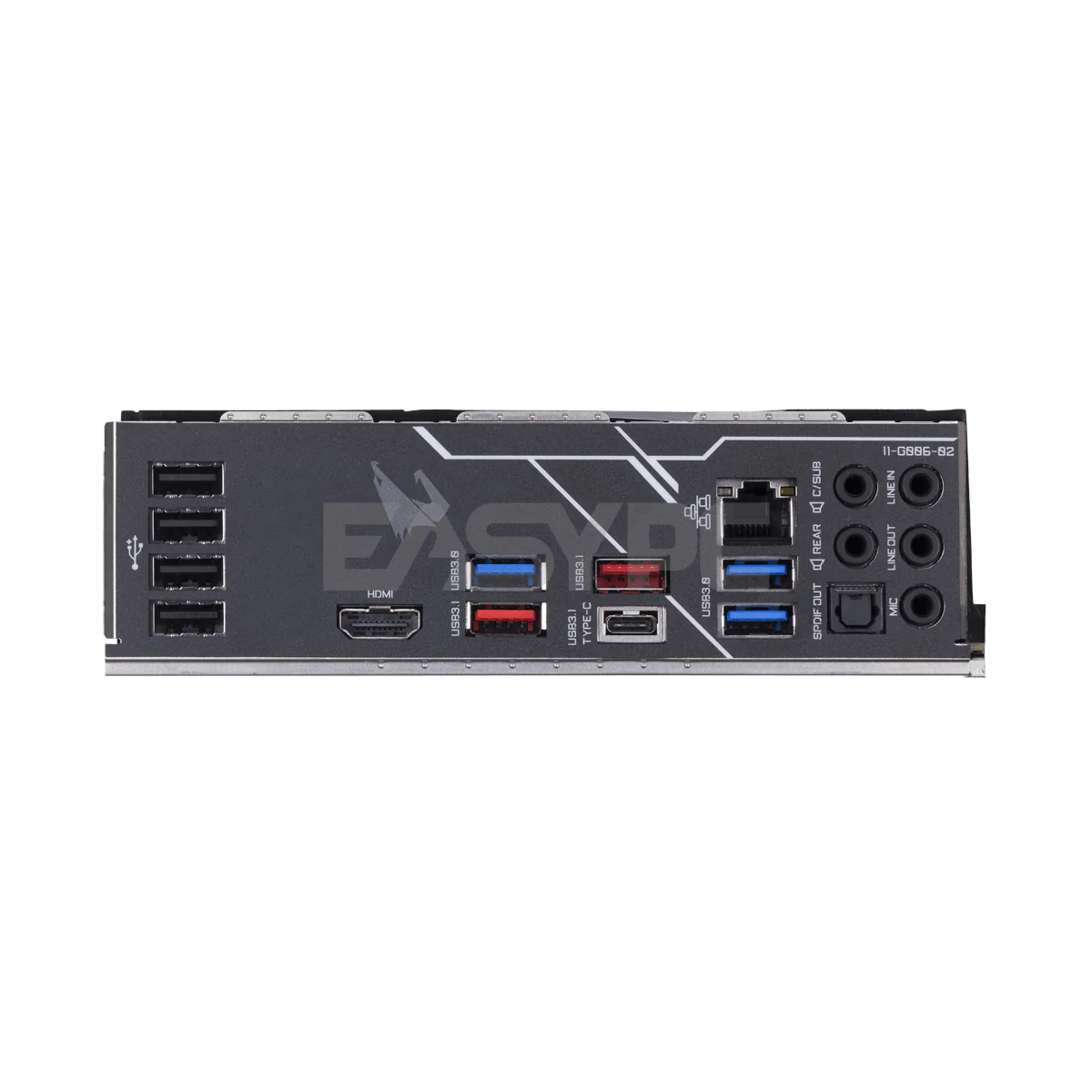

Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 1 x HDMI port
3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
4. 2 x USB 3.1 Gen 2 Type-A ports (red)
5. 3 x USB 3.1 Gen 1 ports
6. 1 x RJ-45 port
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  Smart Survey
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Browse more Motherboards at EasyPC.

$59.13

Original: $197.10

-70%

Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4—

$197.10

$59.13

Original: $197.10

-70%

Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4—

$197.10

$59.13

More Images

Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4 - Image 2

Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4

CPU
1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
Chipset
1. Intel^® Z390 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
  ** Please note that the support for system total memory size depends on the CPU installed.
2. Dual channel memory architecture
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
1. Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 3 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
USB
Chipset:
1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support on the back panel
2. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
3. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x digital LED strip headers
9. 2 x digital LED strip power select jumpers
10. 2 x RGB LED strip headers
11. 6 x SATA 6Gb/s connectors
12. 2 x M.2 Socket 3 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
21. 1 x Clear CMOS jumper
22. 2 x temperature sensor headers
Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 1 x HDMI port
3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
4. 2 x USB 3.1 Gen 2 Type-A ports (red)
5. 3 x USB 3.1 Gen 1 ports
6. 1 x RJ-45 port
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  Smart Survey
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Browse more Motherboards at EasyPC.

Product Information

Shipping & Returns

Description

CPU
1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
Chipset
1. Intel^® Z390 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
  ** Please note that the support for system total memory size depends on the CPU installed.
2. Dual channel memory architecture
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
1. Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
4. 3 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1. Support for NVIDIA^® Quad-GPU SLI™ and 2-Way NVIDIA^® SLI™ technologies
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
USB
Chipset:
1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support on the back panel
2. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
3. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x digital LED strip headers
9. 2 x digital LED strip power select jumpers
10. 2 x RGB LED strip headers
11. 6 x SATA 6Gb/s connectors
12. 2 x M.2 Socket 3 connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x S/PDIF Out header
16. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
17. 1 x USB 3.1 Gen 1 header
18. 2 x USB 2.0/1.1 headers
19. 1 x Thunderbolt™ add-in card connector
20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
21. 1 x Clear CMOS jumper
22. 2 x temperature sensor headers
Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 1 x HDMI port
3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
4. 2 x USB 3.1 Gen 2 Type-A ports (red)
5. 3 x USB 3.1 Gen 1 ports
6. 1 x RJ-45 port
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  Smart HUD
  System Information Viewer
  Smart Survey
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Browse more Motherboards at EasyPC.

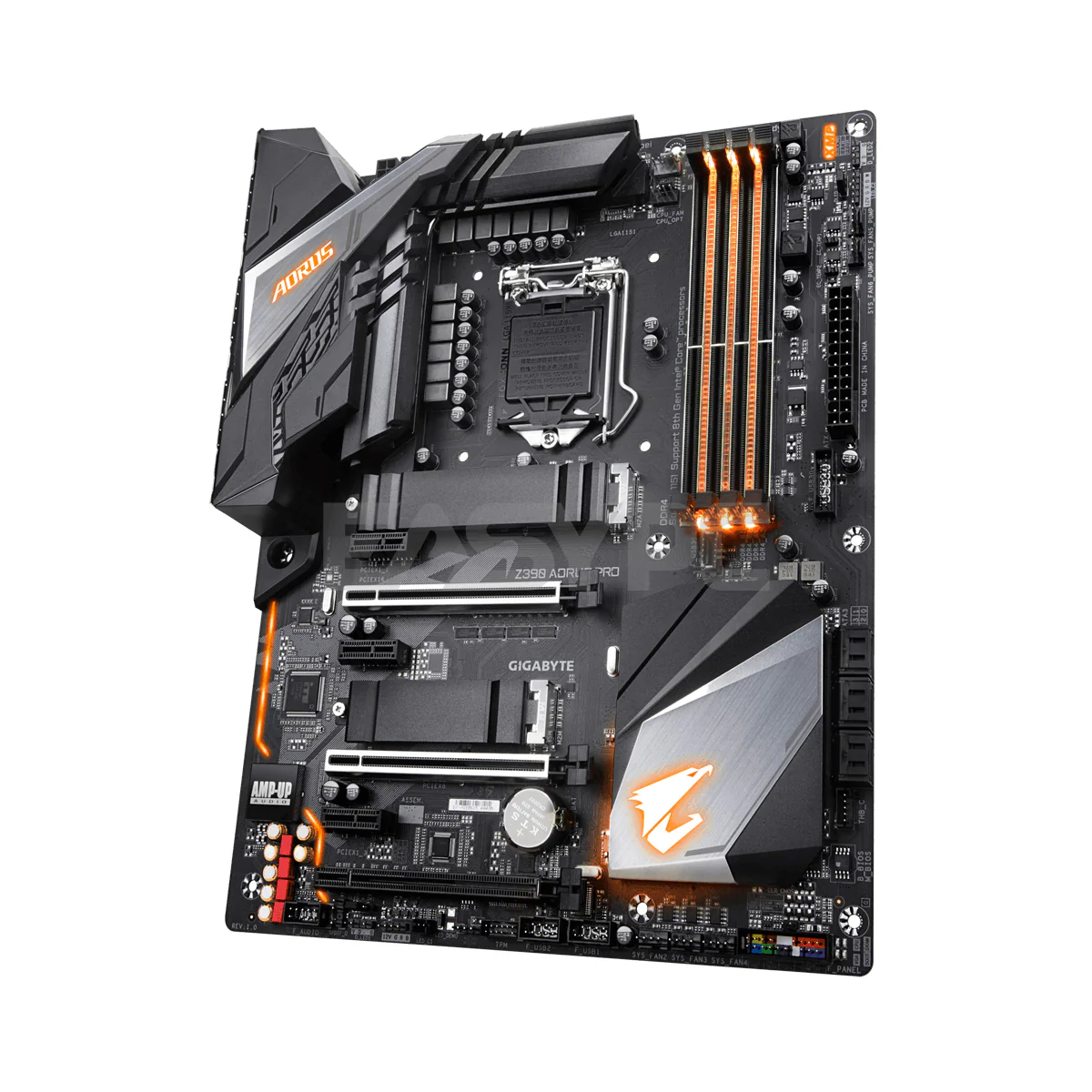

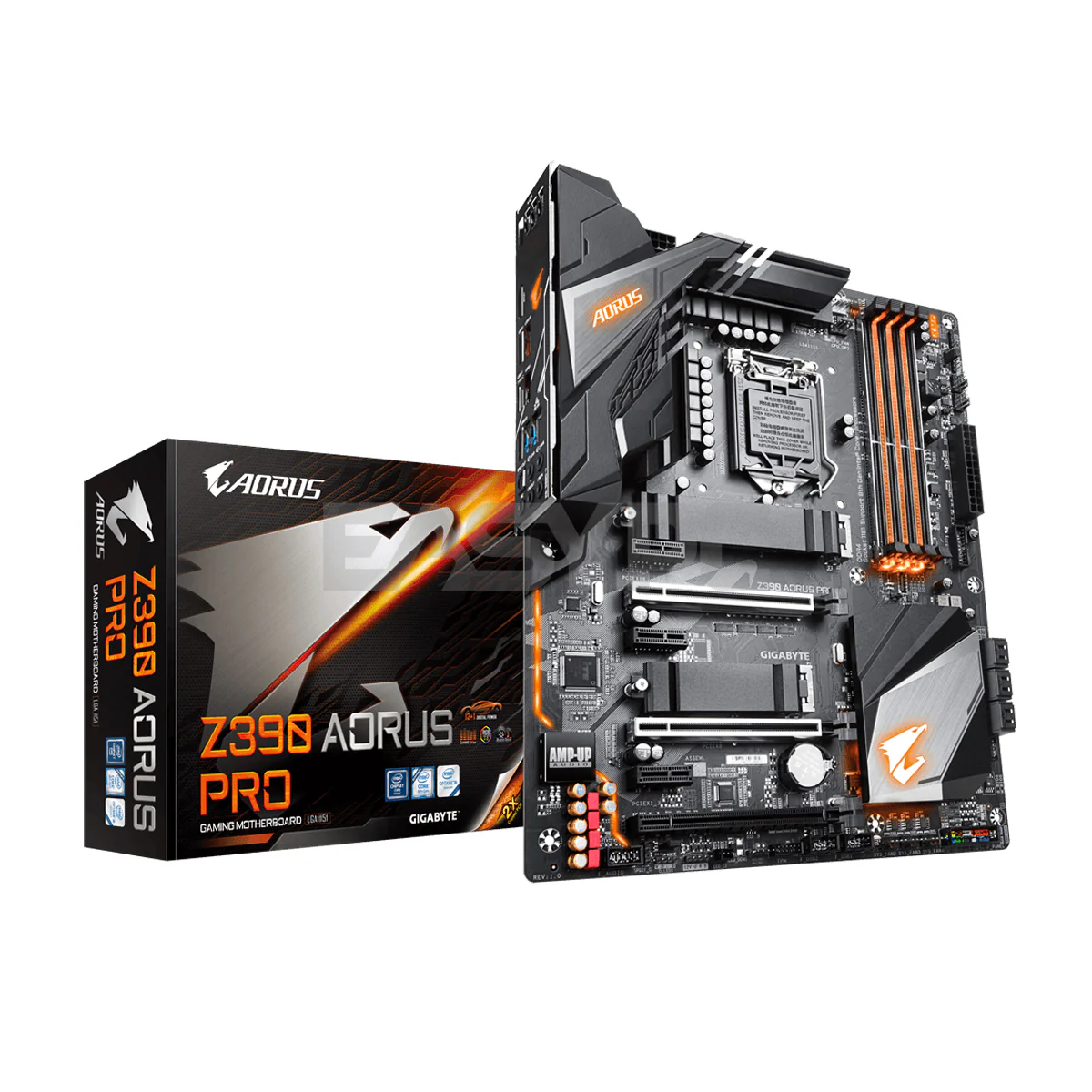

Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4

More Images

Gigabyte Aorus Z390 Pro Motherboard Socket 1151 Ddr4

Product Information

Shipping & Returns

Description

You may also like

You may also like
