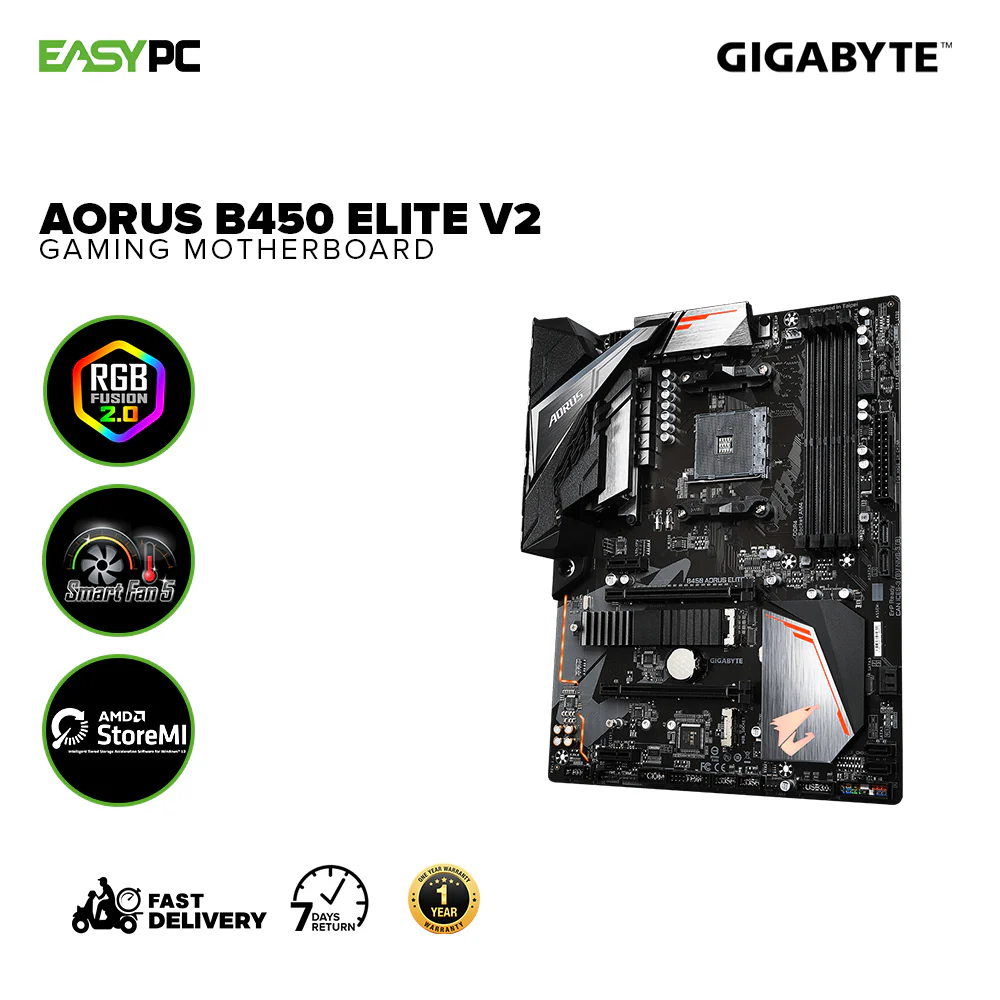

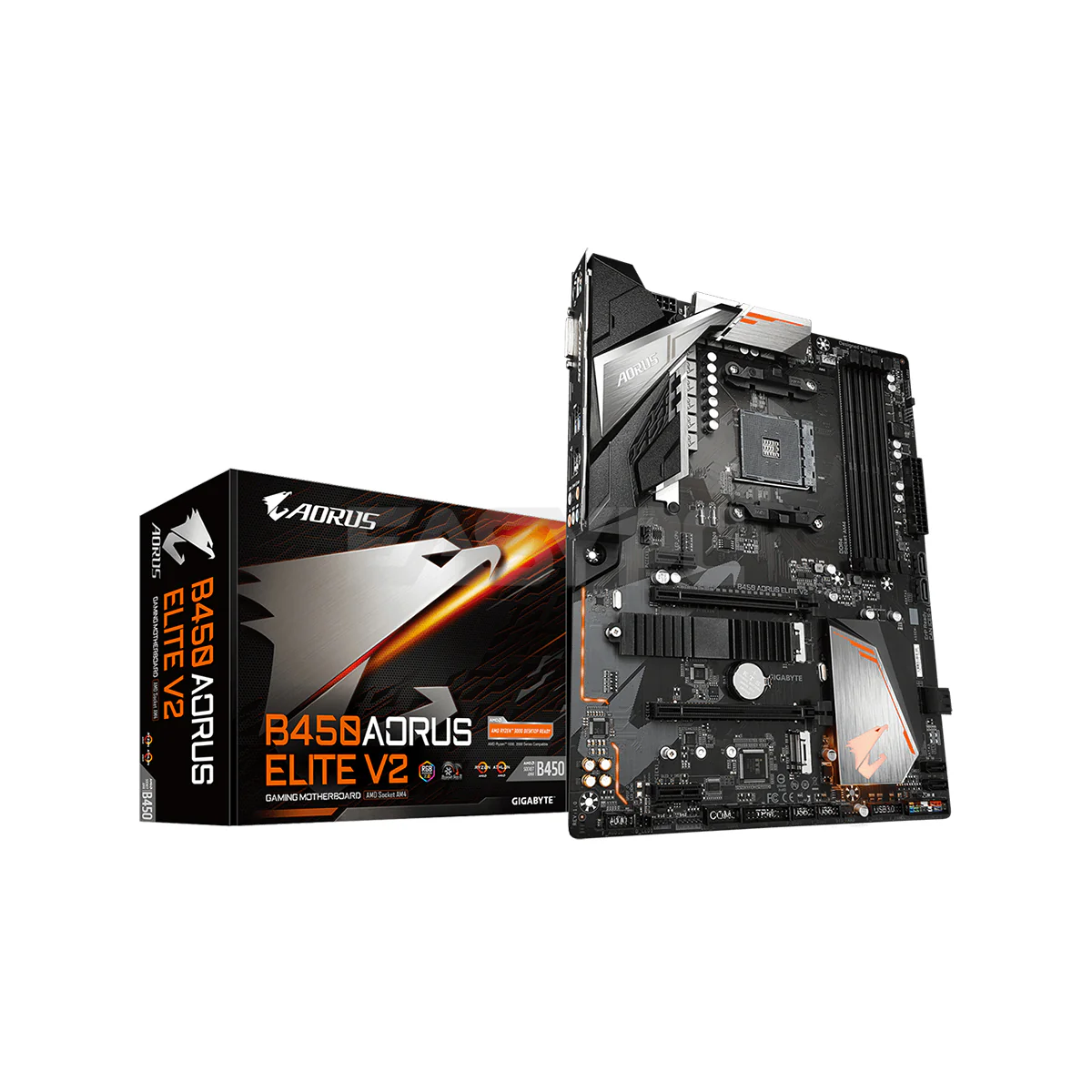

Gigabyte Aorus B450 Elite V2 Socket Am4 Ddr4 Motherboard

Product Specifications

• Brand: ‎Gigabyte
• Item model number: ‎B450 AORUS ELITE V2
• Item Weight: 3.12 pounds
• Item Dimensions LxWxH: ‎13.18 x 10.62 x 3.14 inches
• Computer Memory Type: ‎DDR4 SDRAM
• CPU Socket: Socket AM4
• Chipset: AMD B450
• Memory Slots Available: 4
• Supported Motherboard: ATX
• Compatible Processors: AMD 3rd Generation Ryzen, AMD 2nd Gerenration Ryzen, AMD Athlon
• Graphics Card Interface: PCI-E
• Operating System: Support for Windows 10 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 23.5cm
• BIOS: 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Audio: Realtek® Audio CODEC, High Definition Audio: 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
• H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control
• Onboard Graphics
• Integrated Graphics Processor:
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60(Note) Hz(Note)
• * Support for HDMI 2.0 version and HDCP 2.2.(Note)
• Maximum shared memory of 16 GB
• (Note) Actual support may vary by CPU.
• Unique Features:
• Support for APP Center
• Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install
• Features:
• Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs

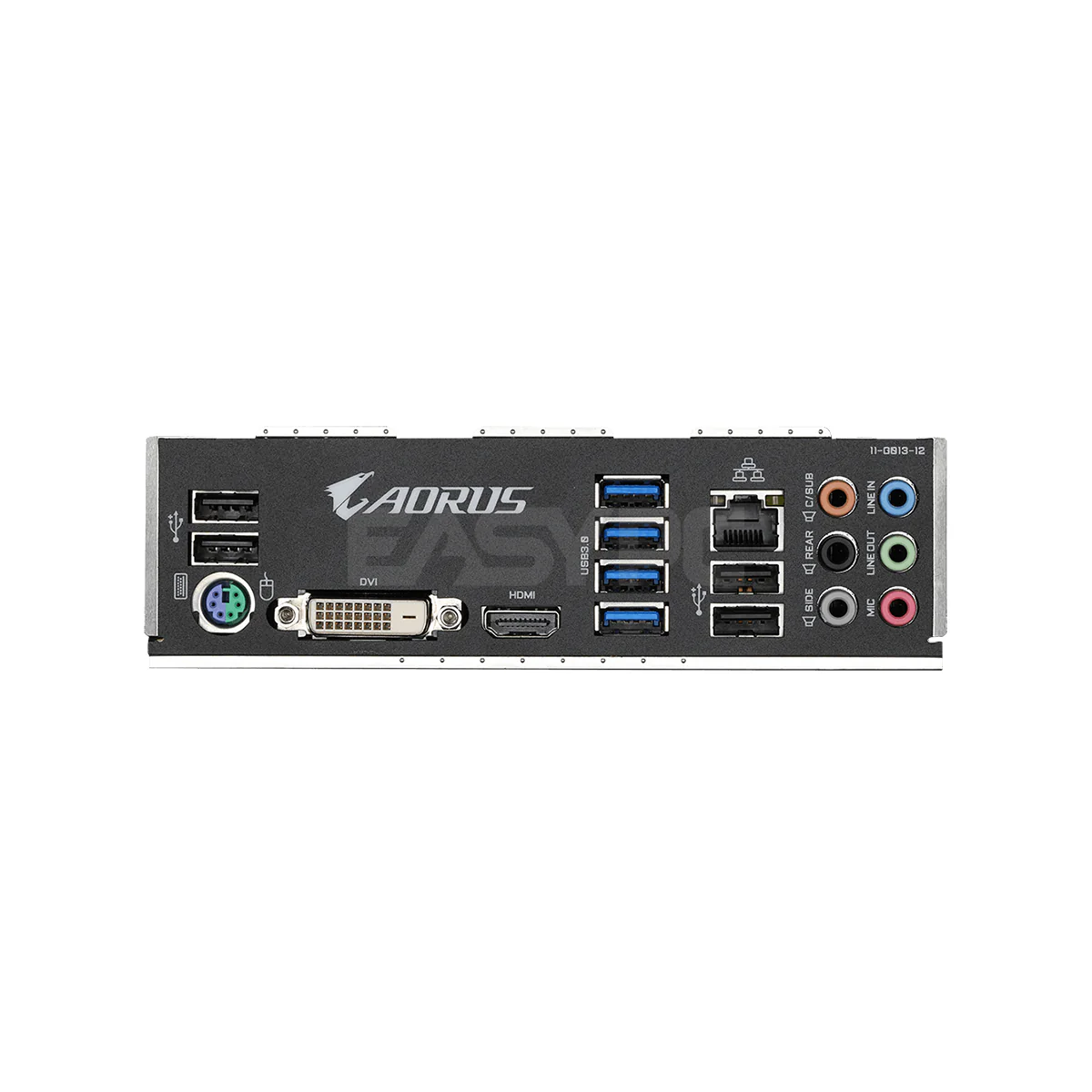

• HDMI, DVI-D Ports for Multiple Display
• Integrated I/O Shield of Ultra Durable™ Design
• Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click
