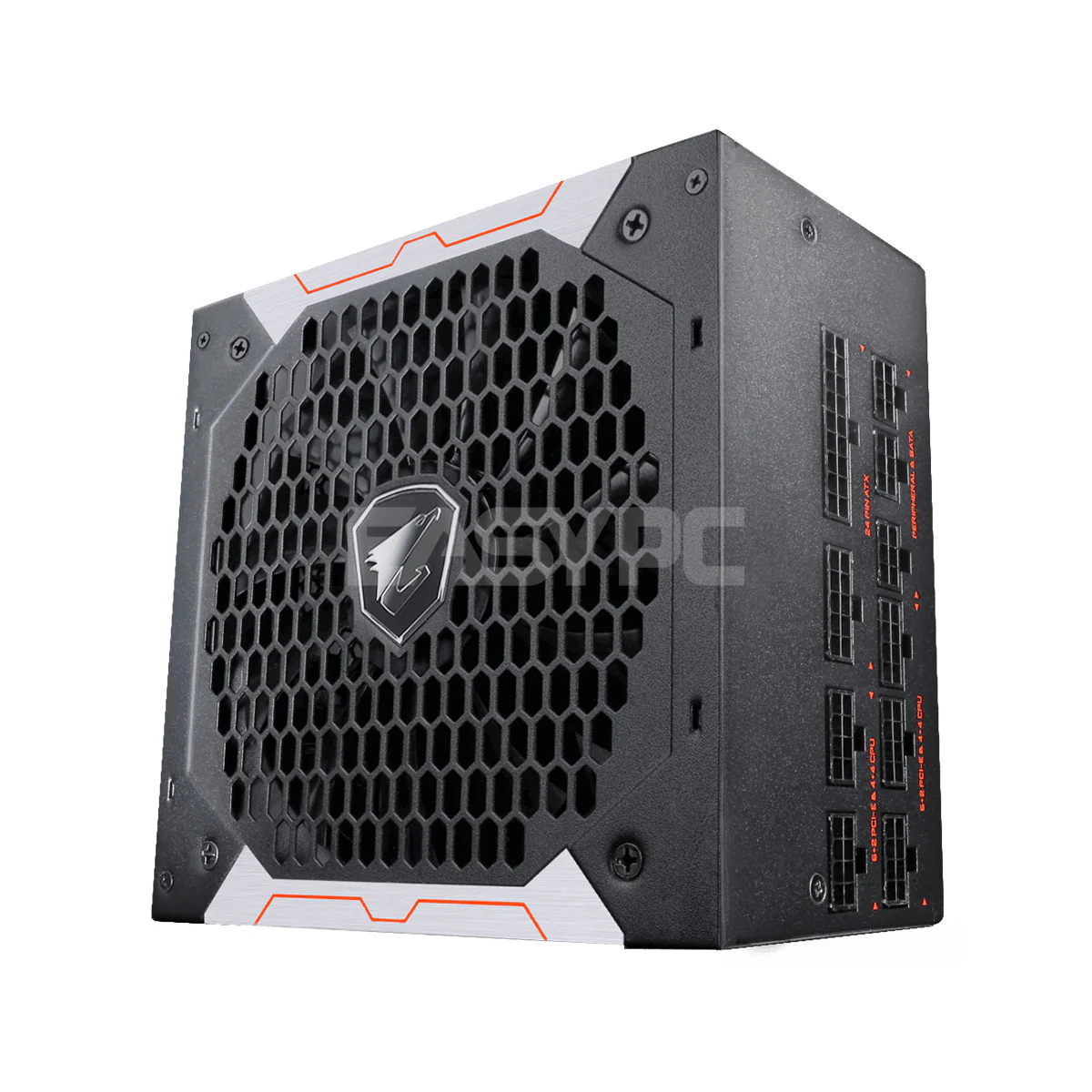

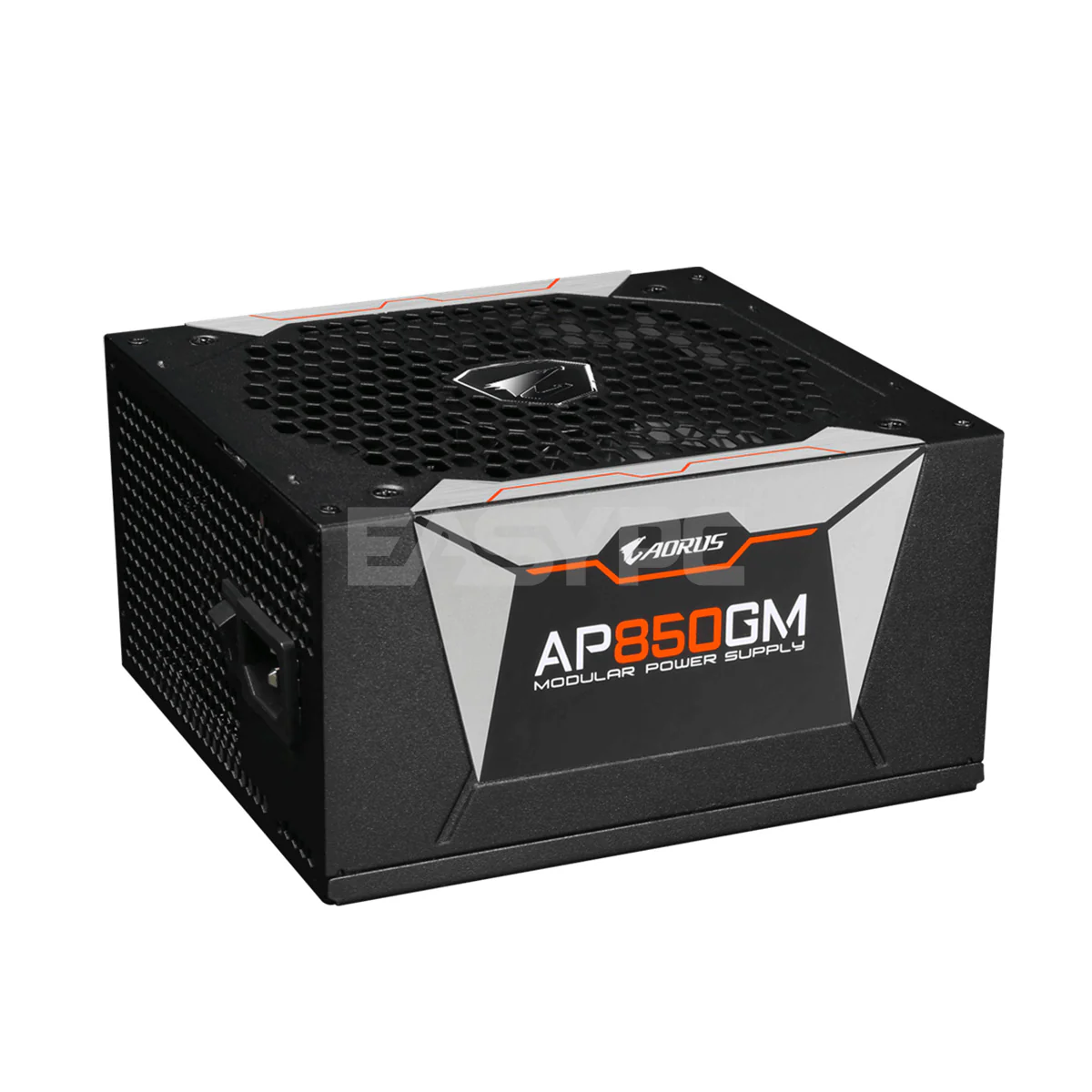

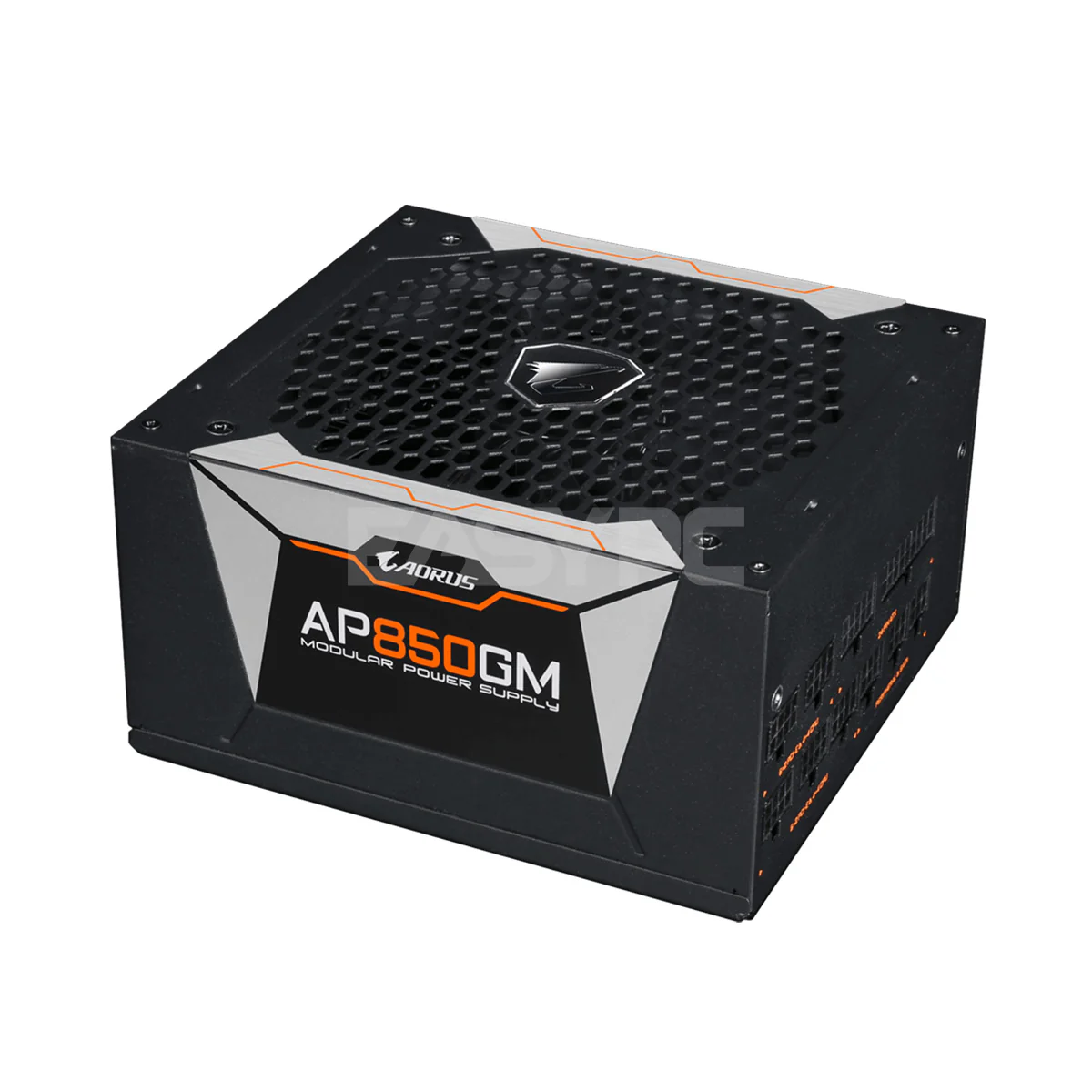

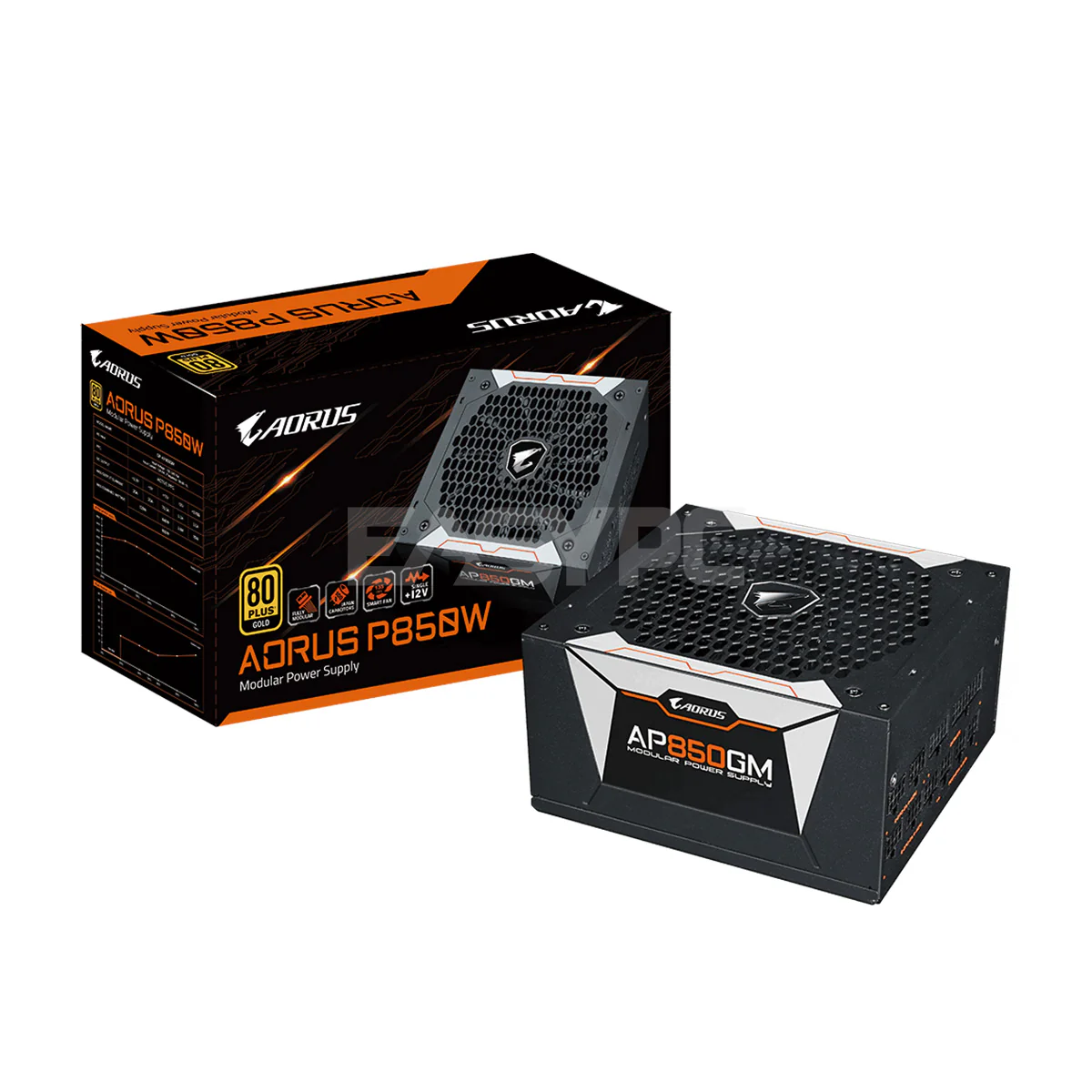

Gigabyte Aorus 850 watts Fully Modular 80 Plus Gold Power Supply

Features	Fully Modular Design
	High quality 100% Japanese Capacitors
	135mm 2 ball bearing smart fan with fan stop function
	80 PLUS Gold certified: above 90% efficiency at 50% load
	Single +12V rail
	OCP/OTP/OVP/OPP/UVP/SCP protection
	10 years warranty (Adjusted according to different regions)
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	1‎00-240 Vac (full range)
Input Current	1‎0A
Input Frequency	4‎7-63 Hz
Output Capacity	8‎50W
Dimension	1‎50 x 160 x 86mm
Fan Type	1‎35mm Double ball bearing fan
80 PLUS	Gold
Efficiency	9‎0% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	1‎00ms ~ 150ms
Hold Up Time	> 16m sec at full load (115V)
Cable Type	Flat, All black
Connectors	ATX/MB 20+4 Pin x 1 : 650mm
	CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
	PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
	SATA x6 + 4 Pin Peripheral x2 :
	550mm+100mm+100mm+100mm*1
	450mm+100mm+100mm+100mm *1
	4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
	4 Pin Floppy x 1 : 100mm

Ideal For

• Powering custom-built desktop PCs
• System upgrades and new builds
• Replacing an existing power supply unit

*Specifications are based on manufacturer data. Actual product may vary.
