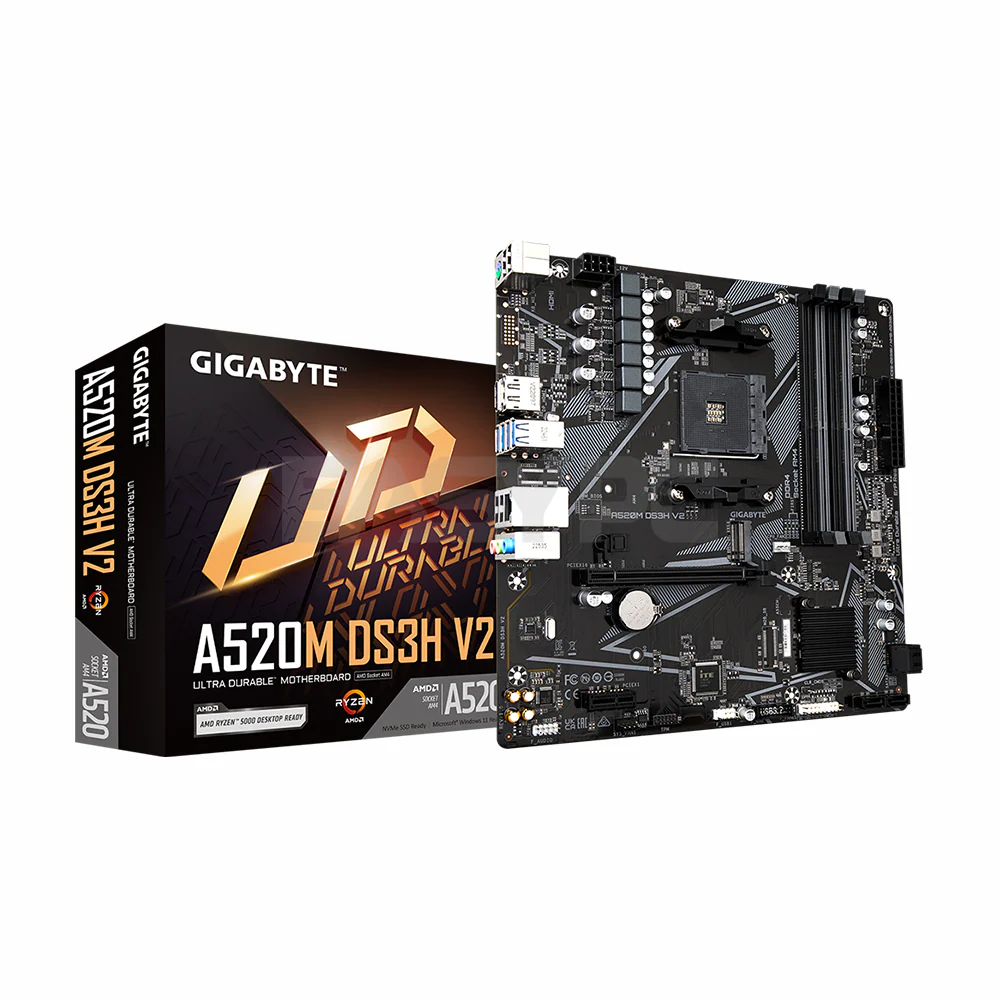

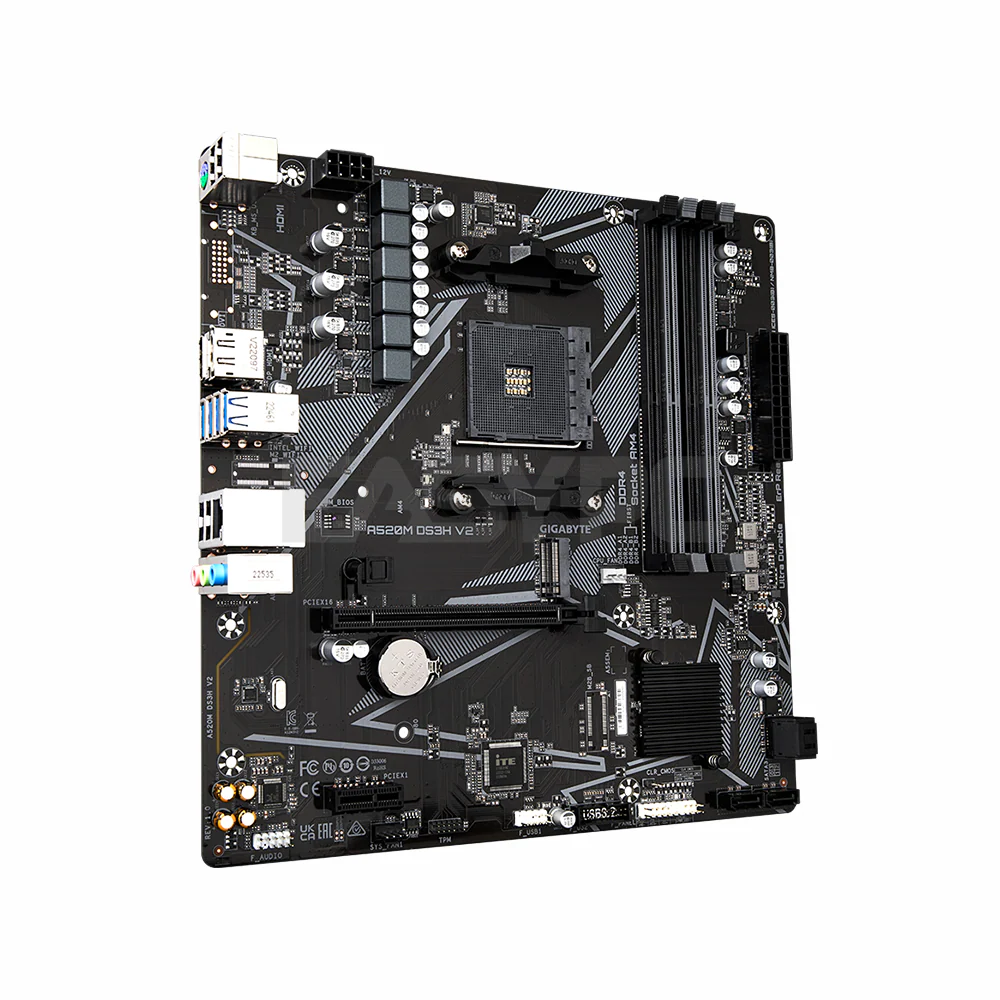

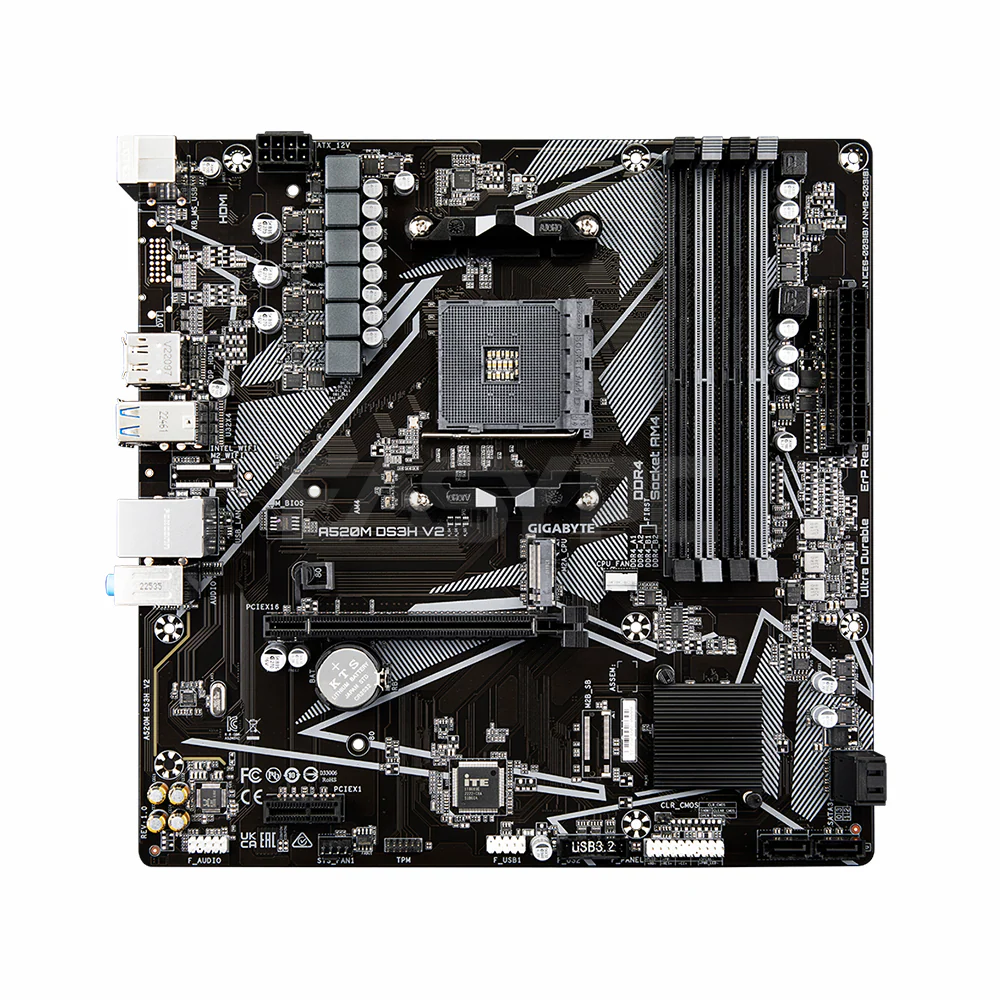

Gigabyte A520M DS3H V2 Motherboard

Product Description

Upgrade your system with the Gigabyte A520M DS3H V2 motherboard. for budget builds, it offers stability and reliability. Equipped with essential features, it supports AMD Ryzen processors, providing a solid foundation for your computing needs.

Product Specifications

• AMD Socket AM4
• AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• 4 x DDR4 DIMM sockets
• Up to 128 GB (32 GB single DIMM capacity)
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

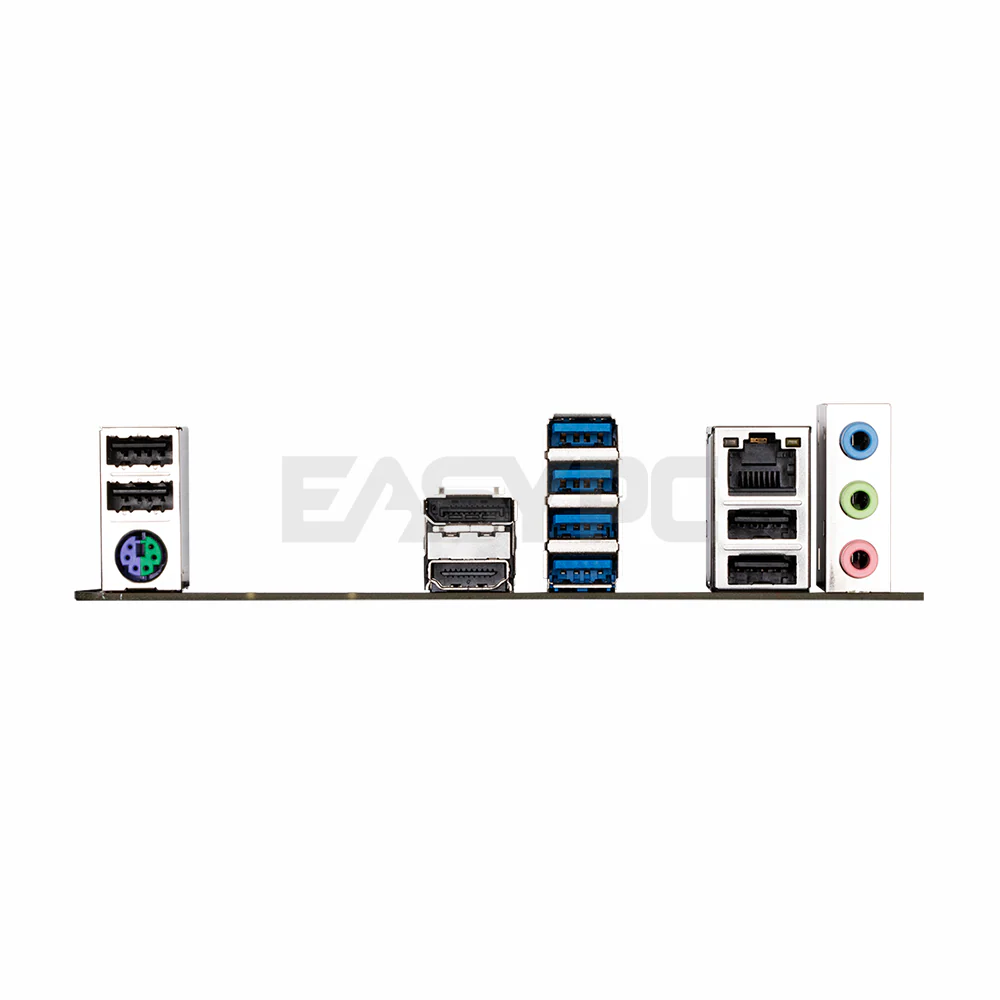

• 1 x DisplayPort
• 1 x HDMI port
• Realtek® Audio CODEC
• High Definition Audio
• Realtek® GbE LAN chip
• 1 x PCI Express x16 slot
• Supporting PCIe 3.0 x16 mode
• 1 x M.2 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x CPU fan header
• 1 x system fan header
• iTE® I/O Controller Chip
• Support for Windows 11 64-bit and Windows 10 64-bit

Ideal For

• Custom desktop PC builds
• System upgrades and component compatibility
• Replacing a failed or outdated board
