Galax Nvidia GeForce RTX 4060 8GB 1-Click OC 1X Single Fan (46NSL8MD8ZOC) 128-bit GDDR6 Videocard

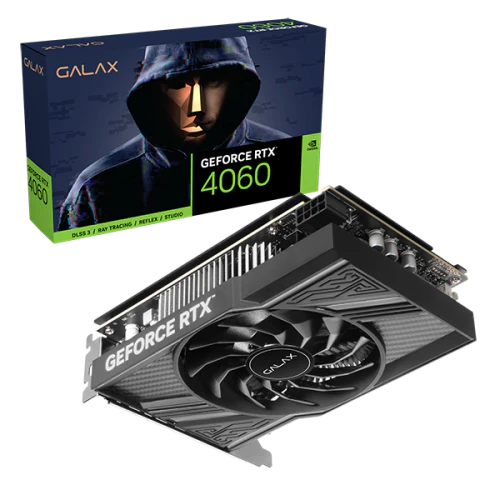

Galax GeForce RTX 4060 1-Click OC 1X - Ultra-Compact Single Fan Graphics Card

Experience powerful 1080p gaming in a remarkably compact form with the Galax GeForce RTX 4060 8GB 1-Click OC 1X (Model: 46NSL8MD8ZOC). Featuring NVIDIA's cutting-edge Ada Lovelace architecture and a space-saving single-fan design, this graphics card is perfect for ITX builds and compact gaming systems.

Key Features

• NVIDIA Ada Lovelace Architecture - Next-generation gaming performance with advanced ray tracing and AI capabilities
• 8GB GDDR6 Memory - Fast 17 Gbps memory for smooth high-resolution gaming
• Ultra-Compact Design - Just 157mm long, perfect for small form factor ITX builds
• 1-Click OC Technology - Easy overclocking to 2475 MHz with Xtreme Tuner Plus software
• DLSS 3 Support - AI-powered frame generation for exceptional performance
• 3072 CUDA Cores - Powerful parallel processing for gaming and creative tasks

Compact Cooling Solution

Despite its small size, the Galax RTX 4060 1X delivers efficient cooling:

• 92mm WINGS Fan - High-performance single fan design optimized for airflow
• Fan Stop Technology - Fan stops completely during idle for silent operation
• Dual-Slot Cooler - Effective heat dissipation in a compact footprint
• 115W TDP - Efficient power consumption for excellent performance-per-watt

Gaming Performance

• Exceptional 1080p gaming at ultra settings
• Smooth 1440p gaming in most titles
• Full ray tracing support for stunning visuals
• DLSS 3 with Multi Frame Generation for maximum FPS
• Perfect for esports and competitive gaming

Technical Specifications

Graphics Processor	NVIDIA GeForce RTX 4060
GPU Architecture	Ada Lovelace (AD107-400-A1)
CUDA Cores	3072
Tensor Cores	96 (4th Generation)
RT Cores	24 (3rd Generation)
Memory	8GB GDDR6
Memory Speed	17 Gbps
Memory Interface	128-bit
Memory Bandwidth	272 GB/s
Base Clock	1830 MHz
Boost Clock	2460 MHz
1-Click OC Clock	2475 MHz
Interface	PCI Express 4.0 x8
Display Outputs	3x DisplayPort 1.4a, 1x HDMI 2.1a
Power Connector	8-pin (1x)
TDP	115W
Recommended PSU	450W
Cooling	Single 92mm WINGS Fan with Fan Stop
Dimensions (with bracket)	171 x 126 x 41 mm
Dimensions (without bracket)	157 x 111 x 41 mm
Slot Width	Dual-slot

NVIDIA Technologies

• DLSS 3 - AI-powered Multi Frame Generation for maximum performance
• Ray Tracing - Real-time ray tracing for cinematic quality visuals
• NVIDIA Reflex - Reduces system latency for competitive advantage
• NVIDIA Broadcast - AI-enhanced voice and video for streaming
• GeForce Experience - Easy driver updates and game optimization
• Resizable BAR - Increased performance in supported games
• AV1 Encode - Next-generation video encoding support

Perfect For:

• Compact ITX gaming builds
• Small form factor PCs (SFF)
• 1080p gaming at maximum settings
• 1440p gaming in most titles
• Content creation and streaming
• Budget-conscious gamers seeking high performance

Warranty Information

1 Year Store Warranty - This product is covered by our comprehensive store warranty. For complete warranty terms and conditions, please visit our Warranty Information Page.

What's in the Box

• Galax GeForce RTX 4060 1-Click OC 1X Graphics Card
• User Manual
• Warranty Card

Build your ultimate compact gaming rig with the Galax RTX 4060 1-Click OC 1X - where powerful performance meets ultra-compact design!
