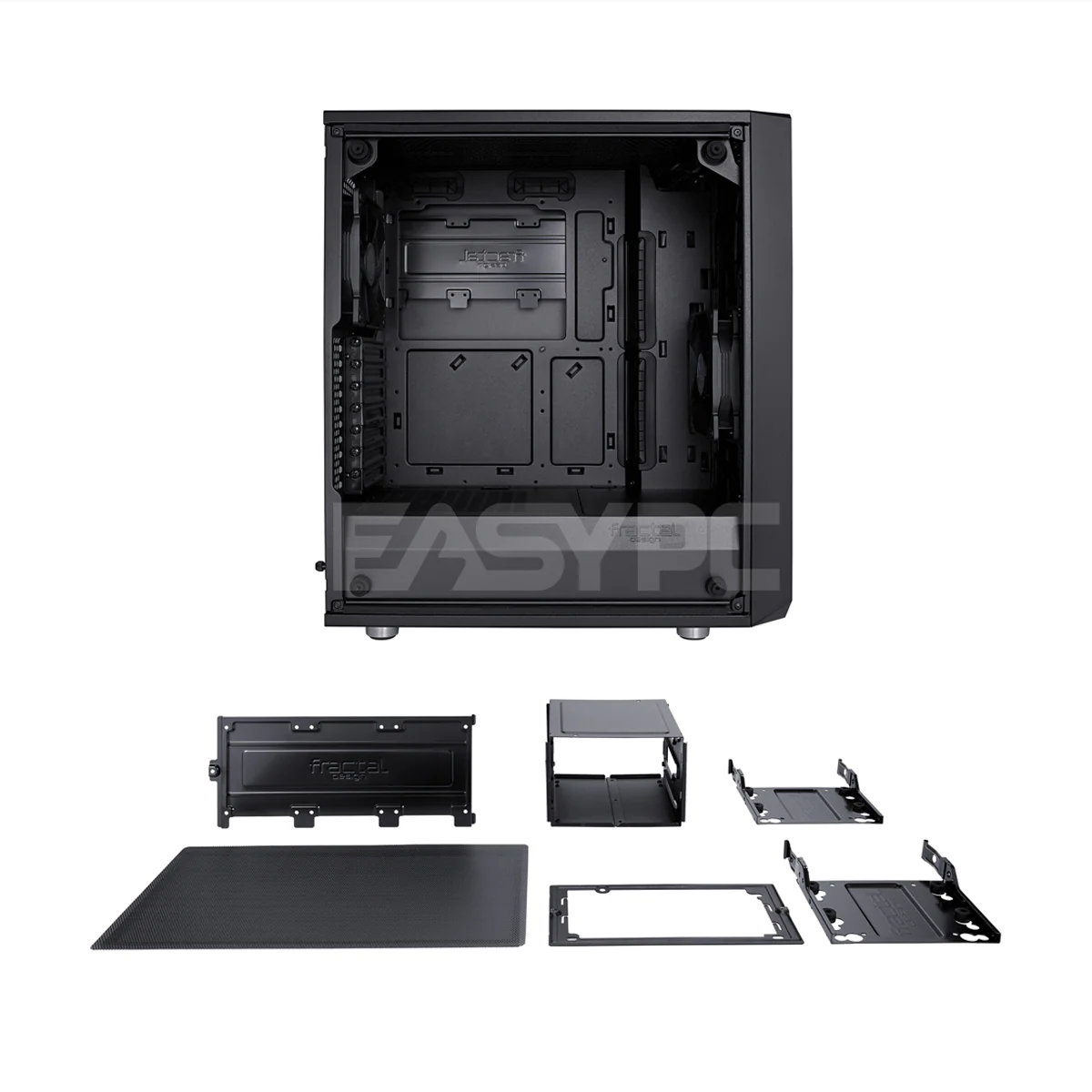

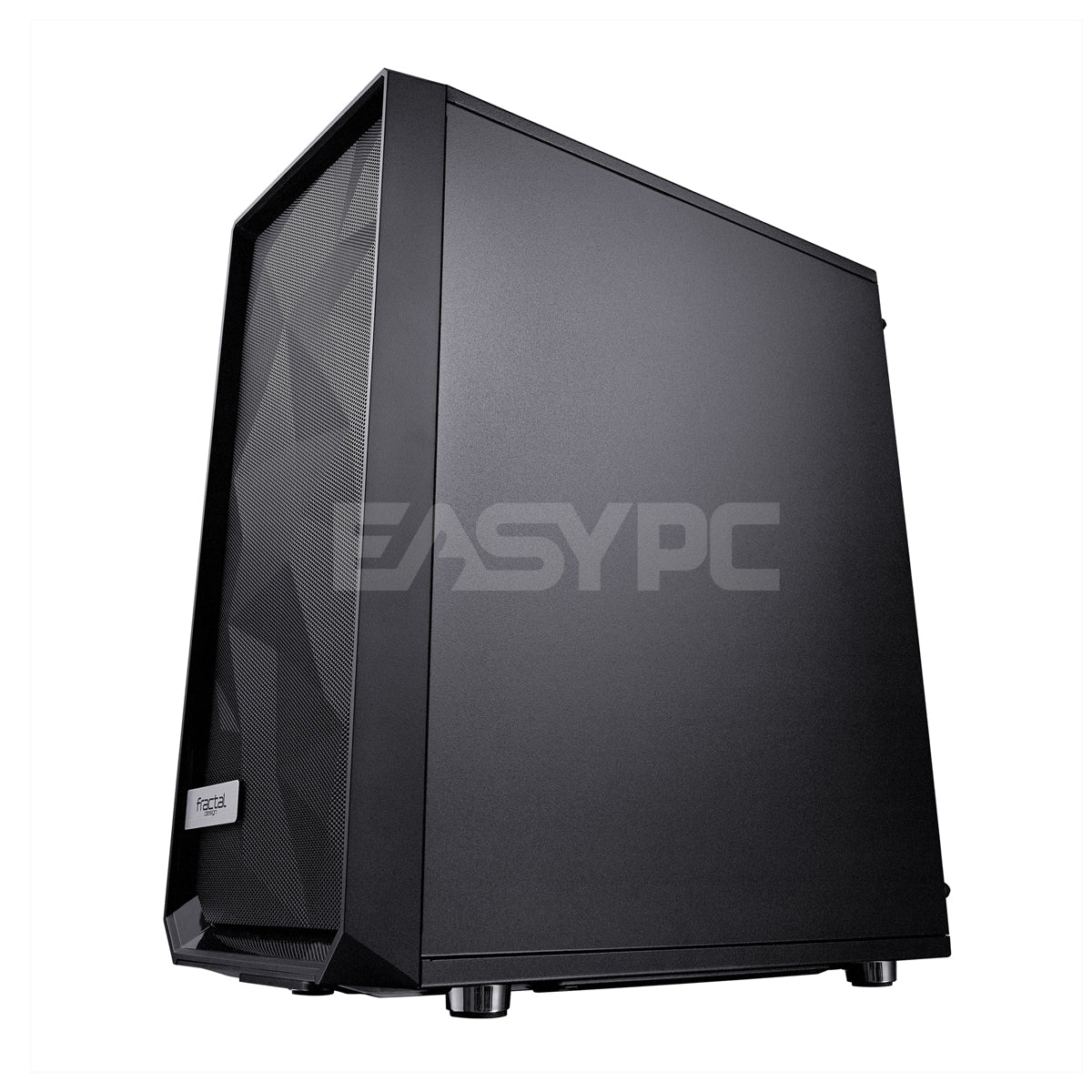

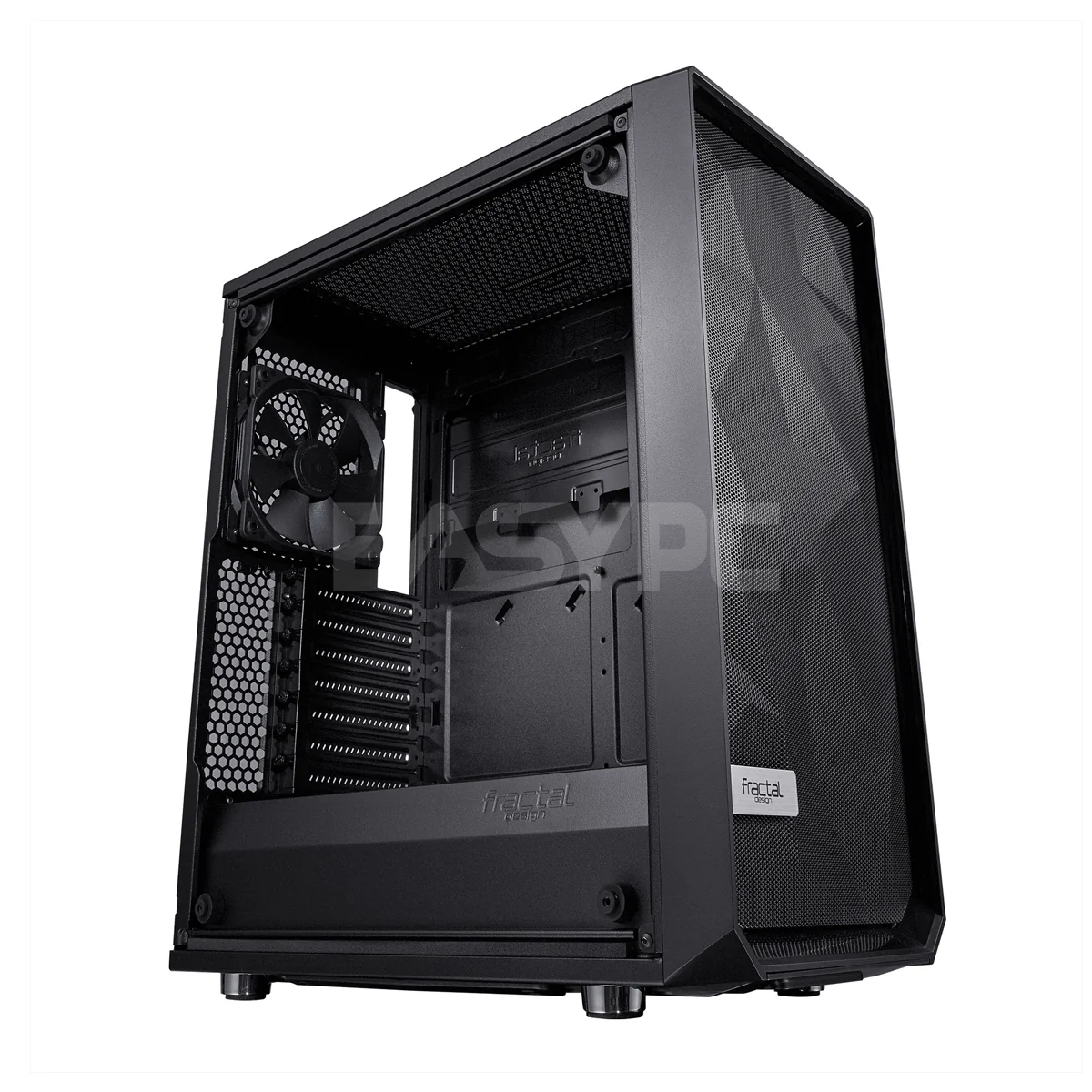

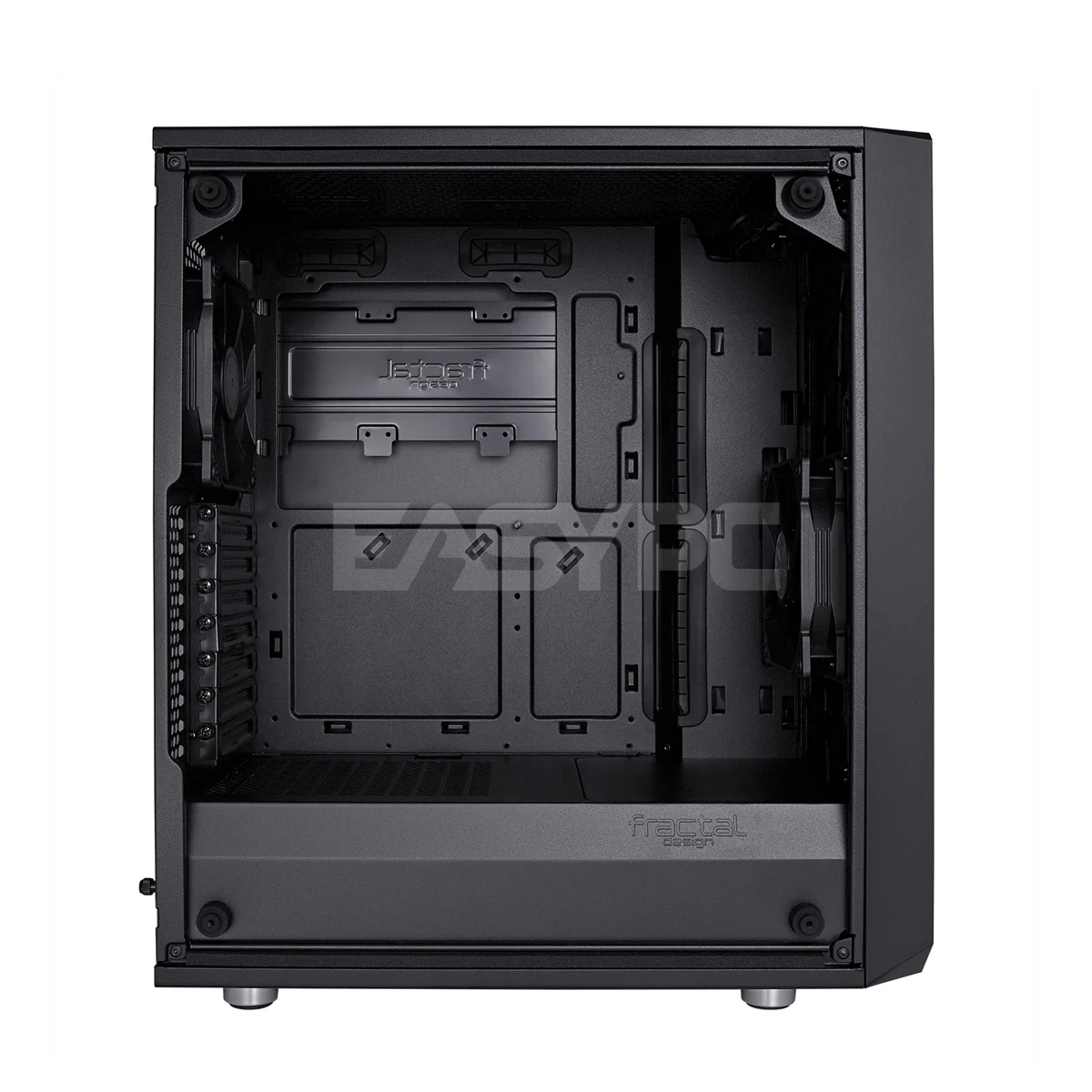

Fractal Design Meshify C TG Atx Casing White

Product Specifications

• Specifications
• 3.5" or 2.5" Drive capacity: 2
• Dedicated 2.5" drive capacity: 3

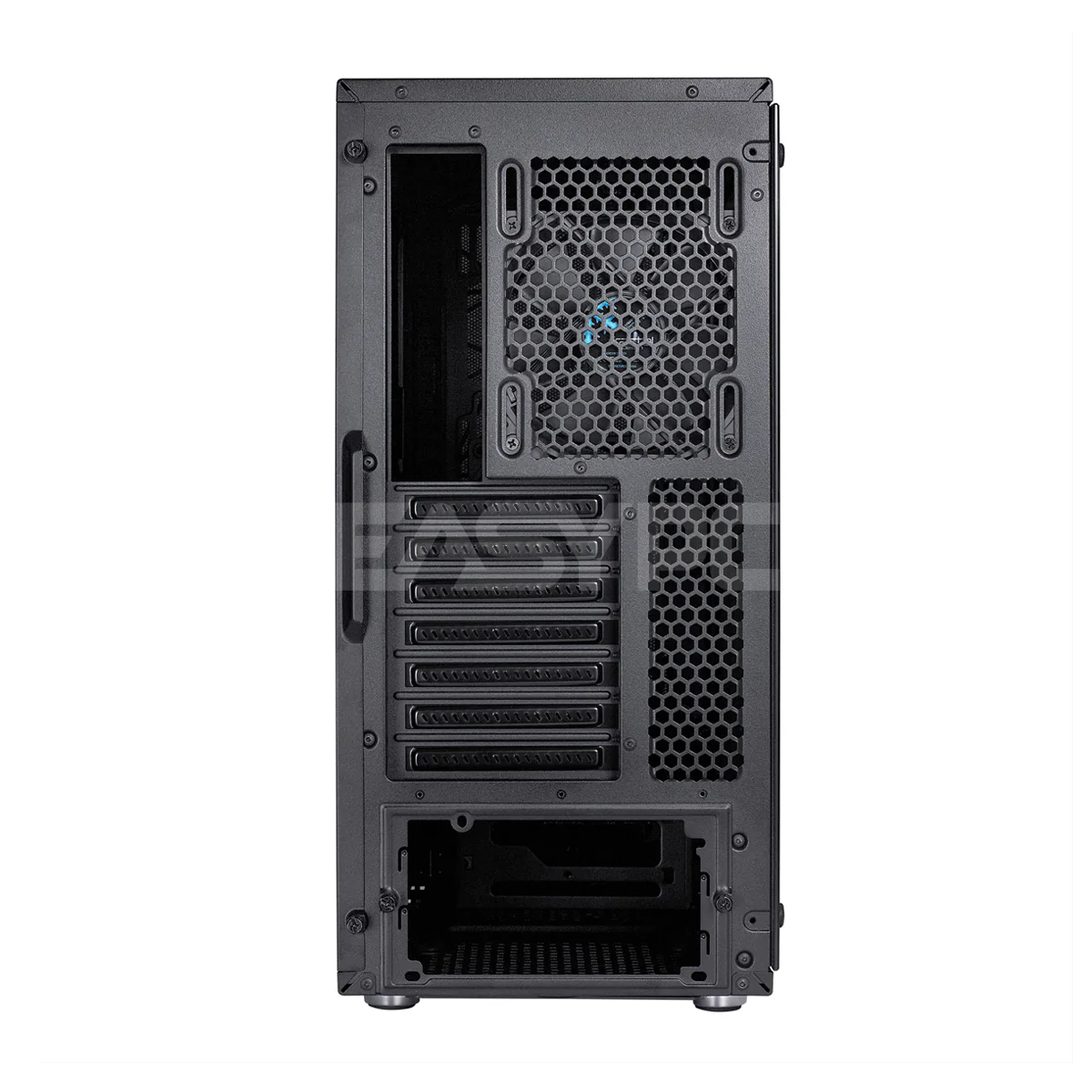

• Expansion slots: 7

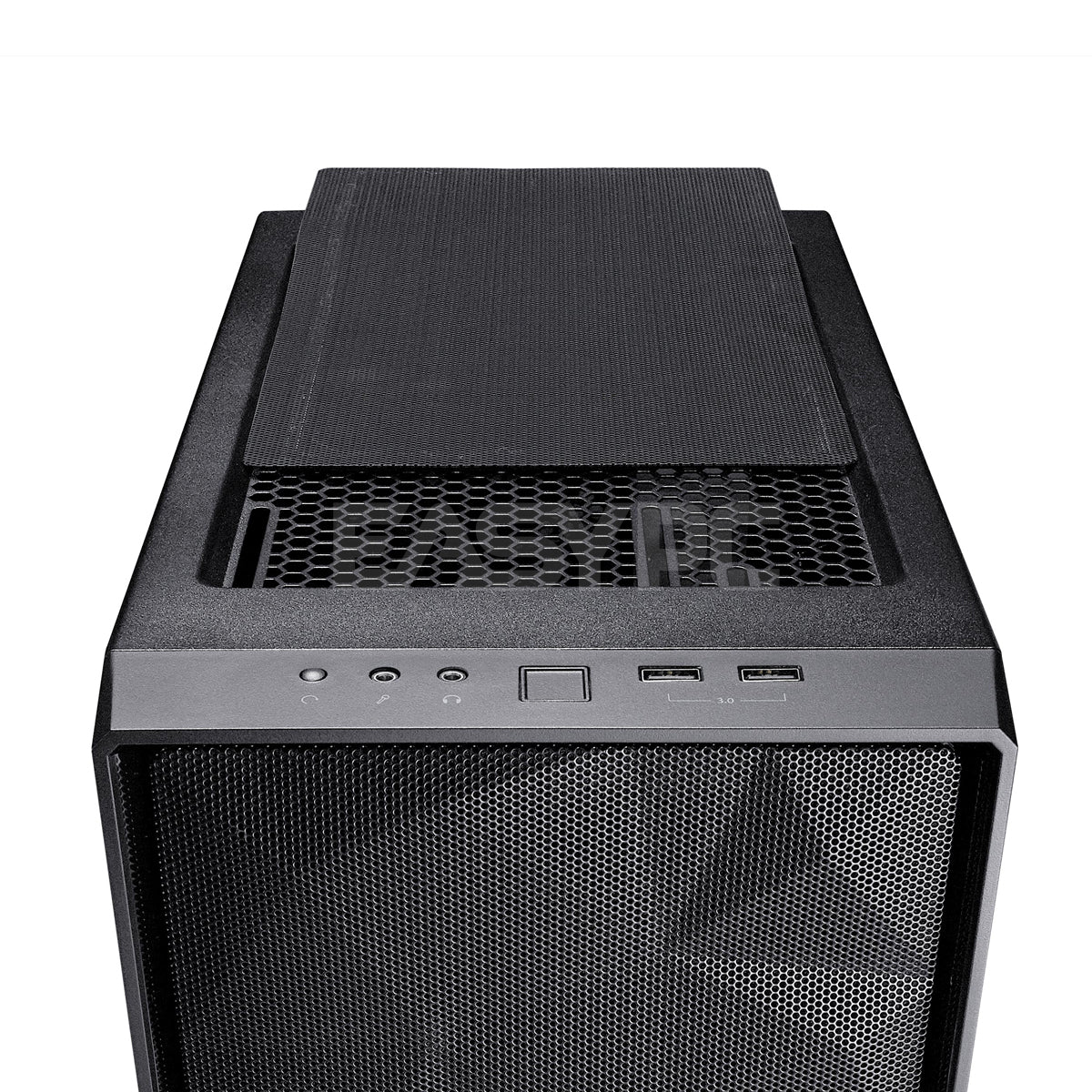

• Front ports: 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts: 7
• Front fan: 3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included)
• Top fan: 2x 120/140 mm
• Rear fan: 1x 120 mm (1x Dynamic X2 GP-12 included)
• Bottom fan: 1x 120 mm
• Dust filters
• Bottom fan + PSU, Front fans, Top fans
• Cable routing grommets: Yes
• Fixed velcro straps: Yes
• Captive thumbscrews
• Both side panels, SSD brackets

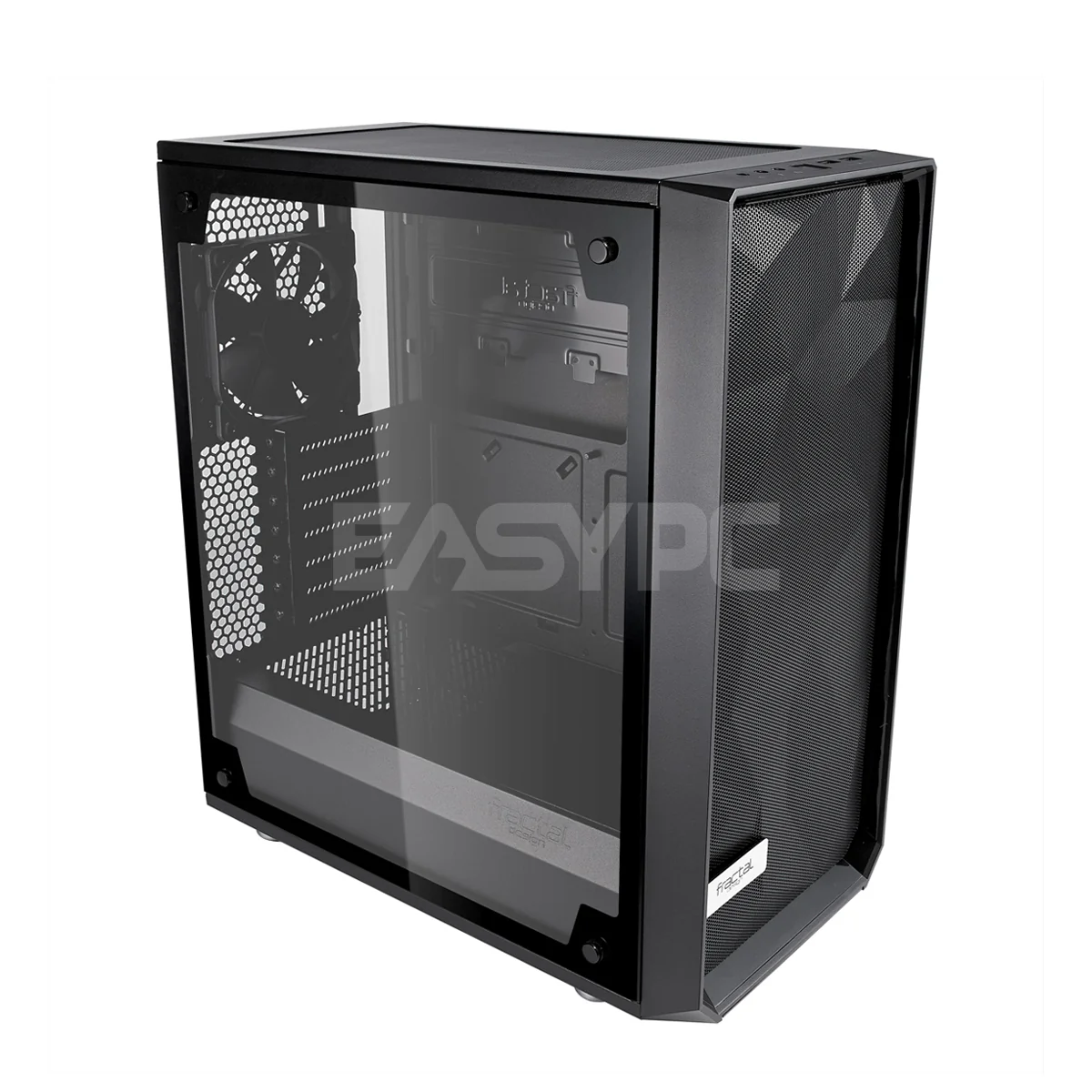

• Left side panel
• Tempered Glass (3mm Thick)
• Right side panel: Steel
• Compatibility
• Power supply type: ATX
• Motherboard compatibility: ATX, mATX, ITX
• Front radiator: 120/240/360 mm, 140/280 mm
• Top radiator: 120/240 mm (max component height on motherboard 40 mm)
• Rear radiator: 120 mm (max width 125 mm)
• PSU max length: 175 mm
• GPU max length
• 315 mm with front fan mounted
• CPU cooler max height
• 170 mm

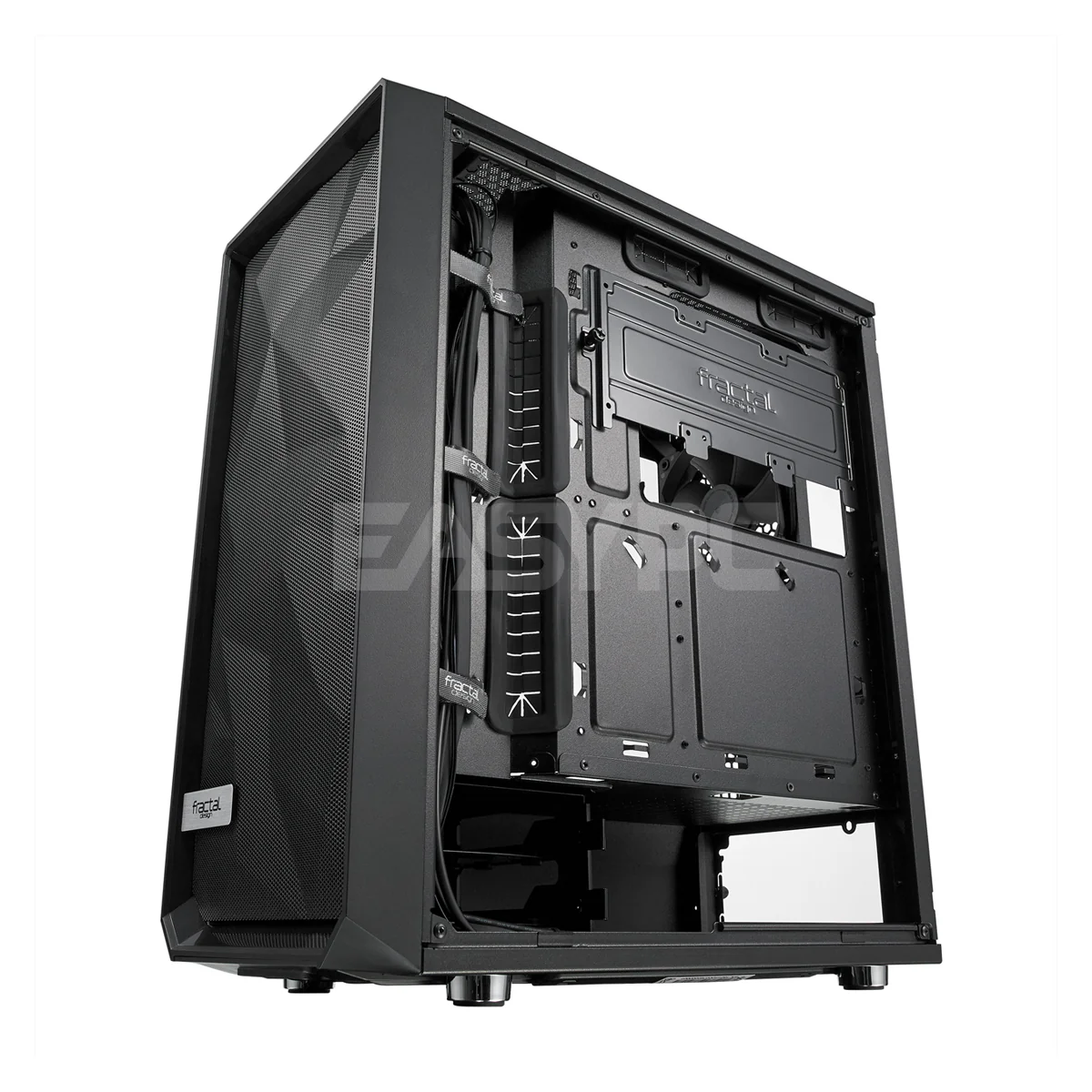

• Cable routing space
• 15-35 mm
• Dimensions
• Case dimensions (LxWxH): 395 x 212 x 440 mm
• Case dimensions - with feet/protrusions/screws
• 413 x 217 x 453 mm
• Net weight: 6.45 kg
• Package dimensions (LxWxH): 542 x 305 x 493 mm
• Package weight: 7.81 kg
• Other
• Package contents
• Meshify C TG computer case, User manual, Accessory box, Top filter
• EAN
• 7340172700074
• UPC
• 84327610074
• Product code (Black)
• FD-CA-MESH-C-BKO-TGL
• Product code (White)
• FD-CA-MESH-C-WT-TGC
