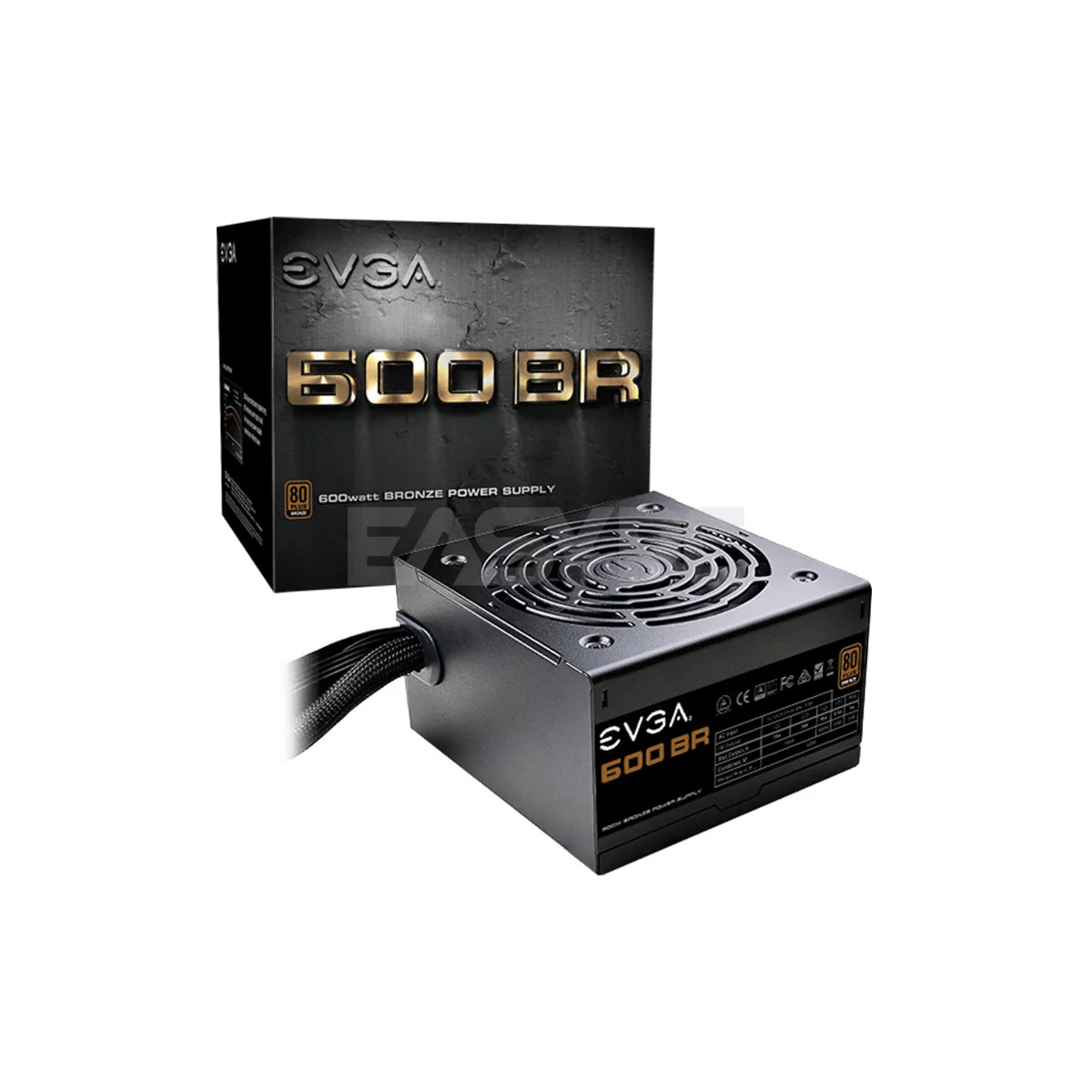

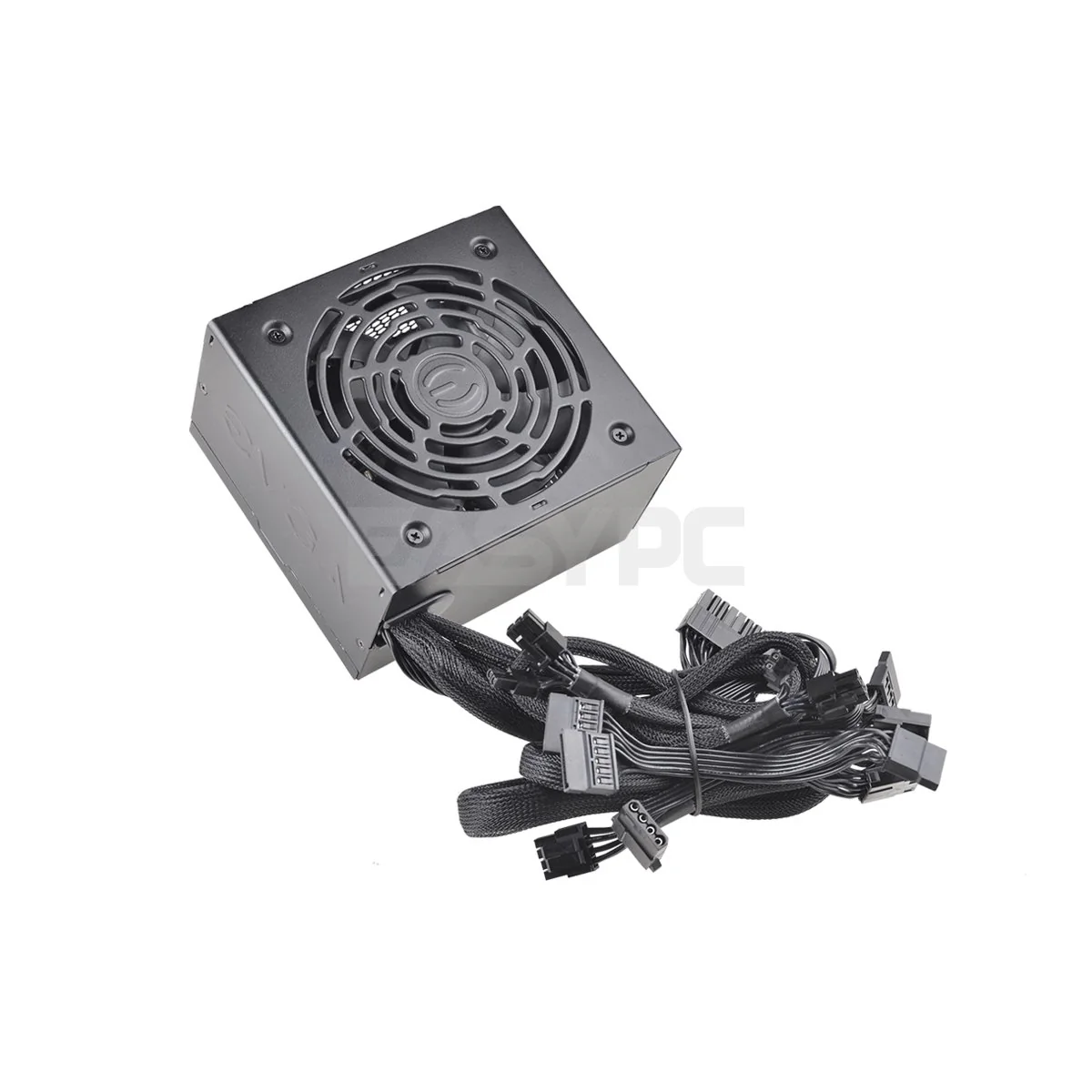

EVGA 600 BR 80 plus Bronze certified, with 85% efficiency or higher under typical loads Heavy-duty protections Bronze reliability Power Supply

Product Specifications

• Brand: EVGA
• Model: 600BR

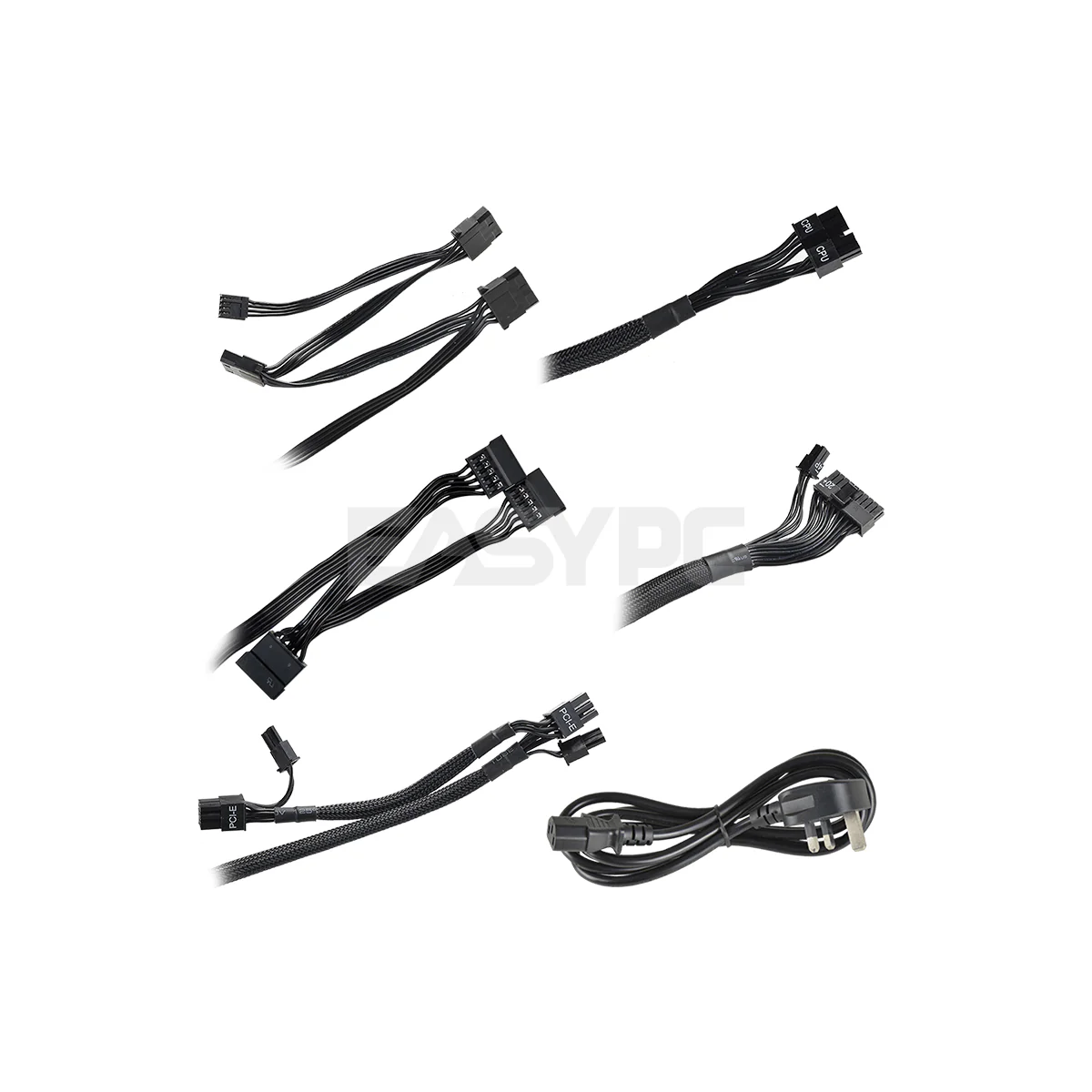

• Cable Lenght
• ATX Cable: 1x 550mm
• EPS Cable: 1x 600mm
• PCIe Cable: 1x 550mm, 670mm
• SATA Cable: 2x 450mm, 570mm, 690mm
• Four-Pin Peripheral Cable: 1x 450mm, 570mm, 690mm + 810mm (Floppy)
• Floppy Adapter: 1x
• AC Power: 1x 1200mm (m)
• Connector Quantity
• Modular Cable Type: No
• 24 Pin ATX: 1x
• EPS (CPU): 1x 8pin (4+4)
• PCIe: 2x 8pin (6+2)
• SATA: 6x
• Four-Pin Peripheral: 3x
• Floppy: 1x

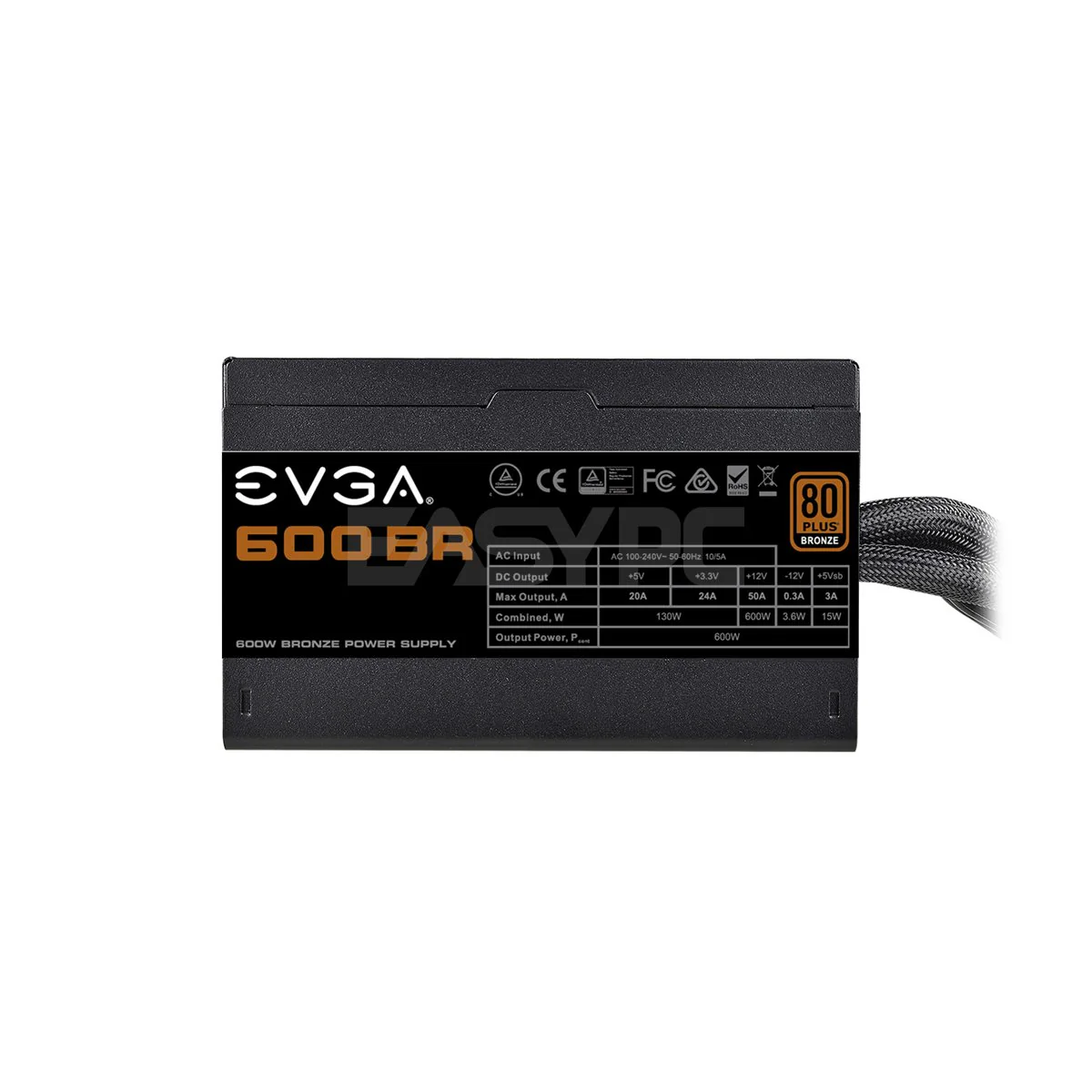

• Power Specs

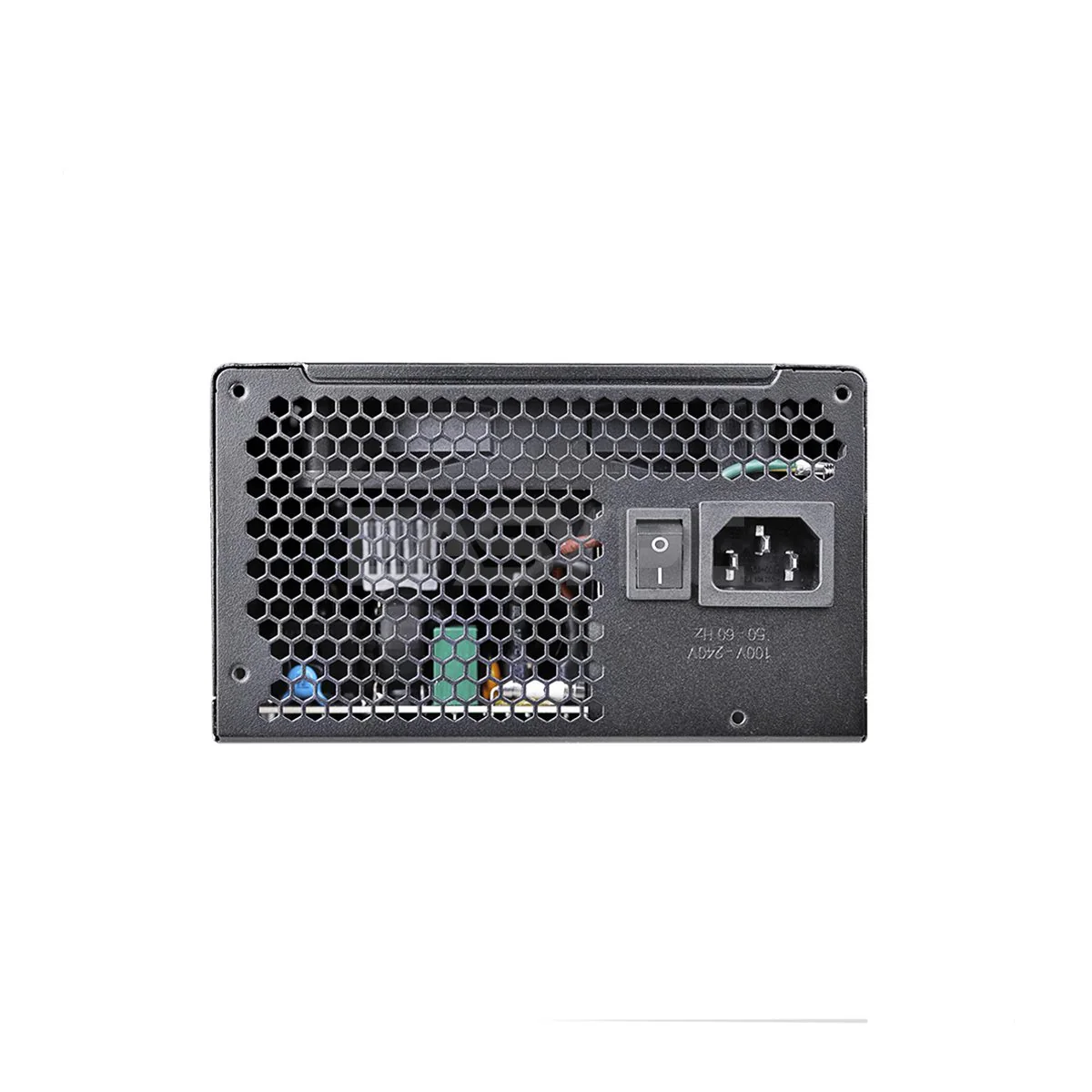

• AC Input: 100 - 240 VAC, 10/5A, 50 - 60 Hz
• Rail: +3.3V +5V +12V +5Vsb -12V
• Max Output: 24A 20A 50A 3A 3A
• 600W
• 130W: 600W 15W 6W
• Total: 600W @ +30C
• Additional Details
• Operating Temperature: 0° to 30° C
• Japanese Capacitors: No
• ECO Mode: No
• MTBF: 100,000 Hours
• Net Weight: 4 lbs
• Size: 85mm (H) x 150mm (W) x 140mm (L)
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
• Compliance with ErP Lot 6 2013 Requirement
• Fan Size / Bearing: 120mm Long Sleeve Bearing
• Features:
• 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
• Single 12V. Rail
• Active Power Factor Correction
• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
• DC-DC Converter improves 3.3V/5V stability
• Quiet and Intelligent Auto Fan for near-silent operation
• Overview
• The EVGA 600BR Power Supplies are here. Designed with both beginner and enthusiast needs in mind, EVGA power supplies are the best choice to power next generation computers. Combining 600W of continuous power with exceptional performance, stunning efficiency, and reliable quality, the 600W BR power supply is what you need to build a solid foundation for your next system.
