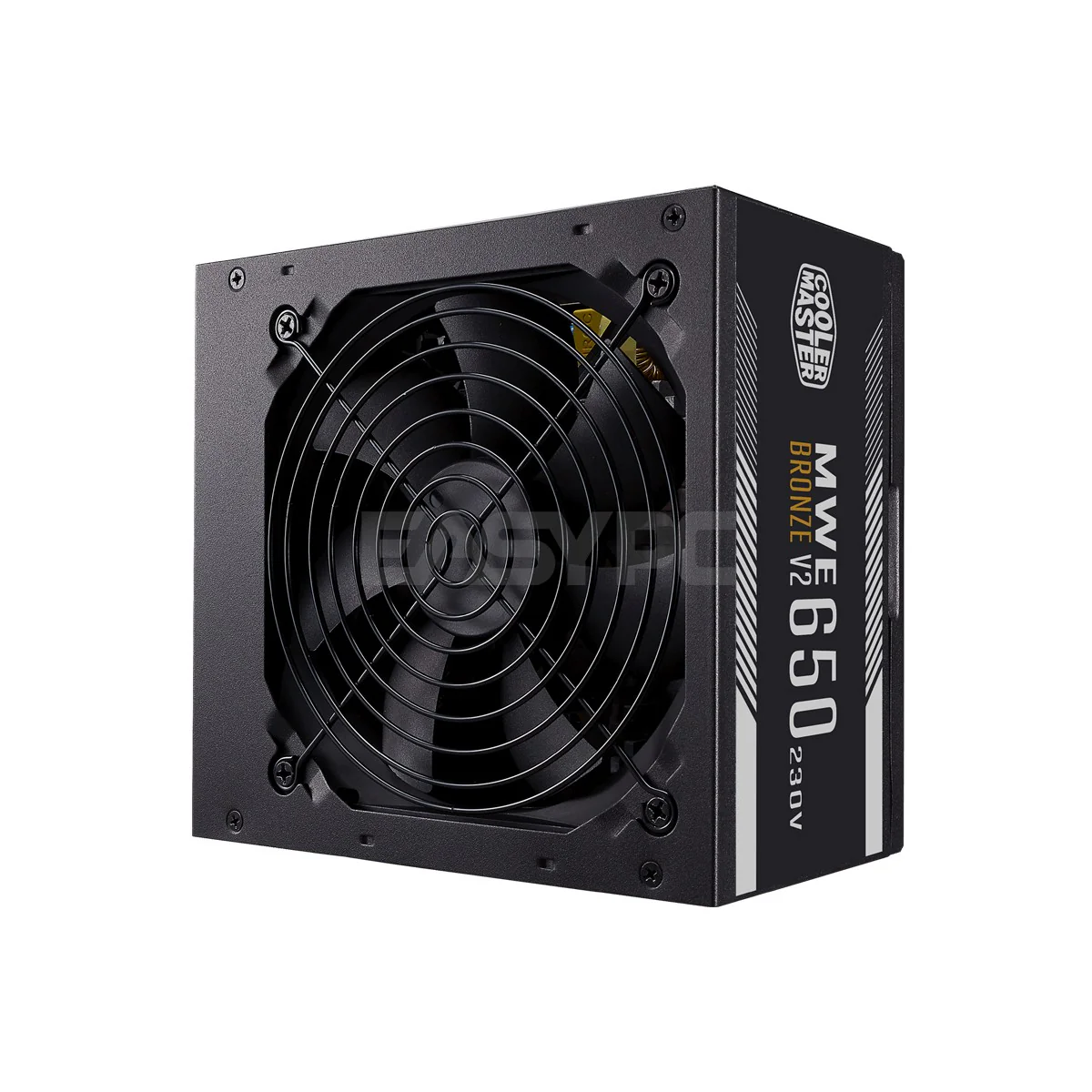

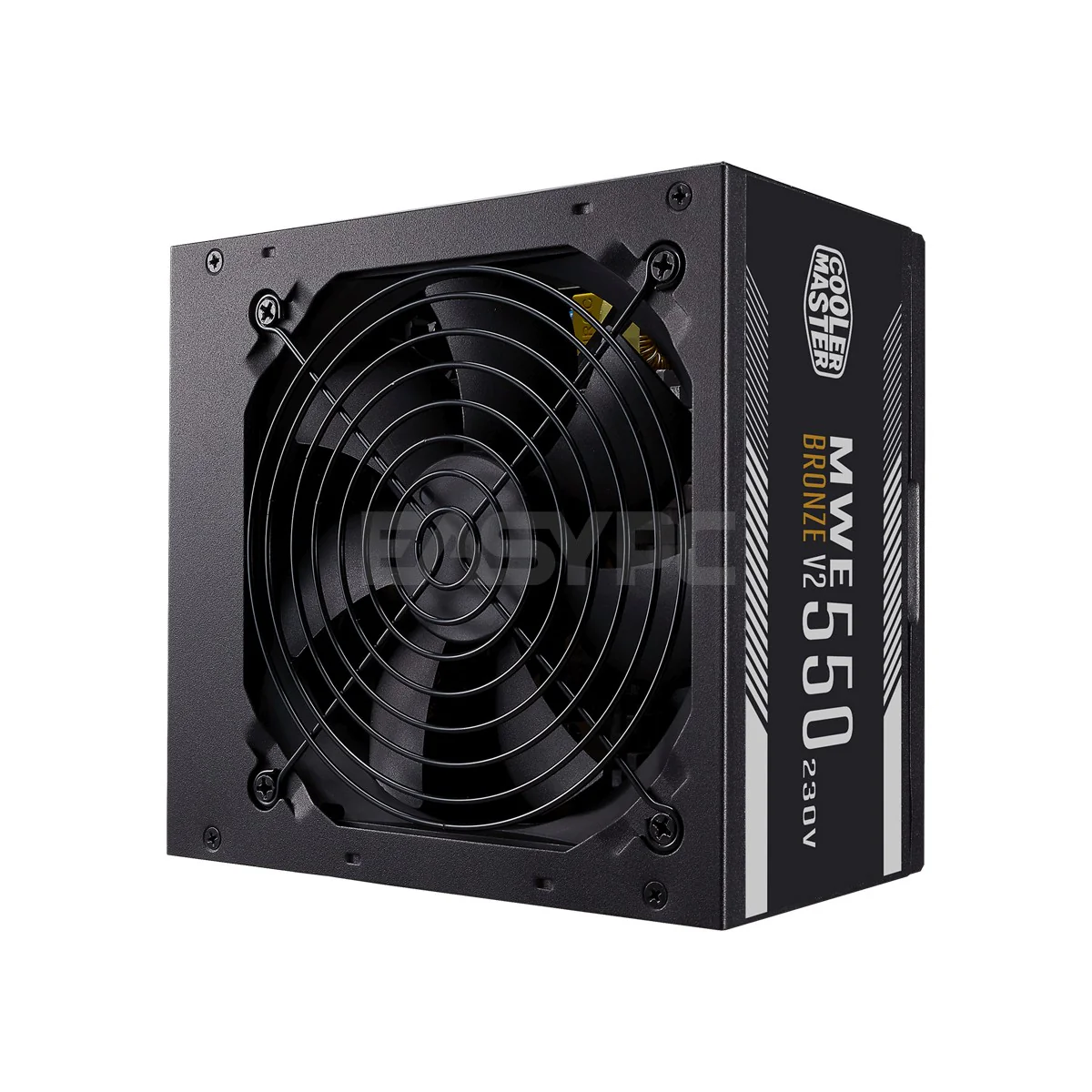

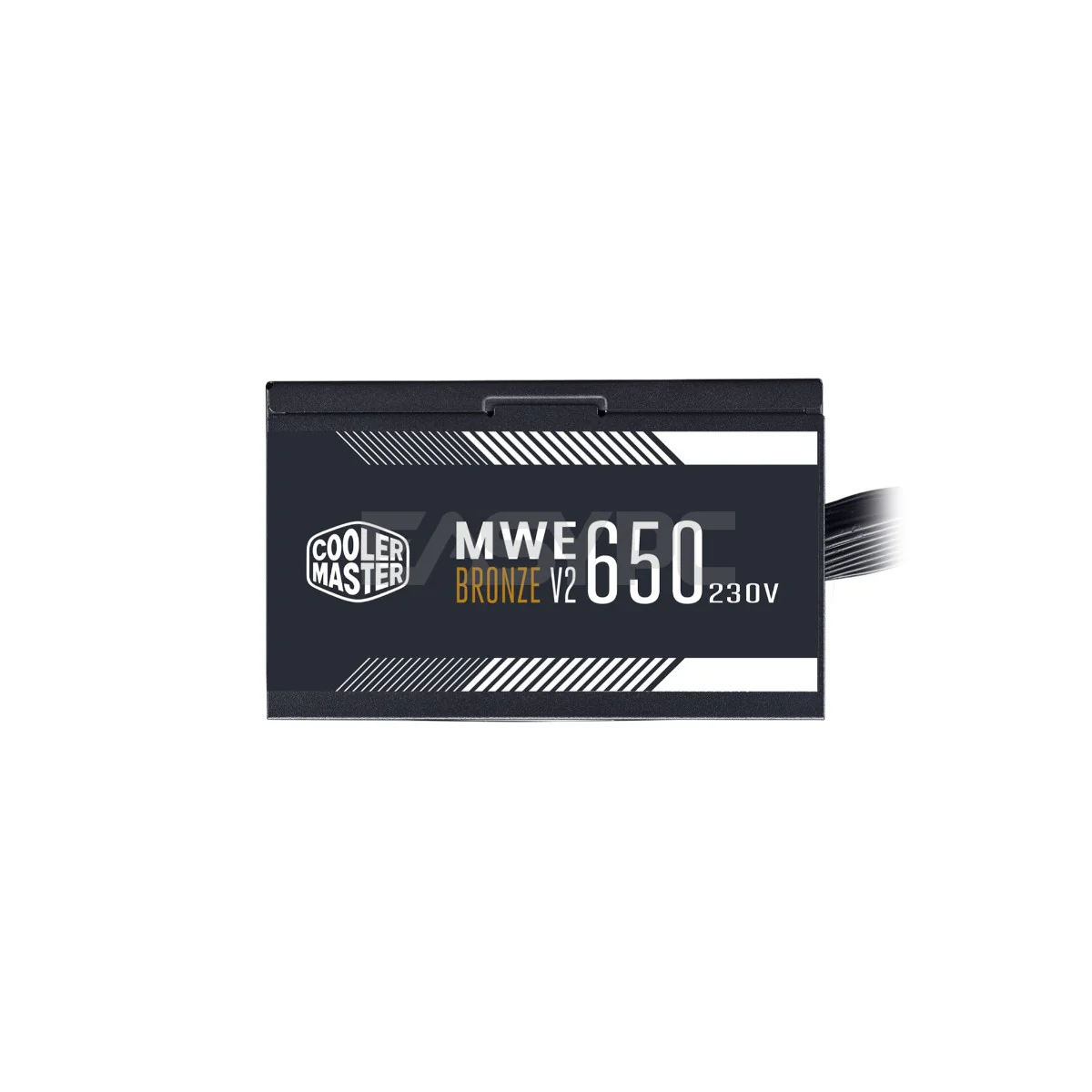

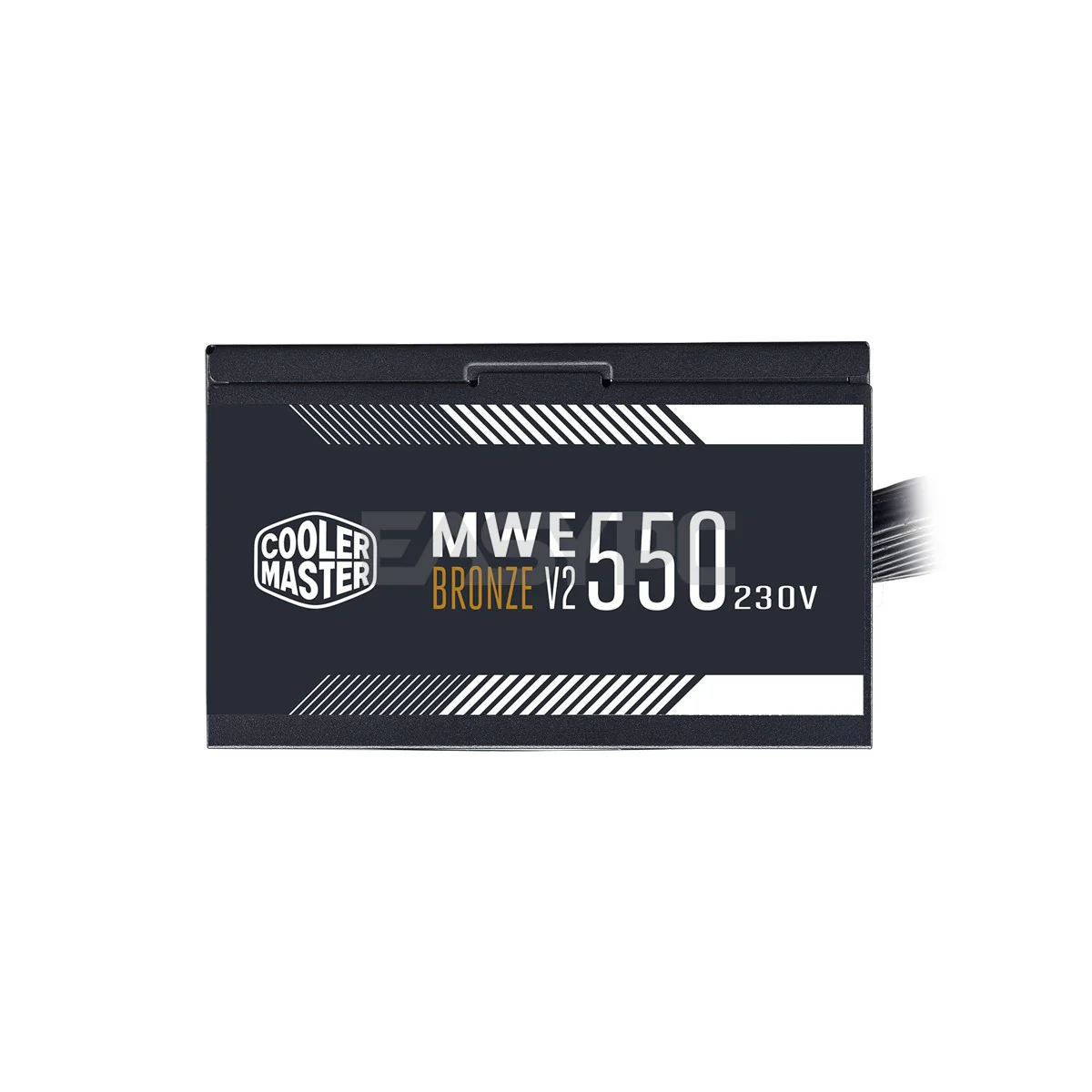

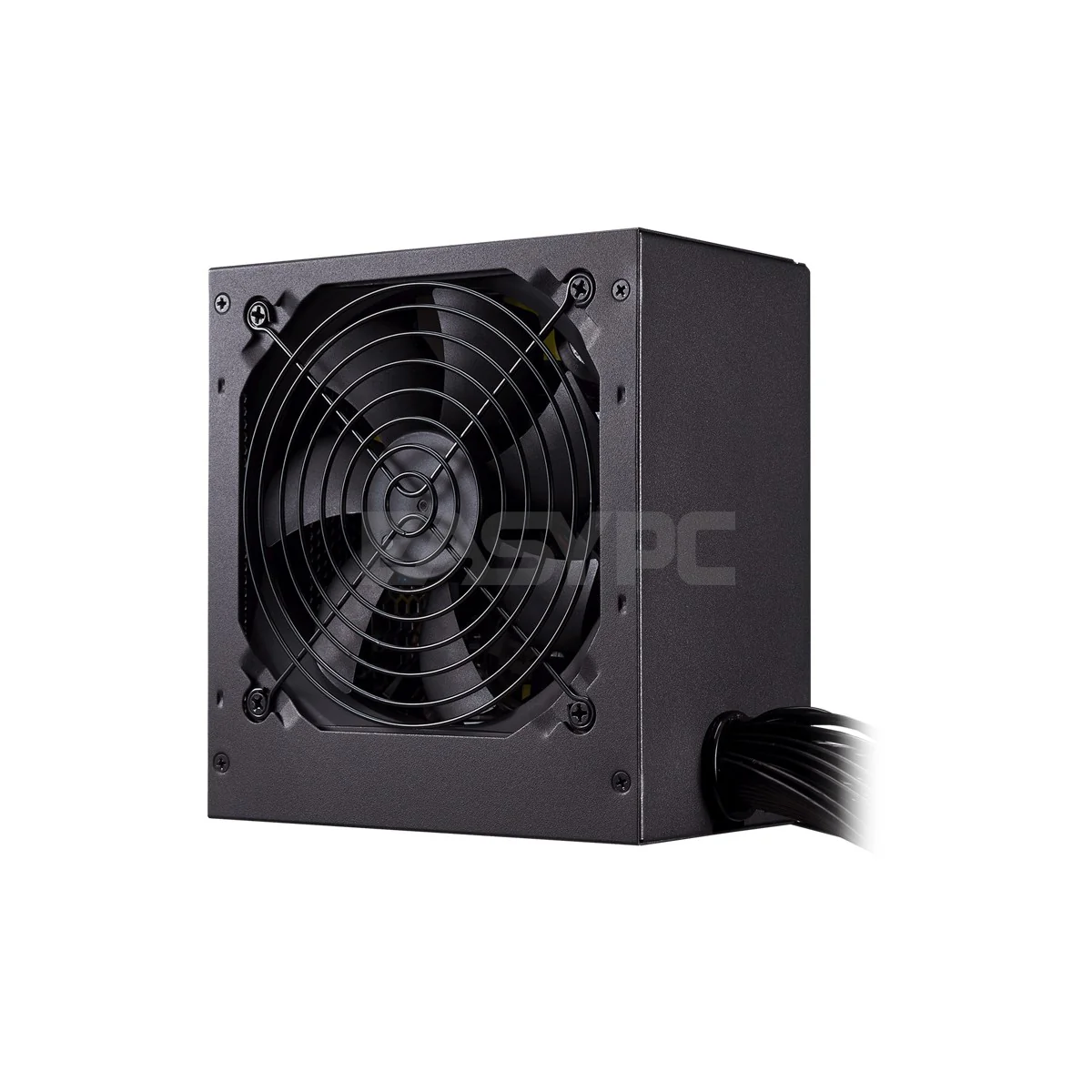

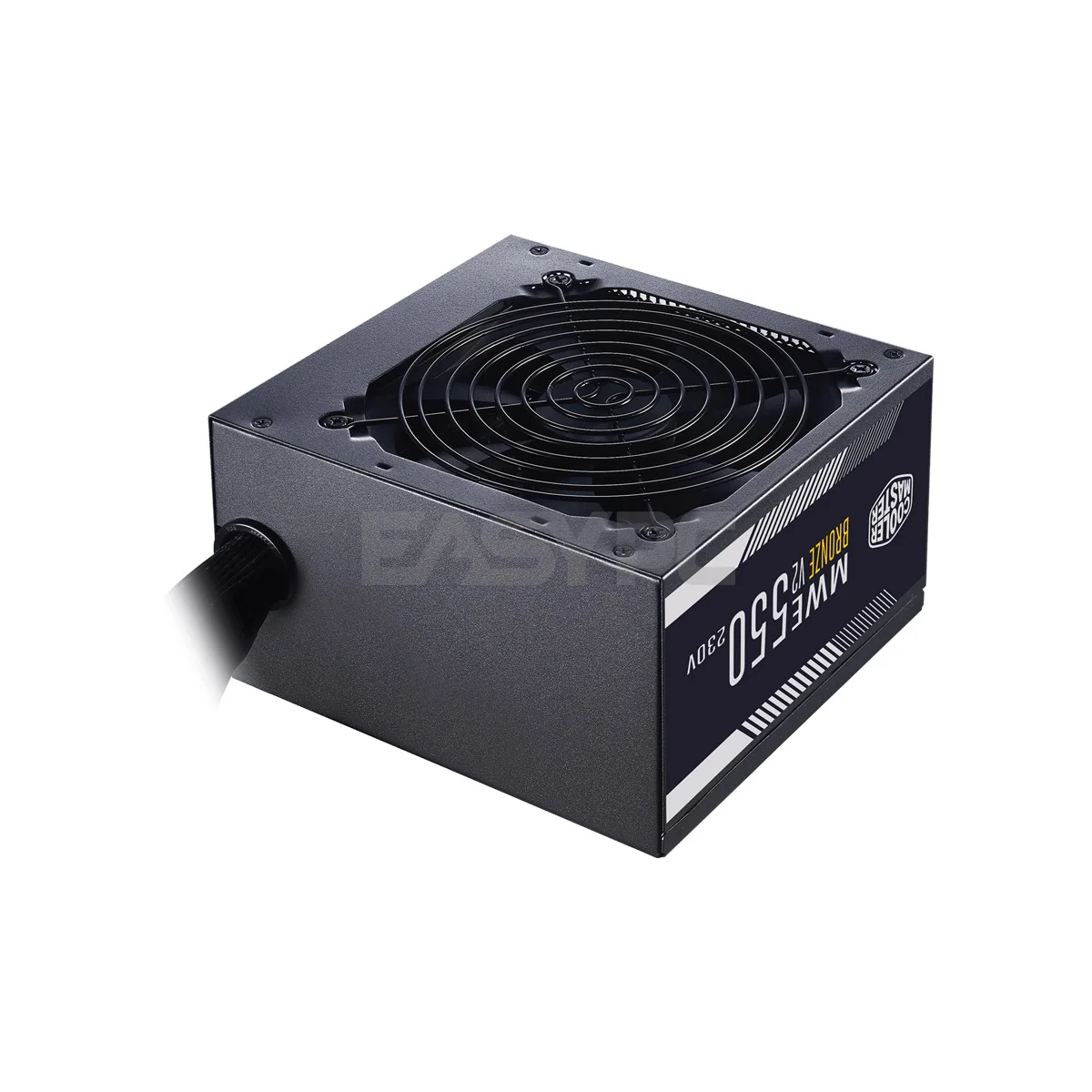

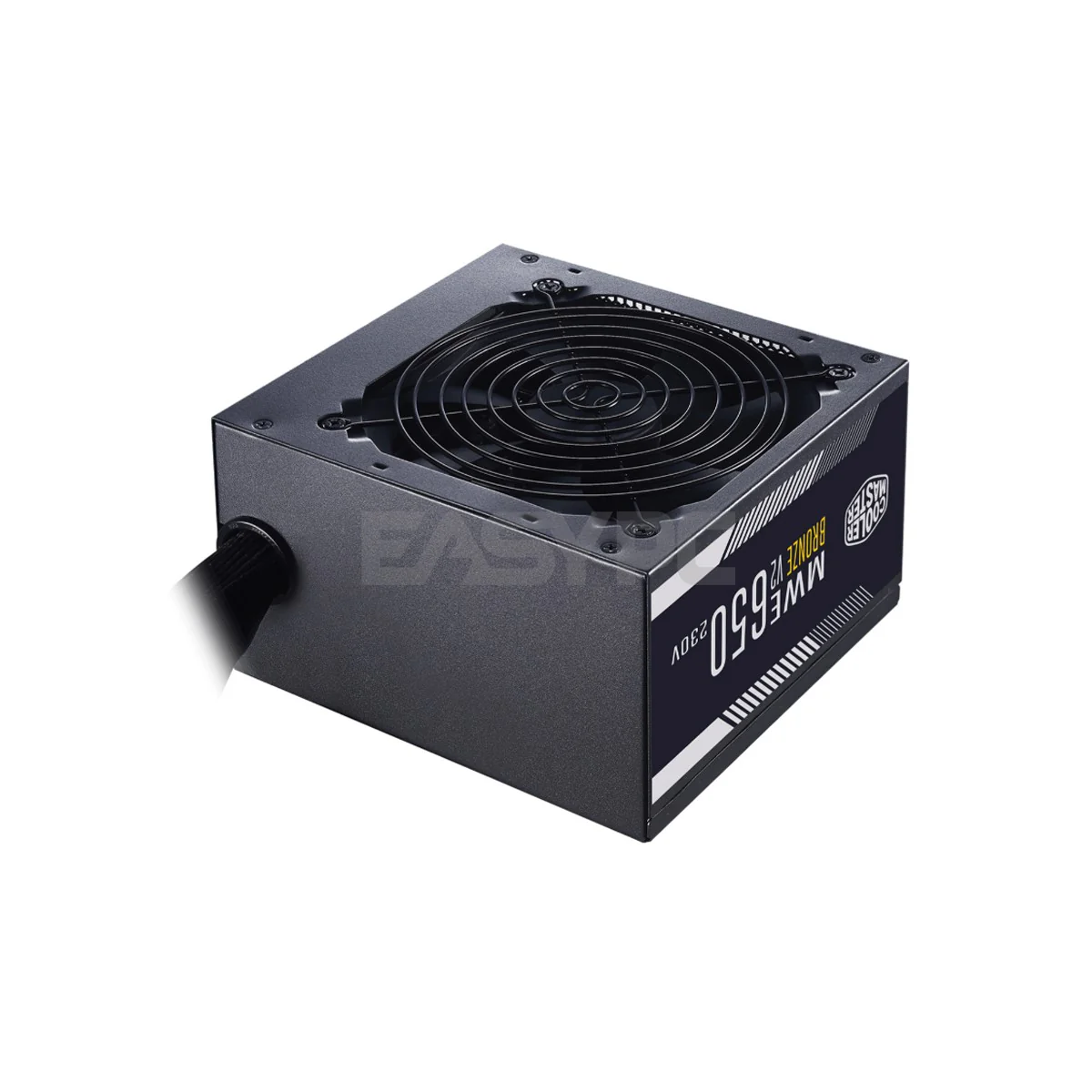

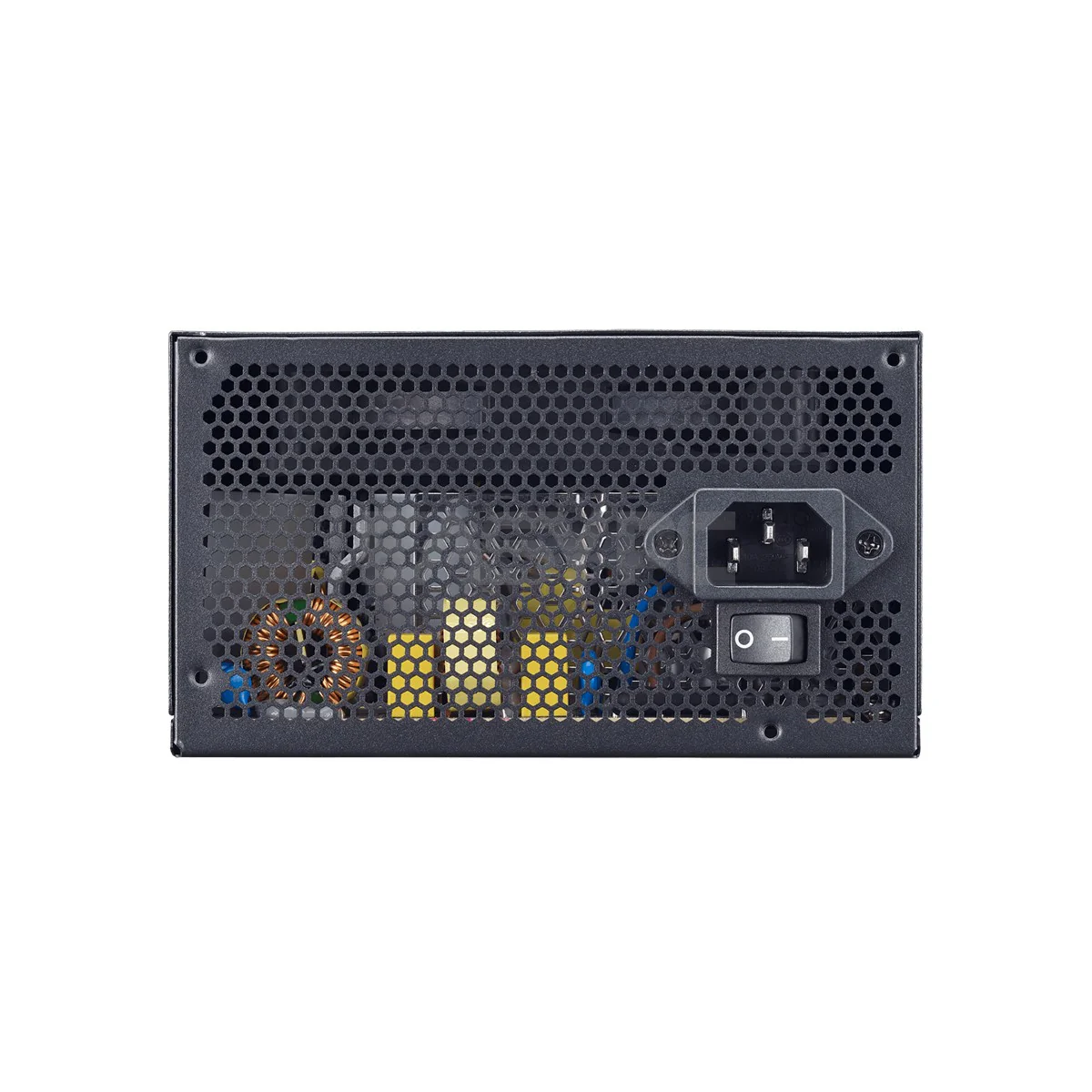

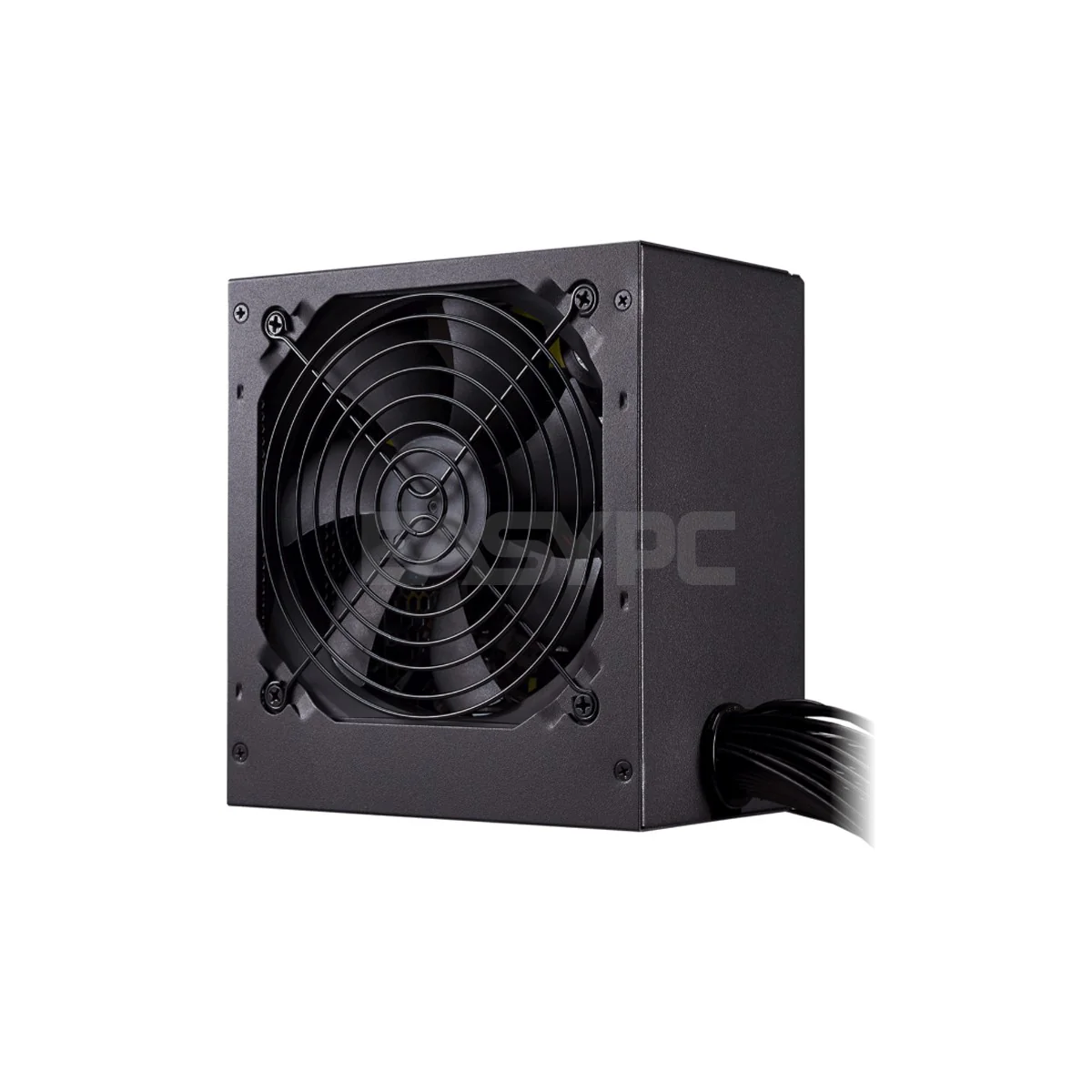

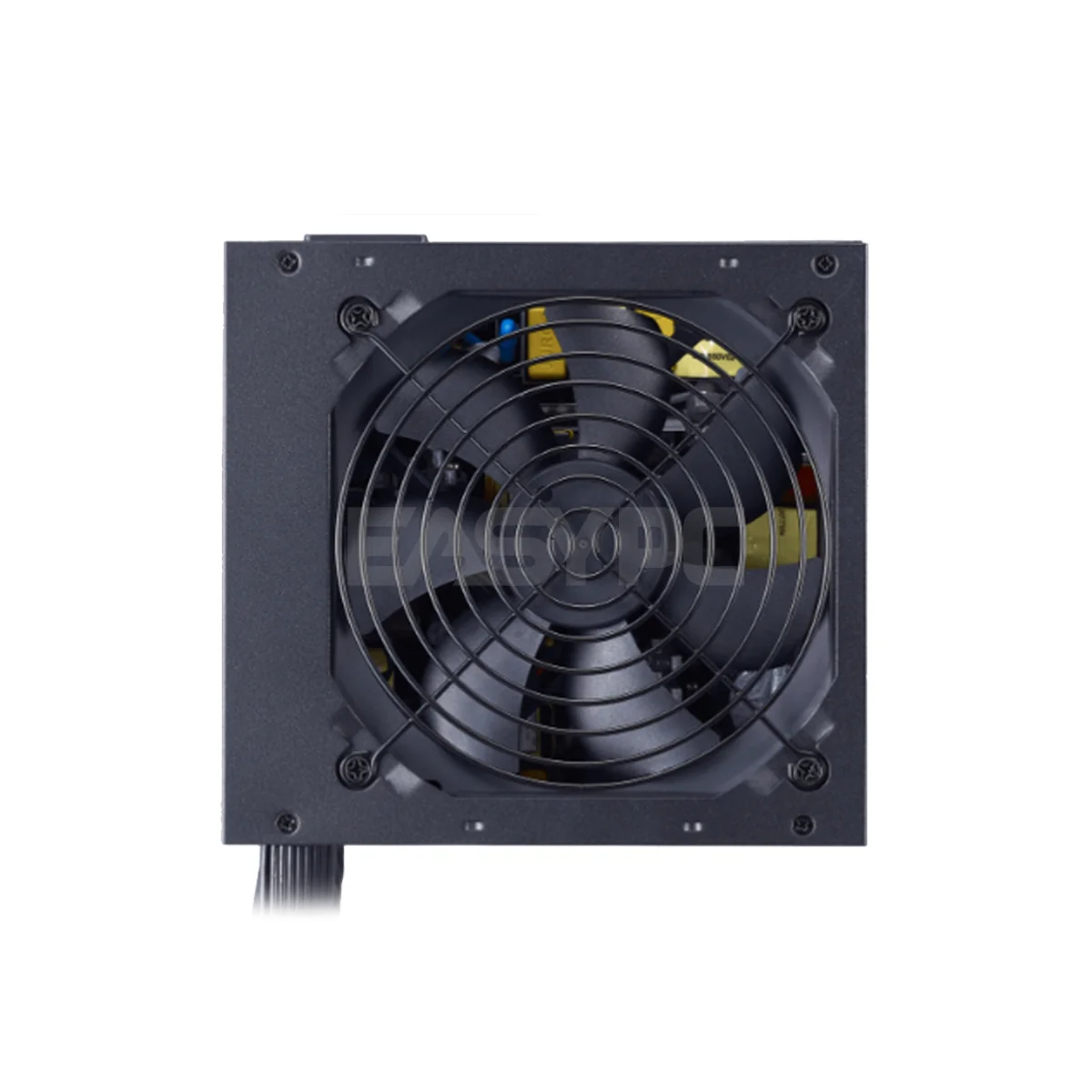

CoolerMaster MWE 750W, 650W and 550W V2-230v 80+ Bronze Durable Reliable and Safe Power Supply

Product Description

Power up your system with CoolerMaster MWE V2-230v PSU. Available in 550W, 650W, and 750W options, this 80+ Bronze-rated unit ensures durability, reliability, and safety. Elevate your PC performance with confidence in every watt.

Product Specification

• Brand: CoolerMaster
• Model:
• MPE-7501-ACABW-B (750W)

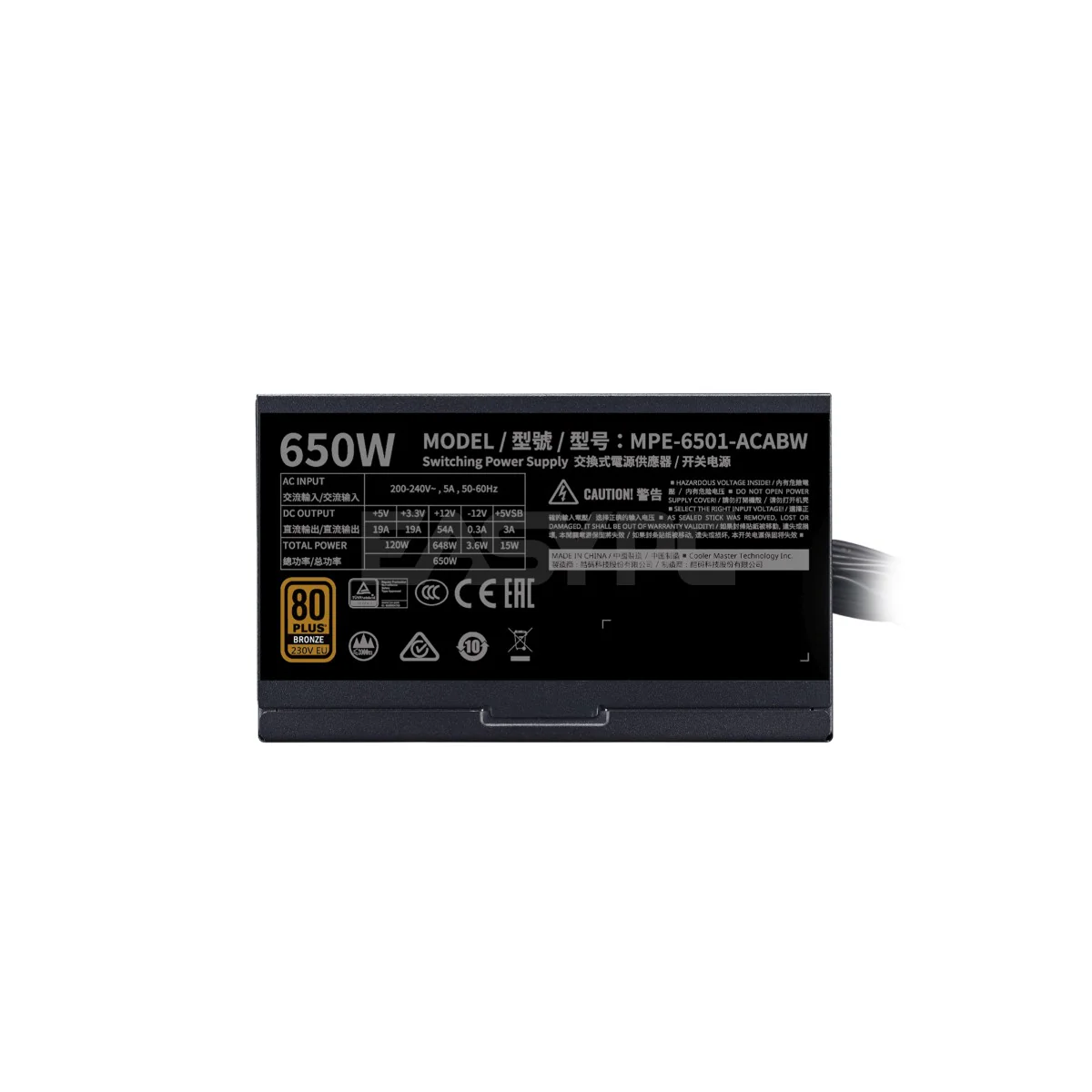

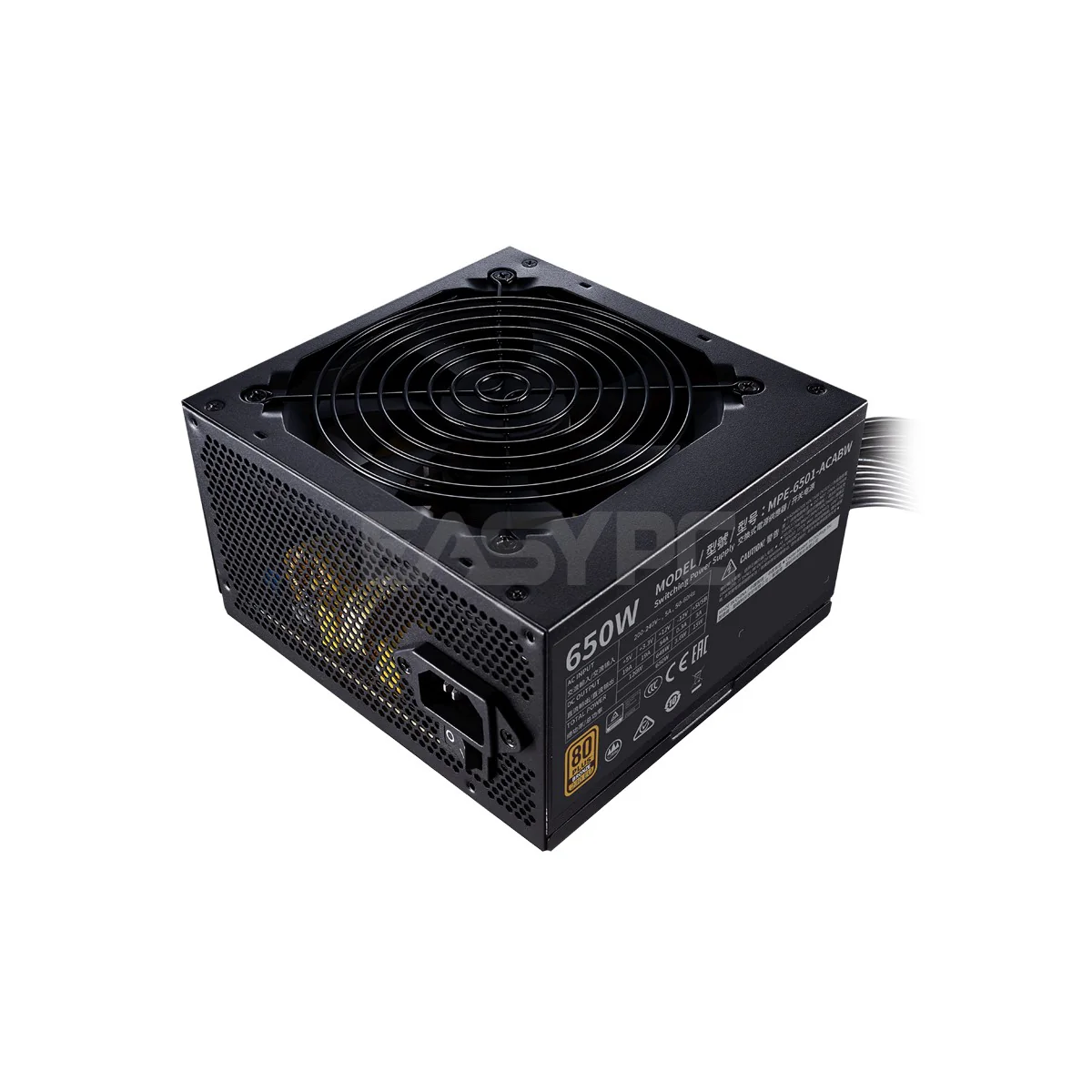

• MPE-6501-ACABW-B (650W)

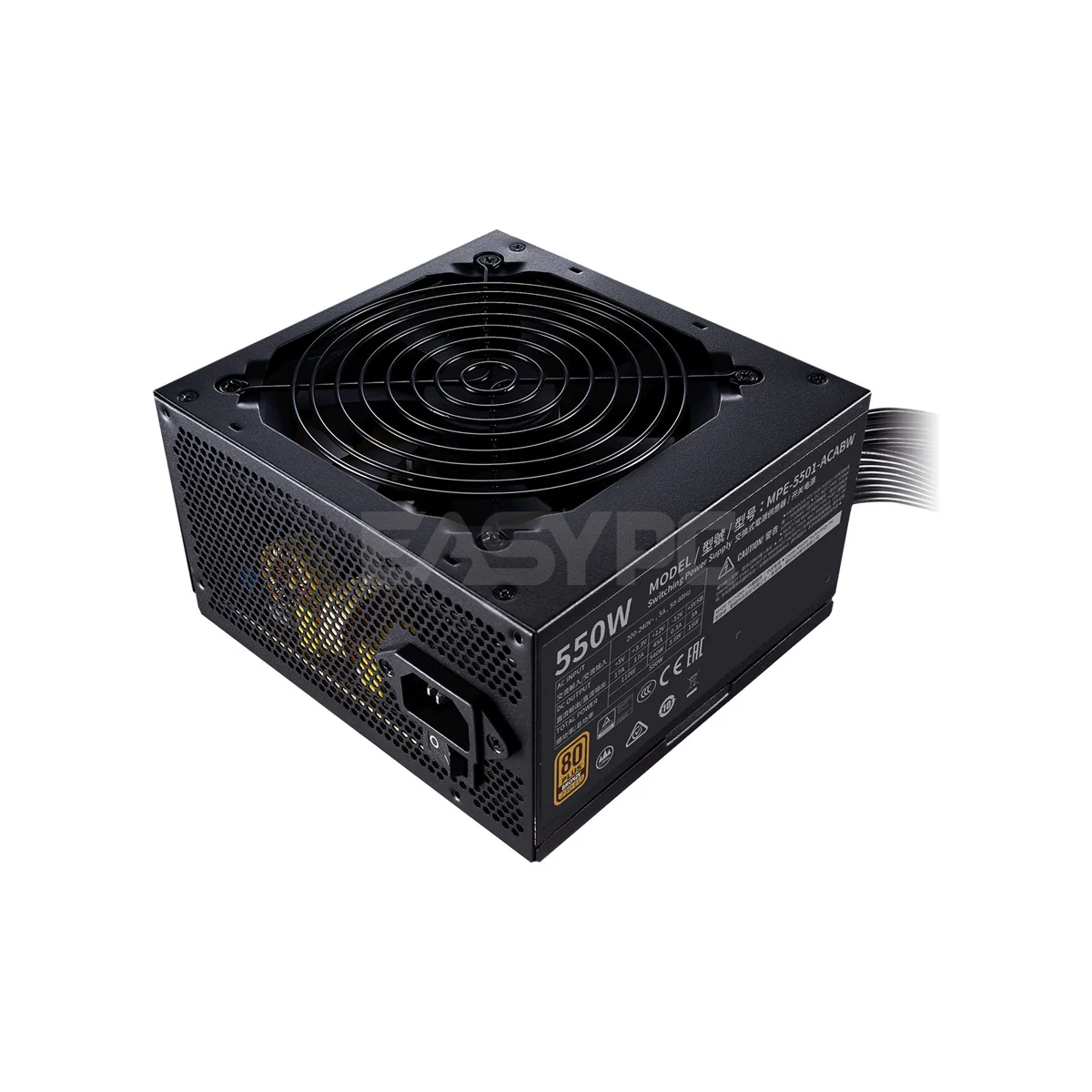

• MPE-5501-ACABW-B (550W)
• Watts: 750Watts, 650Watts, 550Watts
• ATX Version: ATX 12V V2.52
• PFC: Active PFC
• Input Voltage: 200-240Vac
• Input Current: 10-6A (750W)
• Input Current: 10-5A (650W, 550W)
• Input Frequency: 50-60Hz
• Dimensions (L x W x H): 140 x 150 x 86 mm

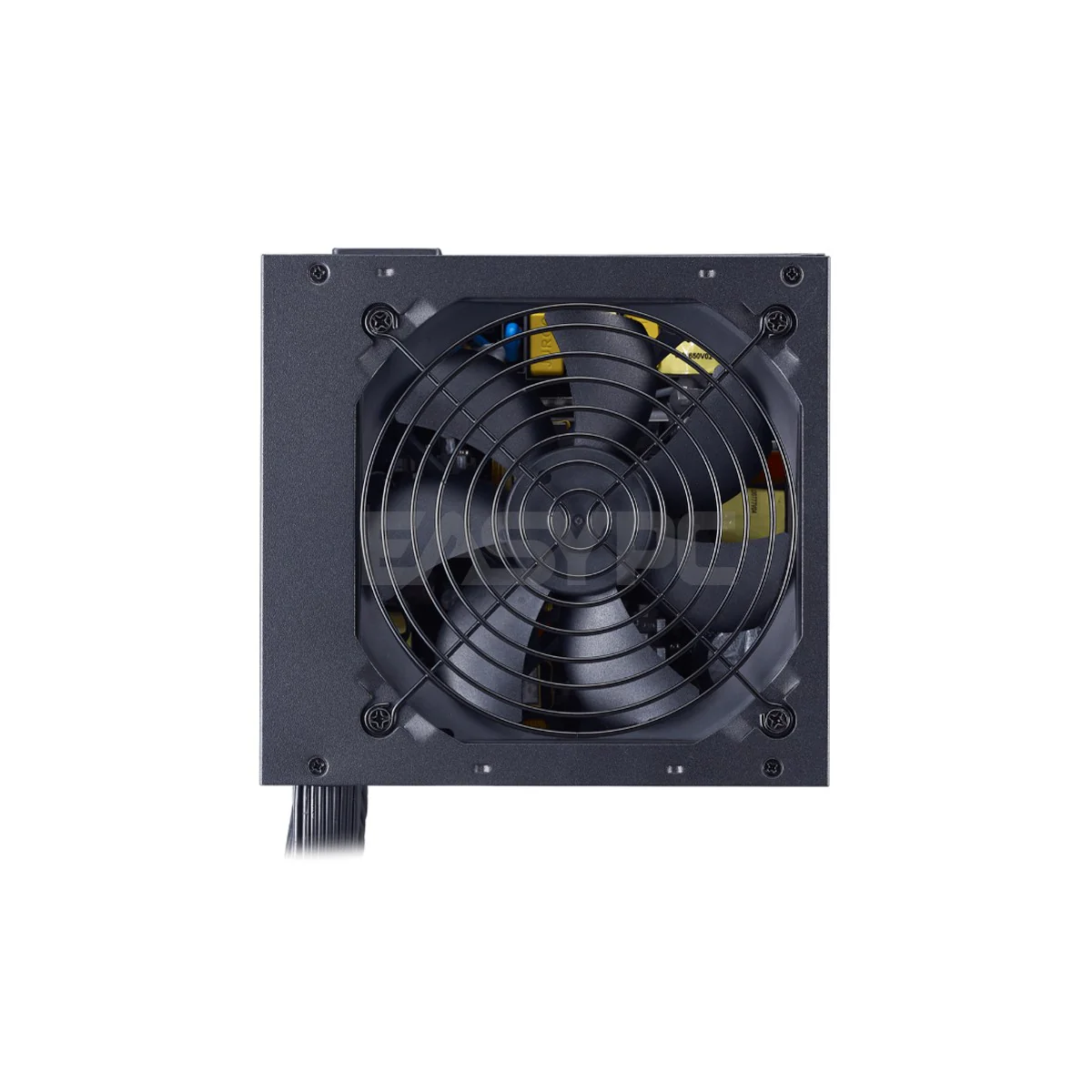

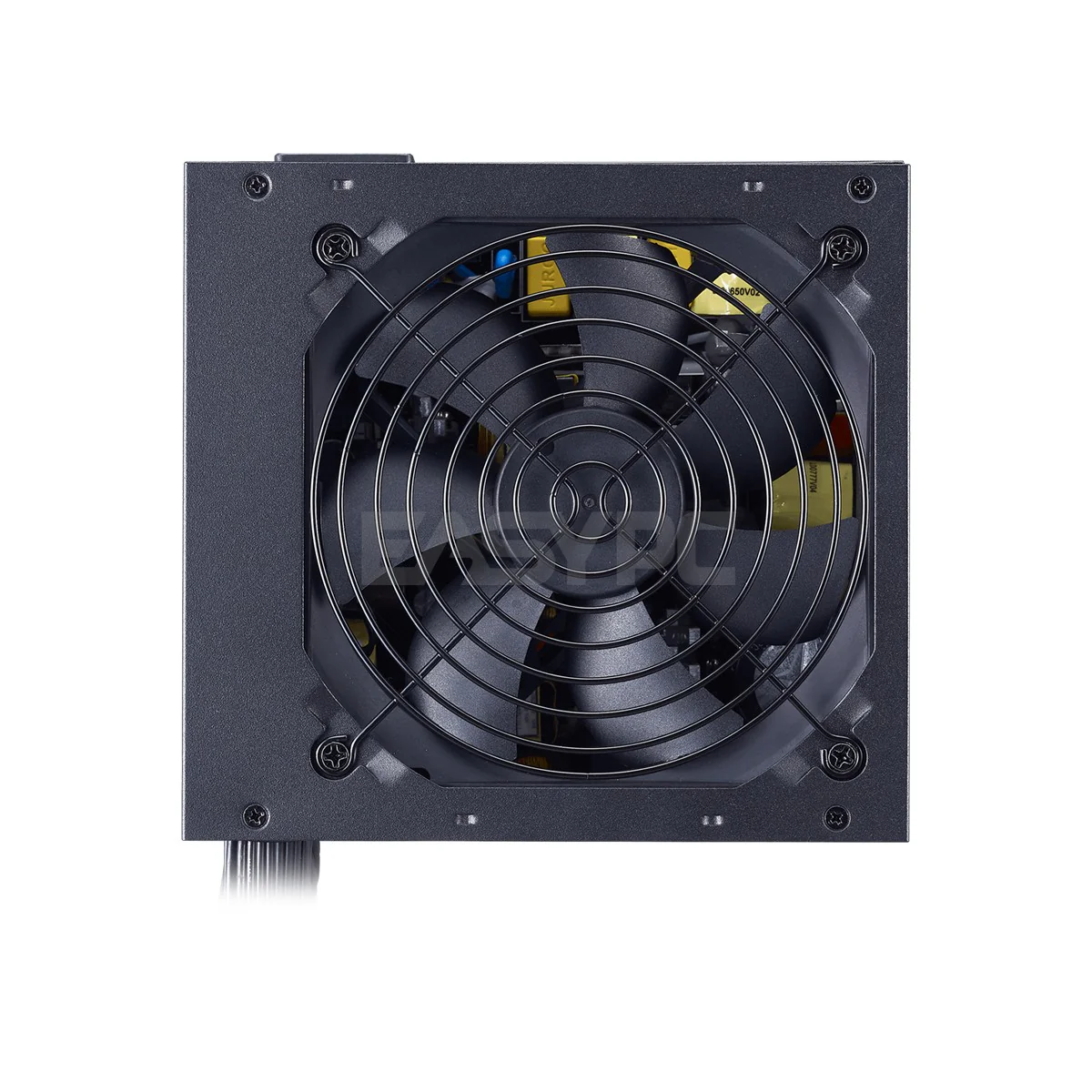

• Fan Size: 120mm
• Fan Bearing: HDB
• Fan Speed: 2400 RPM (750W, 650W)
• Fan Speed: 1500 RPM (550W)
• Noise Level @ 20%: 11.12 dBA (750W)
• Noise Level @ 20%: 16.54 dBA (650W)
• Noise Level @ 20%: 13.8 dBA (550W)
• Noise Level @ 50%: 20.3 dBA (750W)
• Noise Level @ 50%: 26.5 dBA (650W)
• Noise Level @ 50%: 18.4 dBA (550W)
• Noise Level @ 100%: 39.5 dBA (750W)
• Noise Level @ 100%: 42.5 dBA (650W)
• Noise Level @ 100%: 31.2 dBA (550W)
• Efficiency: 88% Typically
• 80 PLUS Rating: 80 PLUS Bronze EU 230V
• ErP 2014 Lot 3: Yes
• Power Good Signal: 100 - 500 ms
• Hold Up Time: >14ms at 100% Full Load@230Vac
• MTBF: >100,000 Hours
• Protections: OVP, OPP, SCP, UVP, OTP
• Regulatory: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
• ATX 24 Pin Connectors: 1
• EPS 4+4 Pin Connectors: 1
• EPS 8 Pin Connector: 1
• SATA Connectors: 6
• Peripheral 4 Pin Connectors: 3
• PCI-e 6+2 Pin Connectors: 4 (750W, 650W)
• PCI-e 6+2 Pin Connectors: 2 (550W)
• Series: MWE Bronze Series
• 80 Plus: Bronze
• Modular: Non-Modular
• Features:

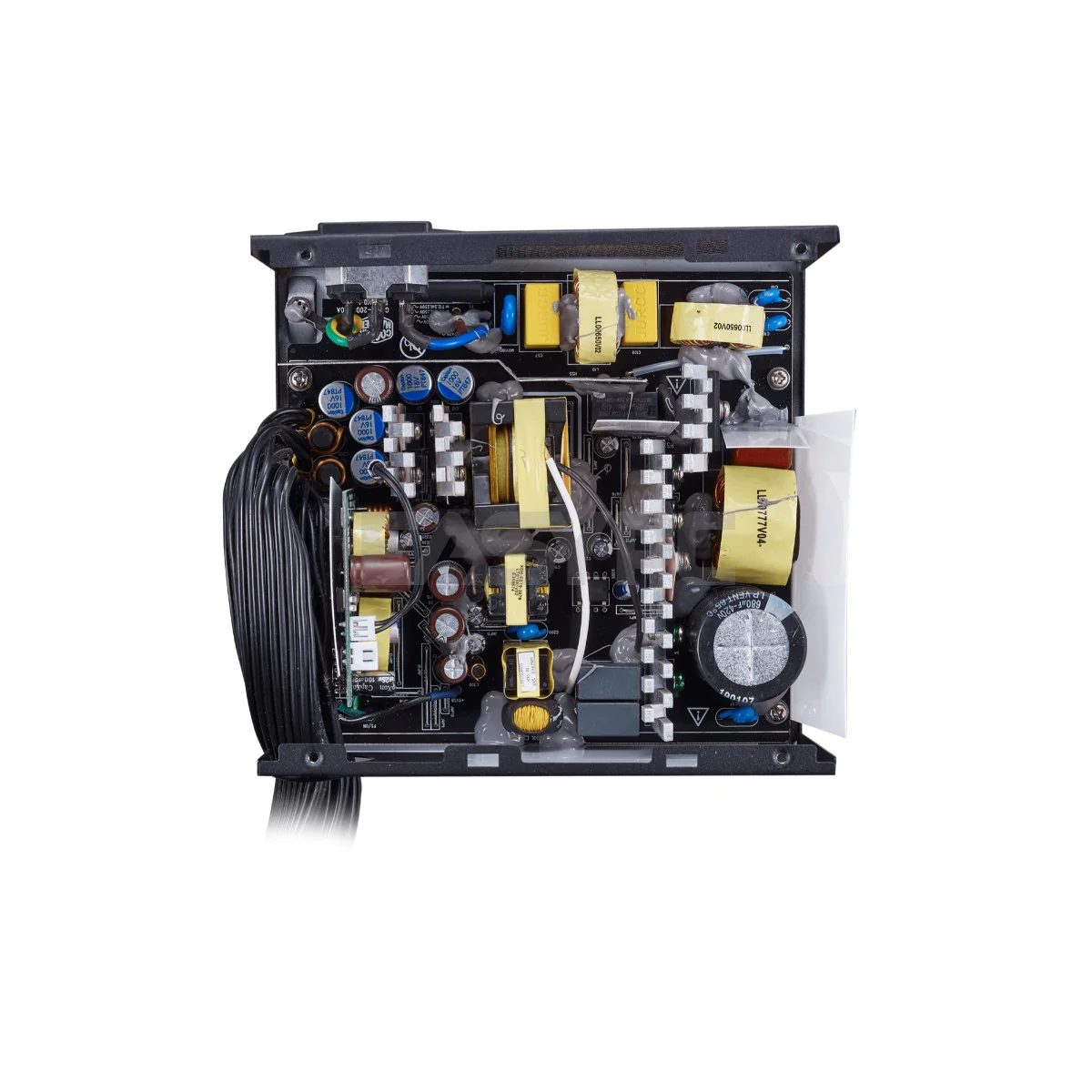

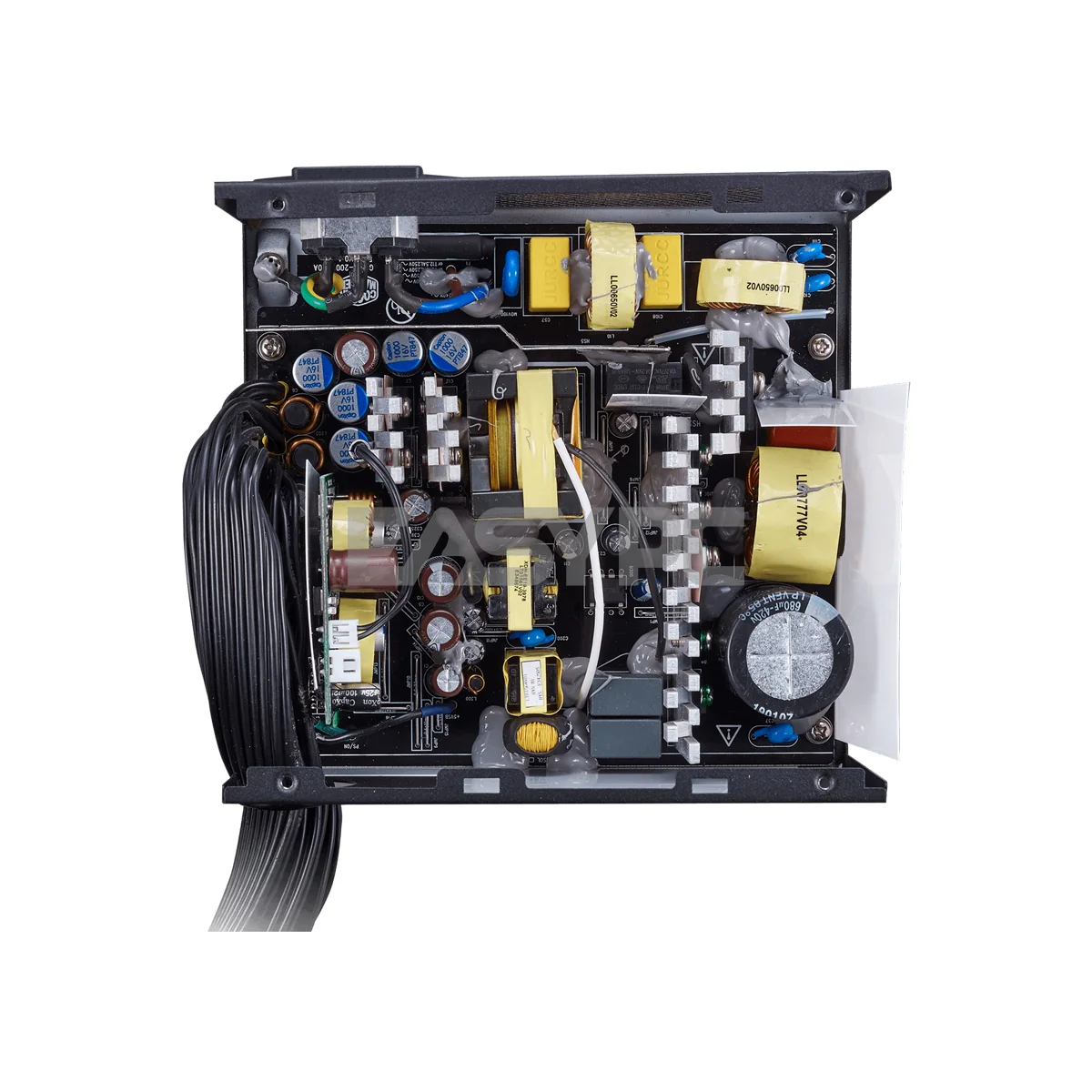

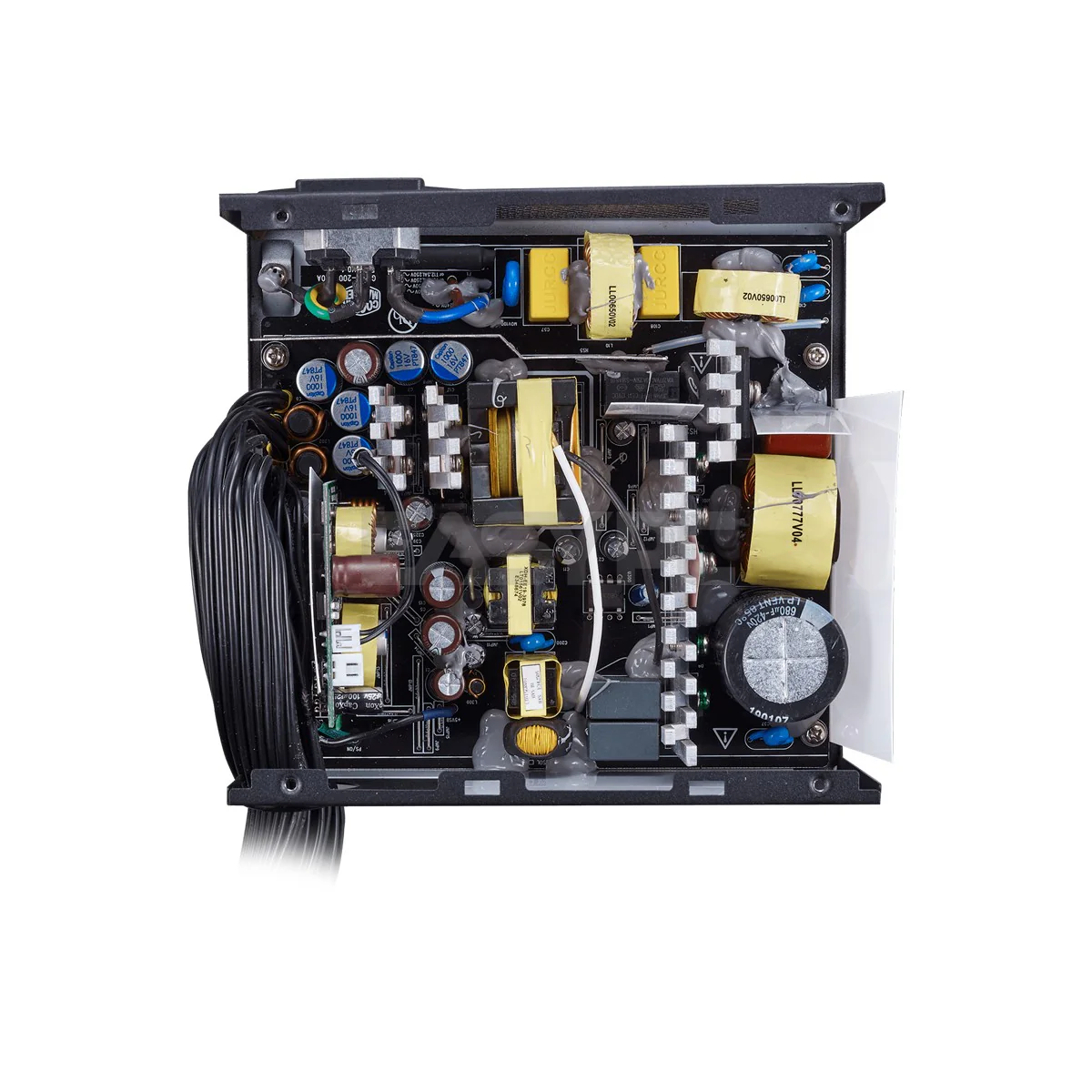

• DC-to-DC + LLC Circuit Design
• High Temperature Resistance
• Peak Power Tolerance
• 80 PLUS Bronze 230V EU Certified
• Durable, Reliable, and Safe
