Colorful GeForce RTX™ 5060 Battle AX DUO 8GB GDDR7 Graphics Card

🎮 Colorful GeForce RTX 5060 Battle AX DUO 8GB-V - Next-Gen Gaming Performance

Experience the power of NVIDIA's latest Blackwell architecture with the Colorful GeForce RTX 5060 Battle AX DUO. This compact dual-fan graphics card delivers exceptional 1080p and 1440p gaming performance with cutting-edge AI acceleration, ray tracing capabilities, and DLSS 4 technology.

⚡ Key Features

• NVIDIA Blackwell Architecture - Built on 5nm process technology with 21.9 billion transistors
• 3,840 CUDA Cores - Massive parallel processing power for gaming and creative workloads
• 8GB GDDR7 Memory - Next-generation 128-bit memory interface with 352 GB/s bandwidth
• DLSS 4 with Multi Frame Generation - AI-powered performance boost up to 2x faster than previous generation
• Real-Time Ray Tracing - 30 RT Cores deliver cinematic lighting, reflections, and shadows
• Compact Design - 231mm length, perfect for small form factor and HTPC builds

🔧 Technical Specifications

Graphics Processor:	NVIDIA GeForce RTX 5060 (GB206-250-A1)
Architecture:	NVIDIA Blackwell 2.0
Manufacturing Process:	TSMC 4N 5nm FinFET
CUDA Cores:	3,840
Tensor Cores:	120 (5th Generation)
RT Cores:	30 (4th Generation)
Base Clock:	2,280 MHz
Boost Clock:	2,497 MHz
Memory Size:	8GB GDDR7
Memory Interface:	128-bit
Memory Speed:	22 Gbps (1750 MHz effective)
Memory Bandwidth:	352 GB/s
FP32 Performance:	19.18 TFLOPS

❄️ Cooling System

• Axe Cooling Technology - Dual 90mm ring-shaped fans for efficient heat dissipation
• Two-Slot Compact Design - Slim cooler optimized for airflow

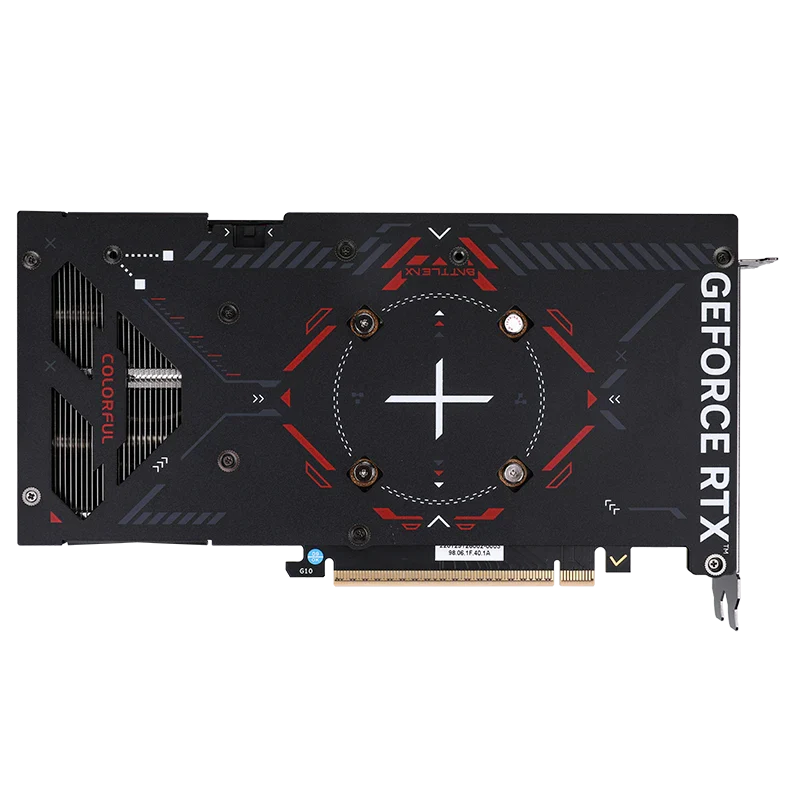

• Metallic Hollowed Backboard - Enhanced structural rigidity and heat management
• Low Noise Operation - Balanced performance and acoustics

🎨 Design & Aesthetics

• Red & Black Color Theme - Bold, aggressive gaming aesthetics
• RGB "Battle Ax" Branding - Customizable side-panel lighting
• iGame Center Software - Full RGB control and monitoring
• Premium Build Quality - Durable construction for long-term reliability

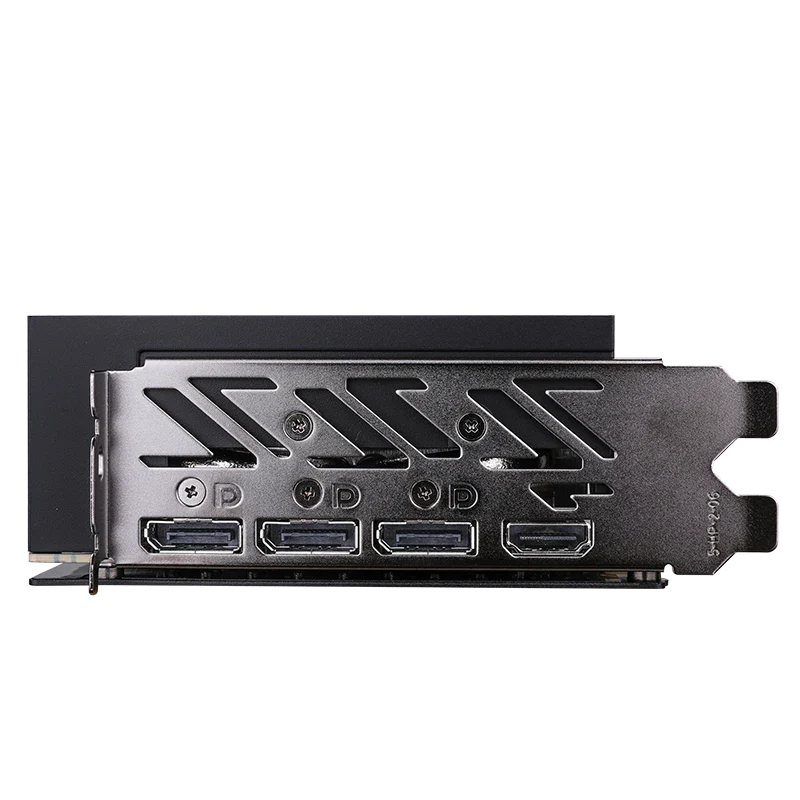

📊 Display & Connectivity

• 1x HDMI 2.1b - Supports 4K 120Hz, 8K 60Hz
• 3x DisplayPort 2.1b - Up to 8K 120Hz with UHBR20 support
• Maximum Resolution: 7680 x 4320 (8K)
• Multi-Monitor Support: Up to 4 displays simultaneously

⚙️ Software & API Support

• DirectX: 12 Ultimate (Feature Level 12_2)
• OpenGL: 4.6
• Vulkan: 1.4
• CUDA: 12.0
• Shader Model: 6.8
• NVIDIA DLSS 4 - Multi Frame Generation, Super Resolution, Ray Reconstruction
• NVIDIA Reflex 2 - Minimize system latency for competitive gaming
• NVIDIA Broadcast - AI-enhanced voice and video streaming
• NVIDIA Studio - Optimized creative application performance

🔌 Power & System Requirements

• TDP: 145W
• Power Connector: 1x 8-pin PCIe
• Recommended PSU: 300W minimum (500W+ recommended for full system)
• PCIe Interface: PCIe 5.0 x16 (backward compatible with PCIe 4.0/3.0)

📦 Physical Dimensions

• Length: 231mm
• Width: 111mm
• Height (Thickness): 40mm (Dual-Slot)
• Weight: 1.16kg

✅ Package Contents

• 1x Colorful GeForce RTX 5060 Battle AX DUO 8GB-V Graphics Card
• User Manual & Quick Start Guide


🎯 Ideal For

• 1080p Gaming: Ultra settings at 60+ FPS in AAA titles
• 1440p Gaming: High settings with DLSS 4 enabled
• Content Creation: Video editing, 3D rendering, photo editing
• Live Streaming: Hardware-accelerated encoding (AV1, H.264, HEVC)
• Small Form Factor PCs: Compact 231mm length fits mini-ITX cases
• Budget Gaming Builds: Premium features at mid-range pricing

🏆 Why Choose Colorful Battle AX DUO?

The Battle AX DUO series represents Colorful's commitment to delivering high-performance graphics cards in compact form factors. With NVIDIA's latest Blackwell architecture, 8GB of next-generation GDDR7 memory, and advanced cooling technology, this card delivers exceptional value for 1080p/1440p gamers and content creators who demand both performance and space efficiency.
