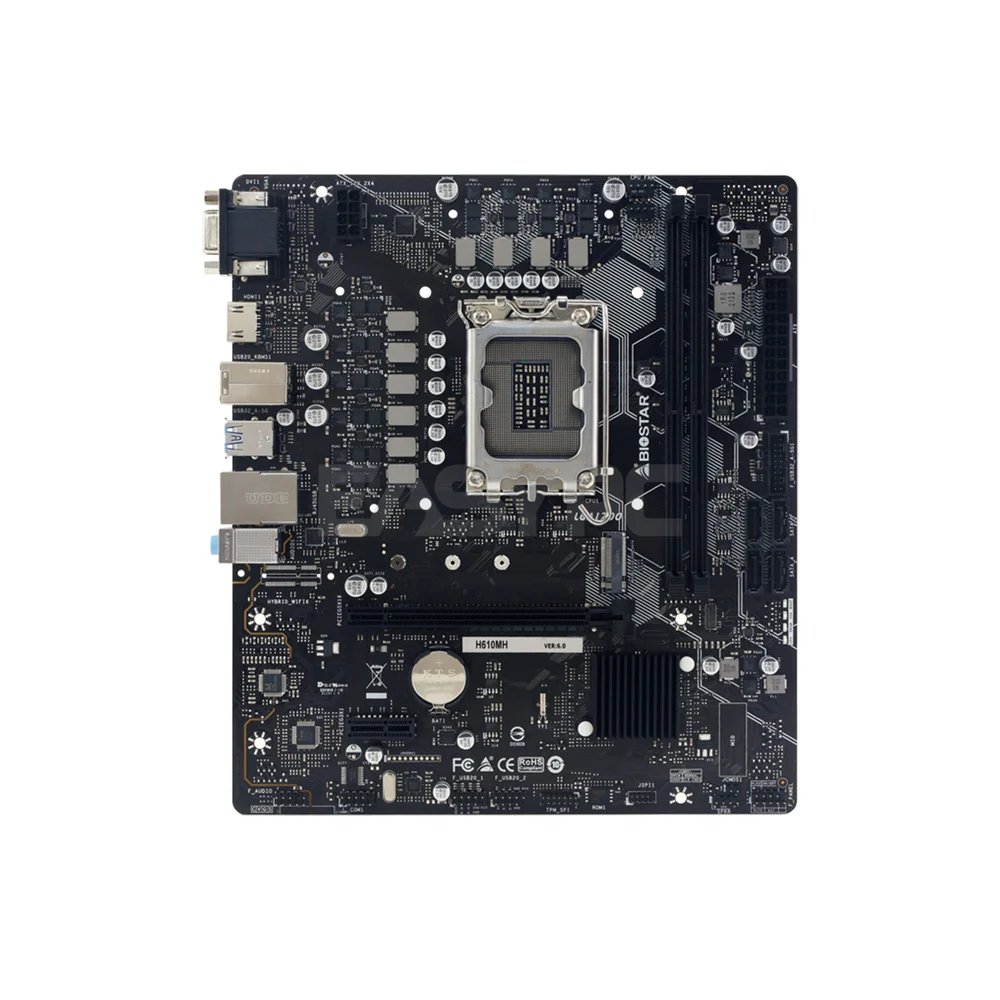

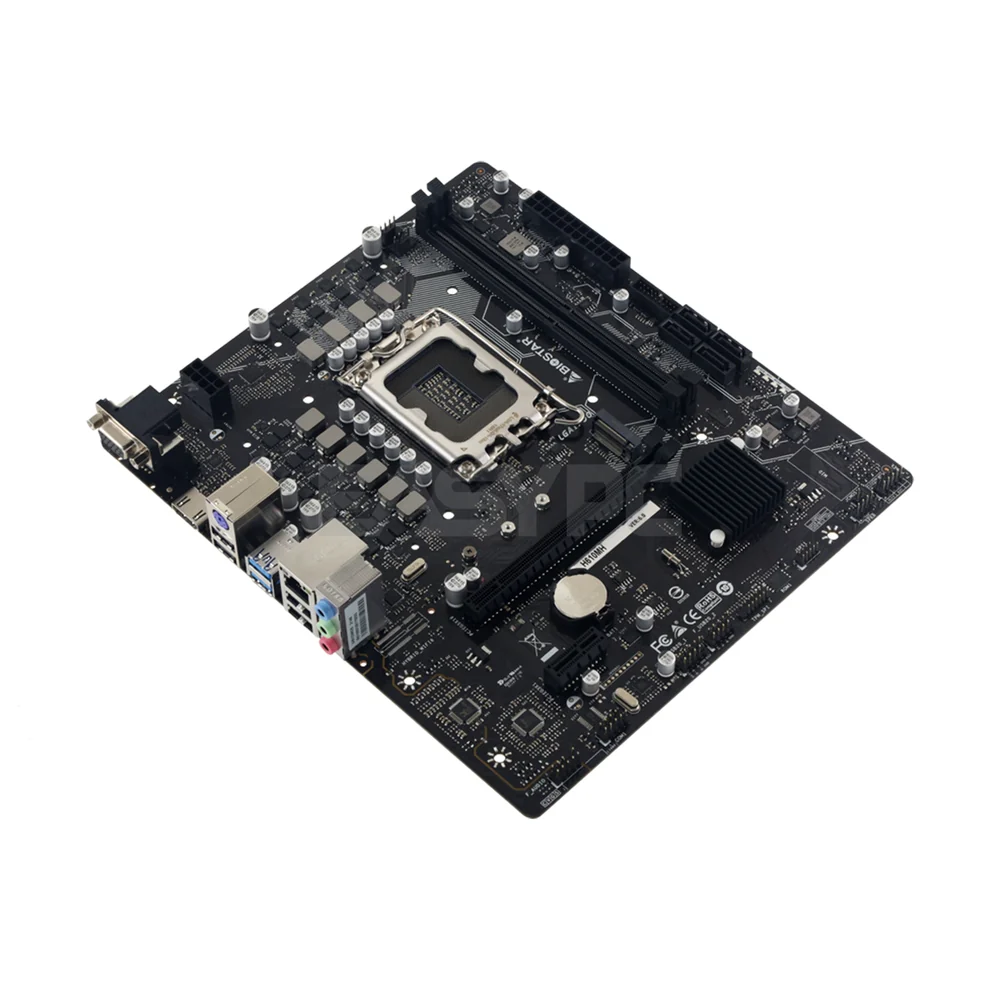

Biostar H610MH Socket LGA 1700 Ddr4 Motherboard

Product Description

 Elevate your system with Biostar H610MH Motherboard. LGA 1700 socket for optimal performance. DDR4 support ensures high-speed efficiency. Unlock seamless functionality and reliability for your build with this advanced motherboard.

Product Specification

• Chipset: Intel H610
• CPU SUPPORT: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
• Please refer to www.biostar.com.tw for CPU support list.
• MEMORY: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
• 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
• Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
• Support Intel Extreme Memory Profile (XMP) memory modules
• Please refer to www.biostar.com.tw for Memory support list.
• INTEGRATED VIDEO: Supports DX12
• Supports HDCP
• STORAGE: -- Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
• 4 x SATA III Connector (6Gb/s)
• 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA):
• Supports M.2 Type 2240 /2260 /2280 SSD module
• Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD
• LAN: Intel I219V
• 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• AUDIO CODEC: ALC897
• 1 Channels, High Definition Audio
• USB: 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
• 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
• EXPANSION SLOT: 1x PCIe 3.0 x1 Slot
• 1x PCIe 4.0 x16 Slot
• REAR I/O: 1 x PS/2 Keyboard/Mouse Port
• 1 x HDMI
• 1 x VGA Port
• 2 x USB 3.2 (Gen1) ports
• 4 x USB 2.0 ports
• 1 x LAN port
• 3 x Audio Jack
• INTERNAL I/O: 4 x SATA III Connectors (6Gb/s)
• 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 1 x 8-Pin Power Connector
• 1 x 24-Pin Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 1 x Front Panel Header
• 1 x Front Audio Header
• 1 x Internal Stereo Speaker Header
• 1 x Clear CMOS Header
• 1 x COM Port Header
• 1 x TPM Header
• H/W MONITORING: CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control
• CPU/DDR Voltage Monitoring
• DIMENSION: Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
• OS SUPPORT: Supports Windows 10 (64bit) / 11(64bit)
• ※Biostar reserves the right to add or remove support for any OS with or without notice.
• BUNDLE SOFTWARE: BullGuard
• ACCESSORIES: 2 x SATA Cable
• 1 x I/O Shield
• 1 x DVD Driver
• 1 x Quick Guide
•
