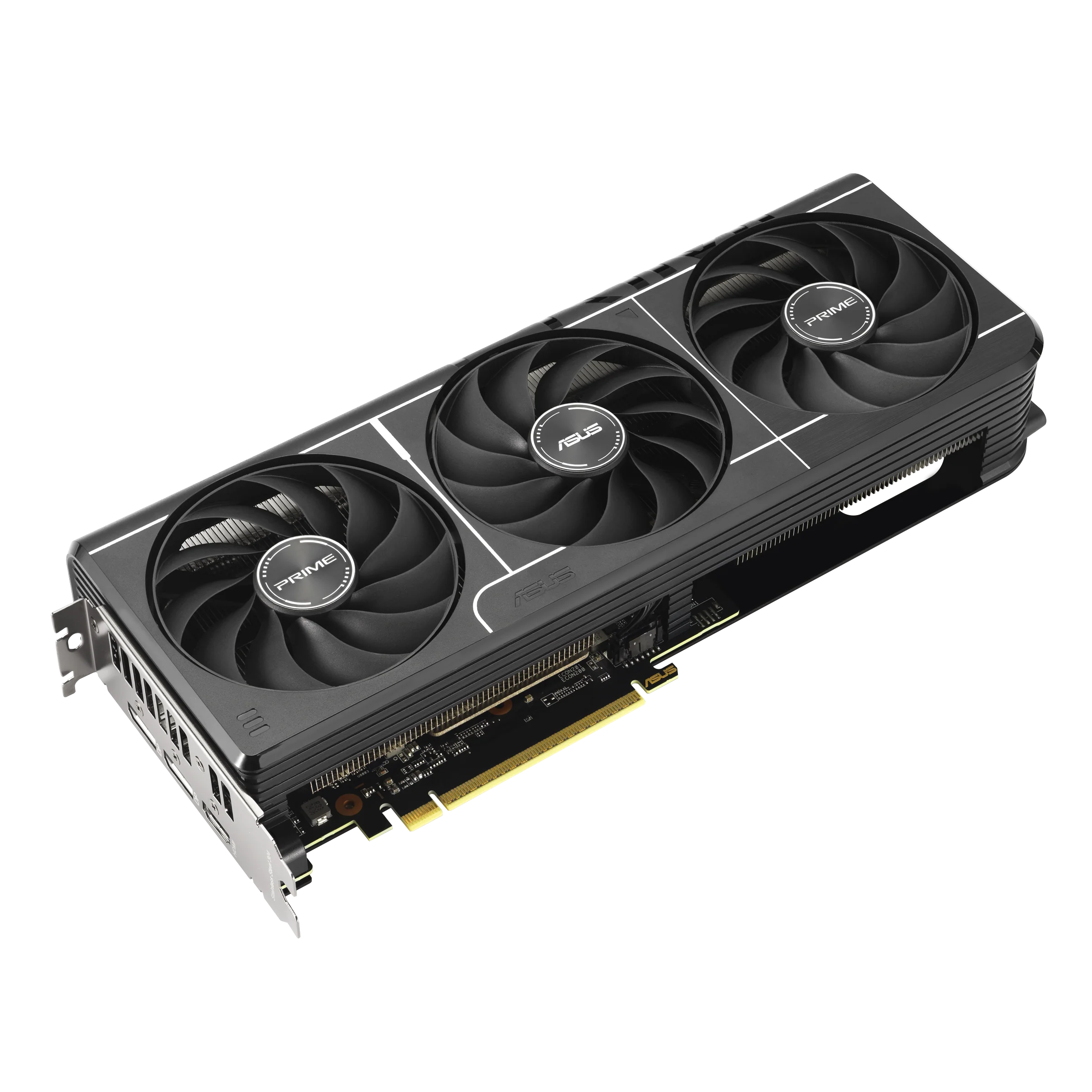

ASUS Prime AMD Radeon RX 9060 XT OC (PRIME-RX9060XT-O16G) 16GB 128-Bit GDDR6 Videocard

ASUS Prime AMD Radeon RX 9060 XT OC Edition - Next-Gen 1440p Gaming Performance

Experience exceptional gaming performance with the ASUS Prime AMD Radeon™ RX 9060 XT OC Edition 16GB GDDR6 graphics card (PRIME-RX9060XT-O16G). Built on AMD's cutting-edge RDNA™ 4 architecture, this powerhouse delivers outstanding 1440p gaming with advanced raytracing capabilities, AI accelerators, and support for AMD FidelityFX™ Super Resolution 4 technology.

Key Features

• RDNA 4 Architecture - Next-generation AMD graphics technology featuring 2048 Stream Processors for exceptional gaming and rendering performance
• 16GB GDDR6 Memory - Massive frame buffer with 20 Gbps memory speed and 320 GB/s bandwidth ensures smooth performance at high settings
• OC Mode Performance - Boost clock up to 3330 MHz in OC mode via GPU Tweak III for maximum frame rates
• Triple Axial-Tech Fans - Advanced cooling design with three Axial-tech fans and dual ball fan bearings for optimal thermal performance
• PCIe 5.0 Interface - Future-proof connectivity with the latest PCI Express 5.0 standard for maximum bandwidth
• DisplayPort 2.1a & HDMI 2.1b - Support for up to 3 displays with 8K resolution capability (7680 x 4320)
• Dual BIOS - Switch between performance and quiet modes for different use scenarios

Technical Specifications

Graphics Processor	AMD Radeon™ RX 9060 XT (Navi 44)
Architecture	RDNA™ 4
Stream Processors	2048
TMUs / ROPs	128 / 64
Video Memory	16GB GDDR6
Memory Interface	128-bit
Memory Speed	20 Gbps
Memory Bandwidth	320 GB/s
Boost Clock (OC Mode)	Up to 3330 MHz
Game Clock (OC Mode)	Up to 2760 MHz
Boost Clock (Default)	Up to 3310 MHz
Game Clock (Default)	Up to 2740 MHz
Bus Interface	PCI Express 5.0
Display Outputs	2 x DisplayPort 2.1a, 1 x HDMI 2.1b
Maximum Resolution	7680 x 4320 (8K)
Maximum Displays	3
OpenGL	OpenGL 4.6
TDP	160W
Power Connector	1 x PCIe 8-pin
Slot Width	2.5 slots
Card Length	304 mm (11.97 inches)
Cooling Design	Three Axial-tech Fans with Dual Ball Fan Bearings

Advanced Gaming Technologies

• AMD FidelityFX™ Super Resolution 4 - AI-powered upscaling for better performance without sacrificing image quality
• Hardware Raytracing - Realistic lighting, reflections, and shadows in supported games
• AI Accelerators - Dedicated hardware for enhanced AI-powered graphics features
• GPU Tweak III - Intuitive performance tuning and monitoring software included

Cooling & Design Features

• Axial-tech Fan Design - Smaller fan hub allows for longer blades and improved airflow
• Dual Ball Fan Bearings - Up to twice the lifespan of sleeve bearings for long-term reliability
• 2.5-Slot Design - Optimal balance between cooling performance and compatibility
• GPU Guard Backplate - Reinforced backplate protects components and provides additional cooling
• Auto-Extreme Technology - Automated manufacturing for enhanced reliability and quality

System Requirements

• PCI Express-compliant motherboard with one dual-width x16 graphics slot
• Minimum 500W power supply with one 8-pin PCIe power connector
• Windows 11 / Windows 10 (64-bit) or Linux (64-bit)
• Minimum 16GB system RAM recommended for optimal gaming performance

Perfect For

• 1440p gaming at high-ultra settings
• Content creation and video editing
• 3D rendering and design work
• Streaming and recording gameplay
• VR gaming and immersive experiences
