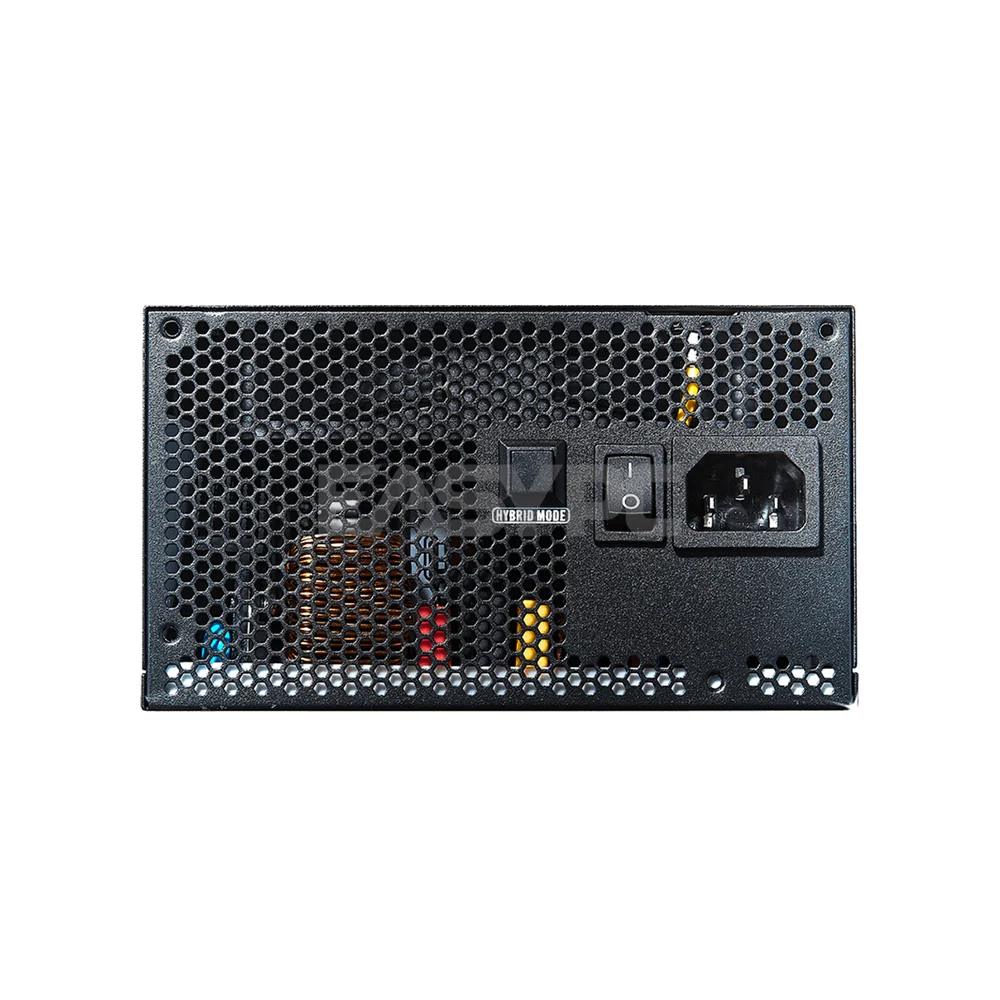

Antec NeoEco 850w, 750w and 650w 120mm Silence Fan Gold Fully Modular Japanese Heavy-Duty Caps Power Supply 19GLO

Product Specifications

• Brand: Antec
• Model: NeoEco
• Capacity: NE850G M 850w, NE750G M 750w and NE650G M 650w
• Model Name: X7000A083-20 (NE850G M)
• Model Name X7000A081-17 (NE750G M)
• Model Name X7000A078-20 (NE650G M)
• Type: ATX 12V 2.4
• Modular: Fully
• Dimension: 150(L) x 140(W) x 86(H)
• Input Voltage: 100-240 VAC
• Input Current: 10A MAX
• Input Frequency Range: 50Hz-60Hz
• PFC: Active PFC
• Power Good Signal: 100-500ms
• Efficiency: Up To 92%
• Protection: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
• Output Capacity: 850W, 750W and 650W
• Operation Temperature: 0~40°C
• Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BIS/ BSMI / KC / UKCA / ICES
• Fan: 120mm Silence Fan
• Certifications 80 Plus Gold
• Connector:
• 1 x MB 24(20+4) Pin
• 2 x 8(4+4) Pin EPS 12V
• 6 x 8(6+2) Pin PCI-E (850W)
• 4 x 8(6+2) Pin PCI-E (750W) and (650W)
• 10 x SATA (850W)
• 8 x SATA (750W) and (650W)
• 5 x Molex (850W)
• 4 x Molex (750W)
• 3 x Molex (650W)
• 1 x FDD
• Net Weight (850w): 1.38 kgs
• Net Weight (750w): 1.37 kgs
• Net Weight (650w): 1.30 kgs
• Gross Weight (850w): 2.55 kgs
• Gross Weight (750w): 53 kgs
• Gross Weight (650w): 2.50 kgs
• Features:
• 120mm Silent Fan: Features improvement for airflow and excellent durability.
• Zero RPM Mode: The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
• Japanese Heavy-Duty Caps: Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.
• PhaseWaveTM LLC + DC to DC Design: A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
• 100% Full Modular: Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
